Happymodel SE0802 0802 16000KV 19000KV 22000KV 25000KV 1-2S Brushless Motor for Mobula7 Mobula6 RC Drone FPV Racing

Specification:
Brand name: Happymodel
Item name: SE0802 1-2S brushless motor
KV: 16000KV, 19000KV 22000KV (option)
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1-2S
Wire length(include connector): 40mm
Weight: 1.9g

16000KV Suit for Mobula7 2S Whoop FPV Racing Drone
19000KV Suit for Snapper7 1S Whoop FPV Racing Drone
25000KV Only Support 1S Lipo

Features:
Super tiny only 1.9g
Double E-clip design, prevent Motor bell to flying off
Good Dynamic balance

Package Included:
1 x SE0802 brushless motor

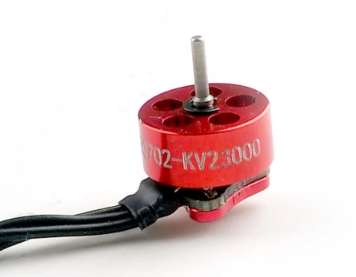

1.5g Happymodel SE0702 0702 23000KV 1S Brushless Motor 1mm Shaft for Mobeetle6 Tiny Whoop RC Drone FPV Racing

Introduction:

The lightest brushless motors all over the world , the weight is around 1.5gram.
You can build an extreme weight tiny whoop with this amazing motors.

Specifiction:

Brand Name: Happymodel

Item Name: 0702 23000KV 1S Brushless Motor

Mode: SE0702

Quantity: 1 PC Only
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.5g
No.of Cells(Lipo): 1S only

With solder PCB

Application: Original Replace Motor for Mobeetle6 FPV Racing Drone

Pacakge Included:

1x SE0702 23000KV Motor

Happymodel RS0802 Brushless Motor - 20000KV

Specifications

• No. of Cells(Lipo): 20000KV compatible with only 1S lipo
• Motor Dimensions: 10.5x13.5mm
• Wire Length (without connector): 30mm
• Item Name: RS0802 brushless motor
• Brand Name: Happymodel
• Shaft Diameter: 1.5mm
• Terminals: JST1.25mm
• Stator Diameter: 8mm
• Configuration: 9N12P
• Stator Length: 2mm
• KV: 20000KV
• Weight: 2g

Includes

• 1x Happymodel RS0802 Brushless Motor - 20000KV

1PC Happymodel EX0802 1~2S 14000KV/19000KV/25000KV Brushless Motor for Mobula6 Mobula6 HD - 25000KV

Specifications:

Brand name: Happymodel

Item name: EX0802 brushless motor

KV: 14000KV 19000KV 25000KV optional

Shaft Diameter: 1.0mm

Configuration: 9N12P

Stator Diameter: 8mm

Stator Length: 2mm

Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm

Terminals: JST1.25mm

No.of Cells(Lipo): 19000KV/25000KV compatible with only 1S lipo; 14000KV compatible with 1-2S lipo

Wire length(include connector): 27mm

Weight: 1.7g

Features:

The lightest 0802 brushless motors around the world only 1.7g

Double E-clip design, prevent Motor bell to flying off

Good Dynamic balance

Package Included:

1* EX0802 14000KV/19000KV/25000KV brushless motor
