Radiomaster Bandit 915MHz Receiver

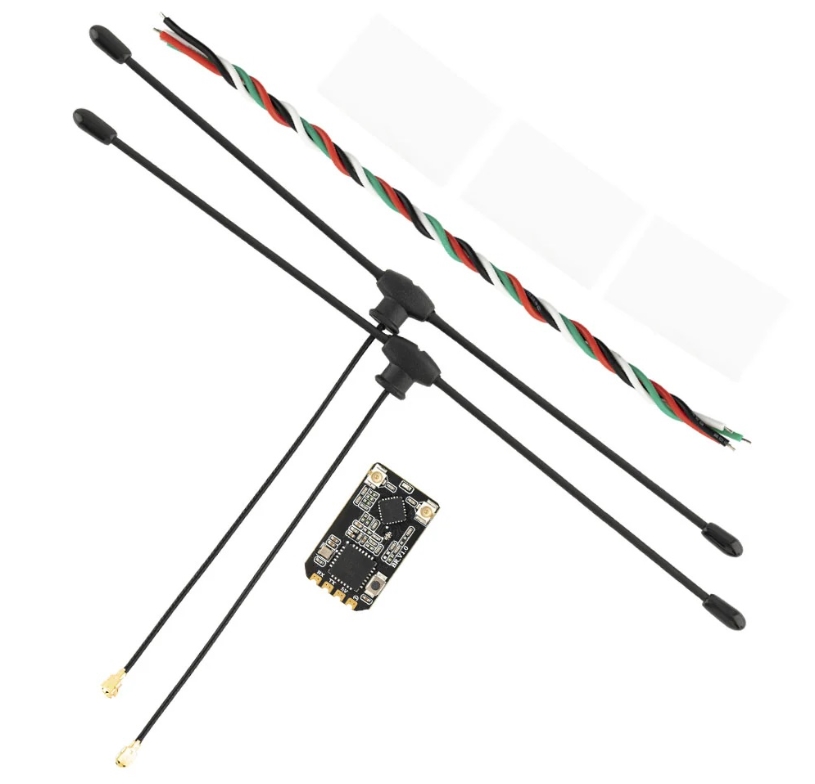

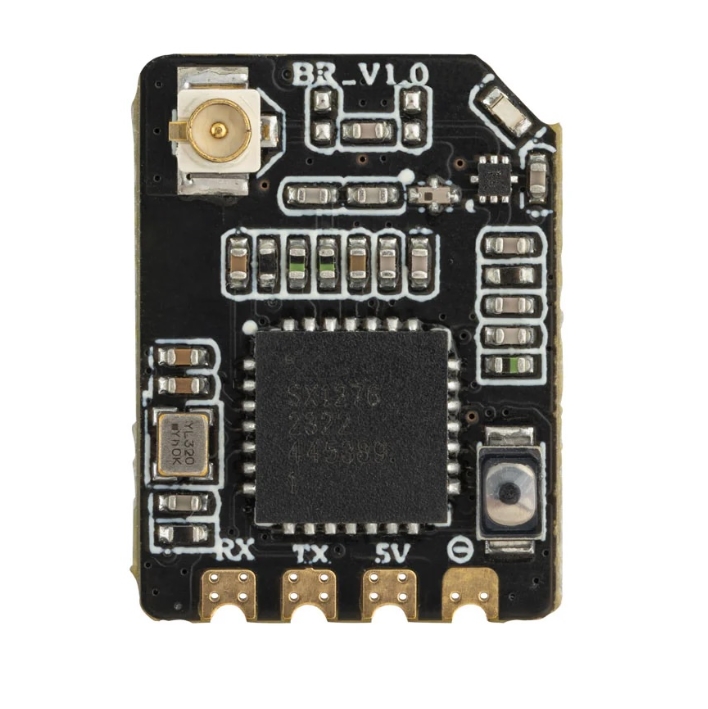

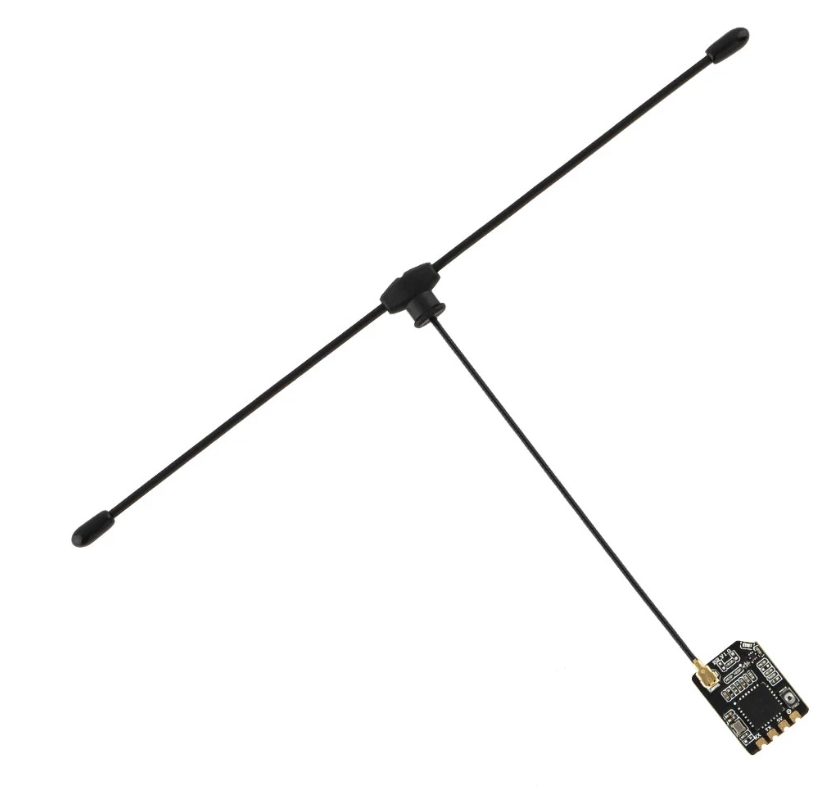

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Features

• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration
• Lightweight and compact design
• High-sensitivity 915/868MHz T Antenna included

Specifications

• Item: Bandit BR1 Expresslrs Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF Power: 50mw/17dbm
• Antenna: 915/868MHz T Antenna & Y Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 5.0V
• Dimension: 18*13.8mm
• Weight: 2.9g (with T antenna)

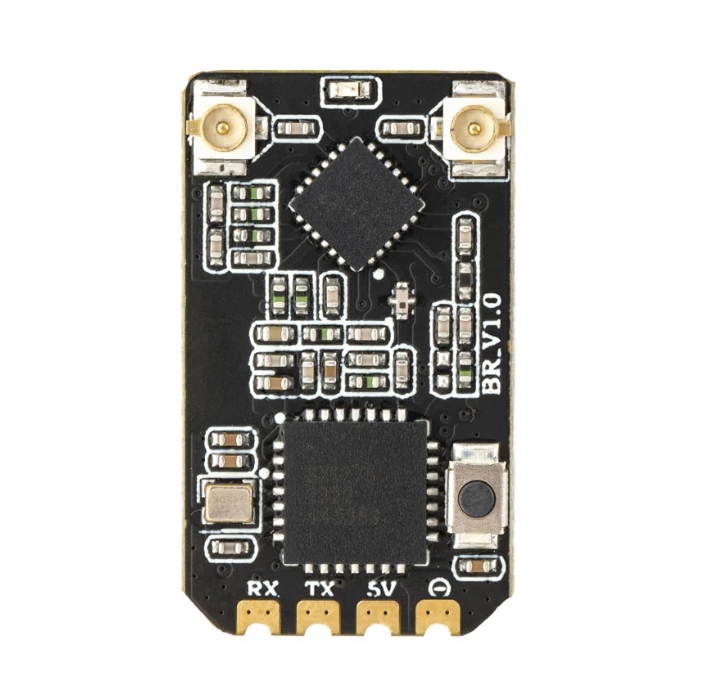

Bandit BR3 Expresslrs Receiver features a huge 500mw of telemetry output making it ideal for long range applications. The ESP8285 MCU and SX1276 RF chip are renowned for low latency, high sensitivity and exceptional long-range performance. The included T Antenna is optimized for long range performance.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR3 Expresslrs Receiver is ideal for FPV freestyle or Long Range

Features

• Maximum 500mW telemetry RF power
• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration
• Dual 915/868MHz T Antenna for improved signal stability and range

Specifications

• Item: Bandit BR3 ExpressLRS Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF power: 100mW - 500mW LUA Adjustable
• Antenna: 915/868MHz T Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 4.5-8.4V
• Dimension: 24*14.2mm
• Weight: 5.5g (with antennas)
•
•
