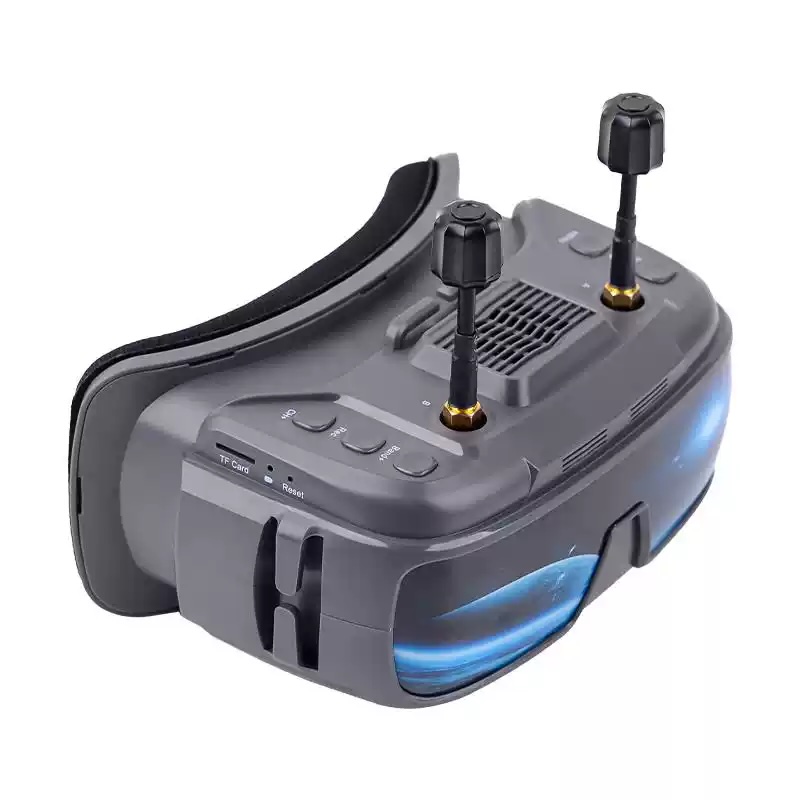

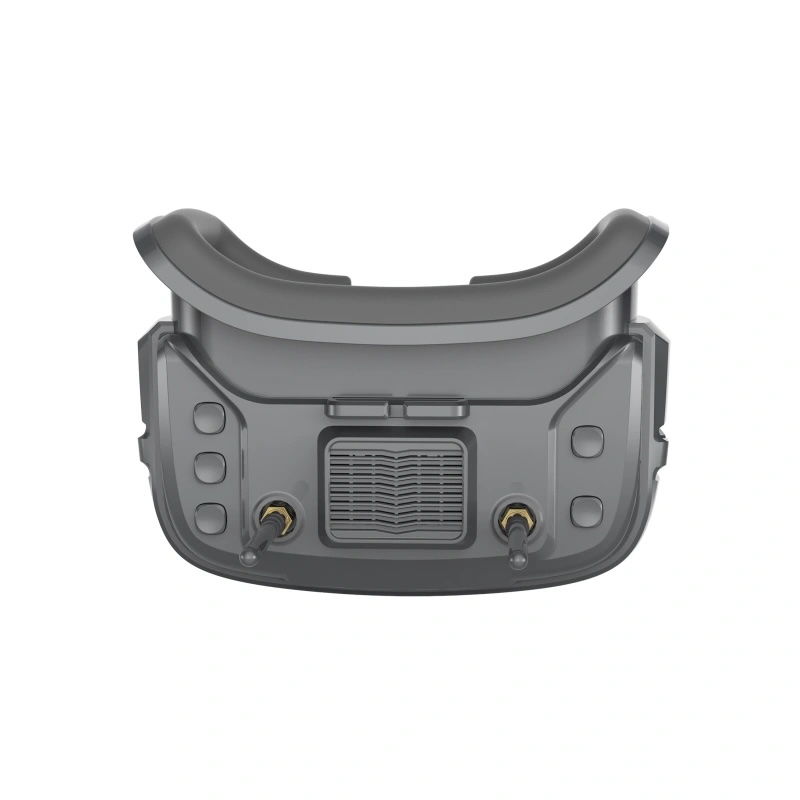

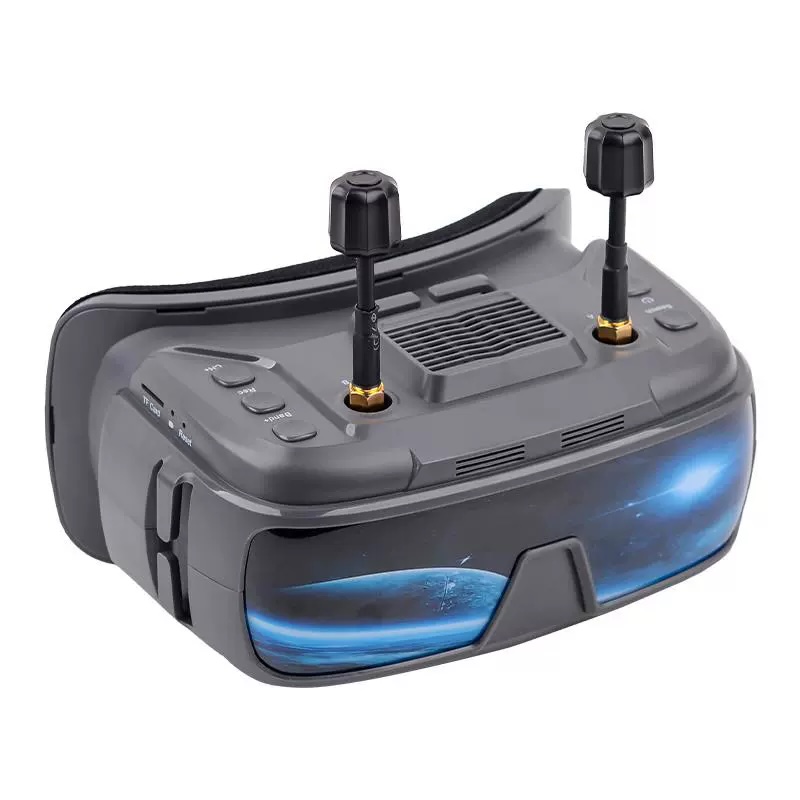

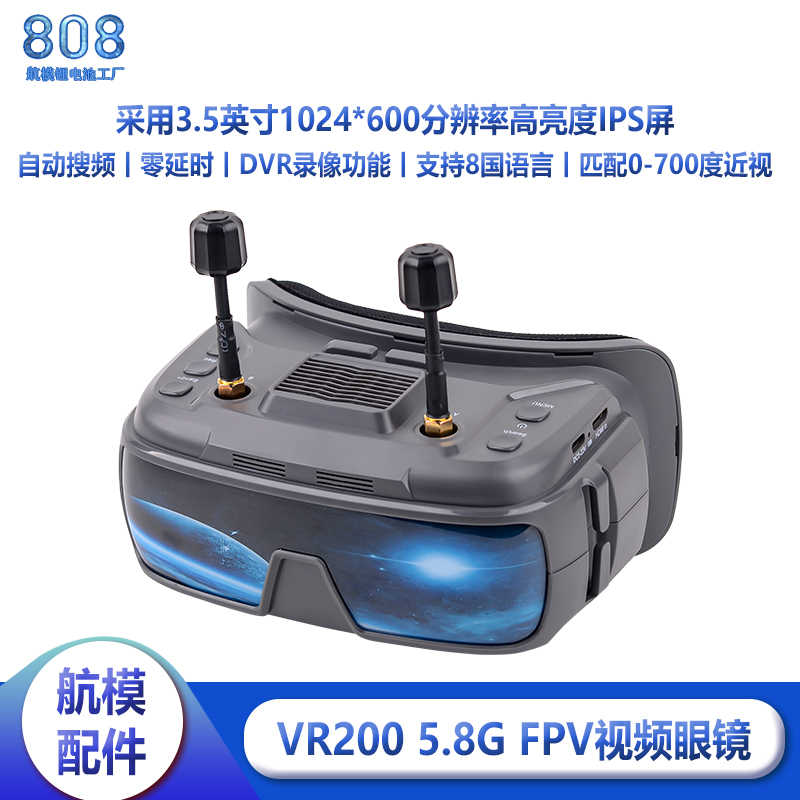

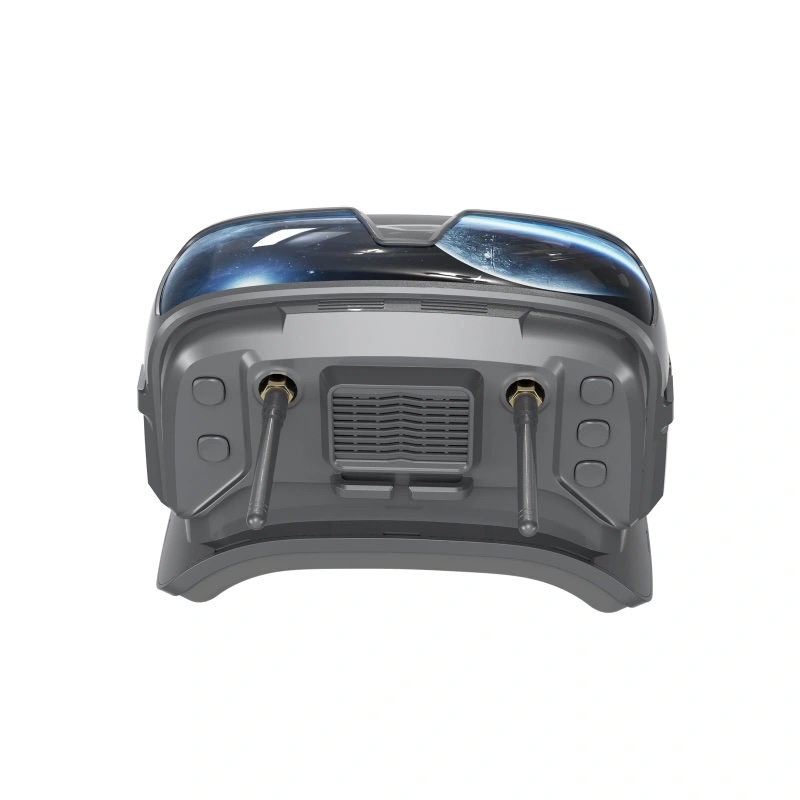

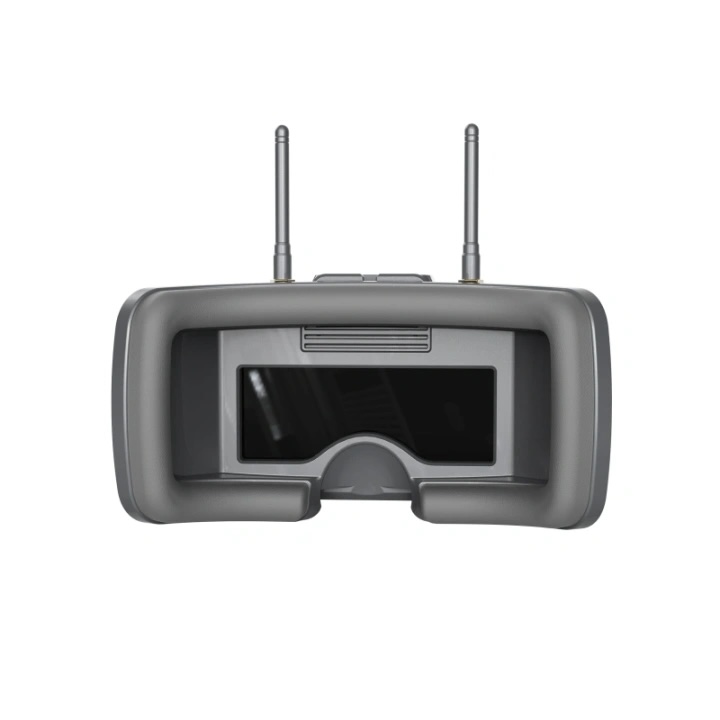

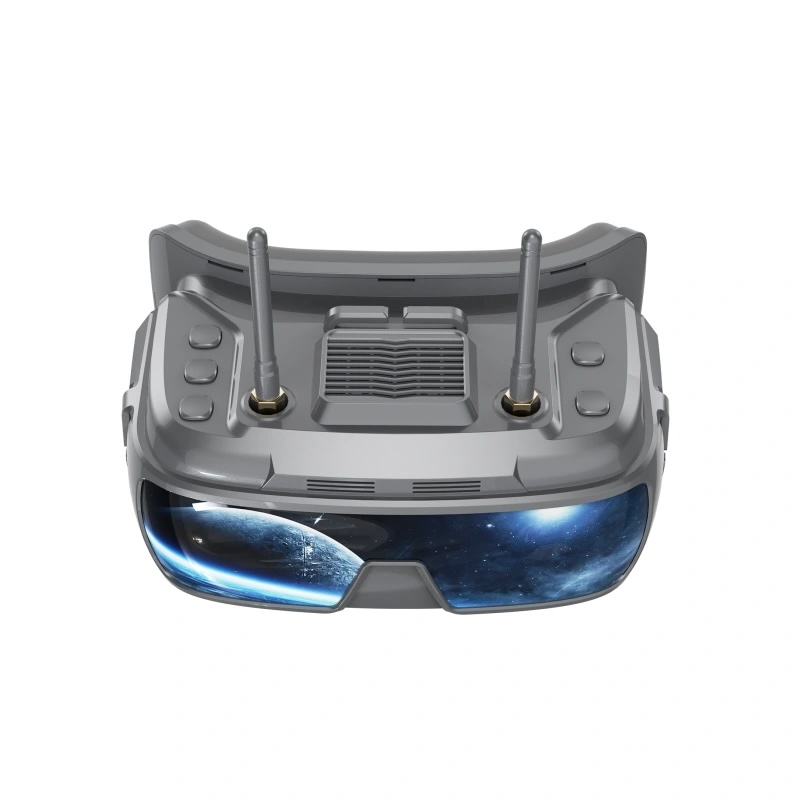

VR200 DMKR | 3.5-inch 5.8GHz FPV Goggles 40CH Support DVR แว่นบันทึกได้ 2เสา รับสัญญาณ

New refractive optical path design, small size and light weight;

The object distance can be adjusted to match 0-700 degree myopia

Low power consumption, working current of 1100mA;

High-sensitivity dual-filtering 5.8G receiving module, strong anti-interference, dual diversity reception, and more stable signal;

The module adopts universal 40 channels with automatic frequency searching function;

Adopt 3.5-inch 1024*600 resolution high brightness IPS screen;

Built-in 3.7V/2000mAh large-capacity li-polymer;

Universal TYPE-C charging interface, which supports 5-23V wide voltage charging;

Real-time video return with zero delay;

Support menu in 8 languages;

Support external HDMI signal input;

Support HDMI signal video input DVR for recording;

Key/Interface Function Description:

1. Video instruction: Display different working states of DVR.

2. TF card: TF card slot (maximum 32G high-speed memory card can be inserted)

3. Adjusting gear A: Rotating the gear can push the position of the inner lens to move, thus adjusting the object distance.

4. Power button: long press (3 seconds) to turn on/off; Short press to enter the menu and switch to the next menu every time you press it.

5. Search button: short press the automatic search signal (finally lock the frequency point with the strongest signal). Long press for 3 seconds to enter the HDMI input mode.

6. Antenna head A: Inner needle antenna head is equipped with SMA inner hole antenna.

7. Fan outlet

8. Antenna head B: Inner needle antenna head is equipped with SMA inner hole antenna.

9. Band+button: short press to switch frequency band (cyclically switch A-B-E-F-R frequency band). In menu mode, it is-.

10. RED button: short press to start recording/stop recording.

11. CH+key 11: short press to switch frequency points (cyclically switch frequency points 1-2-3-4-5-6-7-8), which is+in menu mode.

12. Adjusting gear B: Rotating the gear can push the position of the inner lens to move, thus adjusting the object distance.

13. Charging port: TYPE-C interface is adopted to support DC5-23V charging.

14. Charging instruction: red when charging, and green when full.

15. HDMI interface: mini HDMI jack is adopted to support external video input.

Menu instruction:

In boot mode, press Power briefly to enter the menu bar.

In the menu bar mode:

Key 4: Scrollable option

Key 5: Automatically search for channels.

Key 9: Parameter Adjustment+

Key 10: Invalid

Key 11: Parameter Adjustment-

Playback instruction:

In menu mode, select DVR option to enter DVR playback mode.

In DVR mode:

Key 4: Return/Exit the playback mode.

Key 5: Delete the current file.

Key 9: Select video forward/adjust fast forward when playing video.

Key 10: Play/Pause

Press key 11 to select the video backward/adjust the rewind when playing the video
