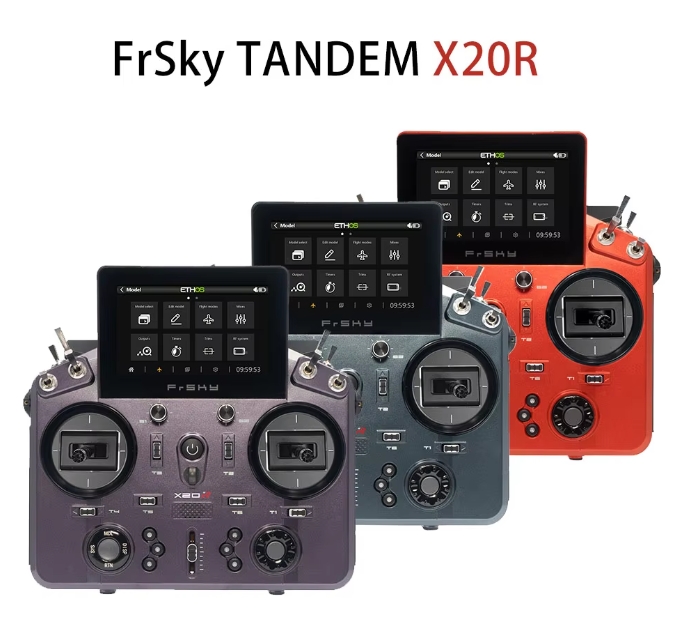

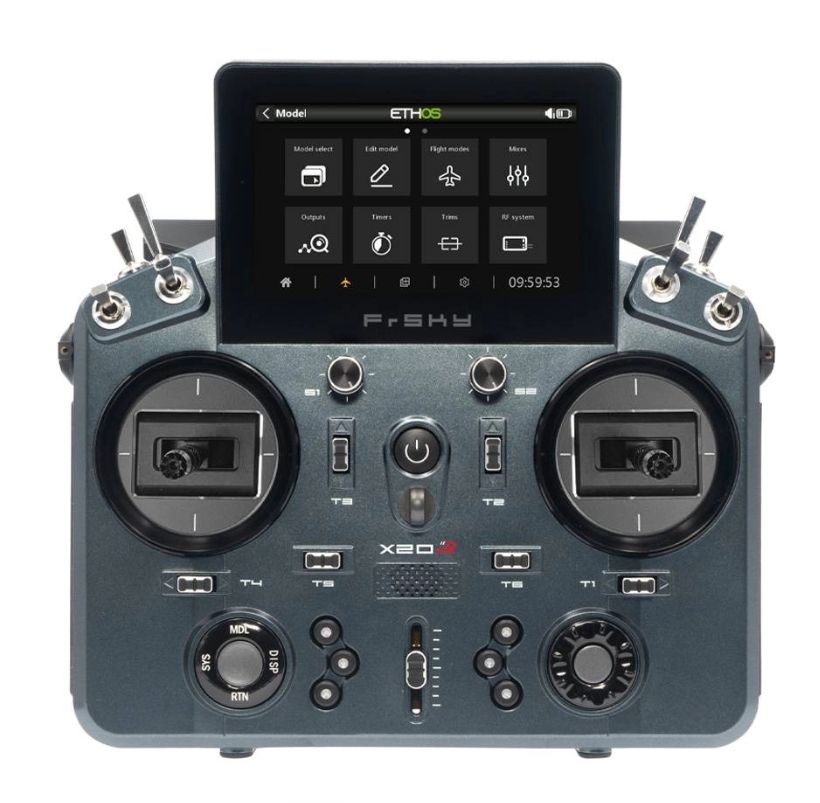

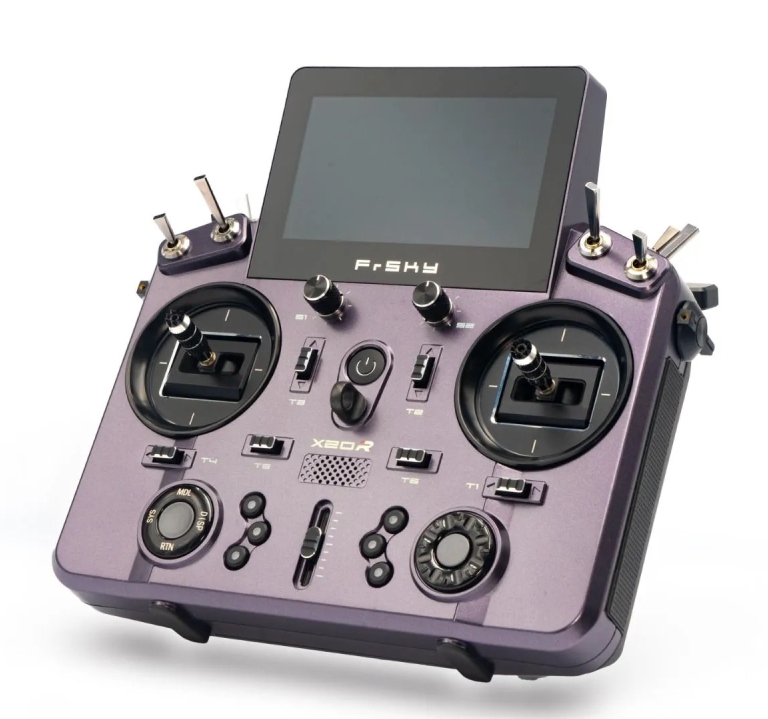

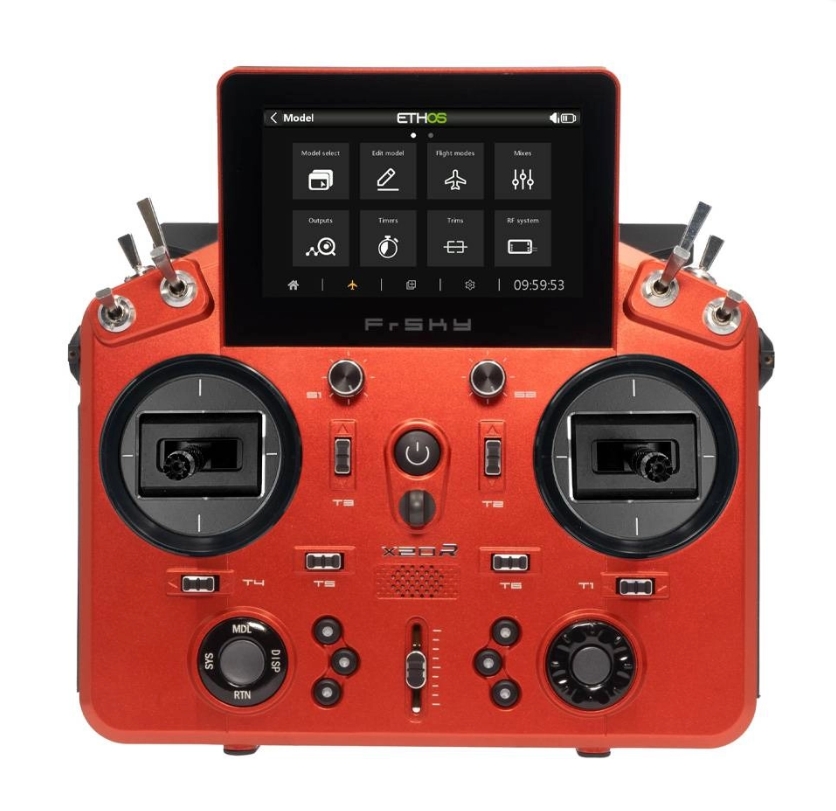

FrSky Tandem X20R Radio 900MHz/2.4GHz Dual Band

FEATURES

• Built-in TD-ISRM Pro Dual-Band Internal RF Module
  - 900M/2.4G Dual Band TD Mode
  - Dual 2.4G TW Mode
  - ACCESS 2.4G & ACCESS R9 Modes
  - 2.4G ACCST D16 Mode
• Further Improvements on Form Factor and Design
• Super Low-Latency and Long-Range Control with Telemetry
• Upgraded Robust Antenna Handle
• 900M/2.4G External Antenna Connectors (LoRa mode)
• 800×480 Resolution Outdoor High Brightness Touchscreen
• 2 Angle Adjustable Slider Levers
• 2 Knobs, 4 Standard Trims with 2 Extra Trims
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• All Knobs, Trims, and Central Linear-Slider with All-CNC Metal Caps
• Built-in 8GB Flash Drive Storage
• (RS) Text to Speech (TTS) Function
• Digital Audio Power Amplifier
• Built-in 6-axis Gyroscope Sensor
• High-Speed PARA Wireless Training System
• Data Transmission & Recharge System via USB Type-C Interface
• Haptic Vibration Alerts and Voice Speech Outputs
• (R) M20 High-Precision Hall-Sensor Gimbals with Metal Panel
• (RS) MC20R All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
  - Dual-side haptic stick feedback (Left/Right can do vibration independently.)
  - Easy Travel-adjustable with any desired degree from 45° to 60°
  - 8° rotatable gimbal panels

SPECIFICATIONS

• Dimension: 205*213*90mm (L*W*H)
• Weight: 892g(Battery Excl.) / 1024g(Battery Incl.)
• Operating System: ETHOS
• Internal RF module: TD-ISRM Pro
• Number of Channels: Up to 24
• Built-in Flash Storage: 8GB
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Temperature: -10°C~60°C (14°F~140°F)
• Operating Current: 600mA@7.4V (typ.)
• Charging Current: ≤1A ±200mA
• Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit LCD Touchscreen / Resolution: 800*480
• Compatibility: ACCST D16 & ACCESS & TD & TW receivers
• Lite Type External Module Bay
