Radiolink R16F 16 Channels RC Receiver, Voltage Telemetry Long Range Control for Airplane, Jet, Boat, Car Works for RC Transmitter T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3

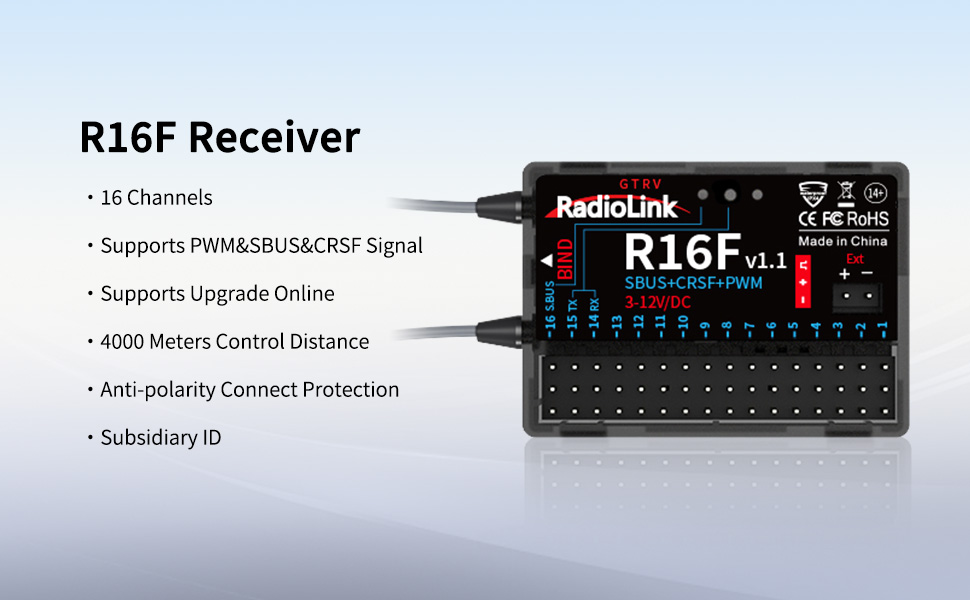

R16F Receiver

• 16 Channels
• Supports PWM&SBUS&CRSF Signal
• Supports Upgrade Online
• 4000 Meters Control Distance
• Anti-polarity Connect Protection
• Subsidiary ID

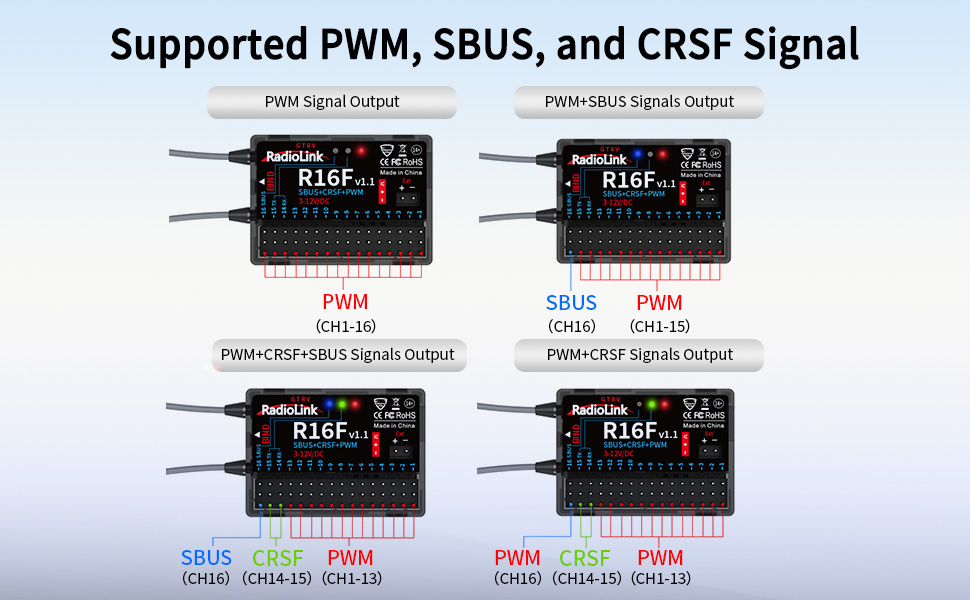

Supported PWM, SBUS, and CRSF Signal

1. PWM working mode: Red LED always on indicates PWM signal output, 16 channels total.

2. PWM+SBUS working mode: Blue and red LED always on indicates PWM+SBUS signals output. CH1 to CH15 are with PWM signal output while CH16 with SBUS signal output.

3. PWM+CRSF+SBUS working mode: Blue, green, and red LED always on indicates PWM+CRSF+SBUS signals output. CH1 to CH13 outputs the PWM signal, CH14 to CH15 outputs the CRSF protocol, and CH16 outputs the SBUS signal.

4. CRSF+PWM working mode: Green and red LED always on indicate CRSF+PWM signals output. CH1 to CH13, and the CH16 output the PWM signal, CH14 to CH15 outputs the CRSF protocol.

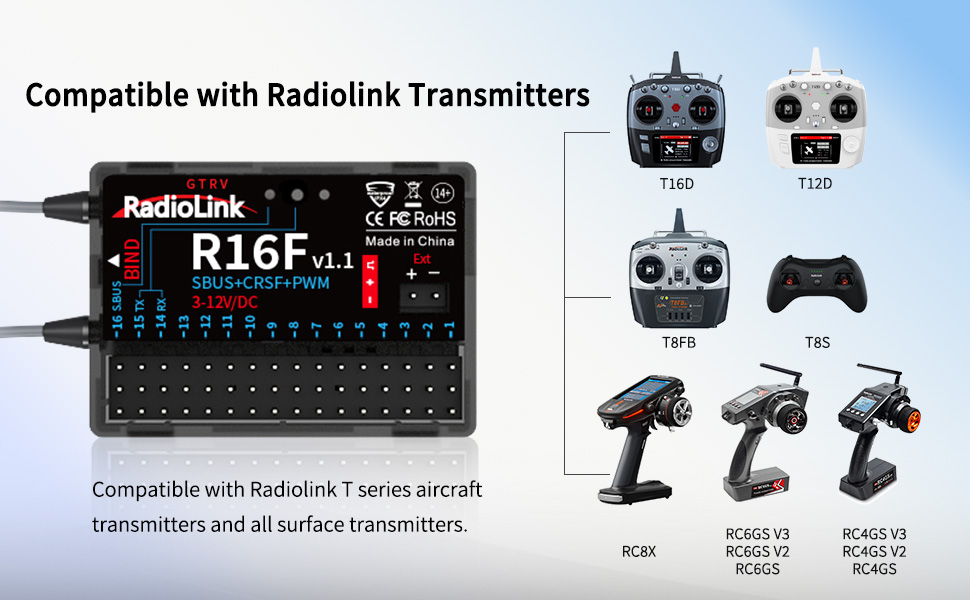

Compatible with RadioLink T16D, T12D, T8FB, T8S, RC8X, RC4GS V3/RC4GS V2/RC4GS, RC6GS V3/RC6GS V2/RC6GS transmitters.

1. T series aircraft transmitters: T16D, T12D, T8FB, T8S

2. Surface transmitters: RC8X, RC4GS V3/RC4GS V2/RC4GS, RC6GS V3/RC6GS V2/RC6GS

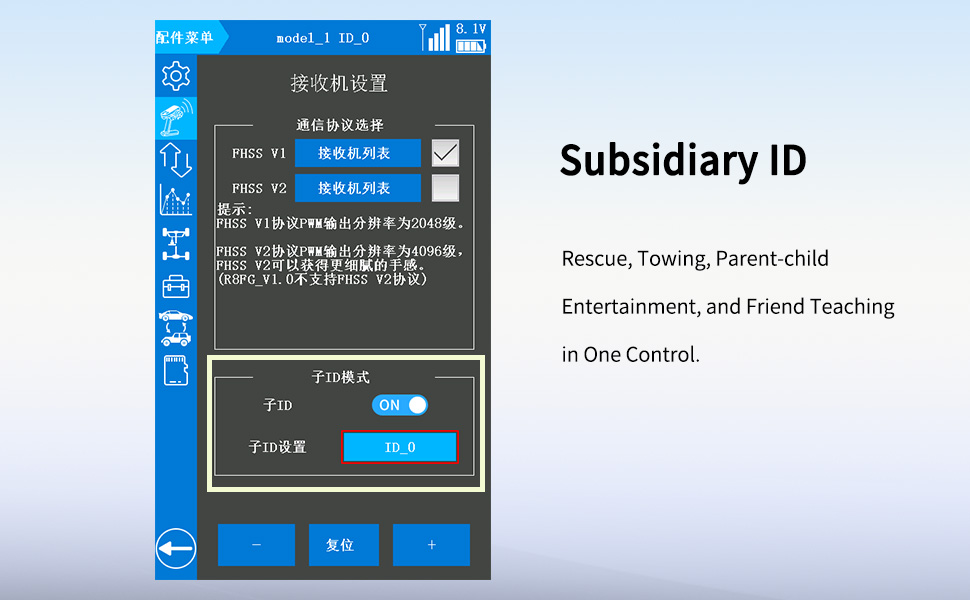

Subsidiary ID

Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.

Example 1: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage. At this time, ship No. 2 can be switched to tow to rescue.

Example 2: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.

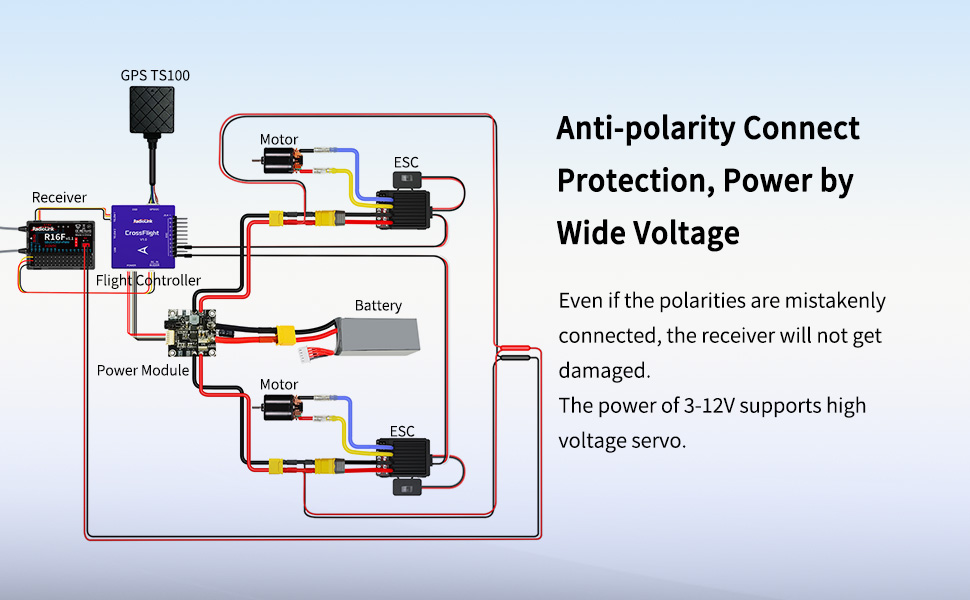

Power by Wide Voltage

The power of 3-12V supports high voltage servo.

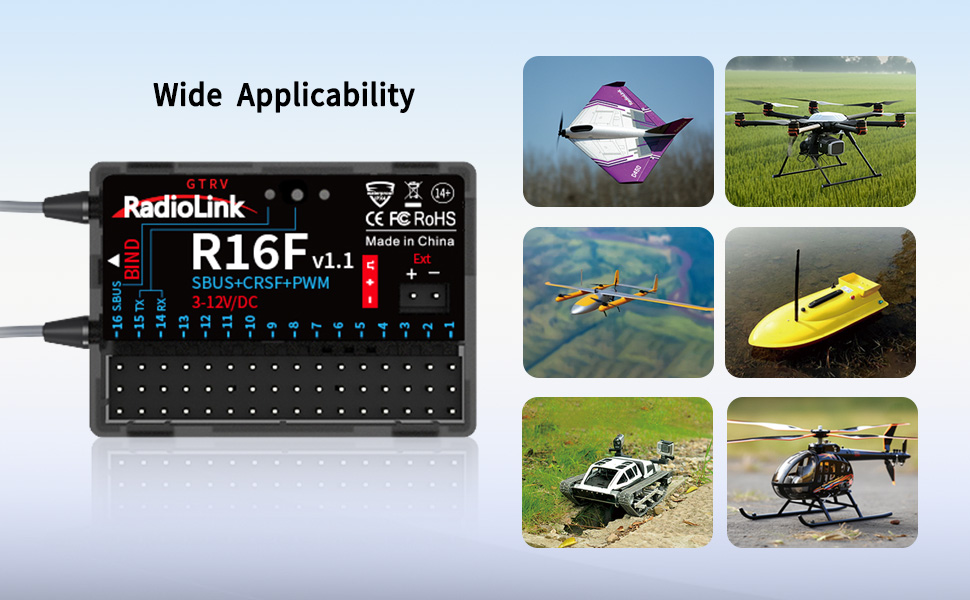

Wide Applicability

R16F, with 16 channels output, is compatible with helicopters, fixed-wing, gliders, multi-rotors, engineering vehicles, racing boats, robots, lawnmowers, bait boats, mechas, and more.
