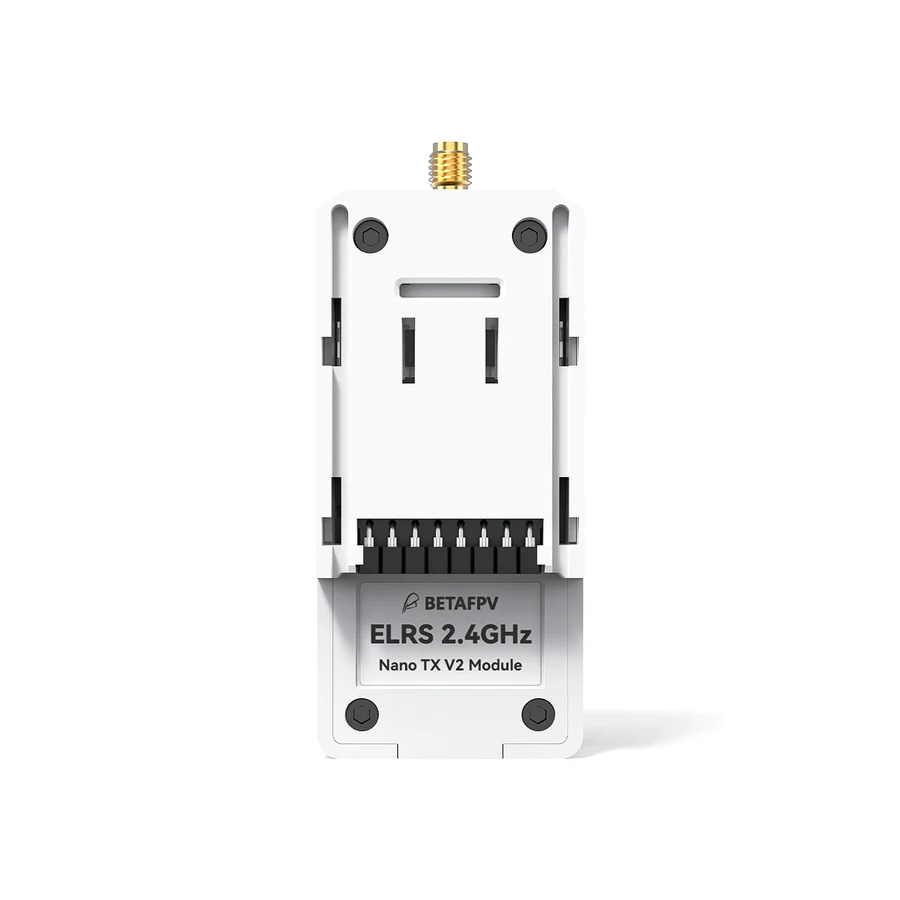

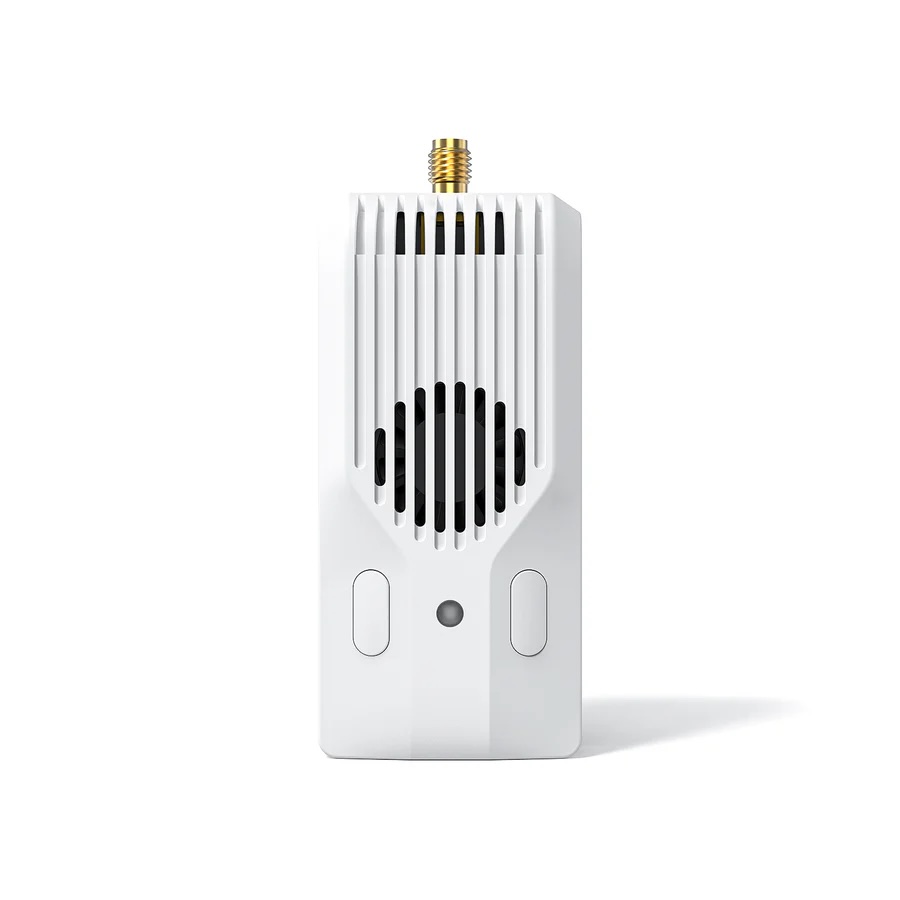

BETAFPV ELRS Nano TX V2 Module - ELRS 2.4GHz

The BETAFPV Nano TX V2 Module - ELRS 2.4GHz is packed with upgrades for an unrivaled pilot experience. Featuring the innovative T-LED antenna with its flicker frequency indicating signal transmitting and module connection status. Up to 1W/2W power empowers stable links for FPV racing, long-range flight, and professional photography. Seamlessly integrate with a backpack and customize buttons. Enjoy fluent flying with the 1804 cooling fan. Unleash your full potential with the Nano TX V2 Module.

• Long Range with Stable Link Quality
• 1W & 2W Output Power
• Custom Buttons

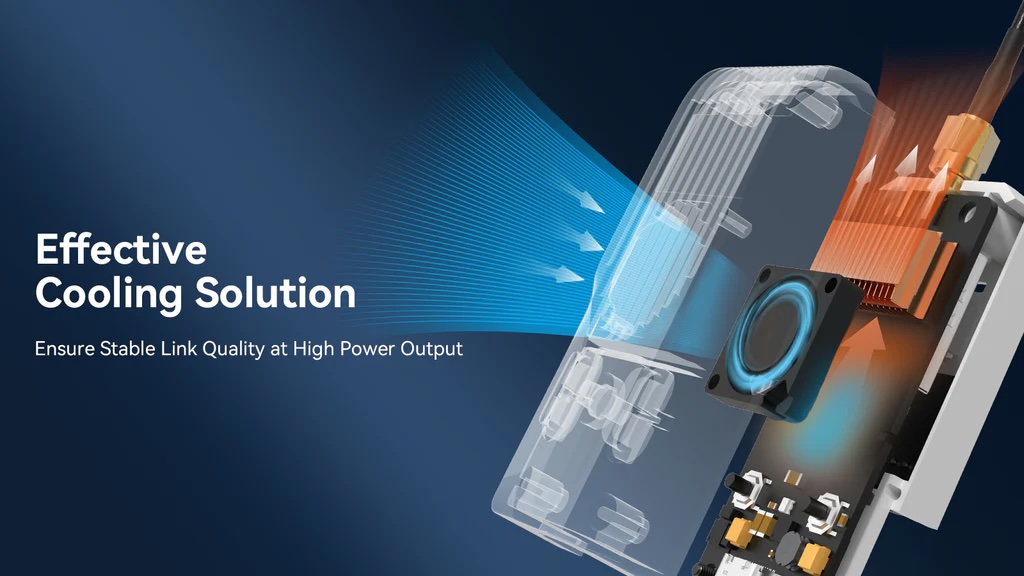

• Cooling System

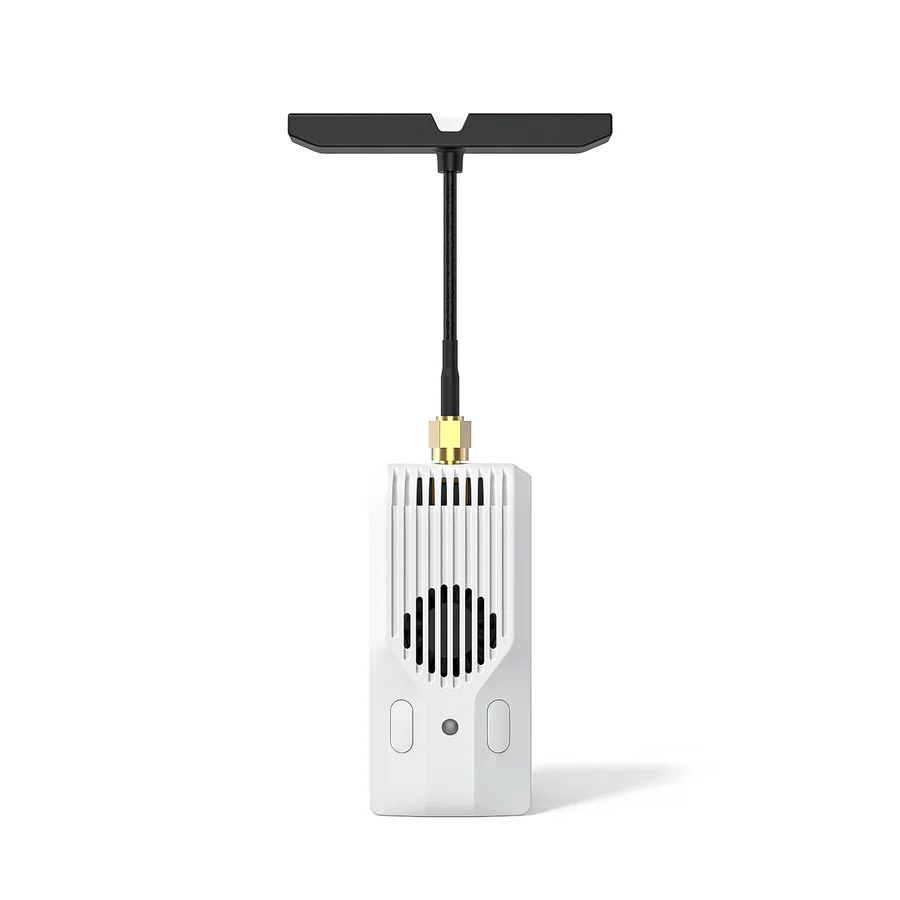

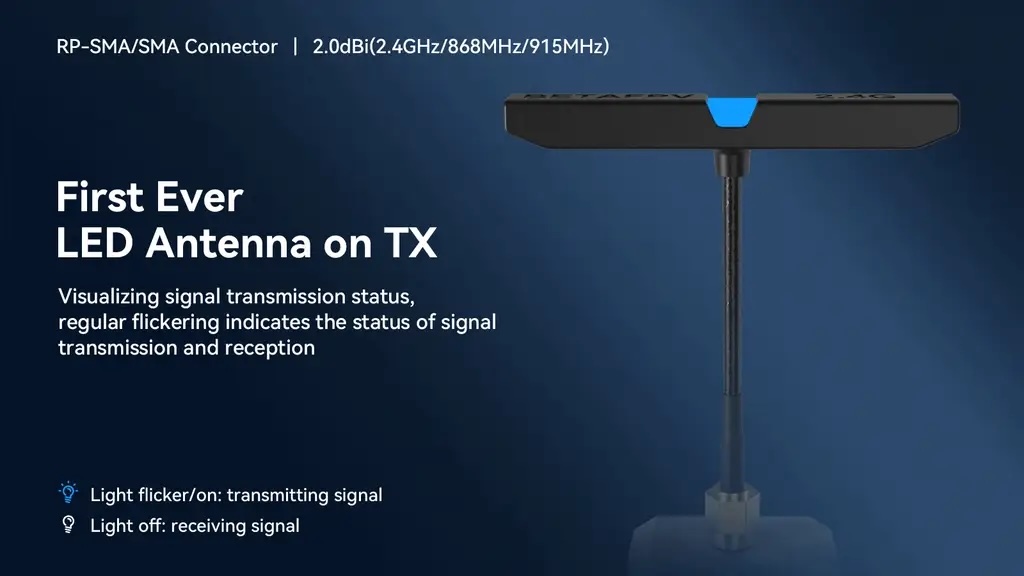

• T-LED Antenna

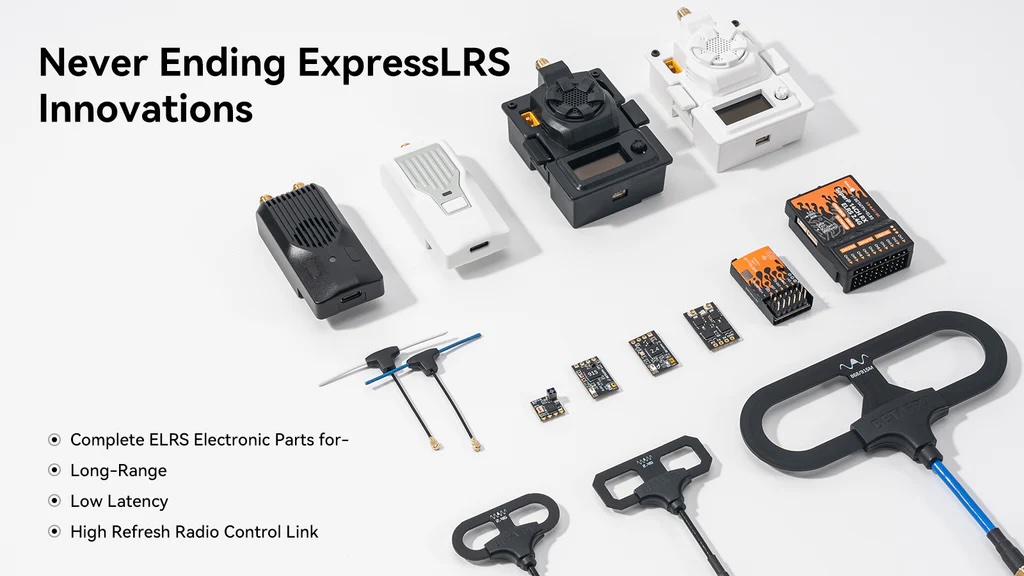

• ELRS Series

• RF Power (915/868MHz): 10mW/25mW/50mW/100mW/250mW/500mW/1000mW/2000mW
• Packet Rate (2.4GHz): 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
• Power Consumption (915/868MHz): 8V, 1000mA @ 1000mW, 50Hz, 1:128
• Packet Rate (915/868MHz): 25Hz/50Hz/100Hz/100Hz Full/200Hz/D50
• RF Power (2.4GHz): 25mW/50mW/100mW/250mW/500mW/1000mW
• Item: BETAFPV Nano TX V2 Module | ELRS 2.4GHz/915MHz/868MHz
• Power Consumption (2.4GHz): 8V, 1000mA @ 1000mW, 150Hz, 1:128

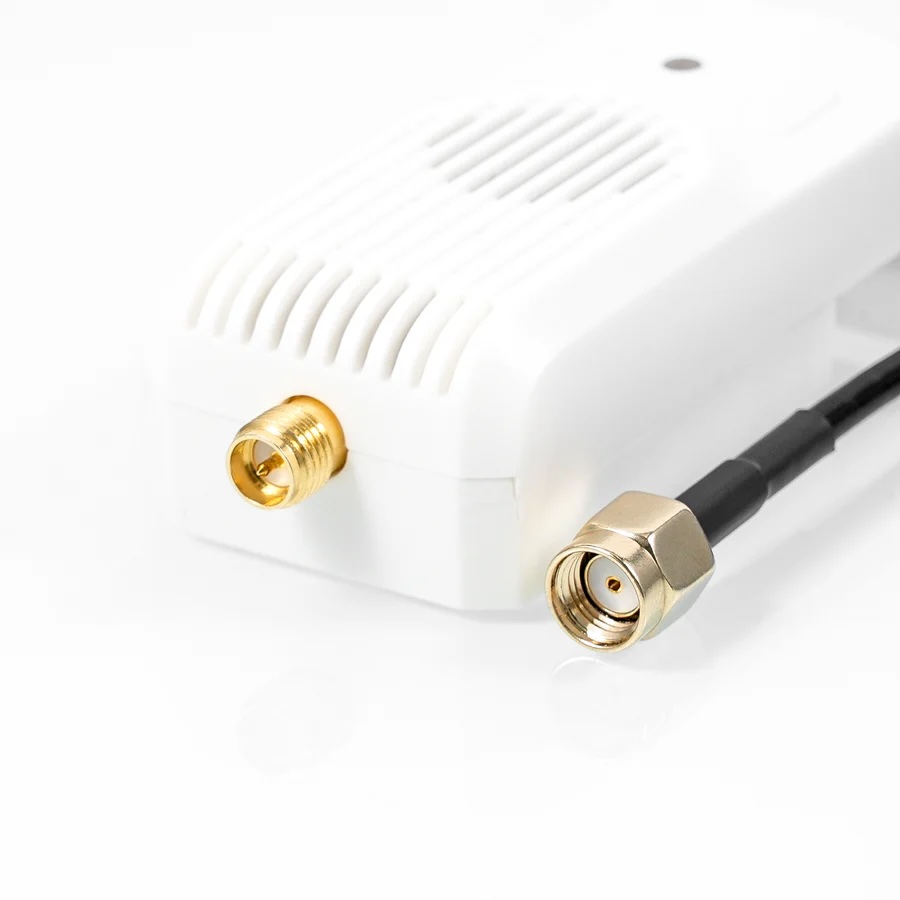

• Antenna Connector: RP-SMA (2.4GHz), SMA (915/868MHz)
• Frequency Band: 2.4GHz ISM, 915MHz FCC, 868MHz EU
• Default Firmware Version: ExpressLRS V3.3.0
• Input Voltage: 7V~13V DC
• Backpack: Support
• USB Port: Type-C
• Fan Voltage: 5V
• Color: White

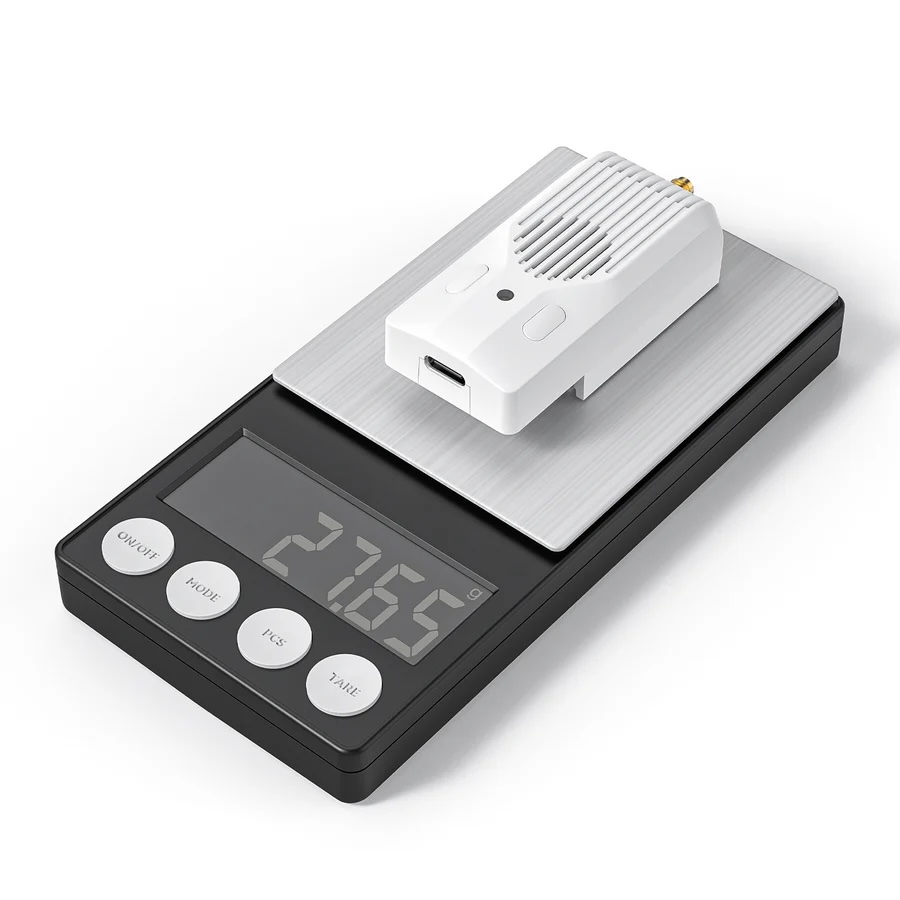

• Weight: 28g

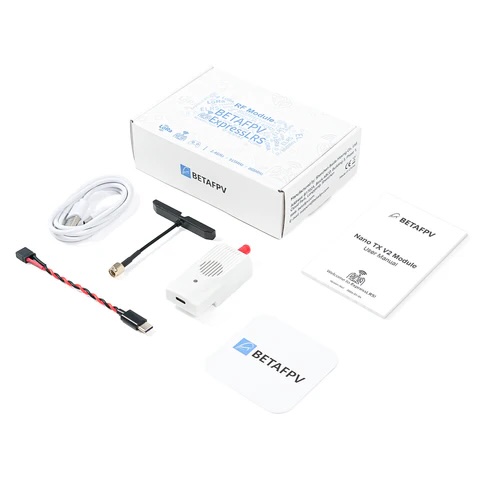

• 1x BETAFPV Nano TX V2 Module - ELRS 2.4GHz
• 1x Type-C Male to XT30U Male Power Cable
• 1x USB to Type-C Data Cable
• 1x Instruction Manual

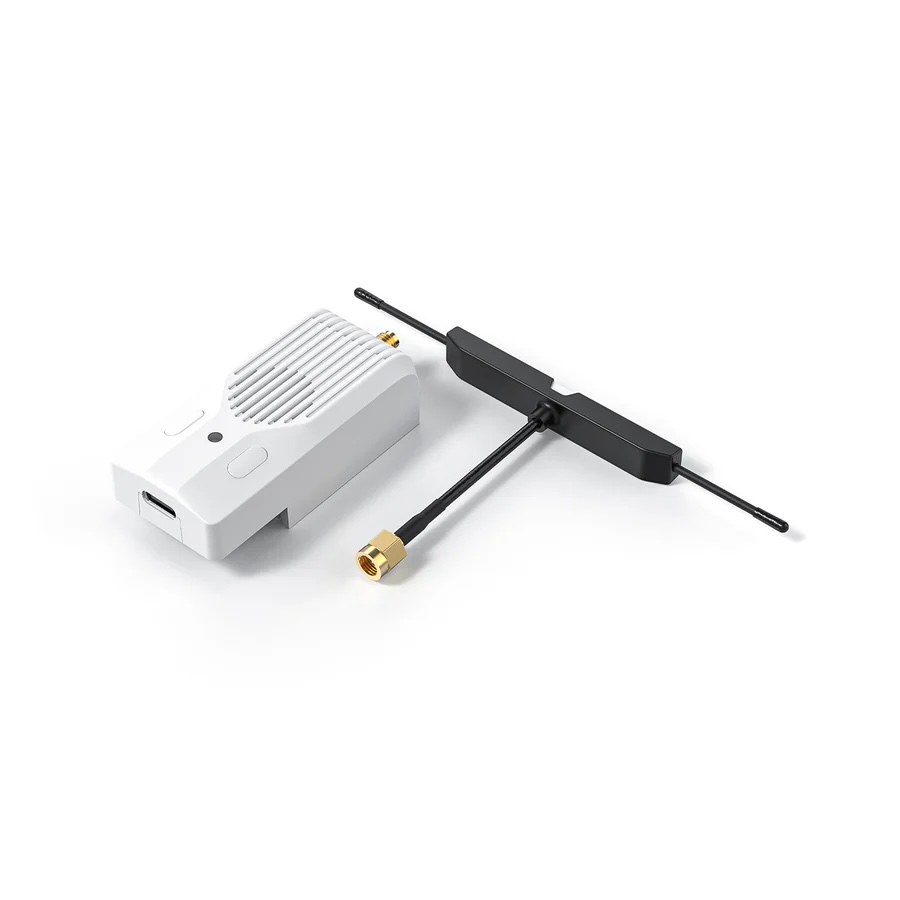

• 1x T-LED Antenna
• 1x Service Card
