GEP-M10 Series GEP-M1025 Series GPS Module

Summary

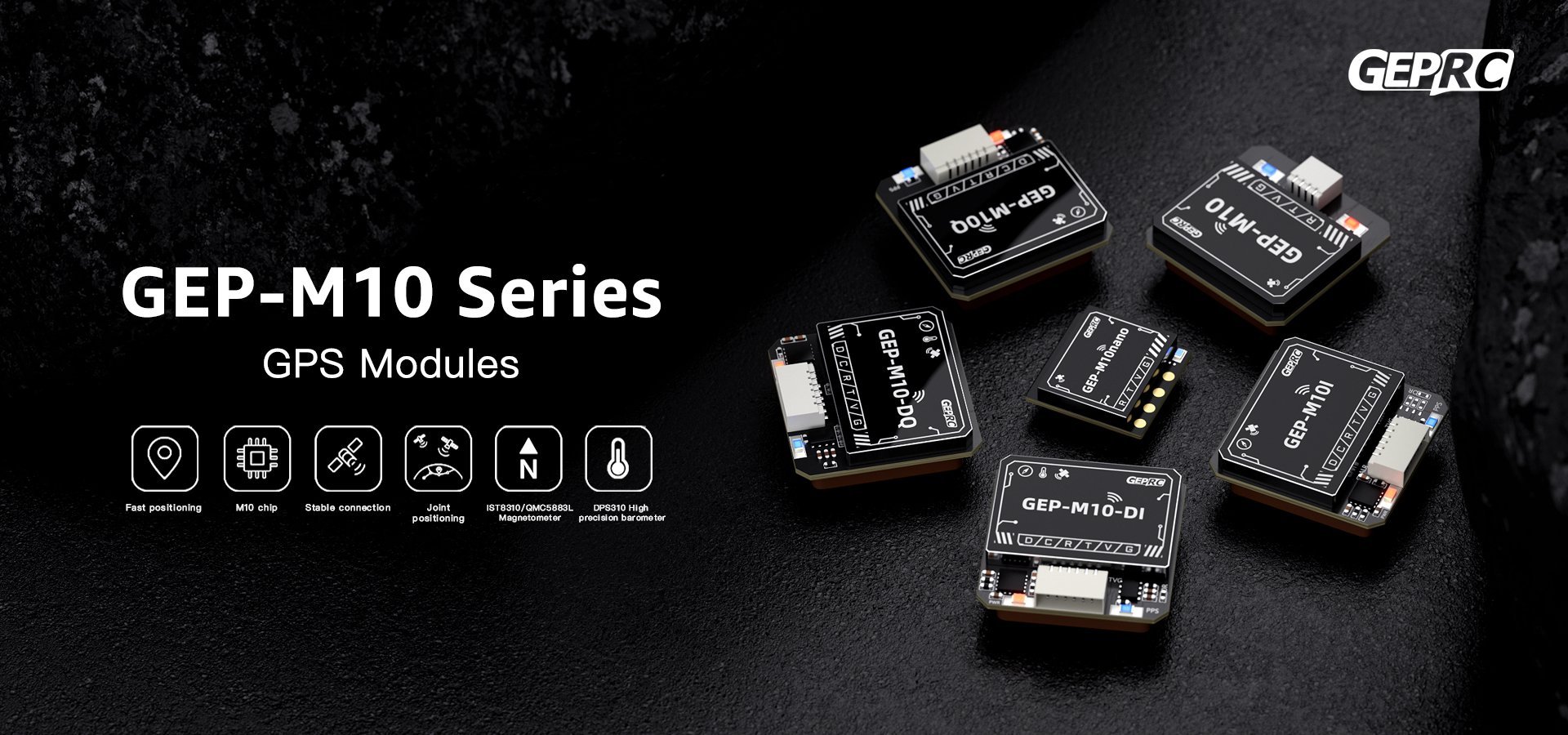

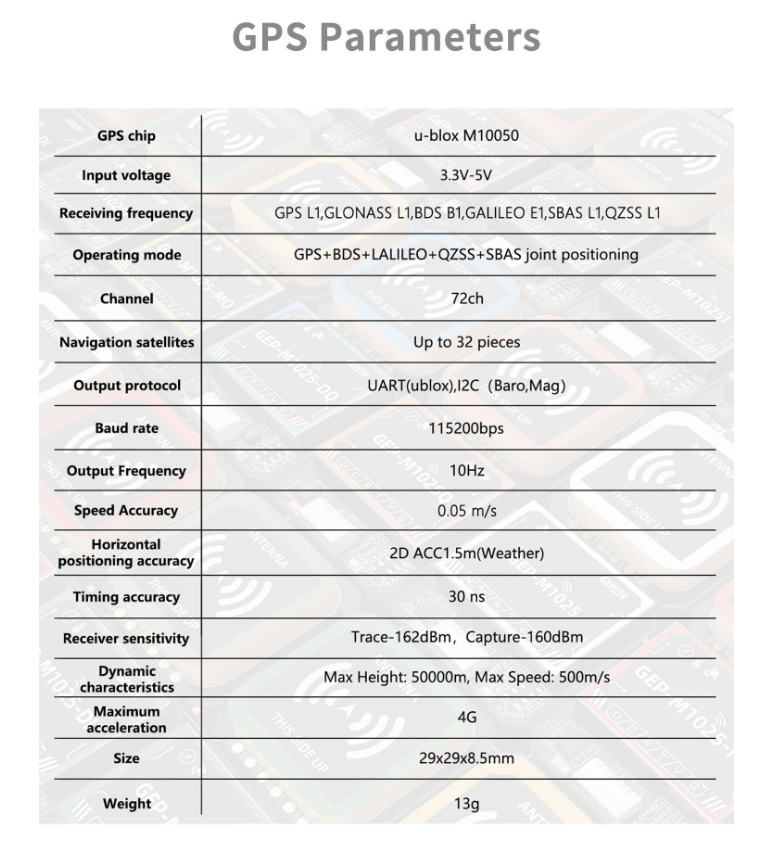

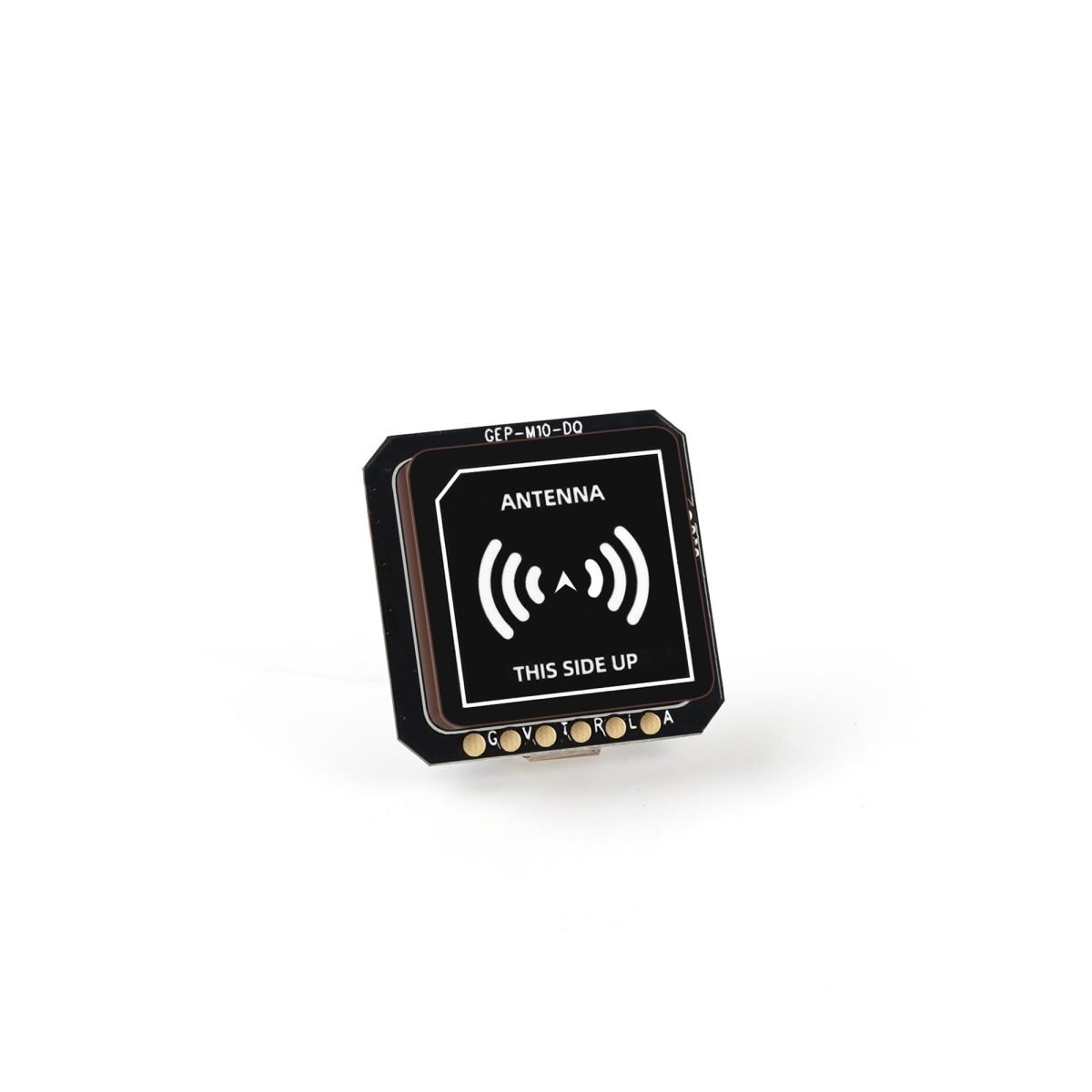

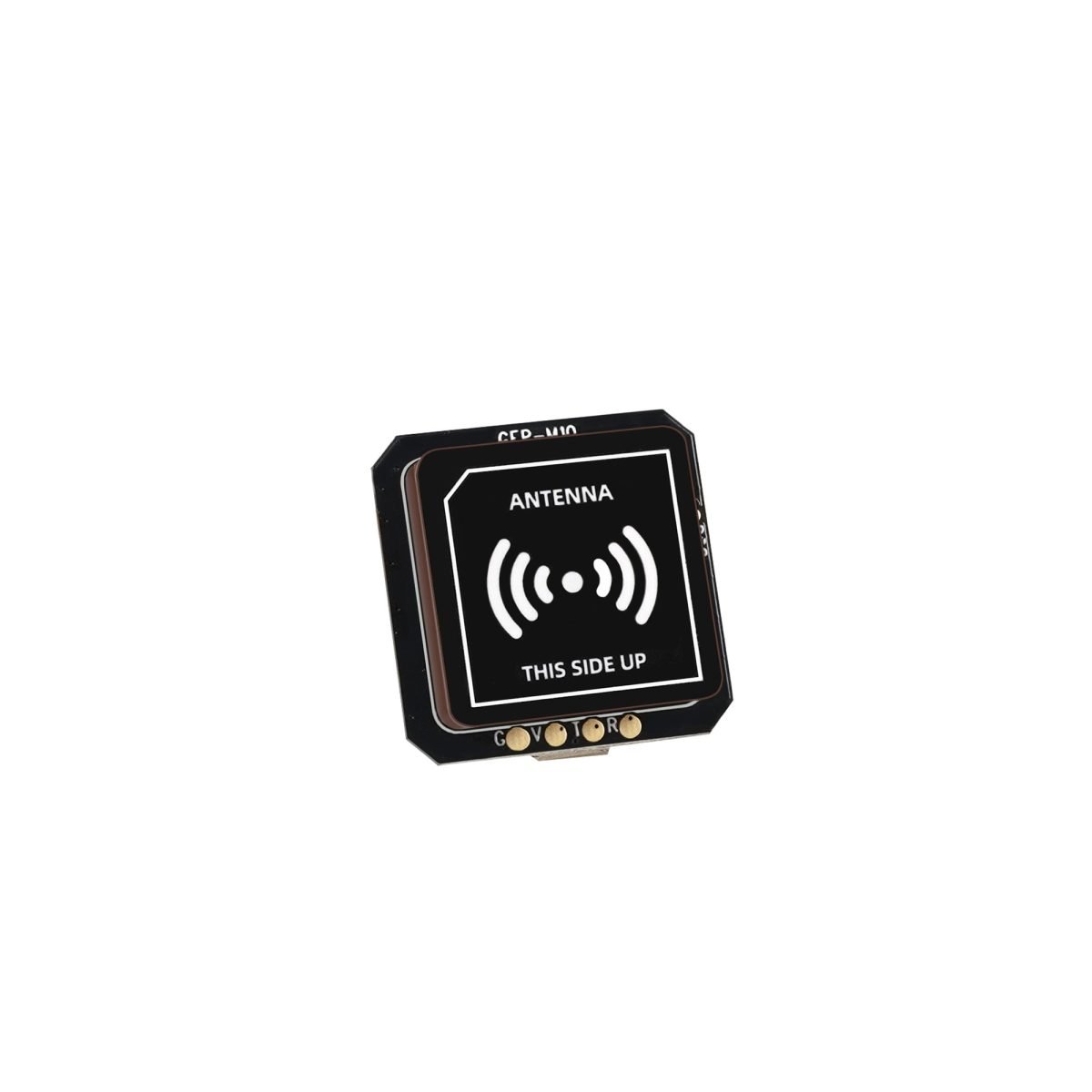

Specifications

• GPS chip：u-blox M10050
• Input voltage：3.3V-5V
• Receiving frequency：GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
• Operating mode：GPS+BDS+LALILEO+QZSS+SBAS joint positioning
• Channel：72ch
• Navigation satellites：Up to 32 pieces
• Output protocol：UART(ublox),I2C（Baro,Mag）
• Baud rate：115200bps
• Output Frequency：10Hz
• Speed Accuracy：0.05 m/s
• Horizontal positioning accuracy：2D ACC1.5m(Weather)
• Timing accuracy：30 ns
• Receiver sensitivity：Trace-162dBm，Capture-160dBm
• Dynamic characteristics：Max Height: 50000m, Max Speed: 500m/s
• Maximum acceleration：4G
• Mag：QMC5883L,IST8310
• Baro：DPS310
• Size：15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)
• Antenna size：12x12mm(GEP-M10nano),18x18mm(GEP-M10)
• Weight：4.1g(GEP-M10nano),7.8g(GEP-M10)

Features

1. u-blox M10050 chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 12x12mm or 18x18mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer + barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing

----------------------------------------------------------------------

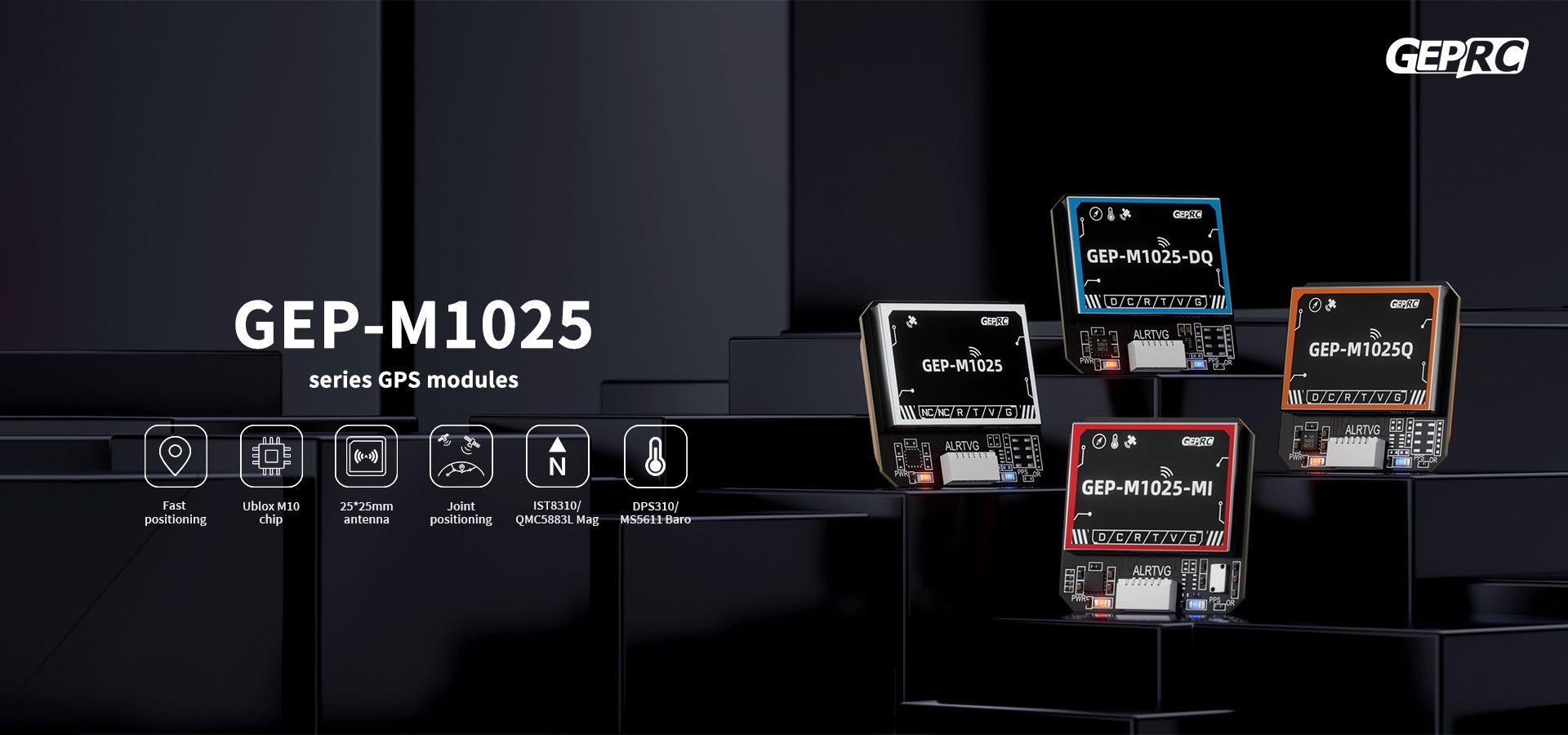

Summary

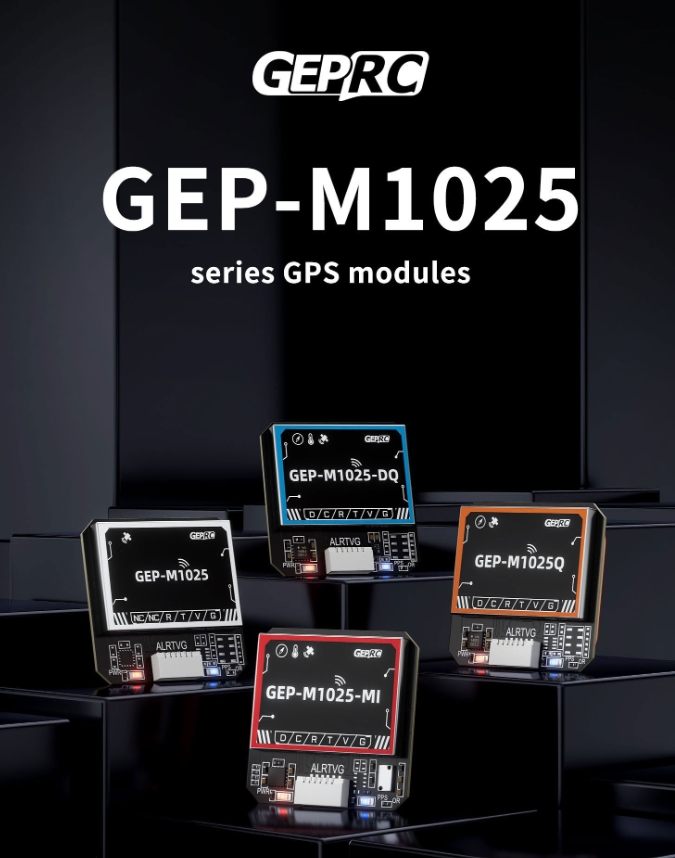

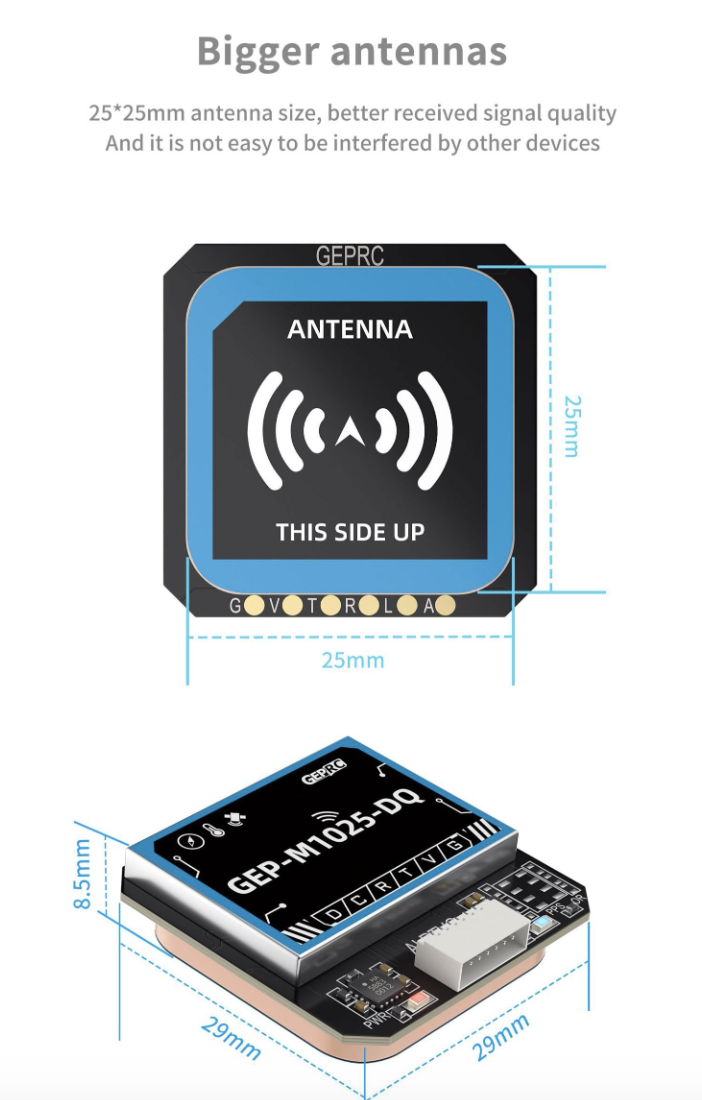

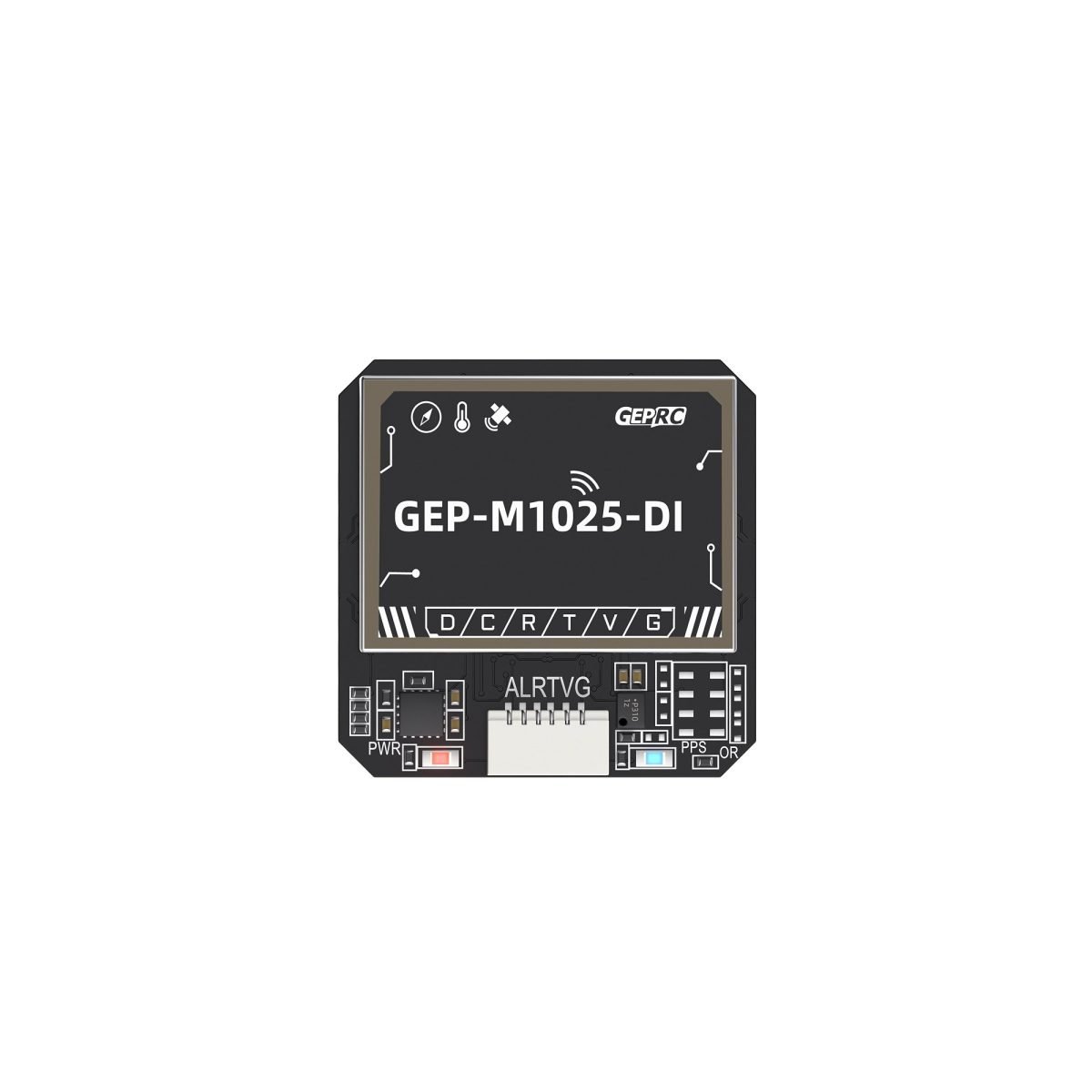

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

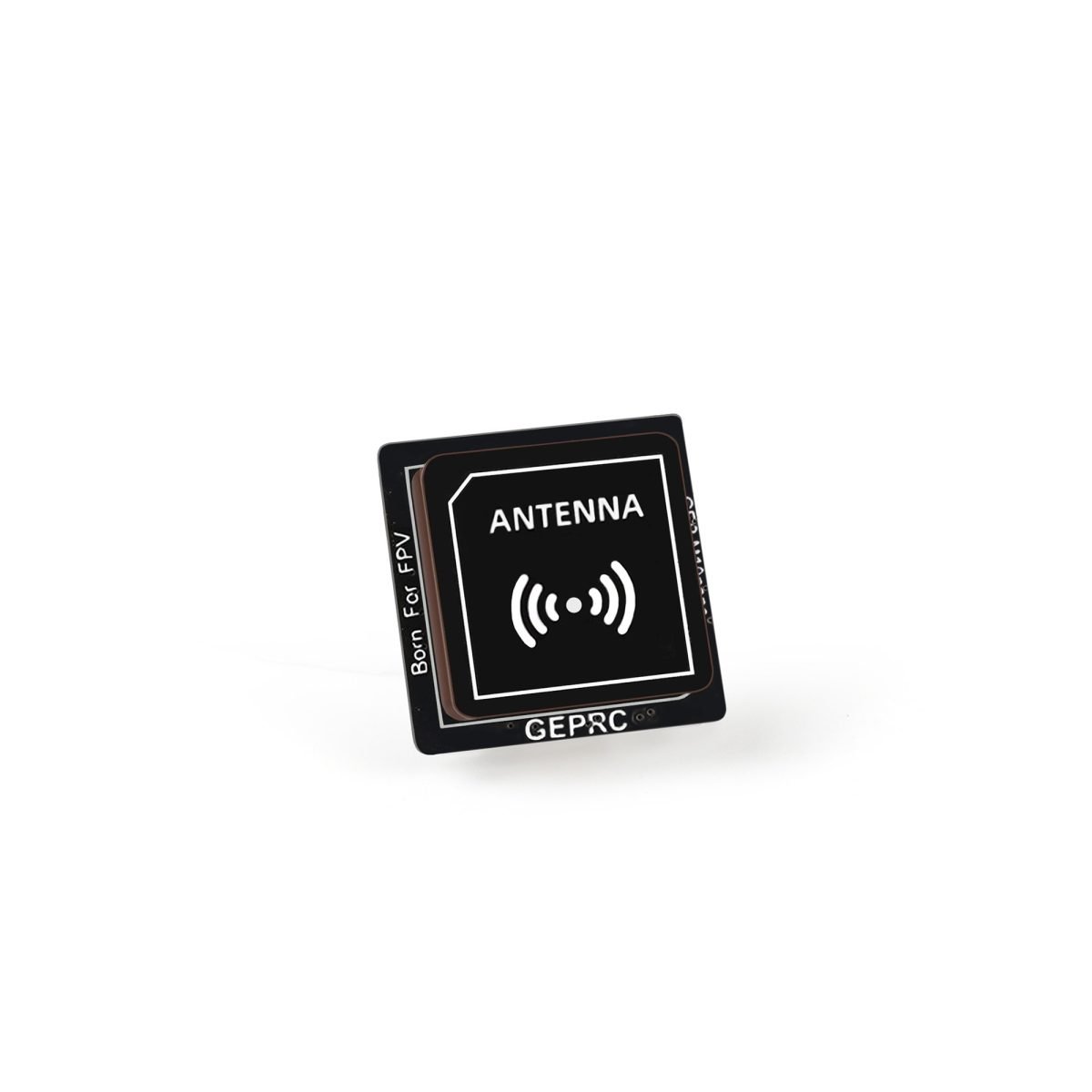

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

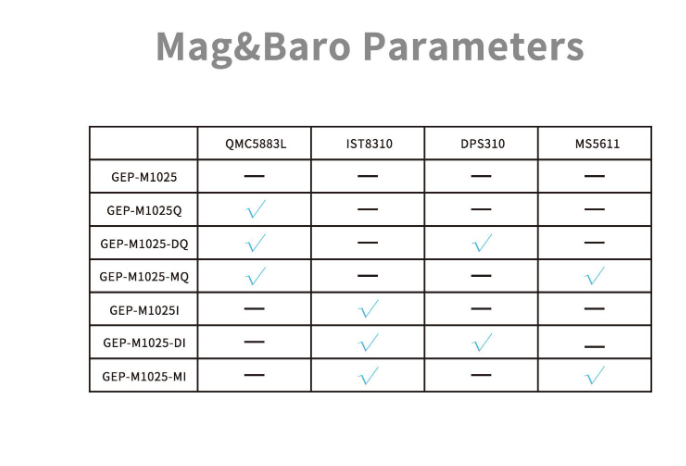

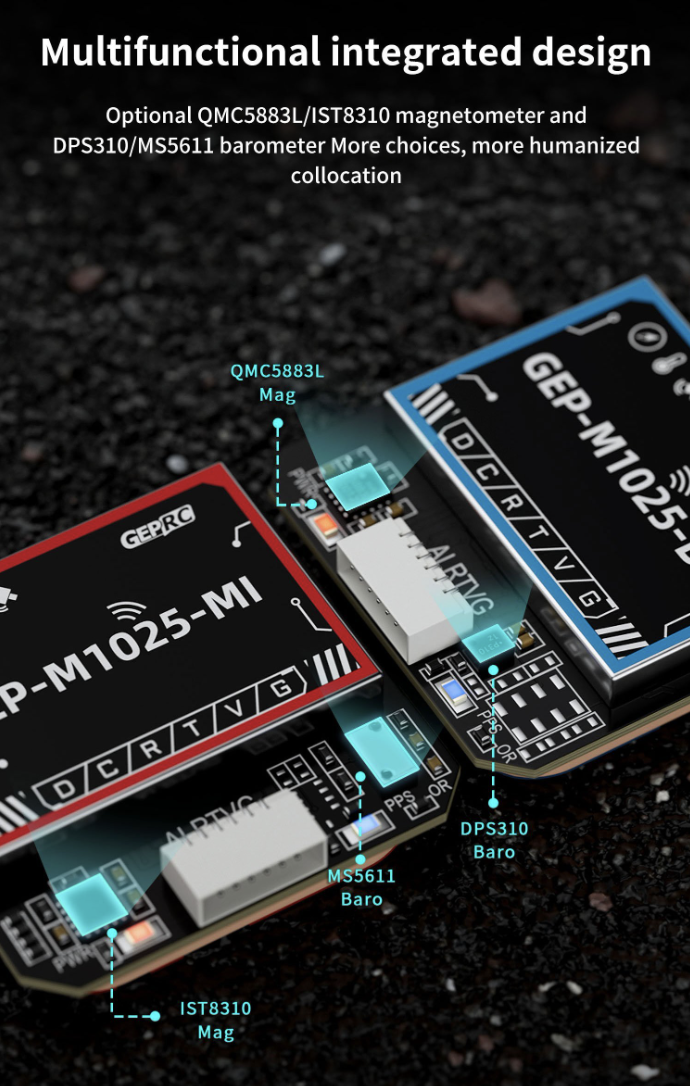

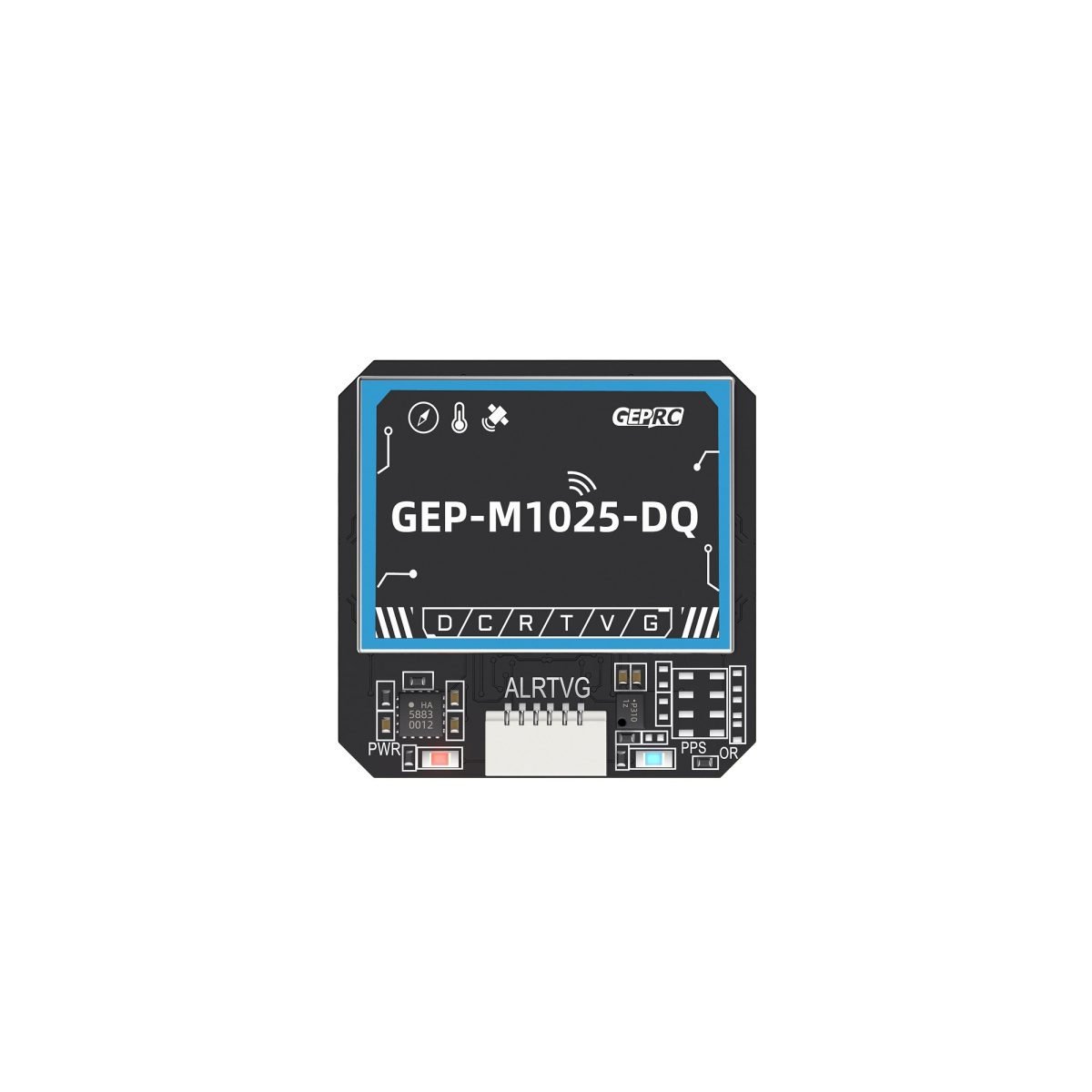

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.

Feature

1. u-blox M10 series chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 25*25mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer+barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
