[STACK 30x30] GEPRC TAKER F722 BLS 50A STACK บอร์ดคอนโทรลพร้อมสปีด 4in1 50A

Summary

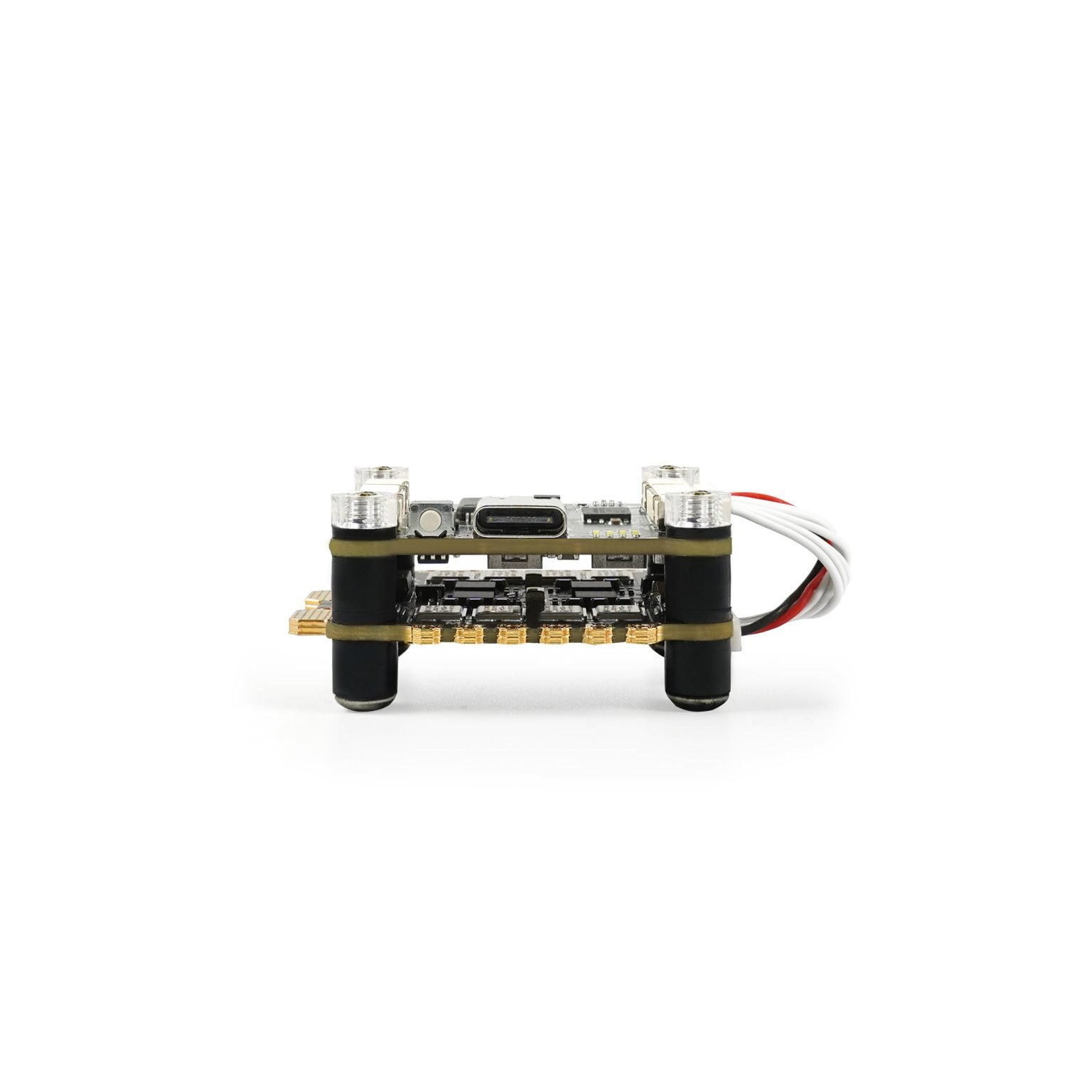

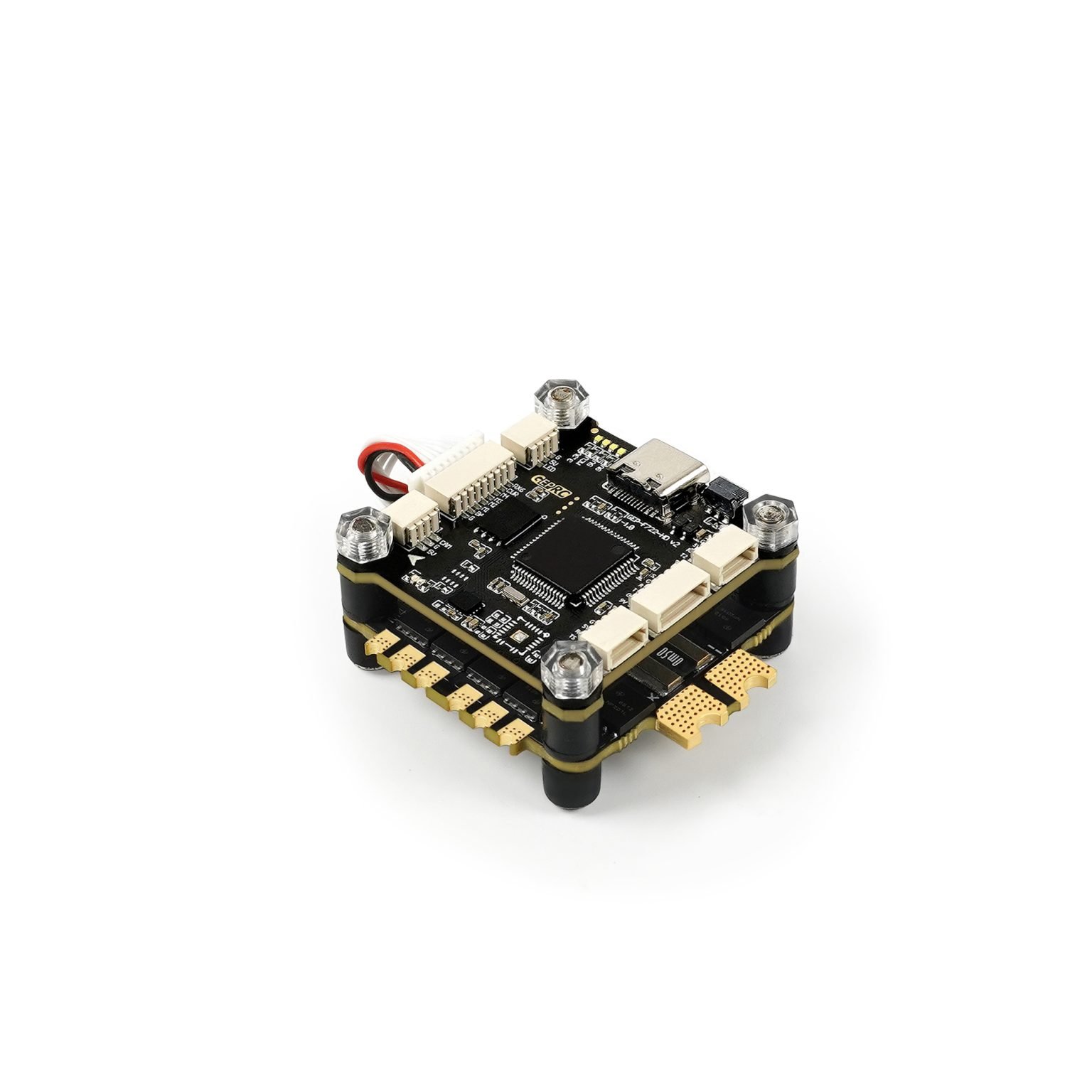

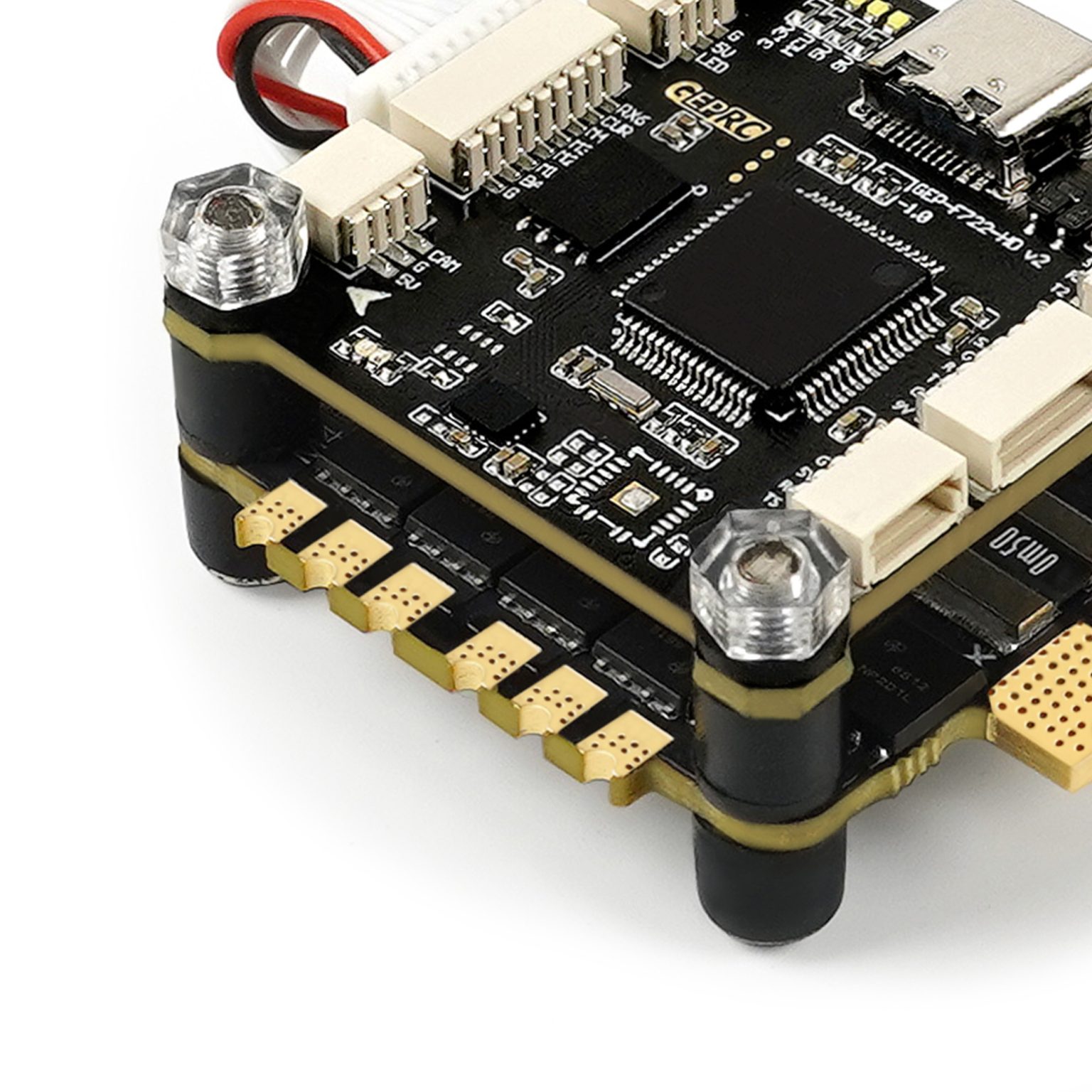

GEPRC TAKER F722 BLS 50A STACK is a plug-and-play flying tower system specially designed for DJI Air Unit.Use STM32F722 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.

The GEPRC TAKER F722 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices.

Features

1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With GEP-BLS50A-4IN1 ESC, the flying feel is silky
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. 9V@2.5A + 5V@3A dual independent BEC

Specifications

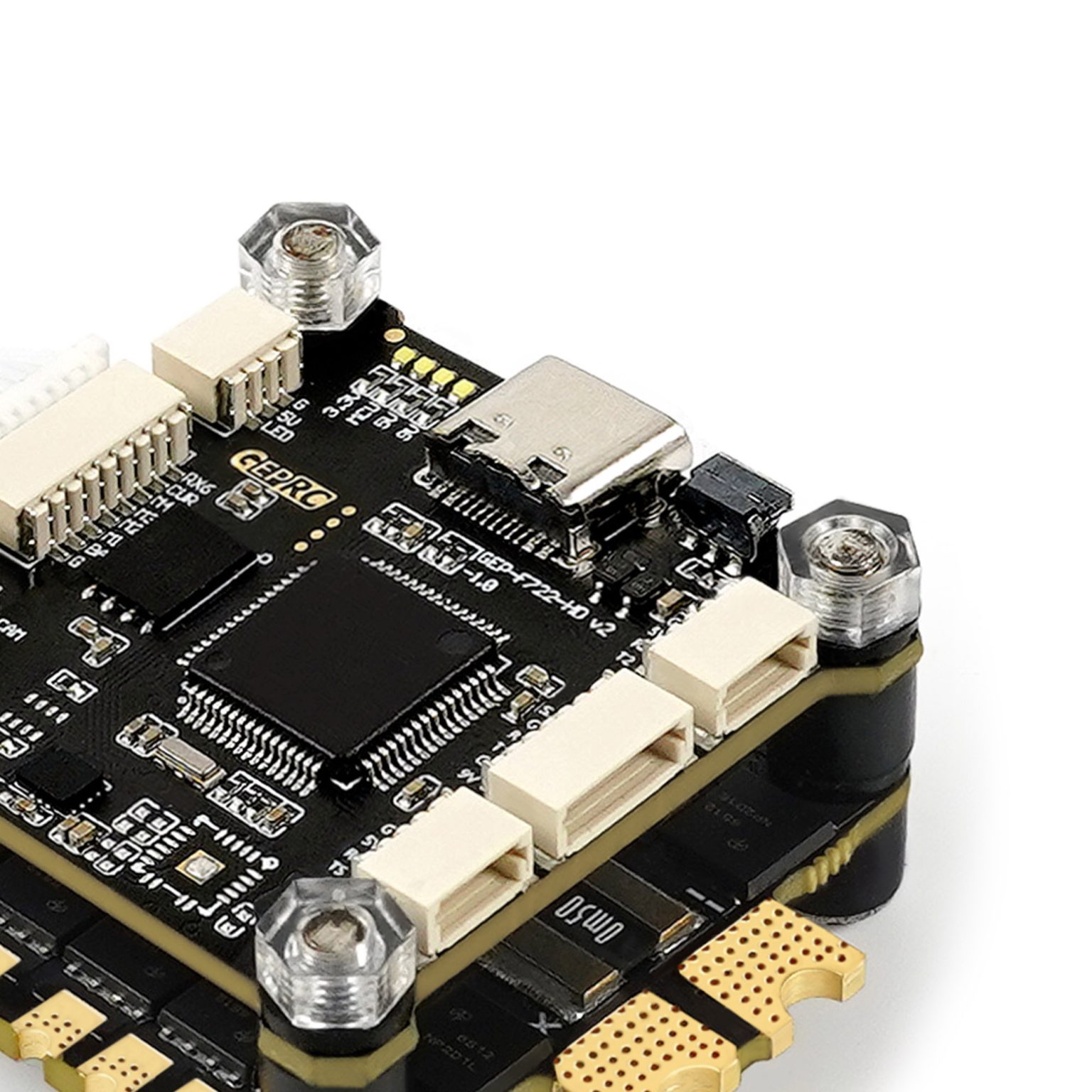

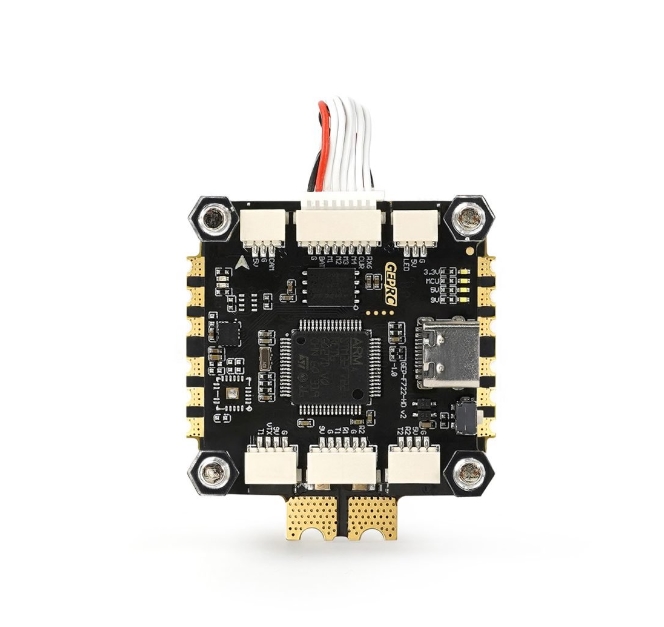

GEP-F722-HD v2 Flight Controller

• MCU：STM32F722
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target：GEPRCF722
• Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：5
• Power Filter：Integrated LC filter
• Weight：8.1g

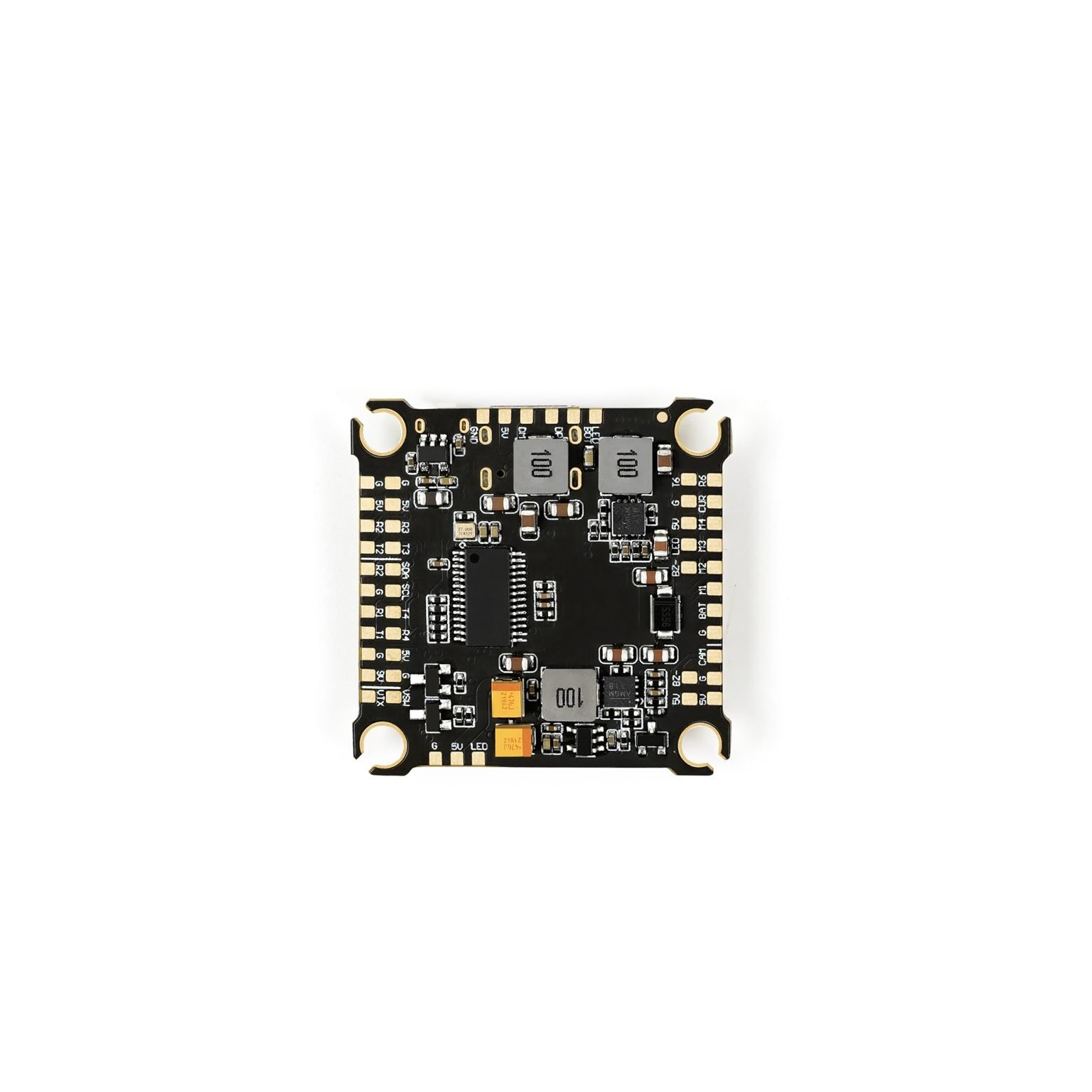

GEP-BLS50A-4IN1 ESC

• Input Voltage：3-6S Lipo
• Galvanometer：Support
• Continue Current：50A
• Burst Current：55A（5 second）
• Support Protocol：Dshot 150/300/600
• Size：42.9×39.7mm, hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle.
• Weight：13.7g
• Target：G_H_30

Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*24 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
