GEPRC RAD MINI 5.8G 25-1W VTX ตัวส่งสัญญาณภาพอนาล็อค

Summary

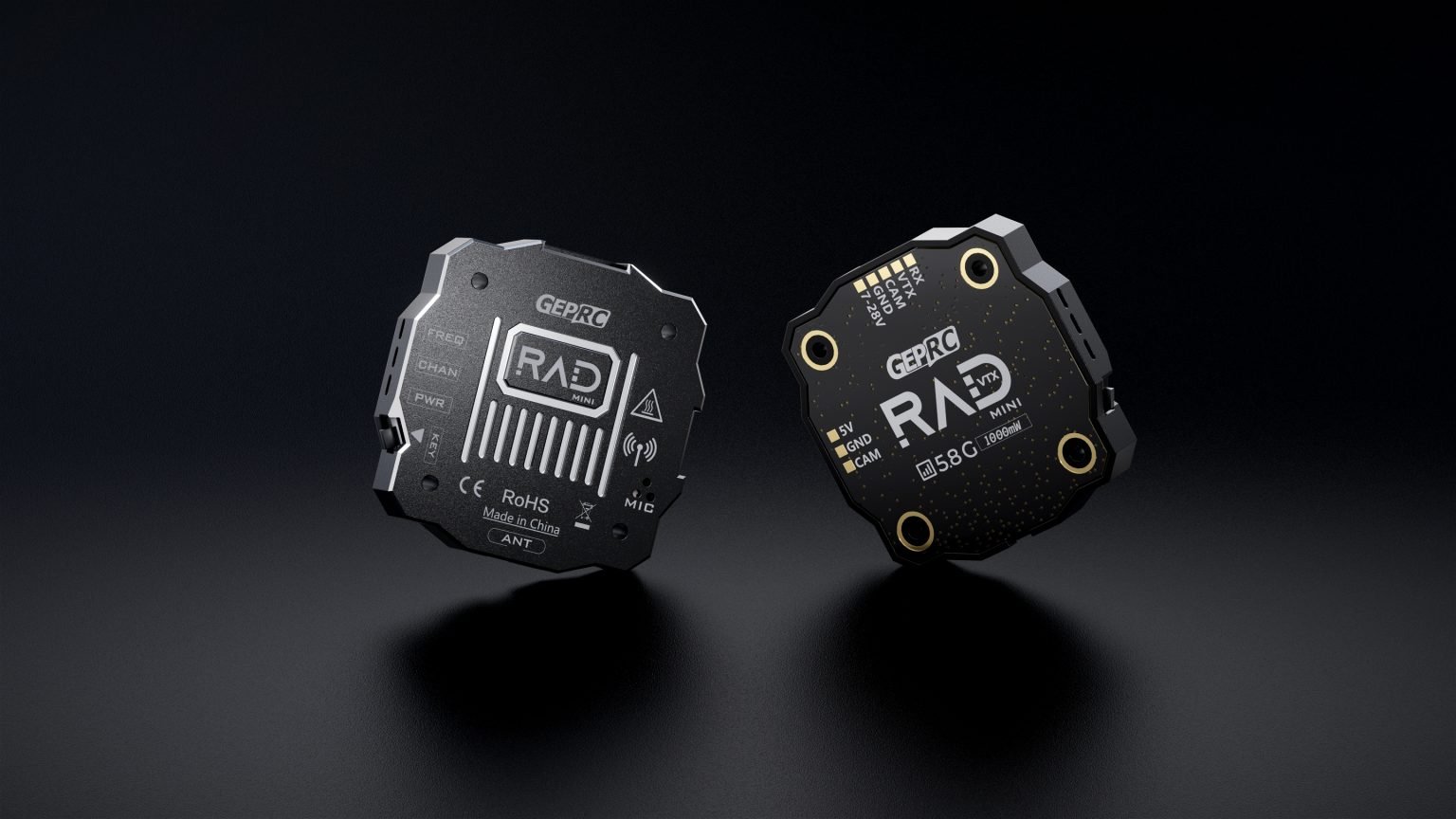

RAD MINI VTX is the latest 1W high-power VTX developed by GEPRC. It has 4 adjustable power levels and a maximum power of 1000mW, with a stable transmission signal, suitable for short and medium-range flight to ensure image transmission quality.

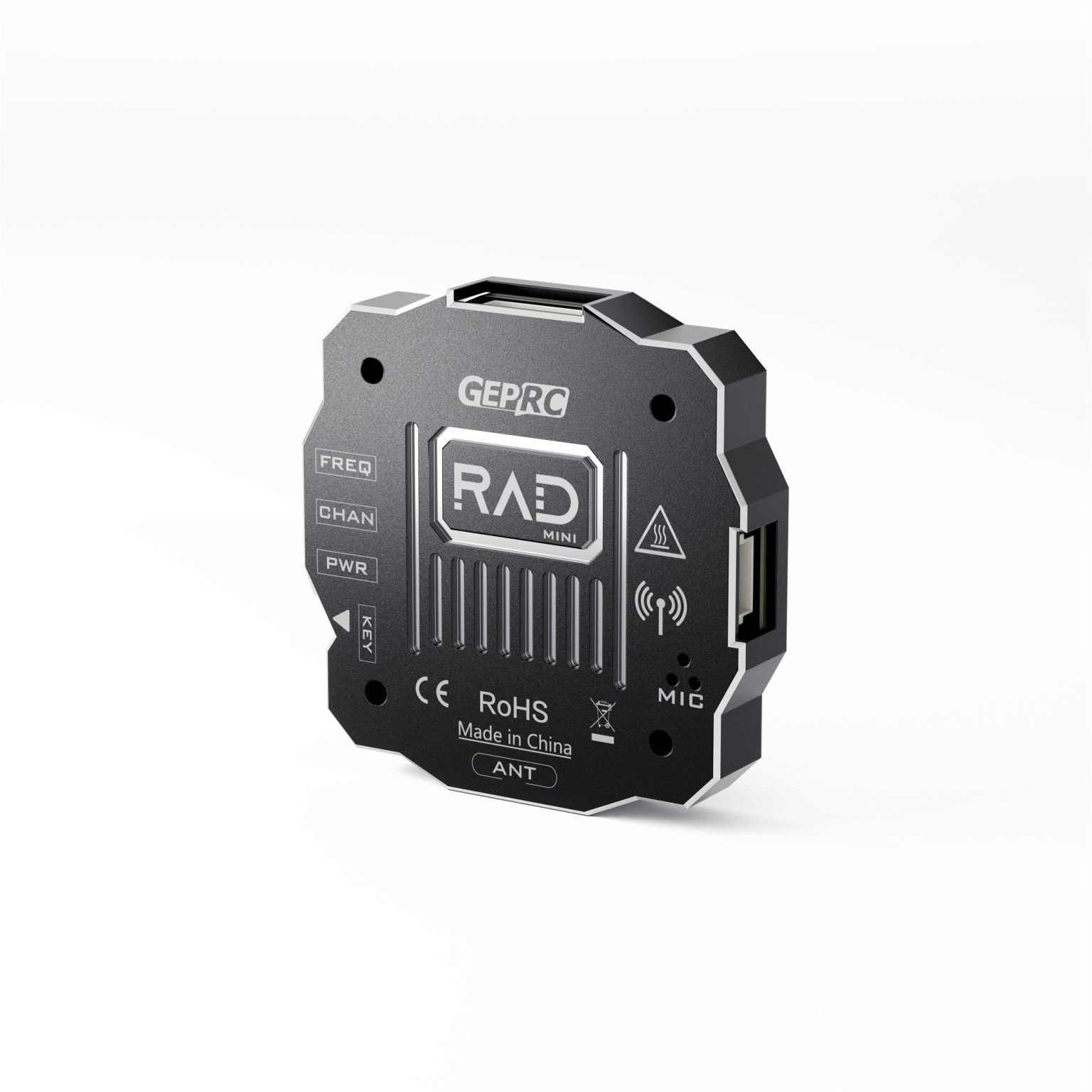

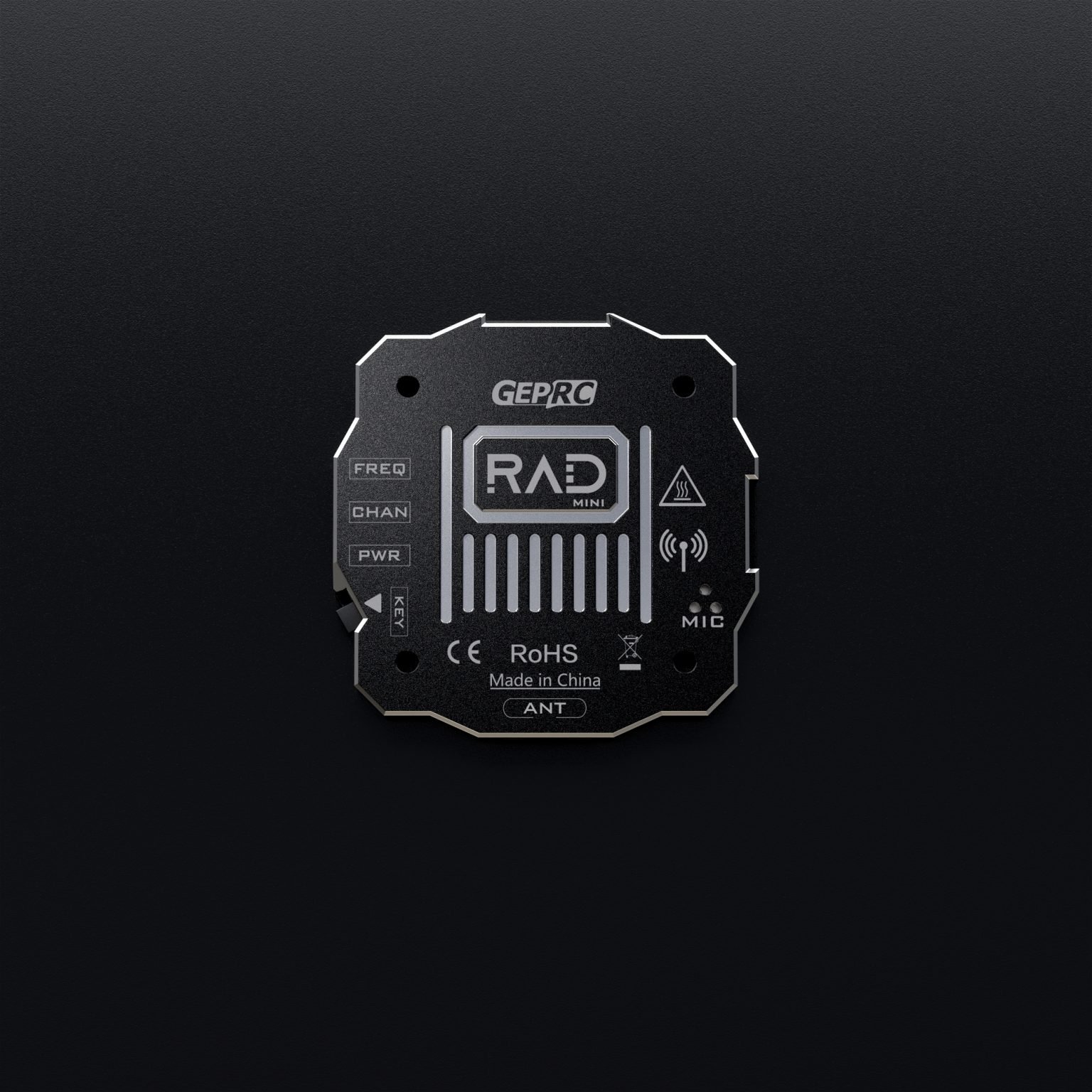

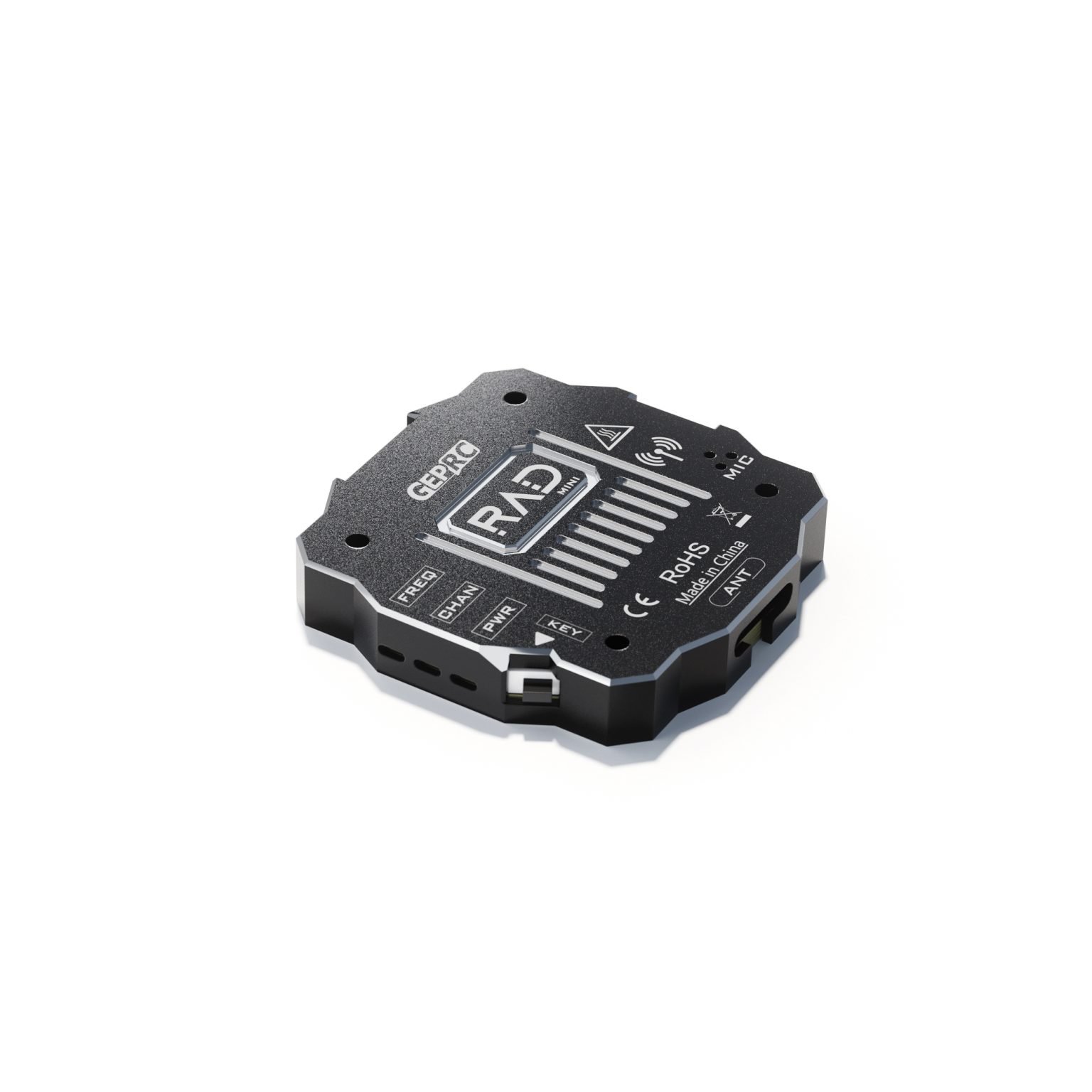

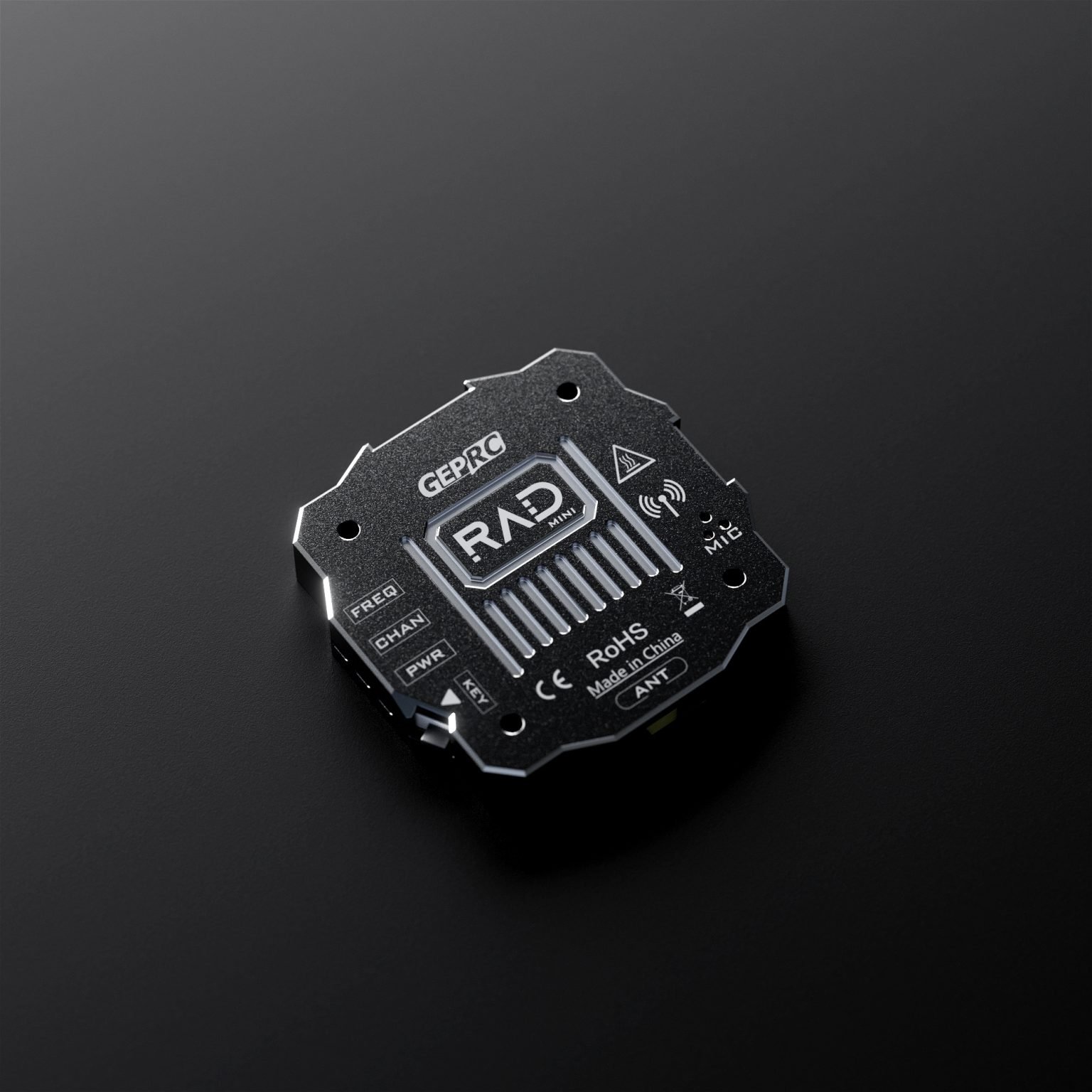

RAD MINI adopts 6061 high-strength aluminum alloy housing to assist in heat dissipation, which has stronger impact resistance and better heat dissipation.

IRC Tramp protocol, OSD settings adjustment, built-in microphone can provide a real-time sound transmission.

7-28V wide voltage input, with temperature control protection function to prevent overheating and burnout.

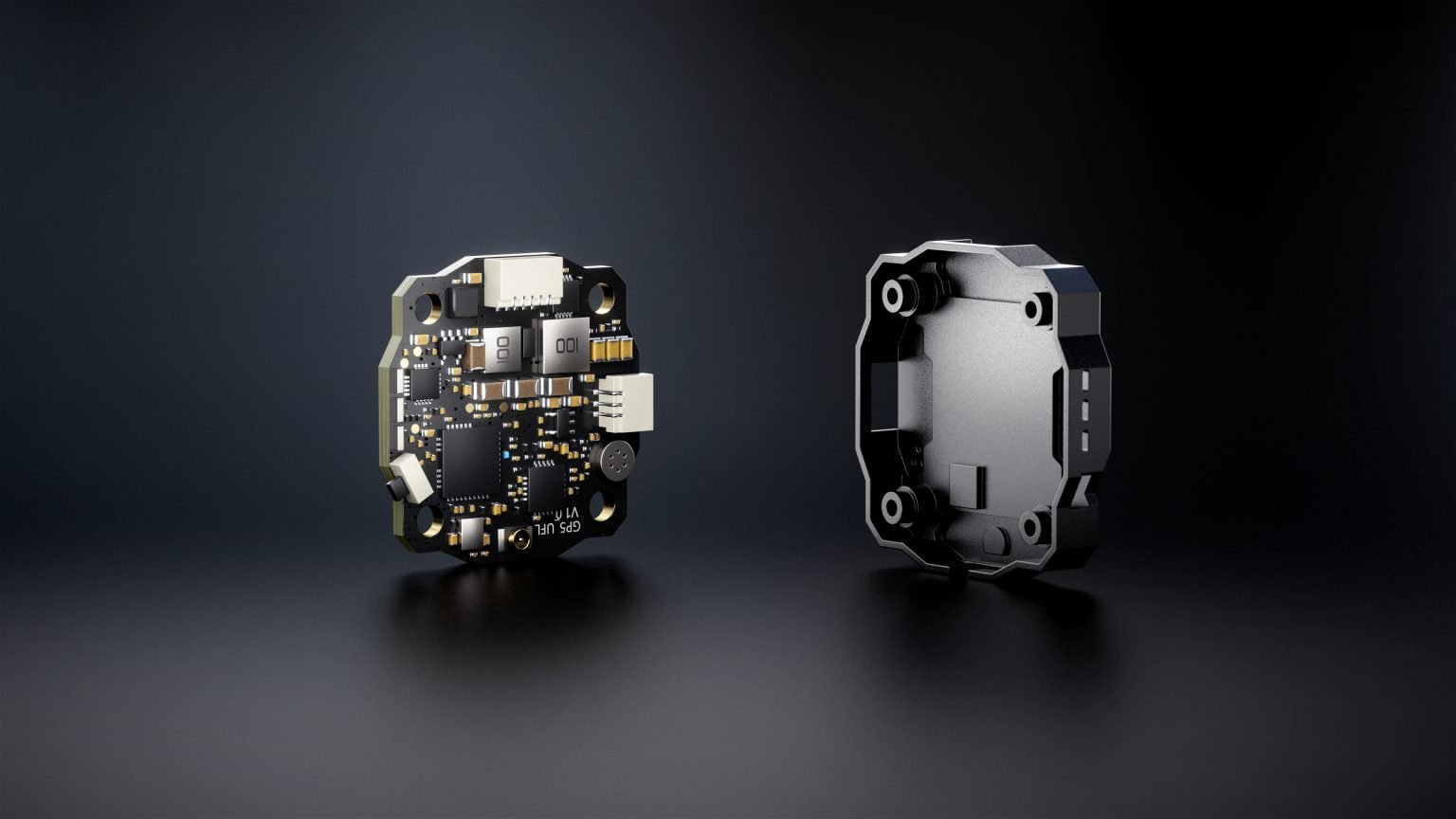

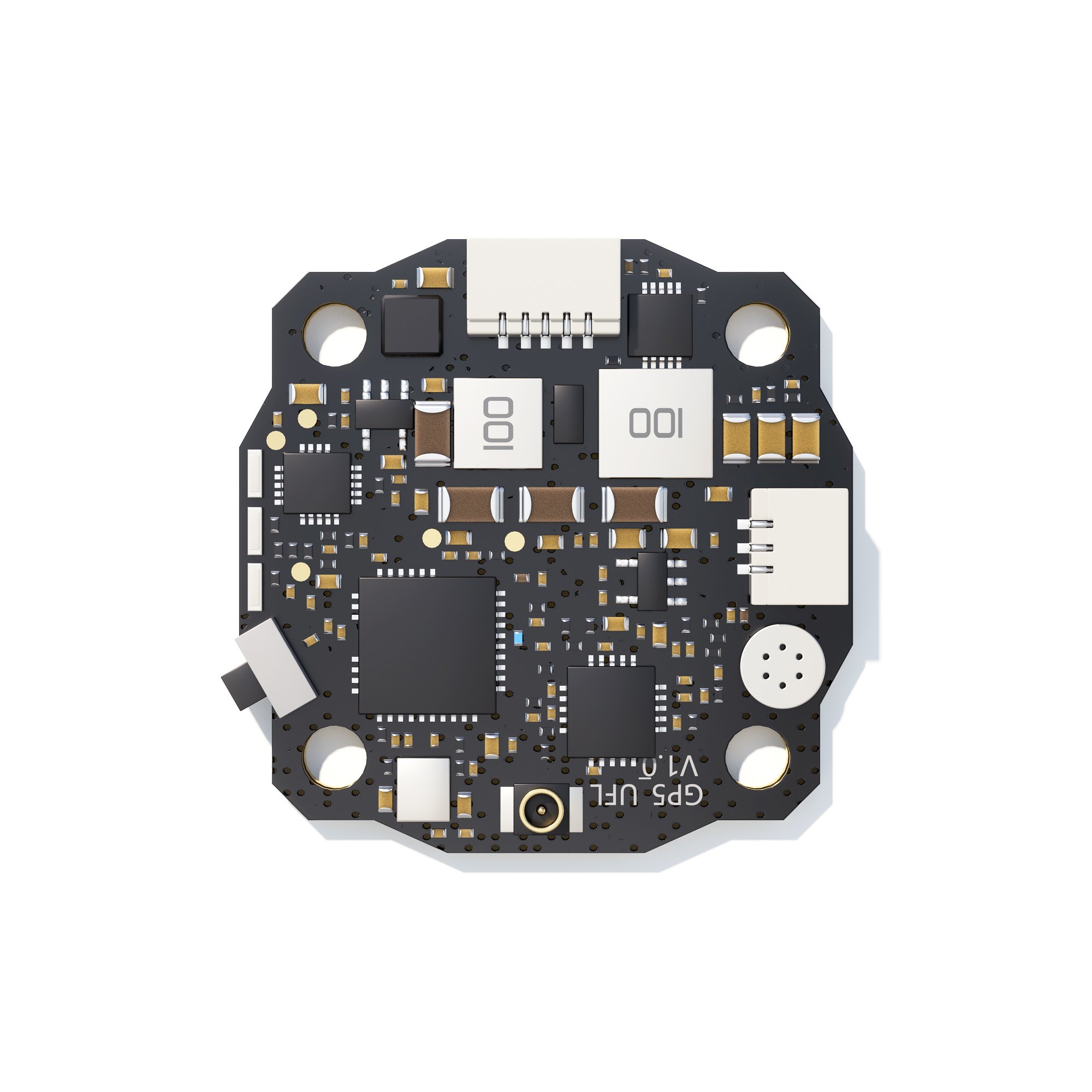

With 20x20mm PCB mounting hole, the diameter of single hole is 3.05mm. The aluminum alloy housing can be removed and installed as a stack.

Cover the housing with a 20X20 mounting hole and a single hole with M2 thread. It is recommended to be installed at the rear of the frame where there are 20X20 holes. Pay attention to insulation when installing, the PCB side down, and pad with four nylon spacers for installation. (included in the package)

Specification

• Model：GEPRC RAD MINI 5.8G 1W VTX

• Input voltage：DC7-28V（2-6S Battery）

• Output voltage: 5V@600mA(power 5V to Camera)

• Input impedance: 75Ω

• Protocol: IRC Tramp

• Antenna connector: MMCX

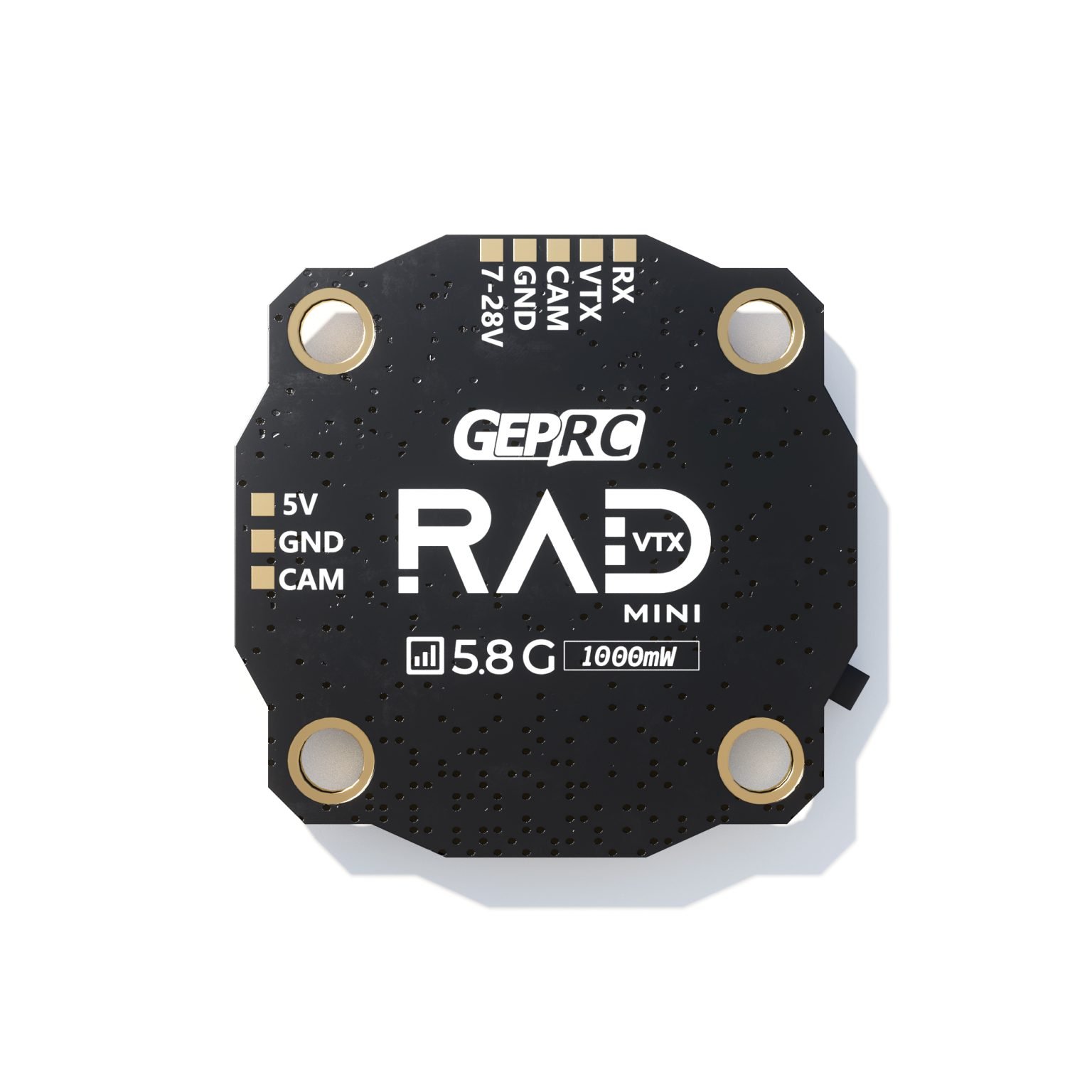

• Cable connector：SH1.0 5pin+SH1.0 3pin

• Output power：25mW/200mW/500mW/1000mW/PIT MODE

• Frequency band : Universal frequency band(40CH),American FCC frequency band(37CH),European EU frequency band(26CH)

• Video format: PAL/NTSC

• Microphone: Built in microphone

• Mounting hole: 20x20mm

• Size: 30.83×30.83mm

• Net weight: 4.7g

• With metal housing: 8.4g

Feature

1. Lightweight, high power, with a maximum power of 1000mW, suitable for short and medium range flight to ensure image transmission quality.
2. 4 Power levels: PitMode/25mW/200mW/500mW/1000mW.
3. Adopts 6061 high-strength aluminum alloy housing to assist in heat dissipation, which has stronger impact resistance and better heat dissipation.
4. With temperature control protection function to prevent high temperature burnout.
5. Wide voltage input,supports 7V-28V voltage input.
6. 3 adjustable regional frequency bands to meet the needs of various regions.
7. IRC Tramp protocol, OSD settings adjustment.
8. Built-in microphone can provide a real-time sound transmission.
9. One adjustment button, three indicator lights, easy to operate.

Includes

1 x GEPRC RAD MINI 5.8G 1W VTX

1 x Copper tube antenna MMCX 80mm

1 x MMCX to SMA（Internal foramen）connector

1 x SH.0 5pin VTX cable(100MM)

1 x SH1.0 to SH1.25 camera cable(65MM)

1 x Set of screws

Connector Definition Description

Indicator light and button

Blue light: Channel indicator

Green light: Band indicator

Red light: Power indicator

Regional Frequency Band

Blue, green, and red lights, flashing once at the same time represents the universal regional frequency band; flashing twice at the same time represents the US FCC frequency band; flashing three times at the same time represents the European EU frequency band.

Adjustment method

Long press the function button for 8 seconds and then release, three LEDs will flash at the same time, the flashing times represent different regional bands.
