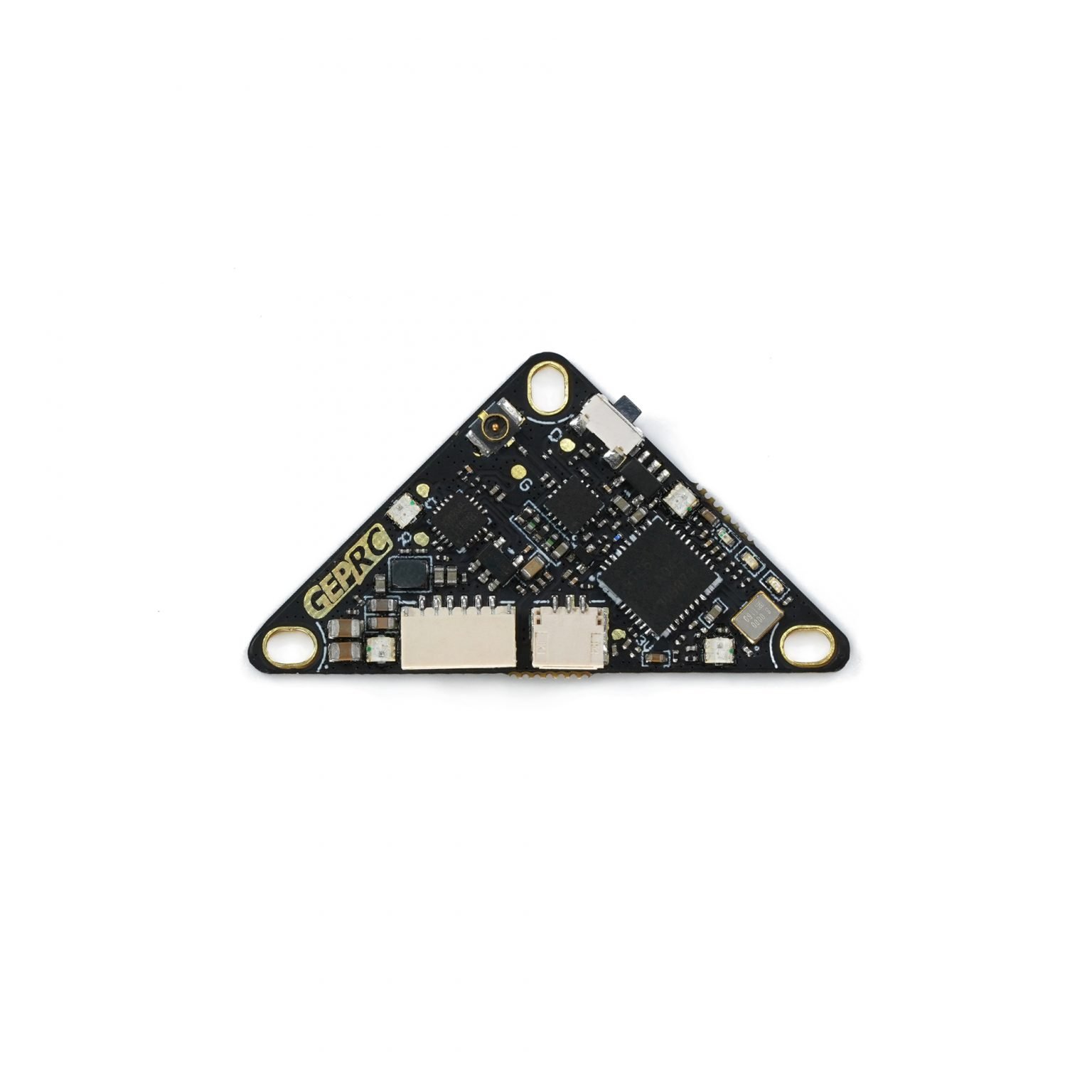

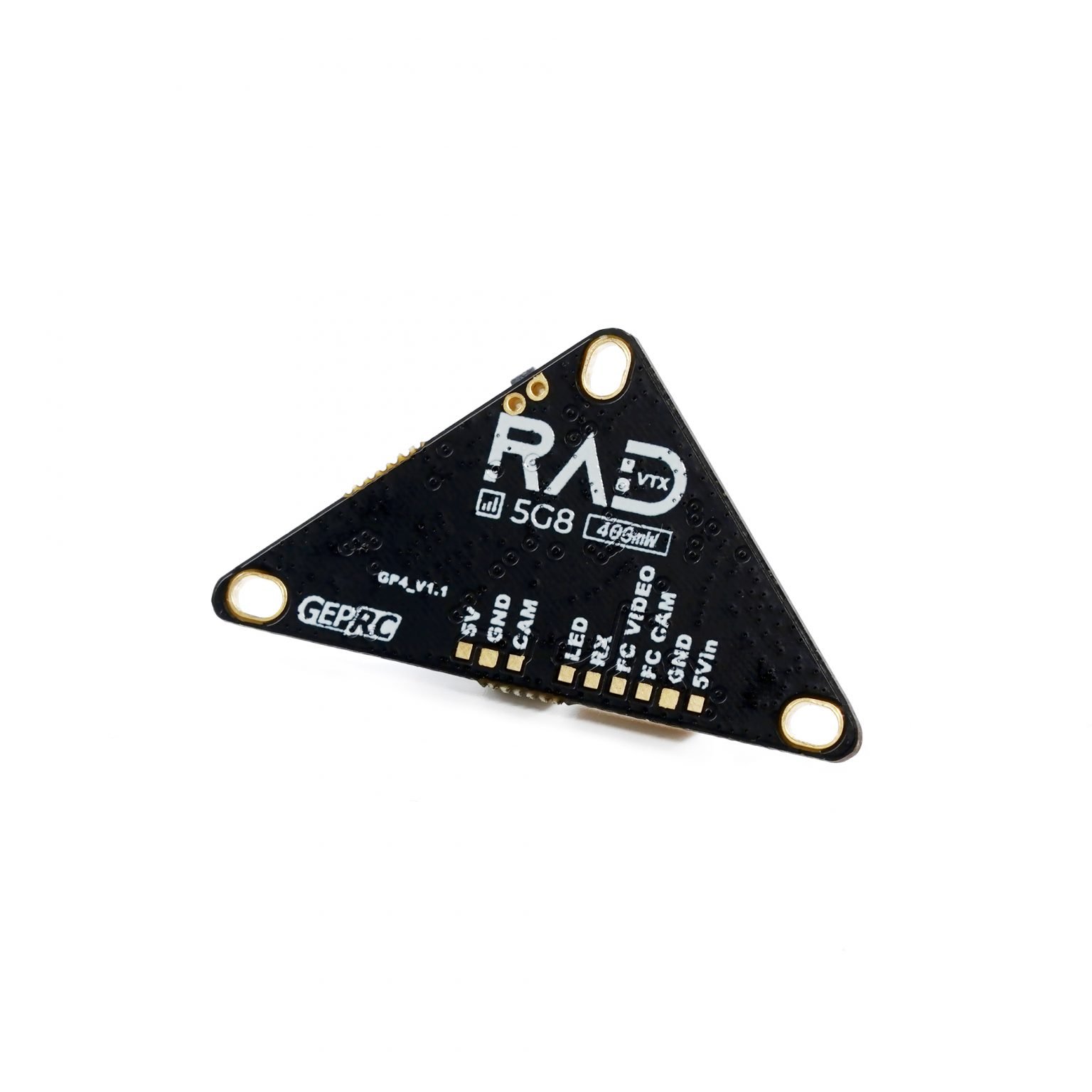

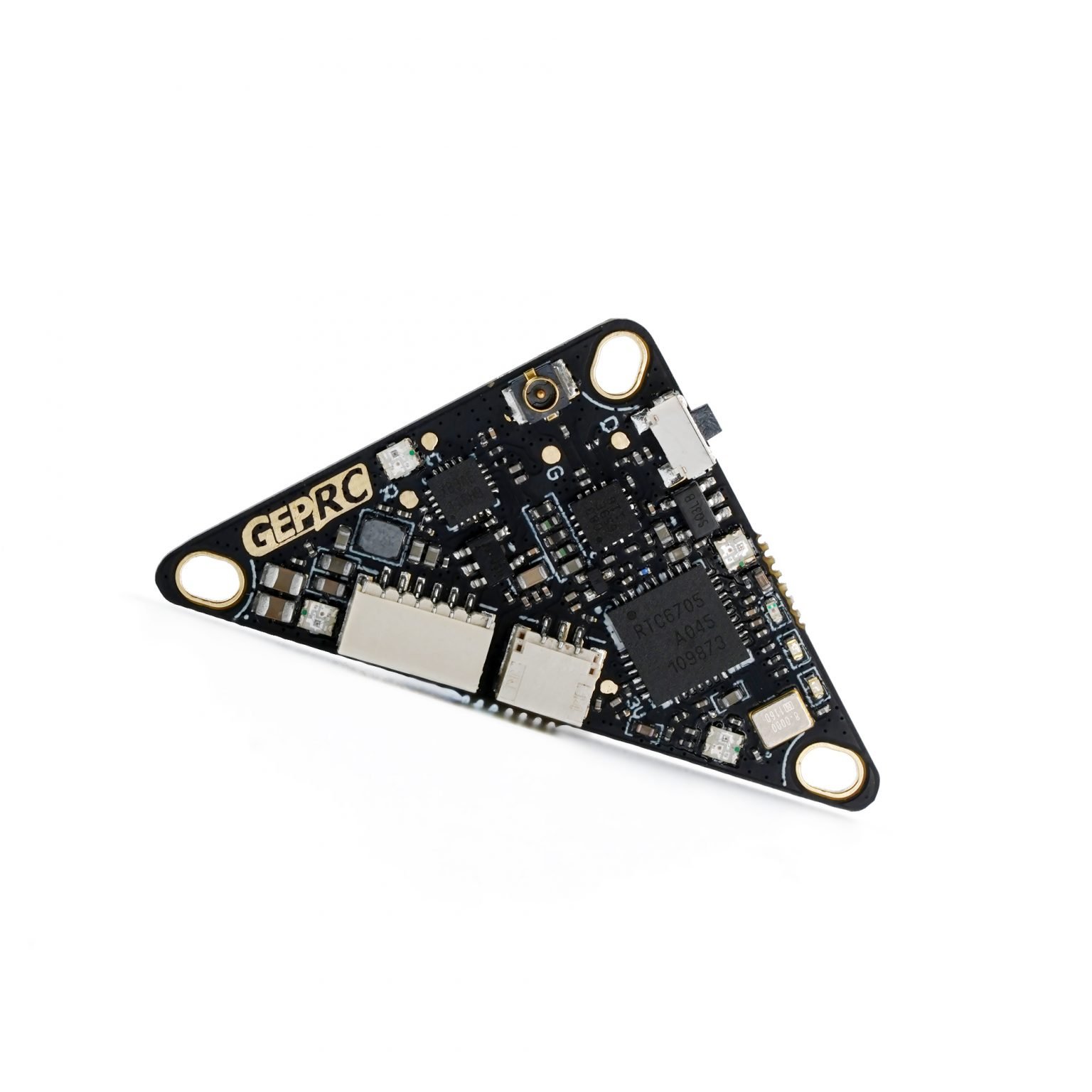

GEPRC RAD Whoop 5.8G VTX 400mw ตัวส่งสัญญาณภาพจิ๋ว

Summary

New product:GEPRC RAD Whoop 5.8G VTX. It has 4 adjustable power levels,the maximum power up to 400mW.The transmission signal is stable,good heat dissipation, IRC Tramp protocol, OSD fast parameter tuning.With temperature control protection function to prevent overheating and burning.

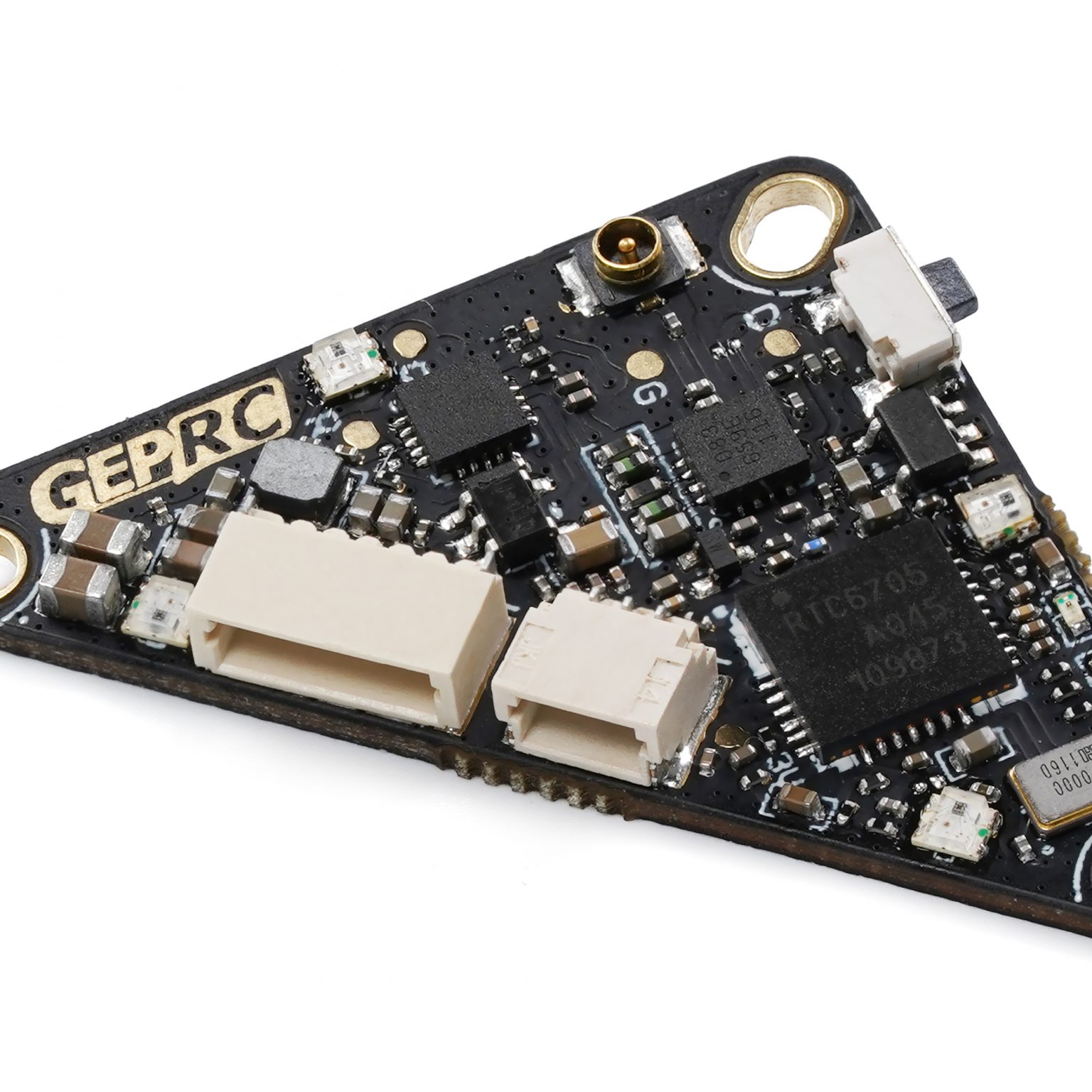

One button,three indicator lights,easy to operate.Use the mainstream UFL antenna connector,use the SH1.0 cable connector,and the installation hole is compatible with 25.5mm-26.5mm. It added four RGB LED lights, the color of the four LEDs can be adjusted by the flight controller, so that your quadcopter is no longer monotonous.

Specification

•  Model: RAD Whoop 5.8G VTX
• Brand: GEPRC
• Input voltage: DC 5V
• Output voltage: 5V@500mA (power supply 5V to the camera)
• Input Impedance: 75Ω
• Protocol: IRC Tramp
• Antenna connector: UFL
• Cable connector: SH1.0
• Output power: PitMode/25mW/200mW/400mW
• Frequency: 40CH
• Video format: PAL/NTSC
• Microphone: none
• Mounting hole: 25.5mm-26.5mm dual compatible (M2)

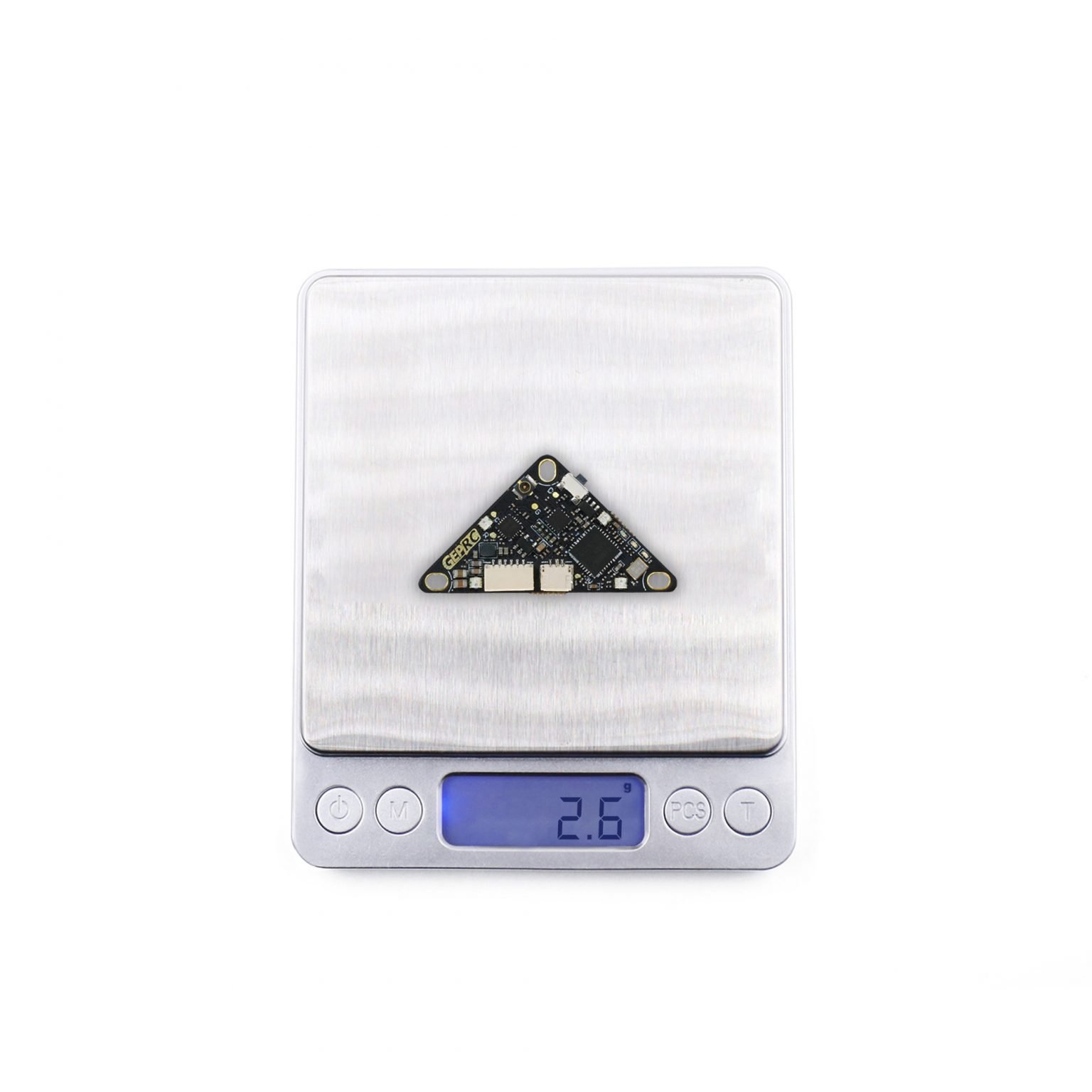

• Weight: 2g (Without cables)

Features

1. 400mW power, low heat generation, stable operation, suitable for short and medium range flight

2. 3 power channel adjustable PitMode/25mW/200mW/400mW

3. With temperature control protection function to prevent high temperature burnout

4. DC5V input, power consumption is only 400ma, can be powered directly from flight controller 5V

5. VTX control protocol IRC Tramp, support OSD parameter tuning

6. One adjustment button, three indicator lights, easy to operate

7. The mounting holes are compatible with 25.5mm-26.5mm

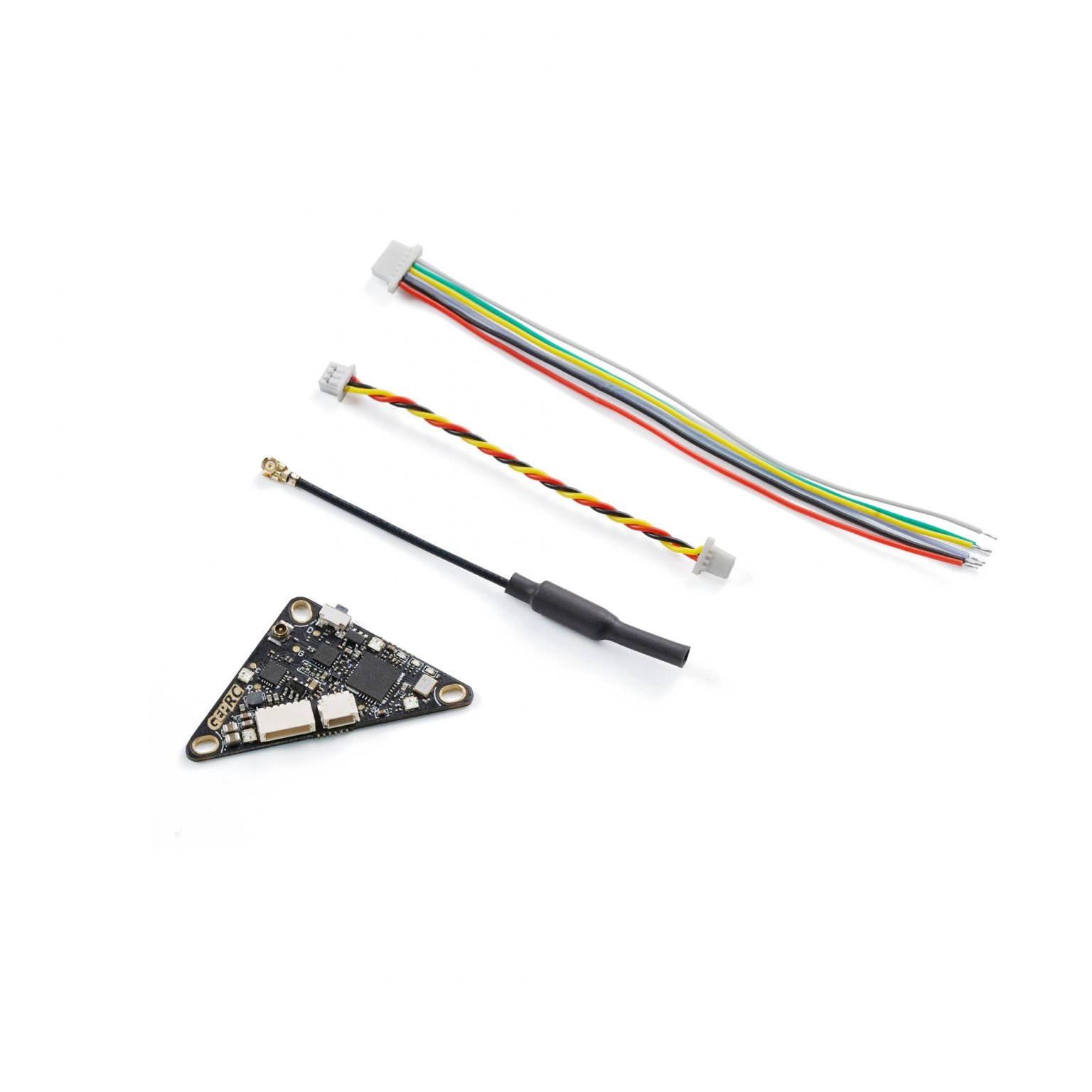

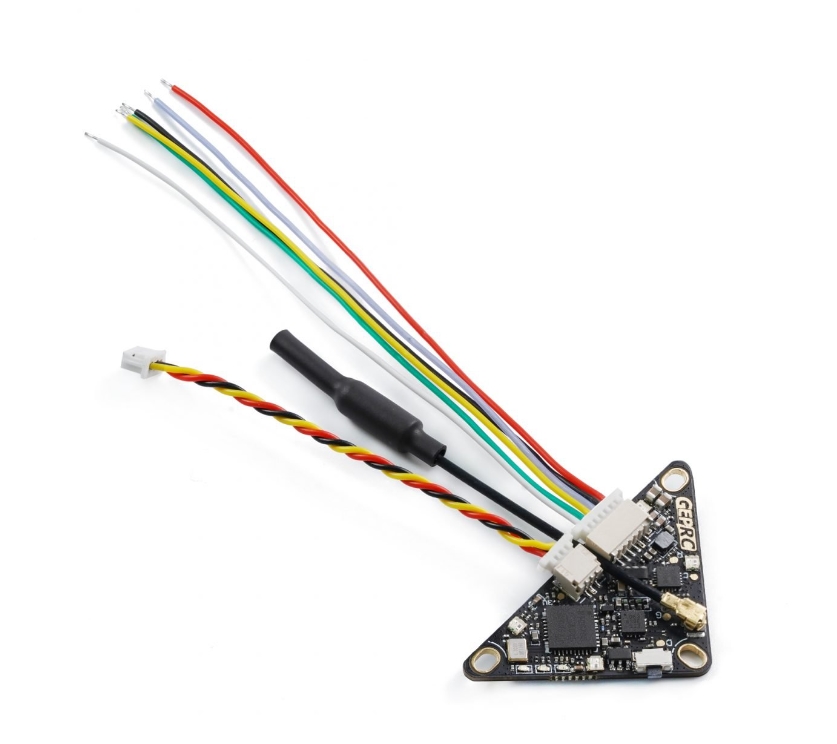

Product Included

1 x RAD Whoop 5.8G VTX

1 x UFL 72mm copper tube antenna

1 x SH1.0 6P 100mm cable

1 x SH1.0 to SH1.25 3P cable
