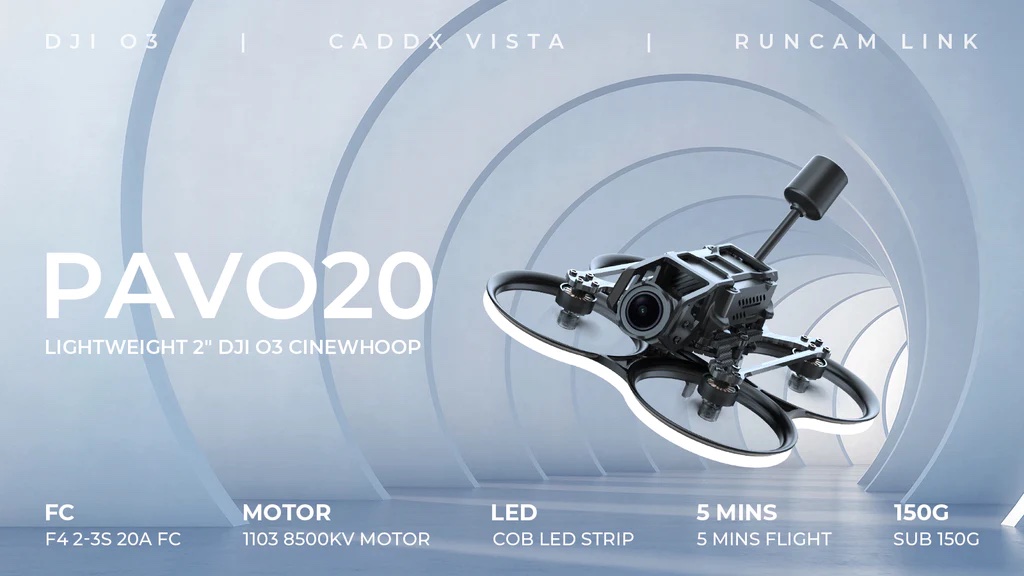

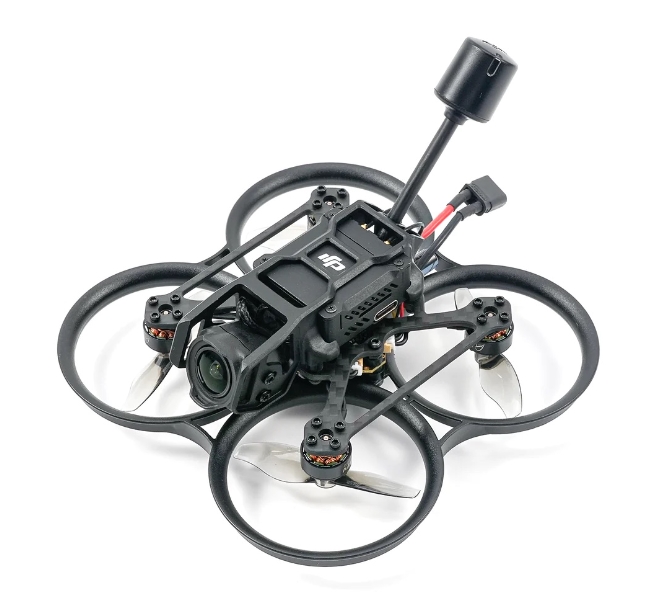

BETAFPV Pavo20 Brushless Whoop โดรนใบพัด 2นิ้ว ใช้แบต 2-3S มีแบบ ตัวเปล่า และ แบบมีกล้อง

Specification

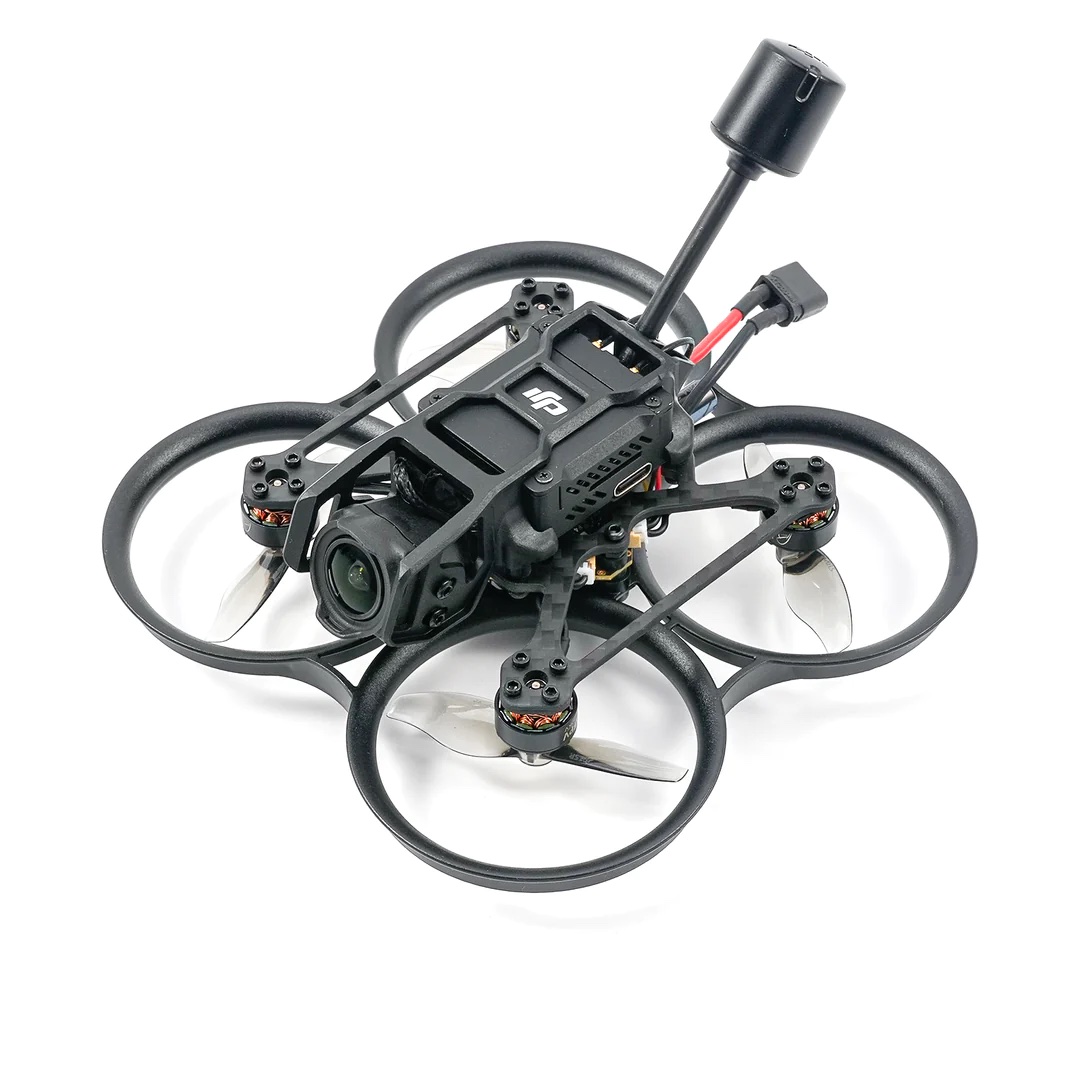

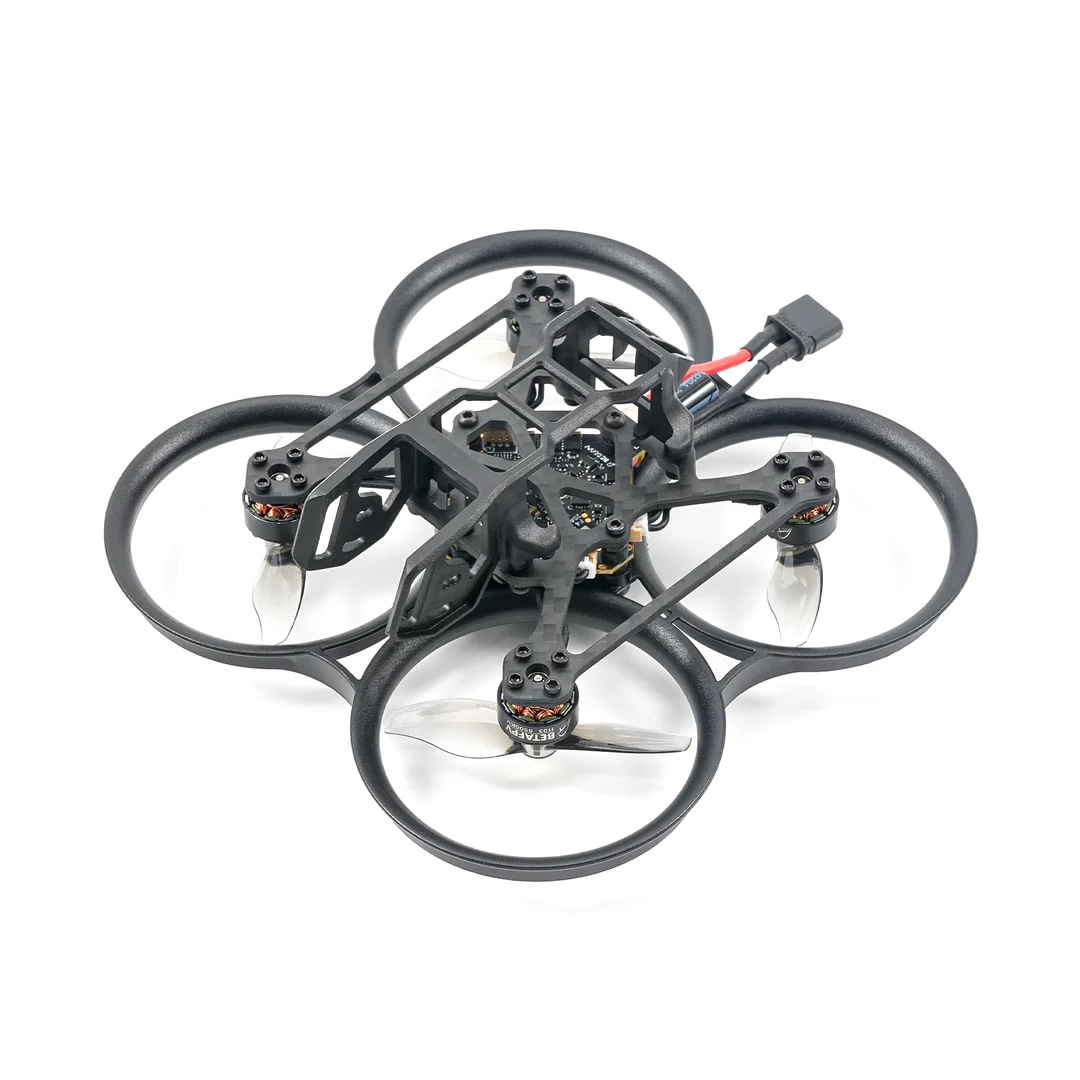

Pavo20 Frame Kit, with a wheelbase of 90mm, is constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance, ensuring durability in demanding flight conditions. It employs the principles of aerodynamics and synergizes flawlessly with an enhanced power system to deliver unparalleled thrust.

Note: 2-4S is for the Pavo20 frame, this Pavo20 quadcopter only supports 3S batteries.

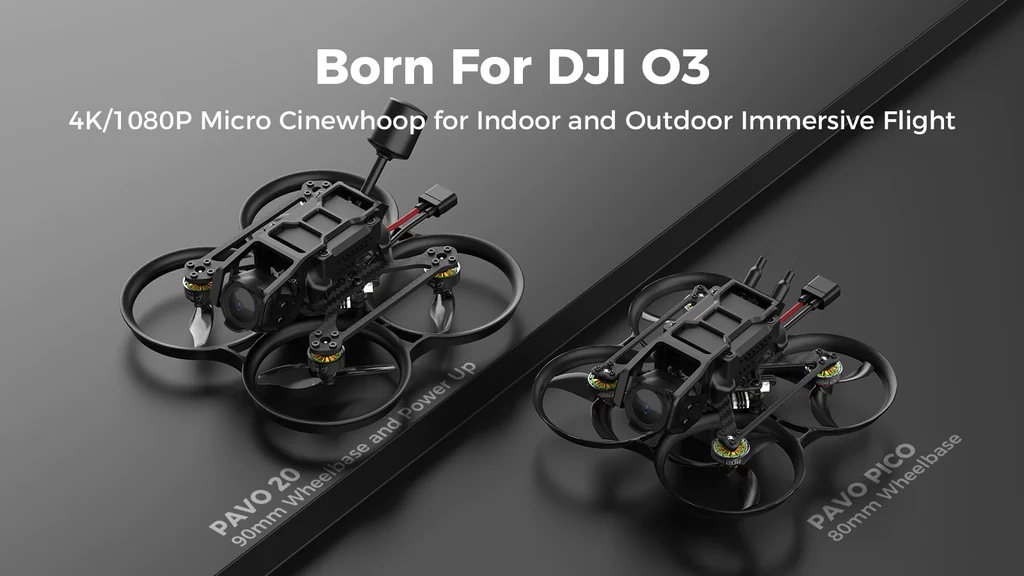

The vibration problems and solutions encountered by Pavo20 are consistent with Pavo Pico. Please refer to Pavo Pico DJI O3 Vibration Problem.

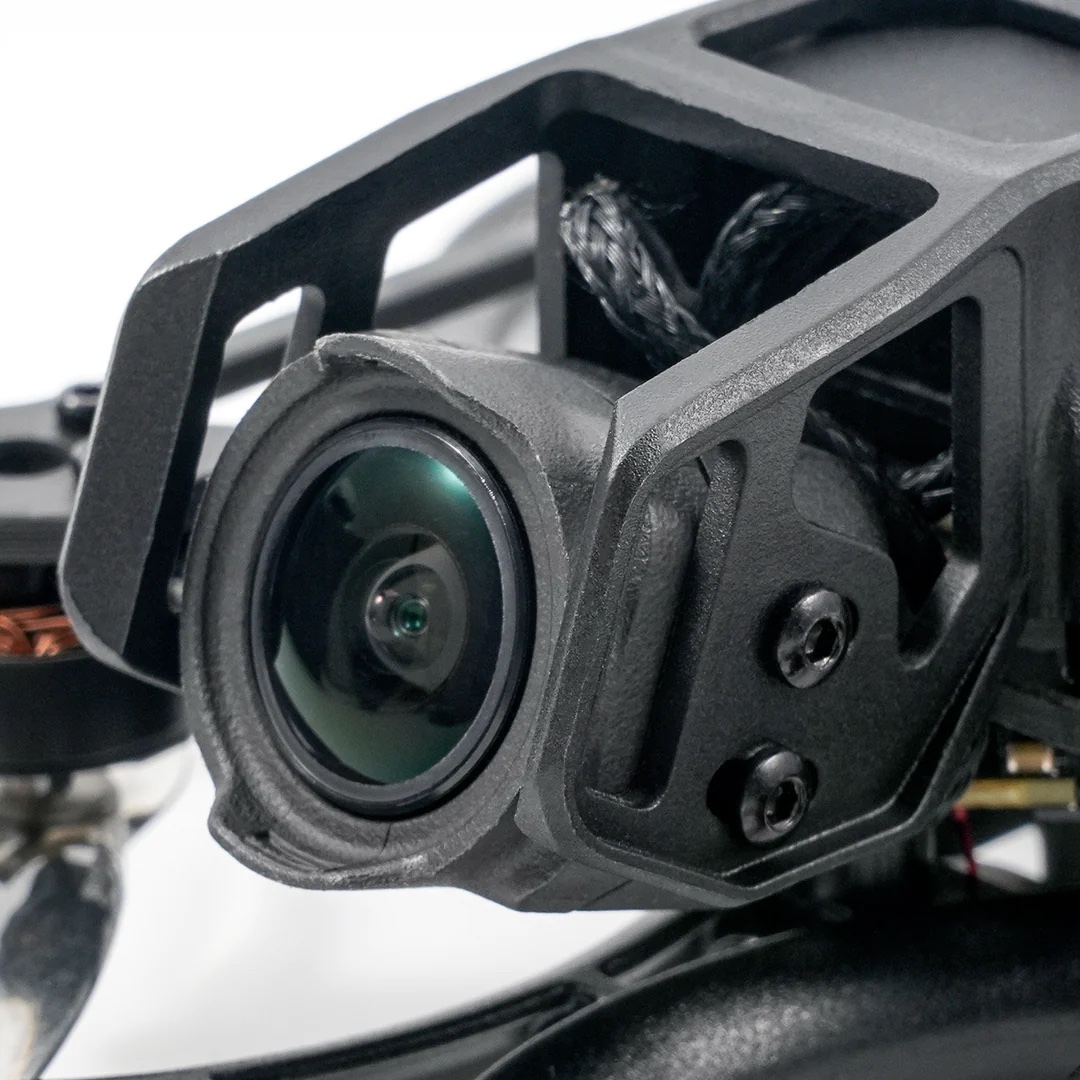

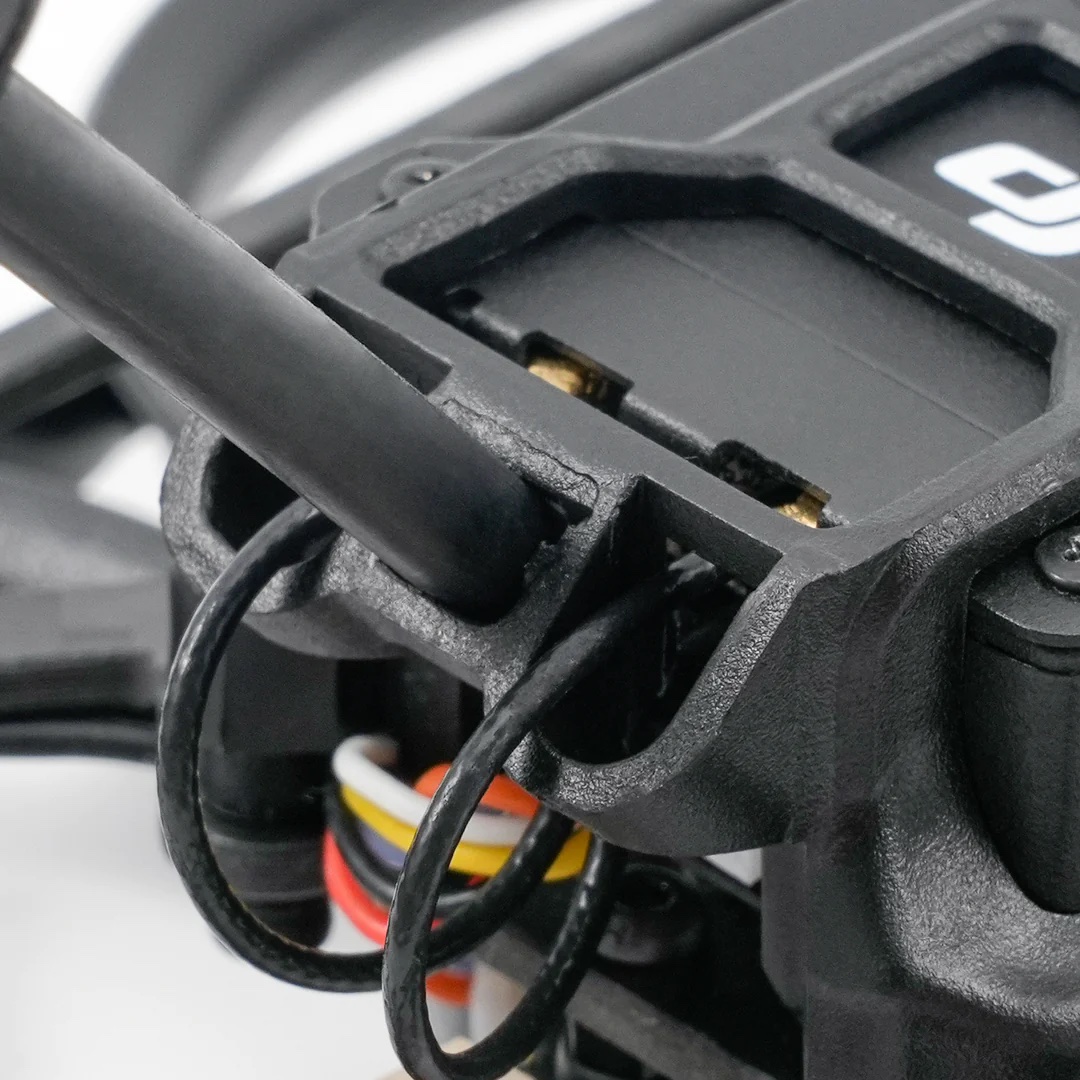

Moreover, the integrated injection molding HD VTX mounting bracket boasts the utilization of an insert copper nut, facilitating effortless installation, equipped with half-thread screws for eliminating the trouble of adjusting the tightness of the screws, which also enhances anti-vibration and ensuring stable and smooth HD images. At the same time, it can be adapted to the Pavo Pico.

Click to watch the installation guide video for the DJI O3 Air Unit.

Power System

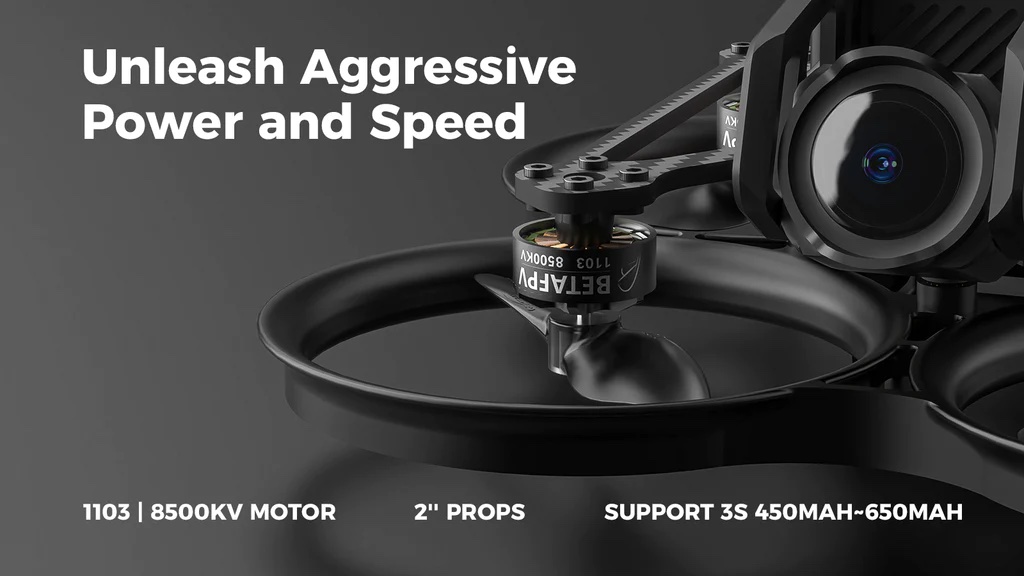

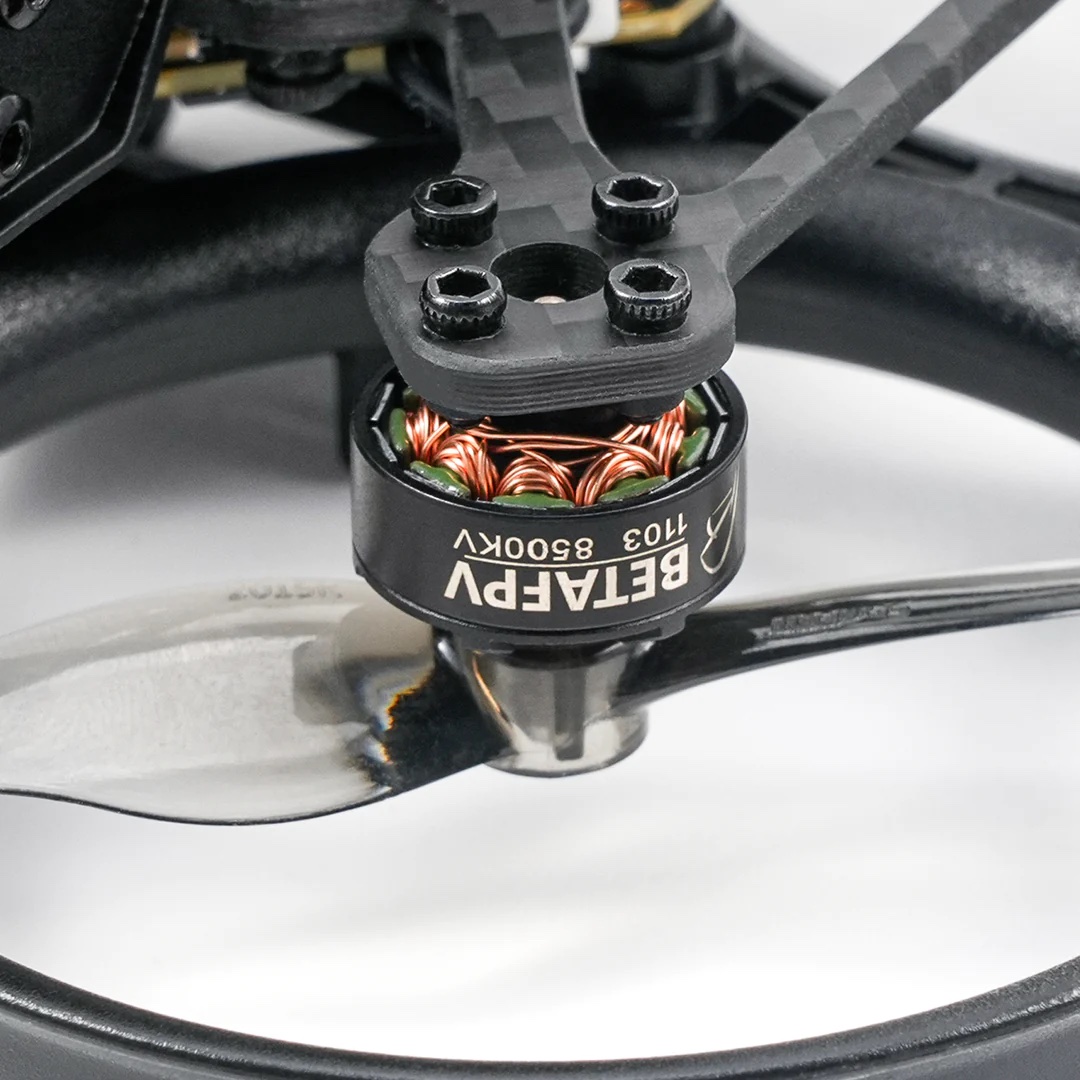

Experience the ultimate power and speed with our 1103 | 8500KV motor, it delivers unrivaled thrust for adrenaline-pumping flights. Designed specifically for 2'' props, this power system ensures exceptional agility and maneuverability in tight spaces. It supports 3S 450mAh~650mAh batteries, providing a perfect balance between flight time and performance. With up to 5 minutes of flight time, you can capture breathtaking aerial footage without interruption. Upgrade your drone's power system and elevate your flying experience to new heights.

Flight Controller

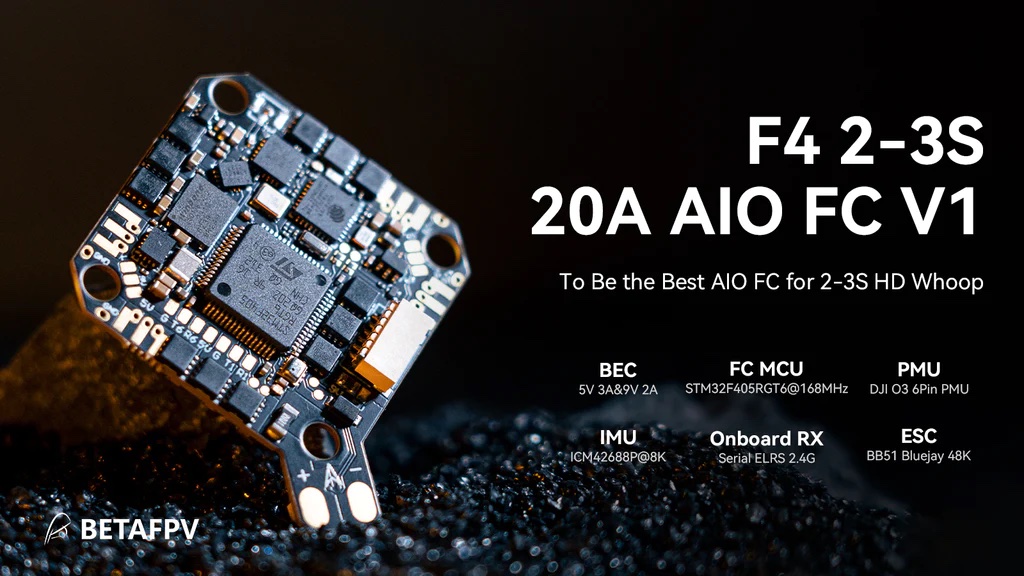

Our F4 2-3S 20A AIO FC V1 features an ESC with a peak current of 25A, ensuring stable operation of the FC even in the event of motor stalling. The addition of a 9V 2A BEC power supply ensures the stable operation of the DJI O3 HD VTX when the battery voltage is low. It also includes a DJI O3 6-pin PMU allowing for connection to HD VTX without soldering. It integrates features such as a 16MB black box, with support for GPS, external receivers, and other devices. The redesigned solder pad layout and USB connector make installation and maintenance easier and more convenient.

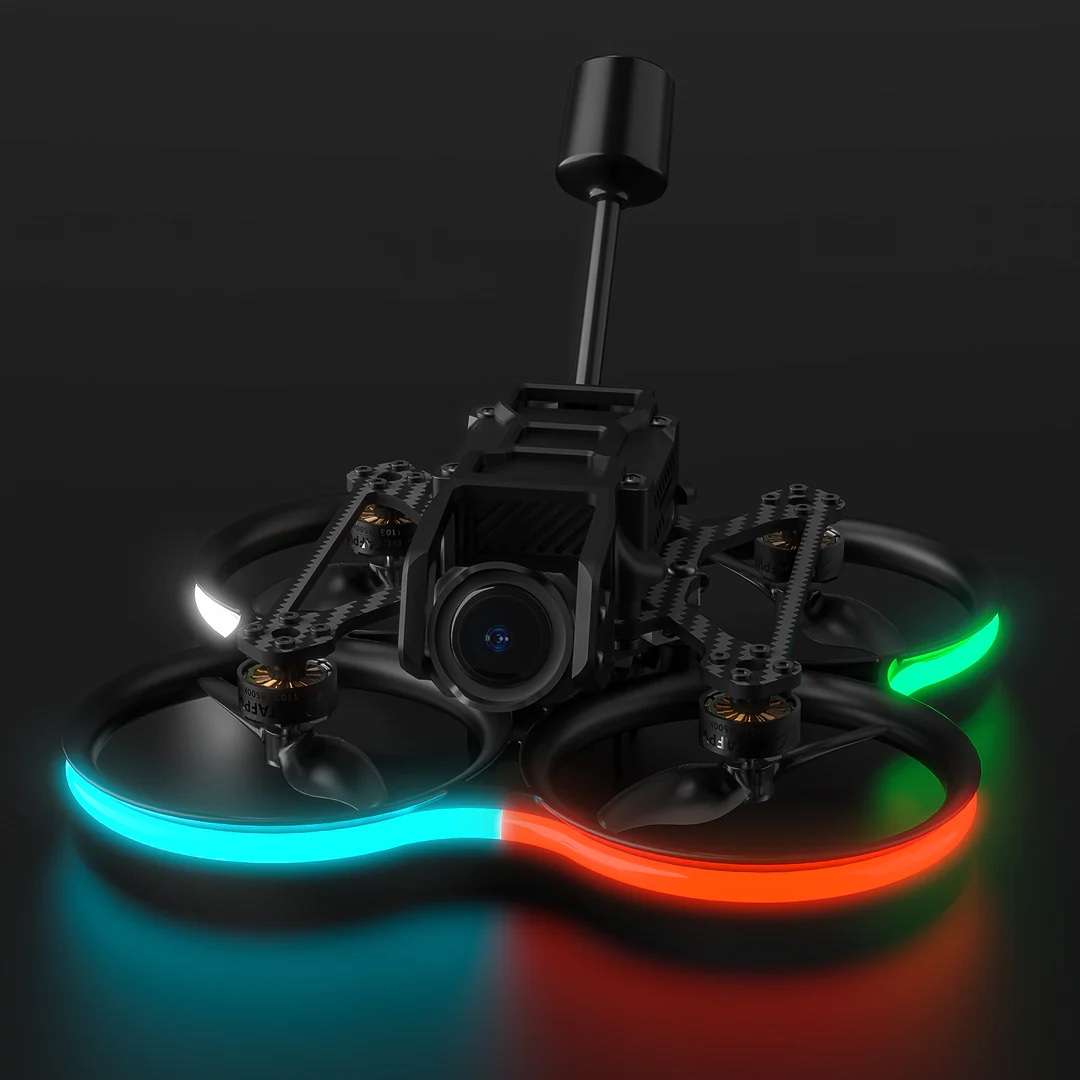

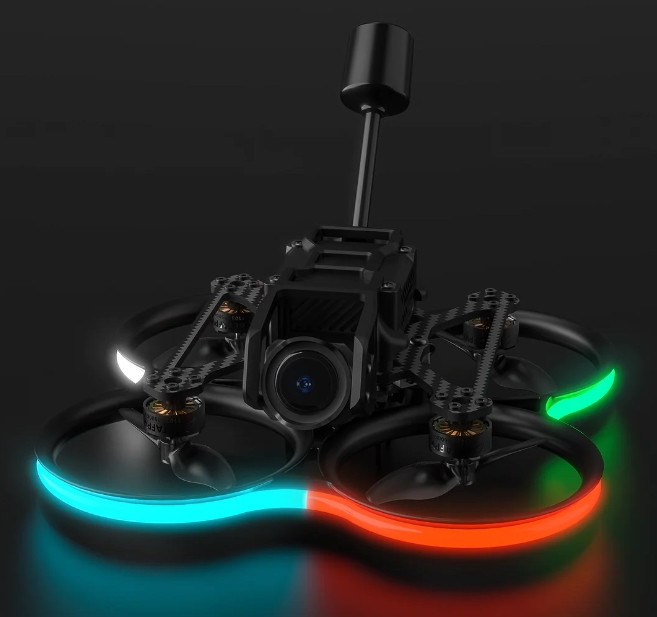

Pavo Series COB LED Strip

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. It provides increased visibility and facilitates easy observation of the drone's flight by the pilots during nighttime or poorly lit conditions, which also enhances operational safety, It can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance. Choose from a single color option of ice blue, white, green, or red, or even mix multiple colors to personalize and elevate your flying experience while ensuring safety.

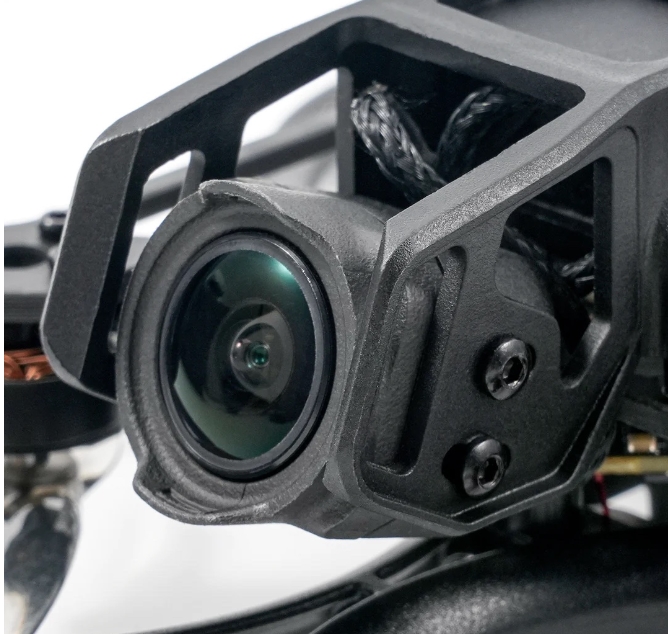

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera is specifically designed for the Pavo20 and Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Recommend Parts

• FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
• Motor: 1103 | 8000kv/8500kv/11000kv
• Propellers: GF 2015-2B, GF 2020-4B
• Battery: 3S 450mAh~650mAh
• VTX: DJI O3, Caddx Vista, RunCam Link
• Filter: BETAFPV ND filter

FAQ

• Click to download the FC firmware and CLI dump file(F4 2-3S 20A AIO FC V1)

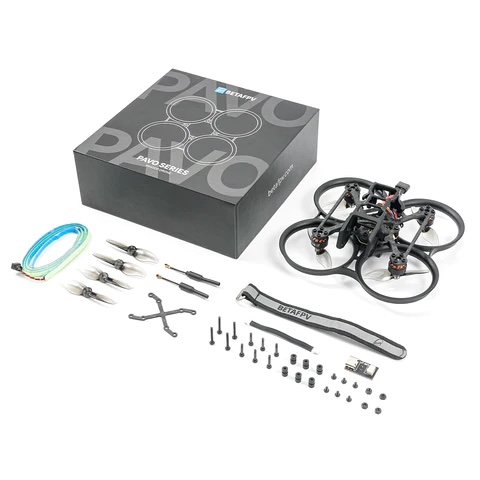

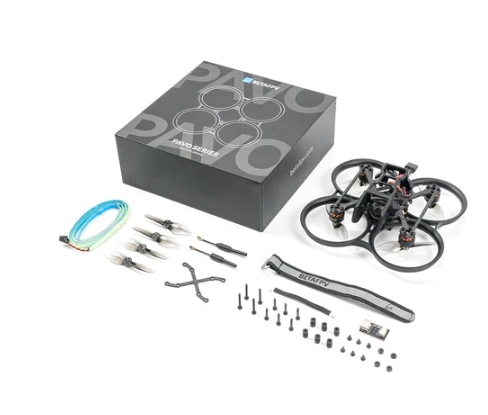

Package

• 1 * Pavo20 Brushless Whoop Quadcopter(Without HD VTX&Camera)
• 1 * Pavo20 HD VTX Bracket
• 1 * HD VTX Bracket Screw Package
• 1 * Pavo Series COB LED Strip Accessory Kit(Ice Blue)
• 4 * GemFan 2015 2-Blade Propeller
• 1 * Type-C Adapter Board
• 1 * 4Pin Adapter Cable
