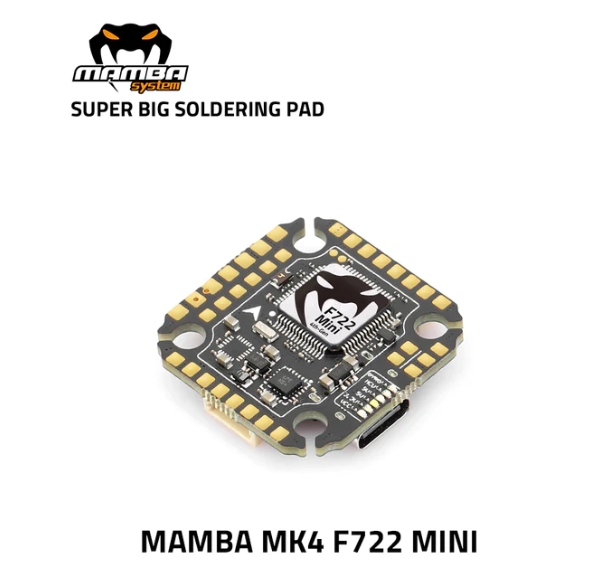

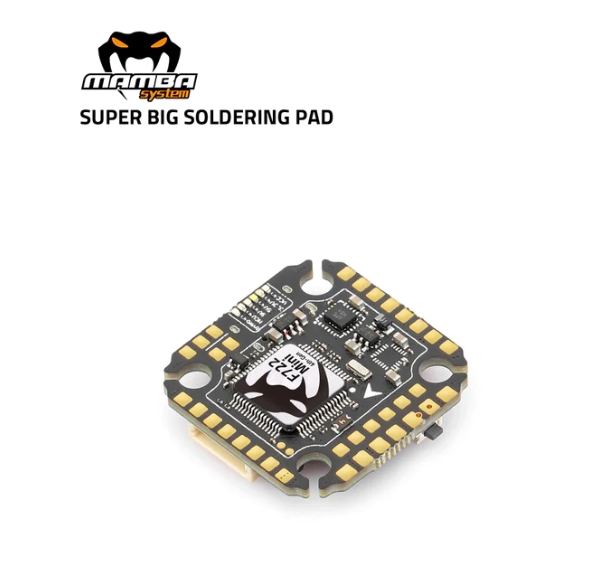

MAMBA MK4 F722 MINI ICM42688P MPU6000 Flight Controller 20mm/M2

MAMBA MK4 F722 MINI ICM42688P MPU6000 Flight Controller 20mm/M2

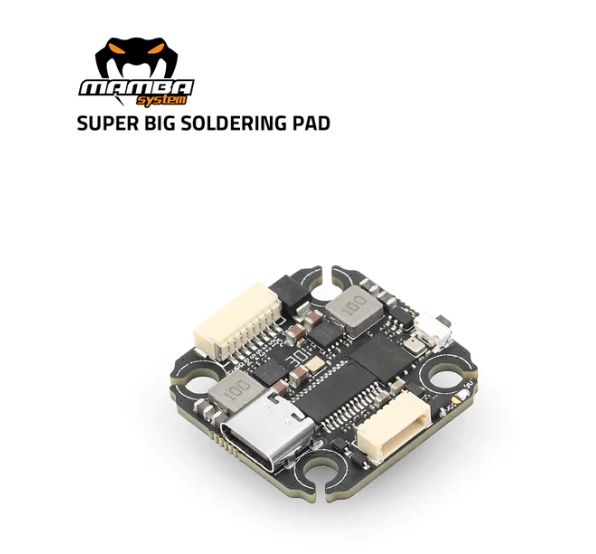

Fourth generation of the F722 Mini FC. The board has a new layout with bigger pads and a port to directly connect your DJI/HD VTx system.

Specifications:

MAMBA MK4 F722MINI

MCU: 216MHz STM32F722

GYRO: ICM42688P / MPU6000

OSD: AT7456E

Blackbox: 16M Flash Memory

Barometer: SPL06

Uarts: 6 Set

I2C: Yes

F.Port: Yes

RSSI: No

Buzzer Pad: Yes

CURR Pad: Yes

ESC Signal: 8 Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: Yes

Power Led: Yes

LED Controller: BF LED

AIR UNIT Port: Yes

WIFI/Bluetooth: No

VTX Switch: Yes

Receiver Protection: Yes
