SKYZONE SKY04X V2 OLED 5.8GHz 48CH Steadyview Receiver 1280X960 Display FPV Goggles Support DVR With Head Tracker VRX แว่นตัวเทพ ภาพบชัด สัญญาณไกล

Skyzone SKY04X V2 Update

The updated V2 version includes a 60fps DVR for smoother footage.

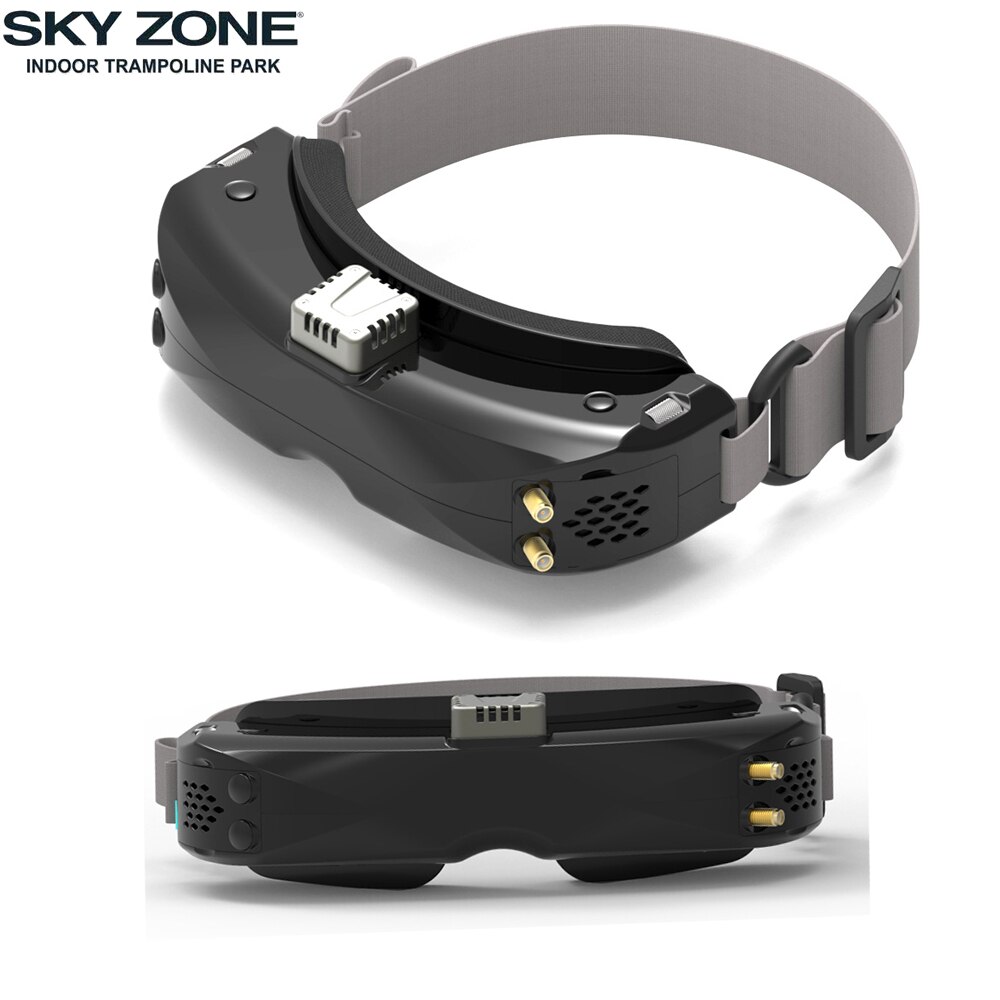

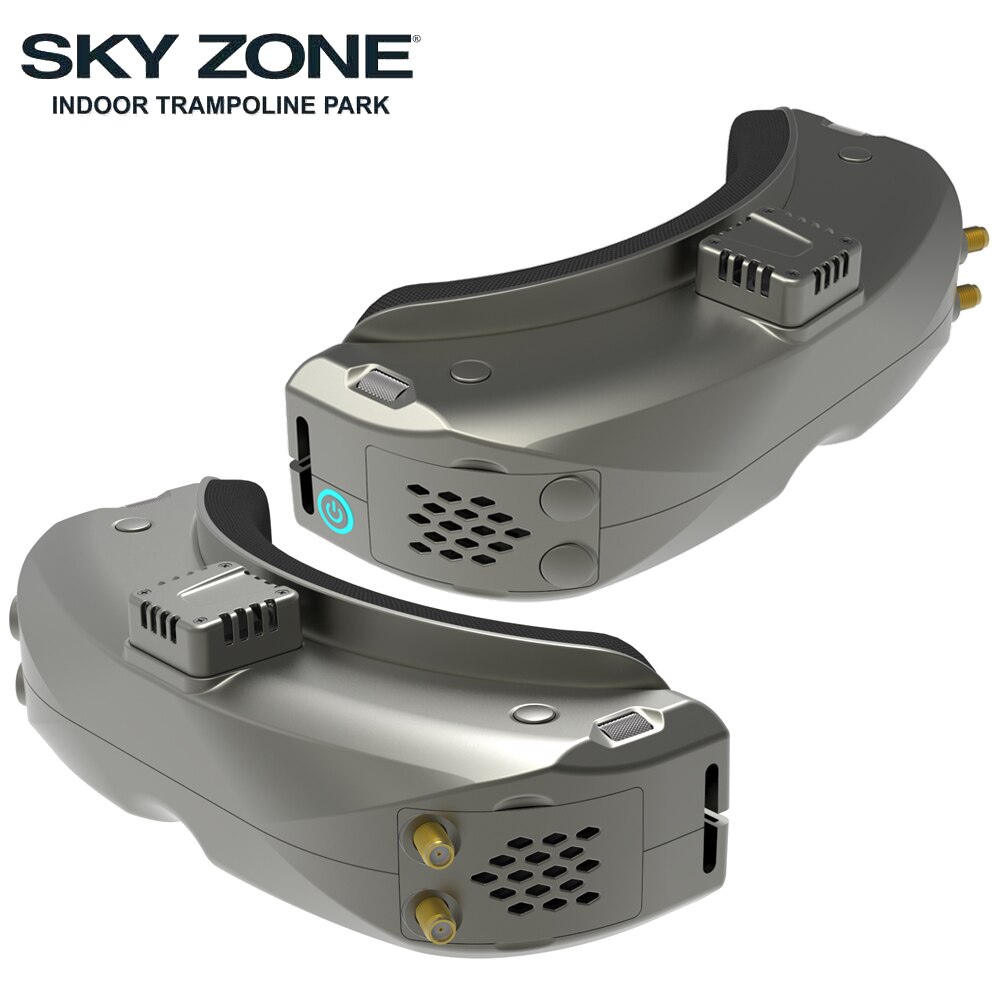

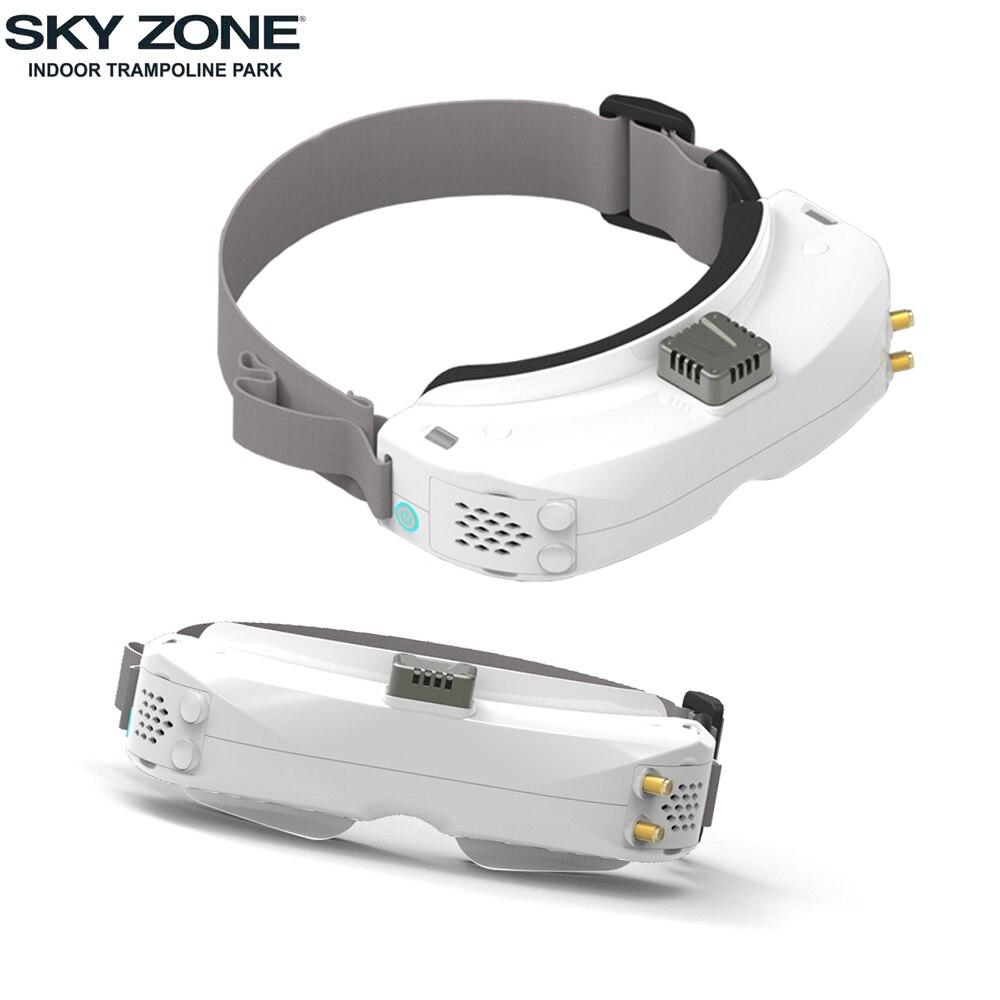

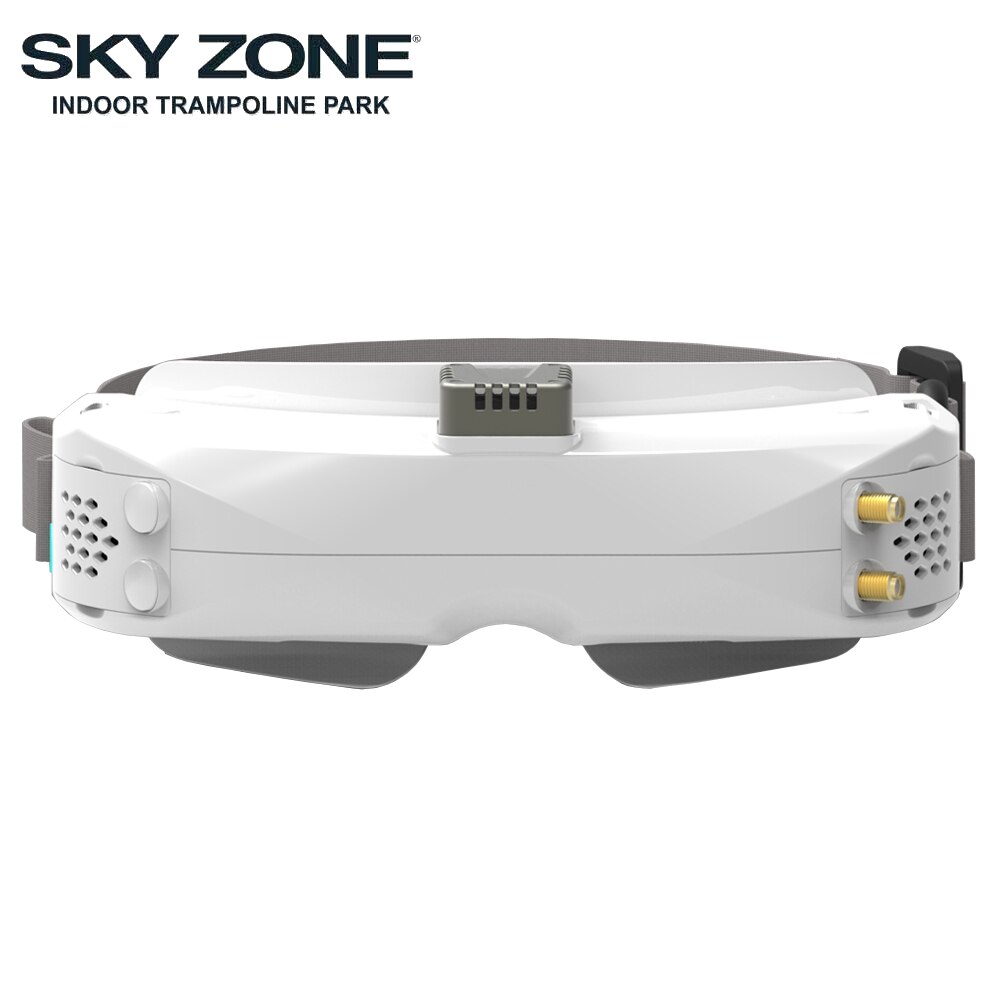

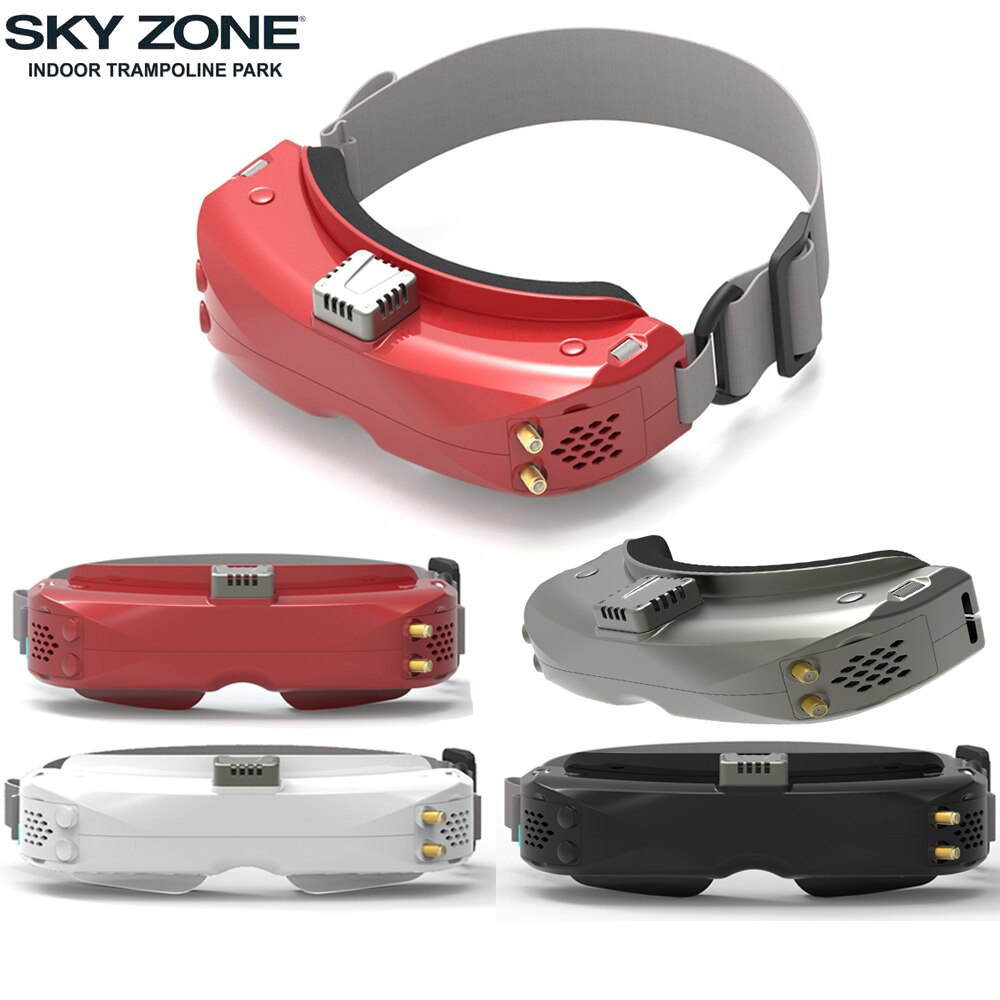

SKYZONE SKY04X OLED 5.8GHz 48CH Steadyview Receiver 1280X960 OLED Display FPV Goggles Support DVR With Head Tracker Fan For RC Racing Drone

The SKY04X is First skyzone goggle with focus adjustment,the 1280*960 high resolution screen have vivid color and high contrast ration,pilot can see more details in the racing.

With Steadyview receiver, the receiver merge two signal to one,avoid image tearing and rolling, make image more stable and clear in challenging condition.

The new designed optics have focus adjustment feature and 46 degree Field of view, gives pilots more immersive FPV experience.

The new OS with 10 languages to set select, pilot have no trouble with the menu system, with shuttle wheel and new user interface, pilot can set all the setting just by rolling the wheel without take off the goggles.

Description:

Brand: SKYZONE

Model: SKY04X

Item: 5.8GHz 48CH Steadyview Receiver 1280X960 FPV Goggles

Screen: OLED

Resolution: 1280X960

FOV (Diagonal): 46°

AspectRatio: 4:3/16:9

Focus: -6~+6 adjustable

Interpupillary distance(IPD): 58-71mm

Receiver: 5.8Ghz 48CH Steadyview Receiver

Language: 10 Language

Power Supply: DC6.5-25.2V/USB5V

PowerConsumption: 720mAat12V

DVR: H264,30fps,MOV6Mbps,SD Card support up to128Gb

Head Tracker: 3-axis Accelerometer, 3-axisgyroscope

Dimentions: 185*75*67mm

Weight: 267g

* SteadyView Receiver

   SteadyView receiver merge two signal to one, make image more stable and clear in challenging condition.

   With module bay, goggles have more capability to upgrade.

* Focus Adjustment.

   The new Optics have large Field of View (46 degree). and the Optics have Focus adjustment feature (-6~+6), no need diopter any more.

* OELD Screen

   The 1280*960 screen have high resolution and vivid color, high contrast ration, pilots can see more details.

* Advanced Screen Settings.

   The aspect ration can is switchable, and 4 Preset screen setting and 3 customized setting for indoor, outdoor flight or different weather.

* Shuttle Wheel Control

   No more confusing multi function button or 5 way Joy stick, with smooth and nature shuttle control, easy to navigate.

* New User Interface with 10 languages.

   New UI with shuttle wheel, easy to navigate, 10 languages to choose for local user.

BAND/CHANNEL table:

SKY04X FPV GOGGLE USER MANUAL: Click here

For any after-sales questions, please email to the official after-sales mailbox to get a quick response : john@skyzonehobbies.com

Package Included:

1x Goggles

1x Receiver Module

2x Faceplate (wide and narrow)

1x Sponge with velcr0

1x Zipper case

1x Power cable

1x Headtracker cable

2x 5.8GHz 2dD antennas

1x Video/Audio Cable

1x USB-C Cable

1x Uer Manual
