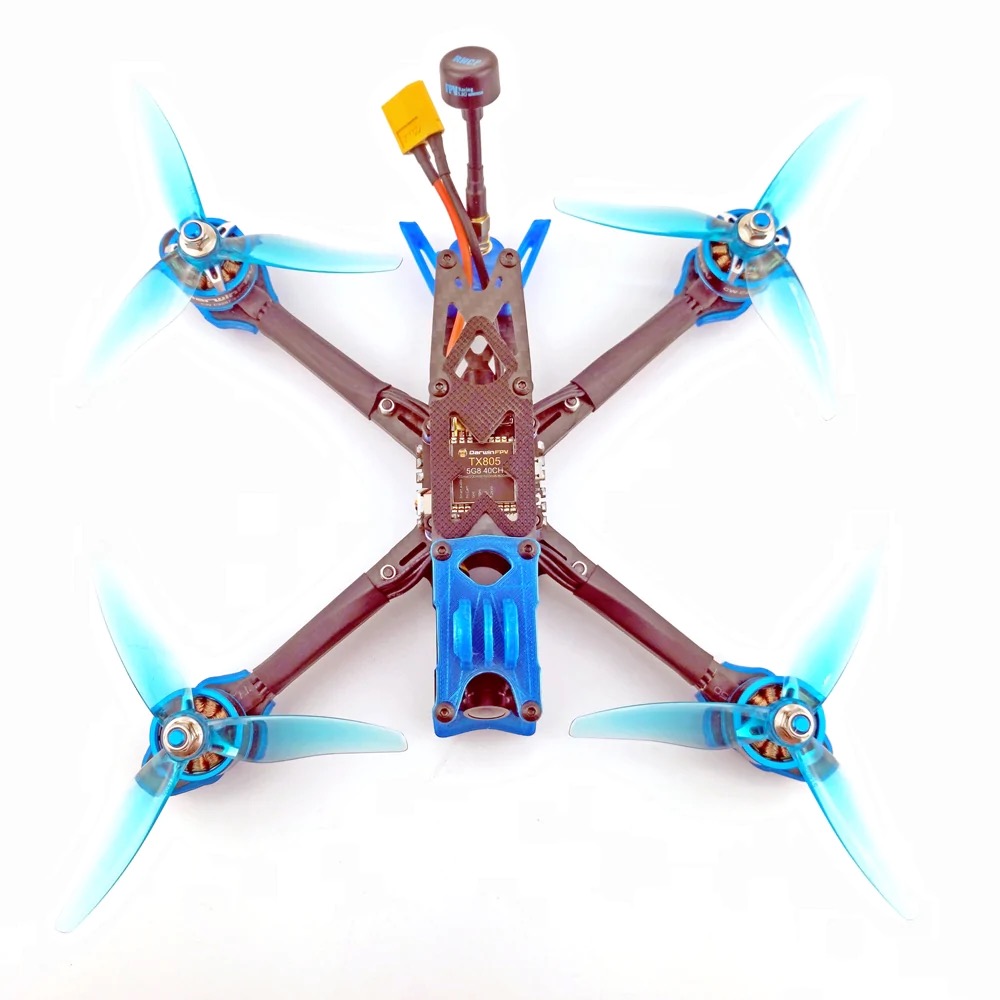

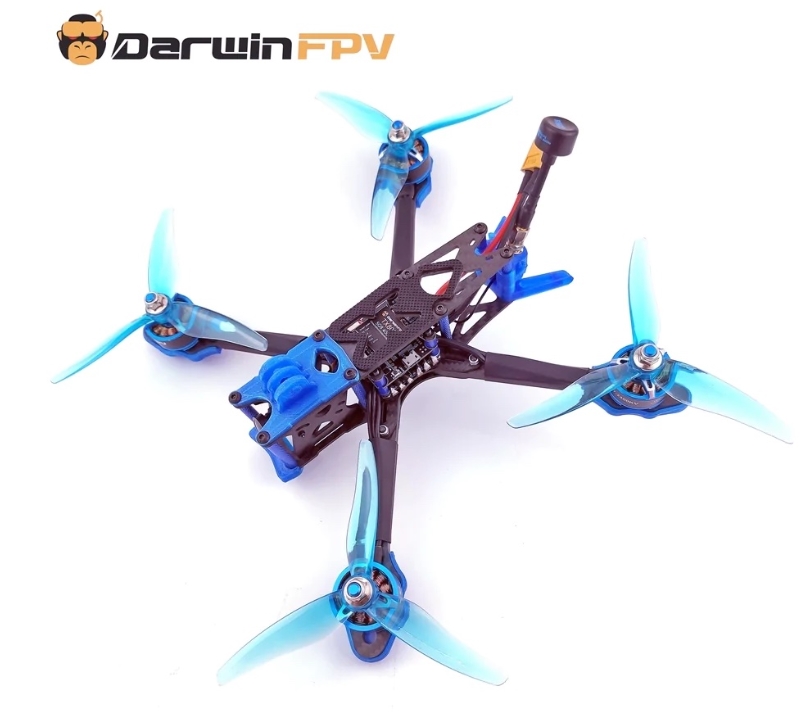

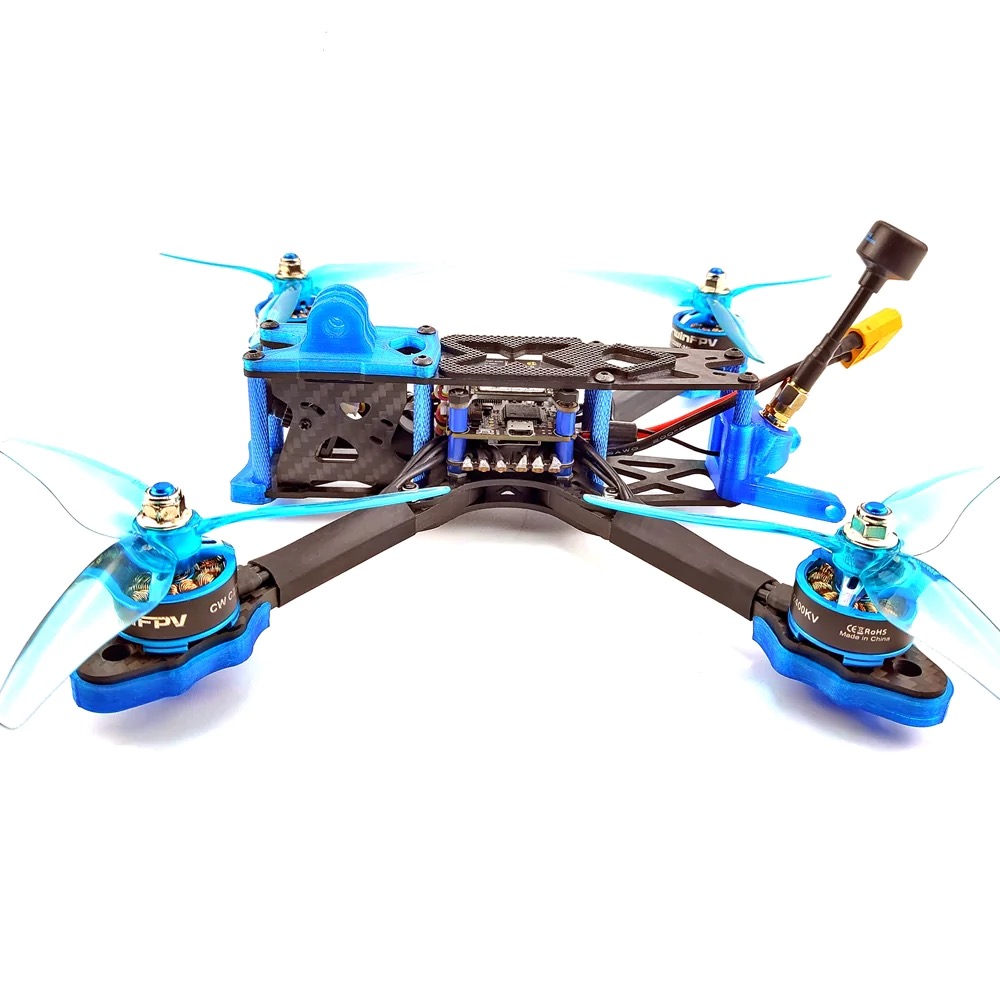

DarwinFPV Darwin240 FPV Drone PNP Johnny 5 โดรนใบพัด 5นิ้ว F4 FC 50A ESC 5.8G VTX 1500TVL 2207 2400KV

DarwinFPV- Johnny 5

Wheel base: 240mm

Frame arm thickness: 5.5mm

Frame kit material: 3K carbon fiber

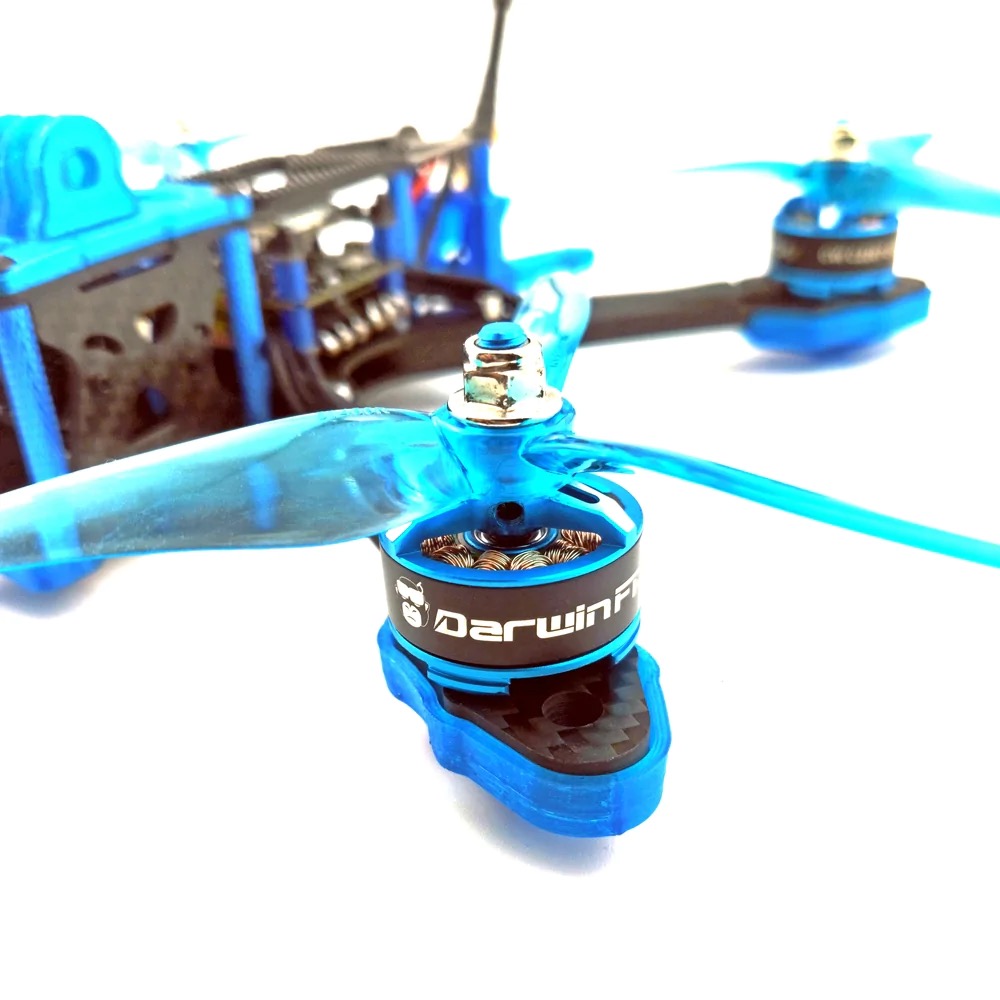

DrawinFPV 2207- 2400KV Brushless Motor

Motor KV:2400KV

Idle Current (Io/10V):0.81A

Lipo Cell:3-4S

Weight:36.4g

Max Continuous Current:32A

Max Continuous Power:765W

Configu-ration:12N/14P

Prop adapter shaft:M5

Bolt holes spacing:16mm

Bolt thread:M3

4 IN 1 50A BLHeli_S ESC

F4-50A stack

Continuous current: 50A

Peak current: 60A (10S)

Lithium battery section number: 2-6S

BEC: 5V2A

ESC weight: 10.8g

Firmware: BL_S

Maximum support throttle signal: DSHOT600

Mounting hole: M3 30.5 * 30.5mm

F4 Flight Controller

F4 Flight contro

Lithium battery section number: 3-6S

BEC: 10V 1A, 4.5V, 3.3V

MCU: STM32F405

Gyro: MPU6000

OSD: AT7456E

Firmware: MATEKF405

Weight: 7.2g

Mounting hole: M3 30.5 * 30.5mm

Support barometer, black box

Bluetooth

5.8G 40CH 800mw VTX TX805P

Frequency: 5.8G Channels: 40CH

Input voltage: 7V~24V

5V camera supply: 120mA(MAX)----25mW@12V 5V

camera supply: 200mA(MAX)----200mW@12V 5V

camera supply: 300mA(MAX)----600mW@12V 5V

camera supply: 350mA(MAX)----800mW@12V Extra

features: Smart audio

Power supply: 5V output for Camera

Output power: 25mW/200mW/600mW/800mW

switchable Antenna connector: MMCX

Cable connector: Solder pads

Weight: 8g(excluding antenna)
