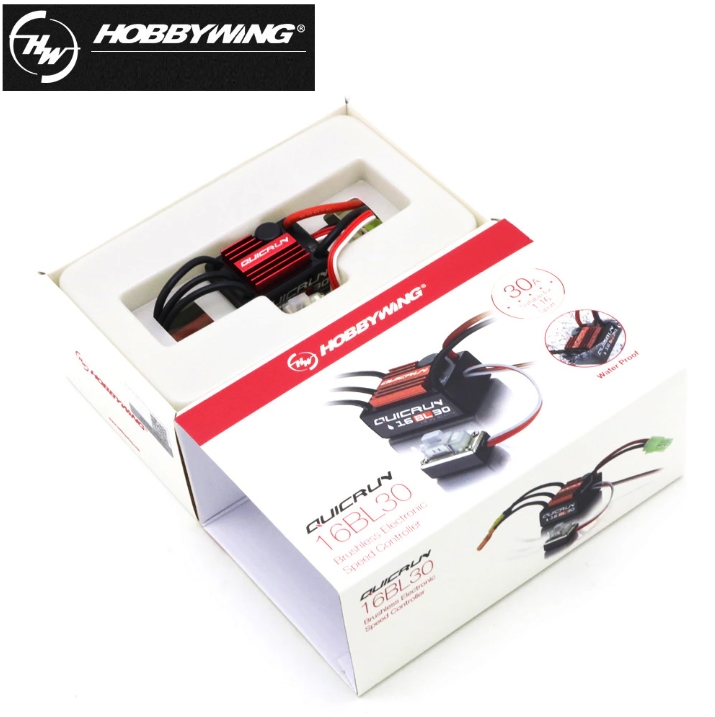

Hobbywing QuicRun WP16BL30 Brushless ESC 30A 2-3s for 1:16 สปีดสำหรับมอเตอร์บลัสดลส

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.

Features

1. Water-proof and dust-proof for all-weather races.
   (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
3. 9 steps of acceleration (/punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks.
4. Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
5. One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
6. Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.

Specifications

• Cont./Peak Current: 30A/180A
• Resistance: 0.002O
• Motor Type Supported: Sensorless Brushless Motor
• Car Applicable: 1/16 & 1/18 On-road/Off-road Buggy/Monster
• Motor Limit
  • For 2S Lipo or 6 cells NiMH:
    On-road: 2435-size or smaller motor with the KV<8000
    Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000
  • For 3S Lipo or 9 cells NiMH:
    On-road: 2435-size or smaller motor with the KV<5500
    Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500
• Battery
  • 4-9 Cells NiMH
  • 2-3S Lipo
• BEC Output: 6V/1A (Linear Mode)
• Size: 36(L)*28(W)*16(H)
• Weight  / 38g
• External Program Port: No
• Working voltage of Fan: No Fan
