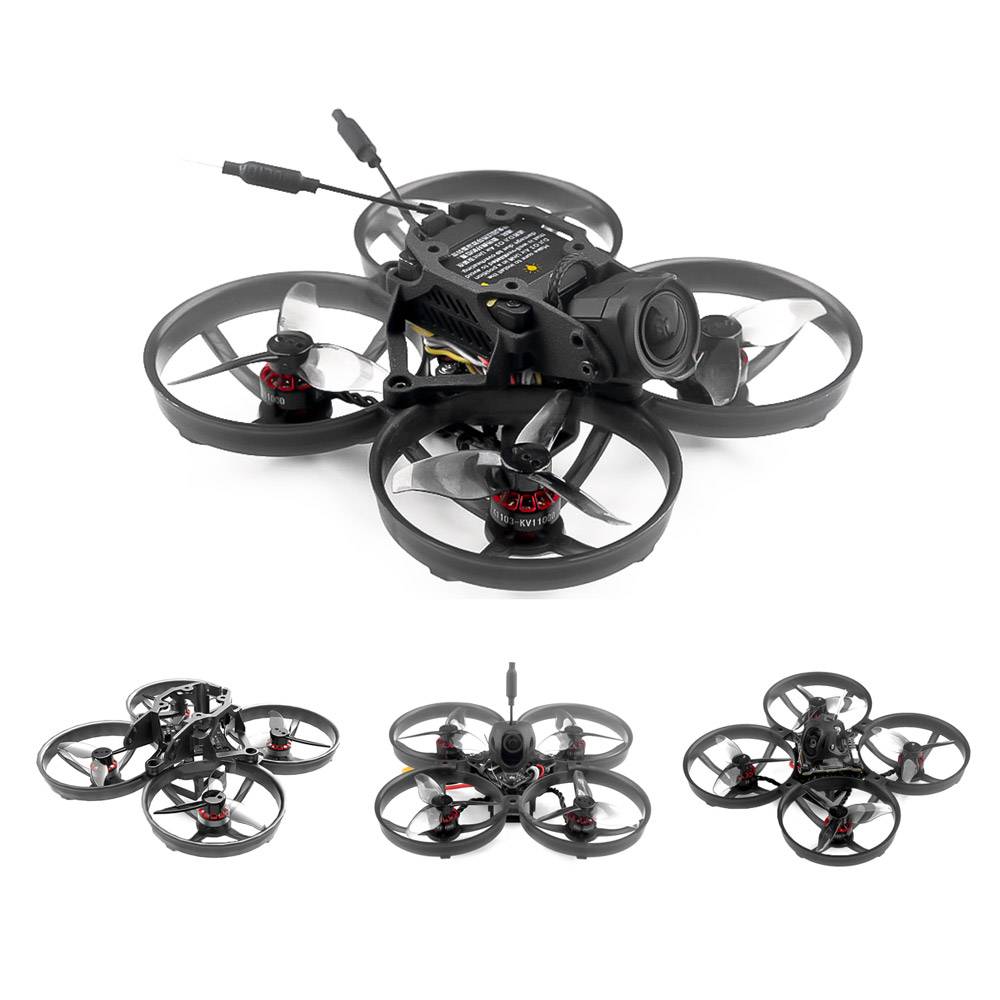

Happymodel Mobula8 1-2S 85mm HD Drone w/ ELRS - DJI O3 / Walksnail / HDZero

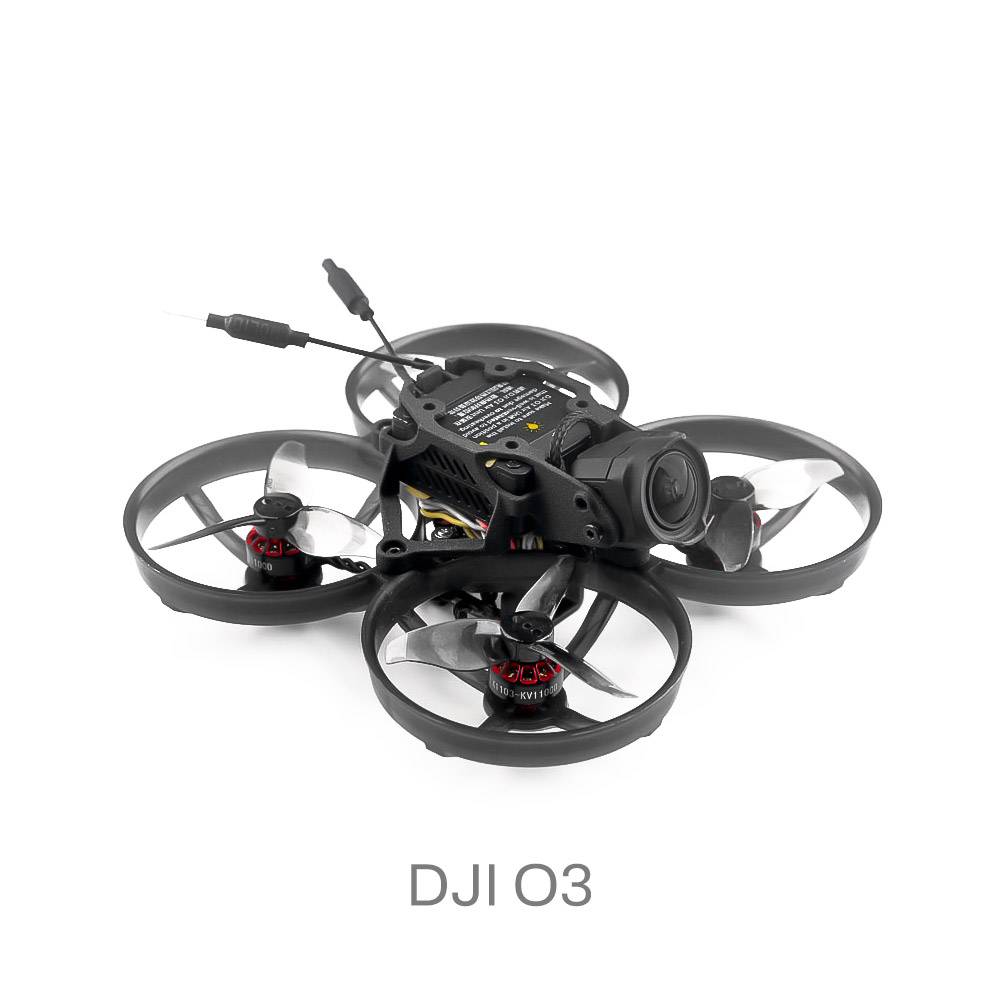

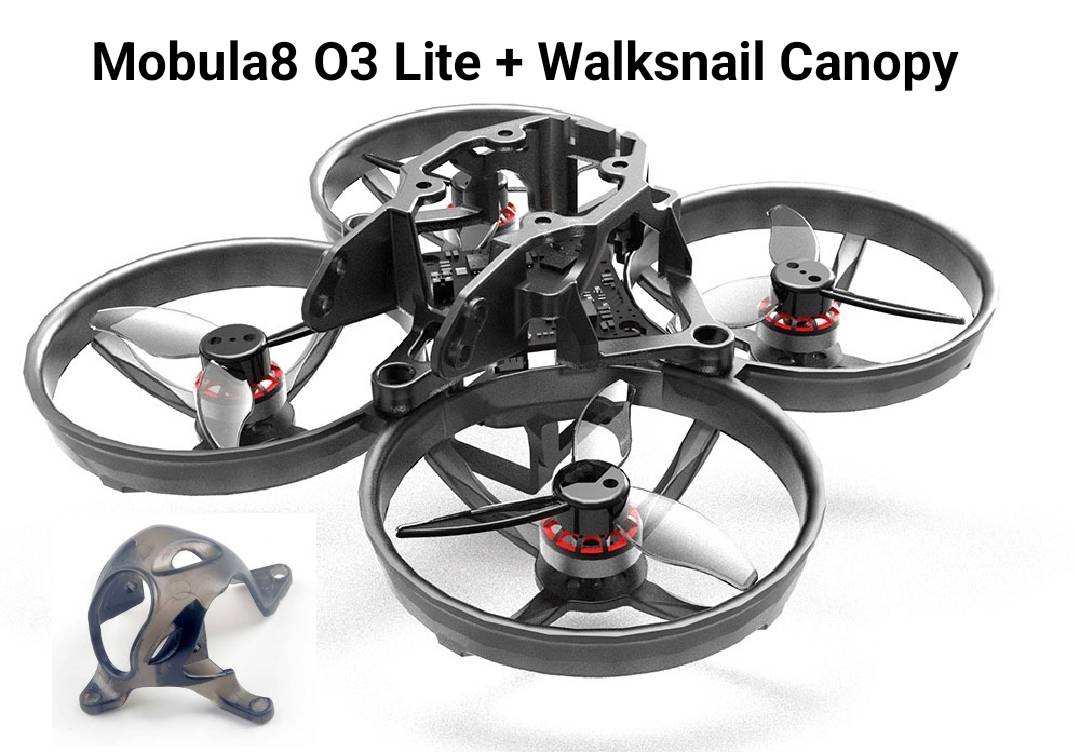

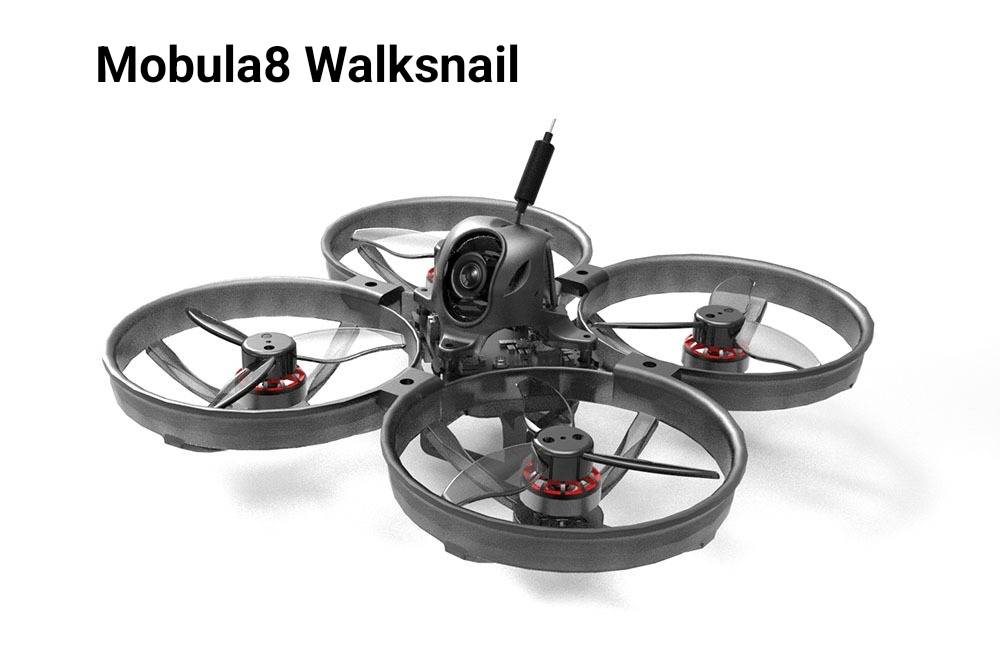

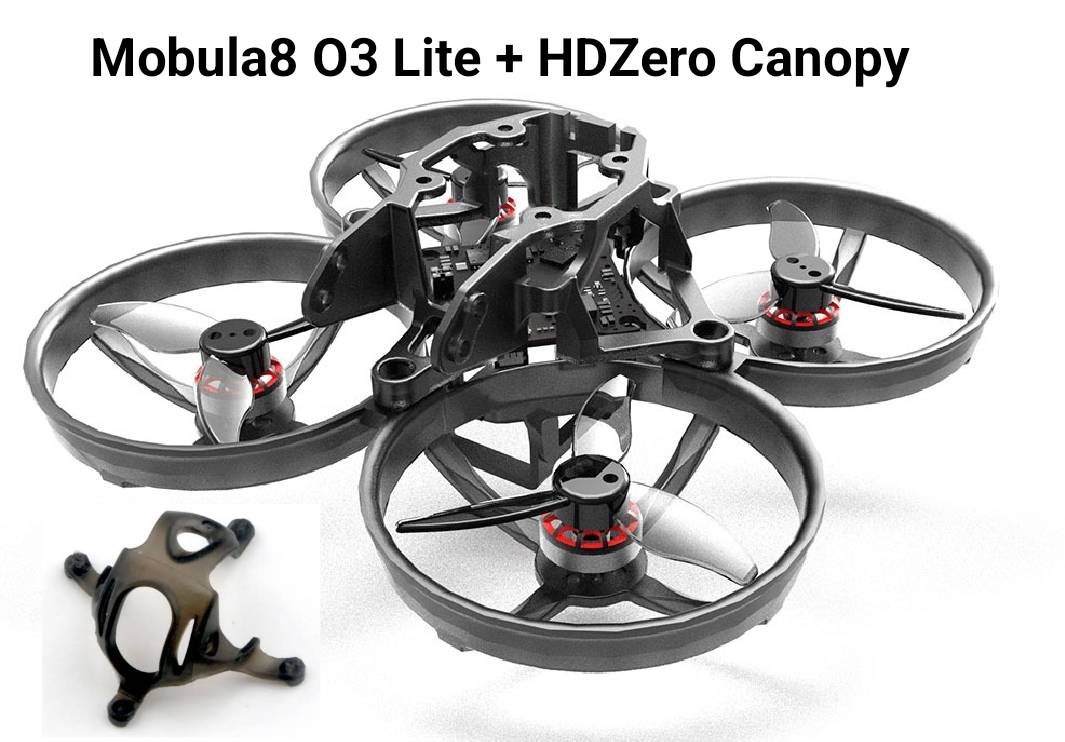

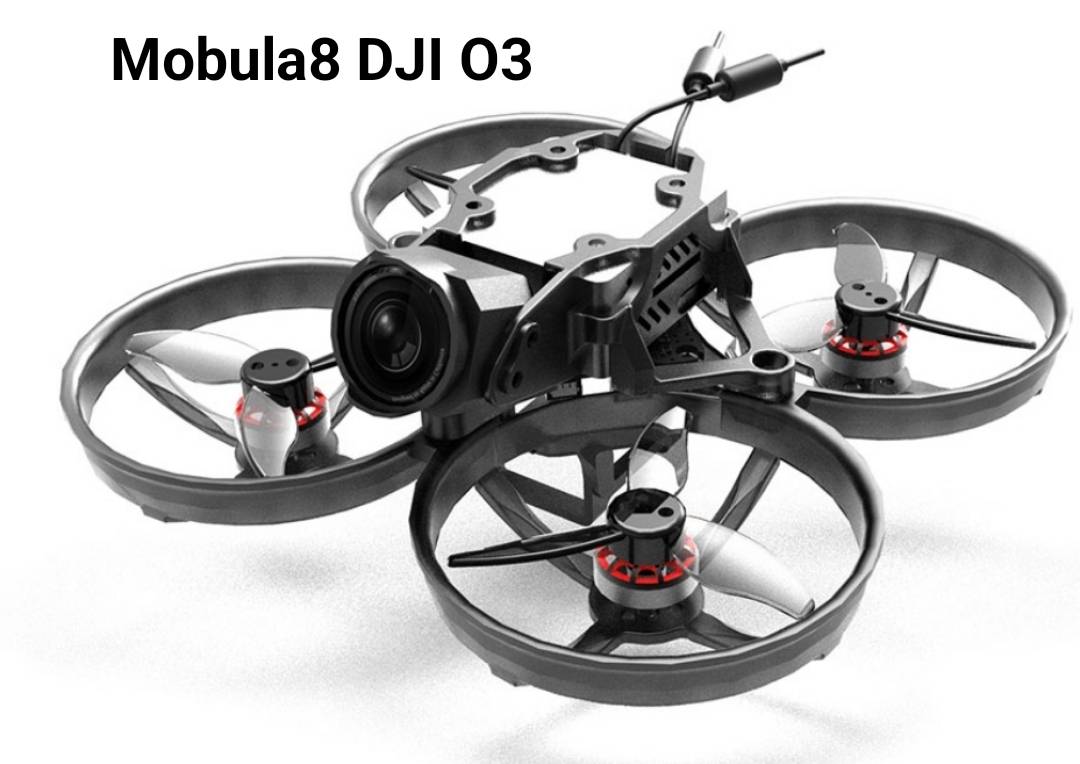

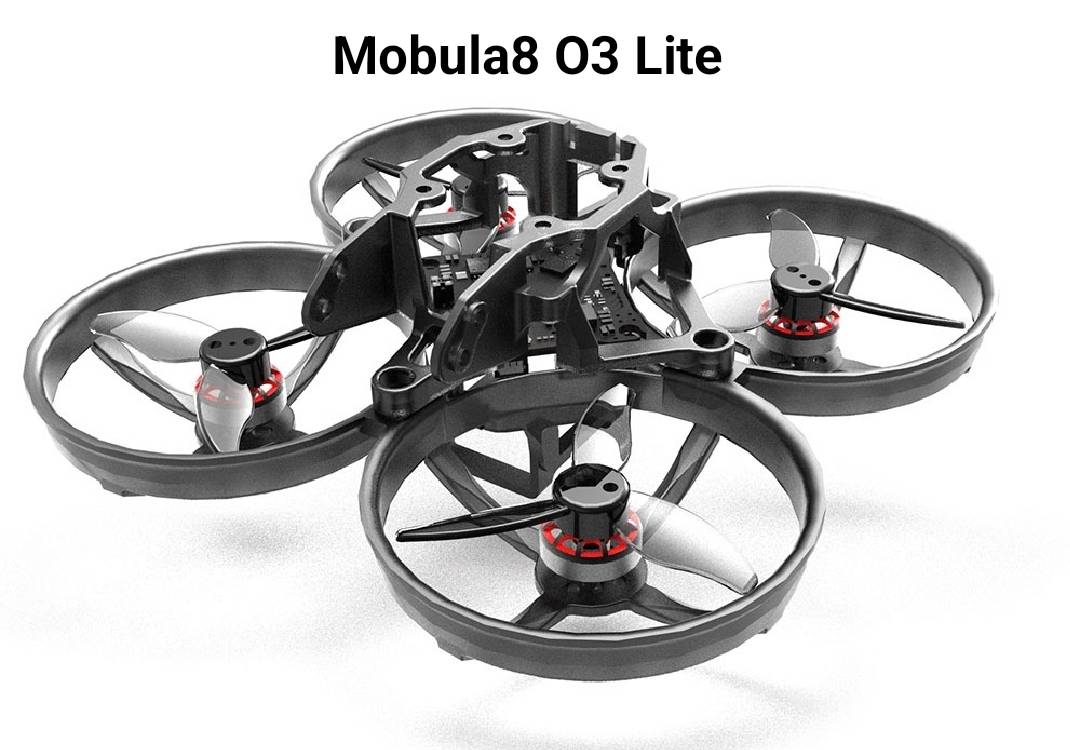

• Camera/VTX Options: DJI O3 Compatible (No Camera or VTX), DJI O3, Walksnail Avatar HD Lite, or HDZero Nano Lite
• Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
• Size: 120mm*120mm*50mm
• Brand Name: Happymodel
• Wheelbase: 85mm

FLIGHT CONTROLLER

• Built-in voltage meter sensor, voltage meter scale 110
• Built-in current meter sensor, current meter scale 470
• MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
• Power supply: 1-2S battery input (DC 2.9V-8.7V)
• GYRO Sensor: BMI270  (SPI connection)
• Built-in 12A(each) Blheli_S 4in1 ESC
• Mount hole size: 25.5mm*25.5mm
• Built-in Serial ExpressLRS 2.4G
• Model: Crazy F405 ELRS HD
• Built-in BMP280 Barometer
• Built-in 8MBp black box

ONBOARD UART ELRS 2.4GHZ RECEIVER

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• Could update firmware via ExpressLRS configurator
• Antenna: enameled copper wire 31mm length
• Default firmware version: ExpressLRS V3.0.1
• Firmware target: HappyModel EP 2400 RX
• Telemetry output Power: <12dBm
• RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

• Current: 12A continuous peak 15A (3 seconds)
• Factory firmware: Bluejay ESC V0.19
• Support BLHeli_S Bluejay firmware
• Power supply: 1-2S LiPo/LiPo HV
• Default protocol: DSHOT300
• Firmware target: Z-H-30
• *When using 1s battery and high KV 0702/0802 motors, should set the startup power to 1100/1200

MOTORS

• Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
• Mode: EX1103 KV11000
• Shaft Diameter:Φ1.5mm
• No.of Cells(Lipo):1-2S
• Configu-ration:9N12P
• Stator Diamter:11mm
• Stator Length:3mm
• Weight(g):3.8g

PROPELLERS

• Center Hole Dia:1.5mm
• Center Thickness:5mm
• Props Dia:52.17mm
• Weight:0.88g
• Pitch:2.3inch
• Material: PC

• 2S Battery: 450mah/550mah/650mah

• 1x Happymodel Mobula8 1-2S 85mm HD Drone (Choose Camera/VTX)
• 1x Gemfan Hurricane 2023 Tri-blade propellers (4CW+4CCW)
• 1x Spare Canopy
• 1x Screwdriver
