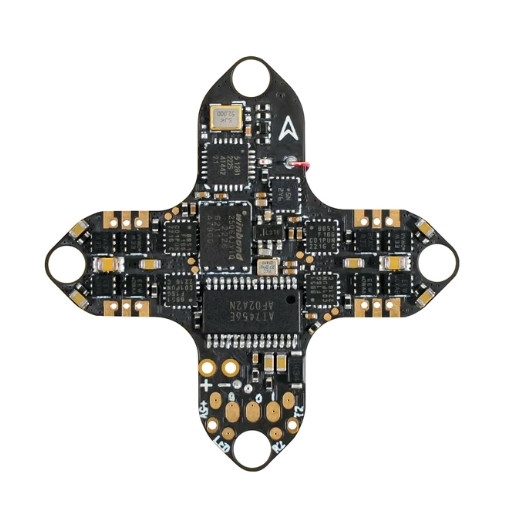

BETAFPV F4 1S 5A AIO Brushless Flight Controller FRSKY / ELRS

Bullet Point

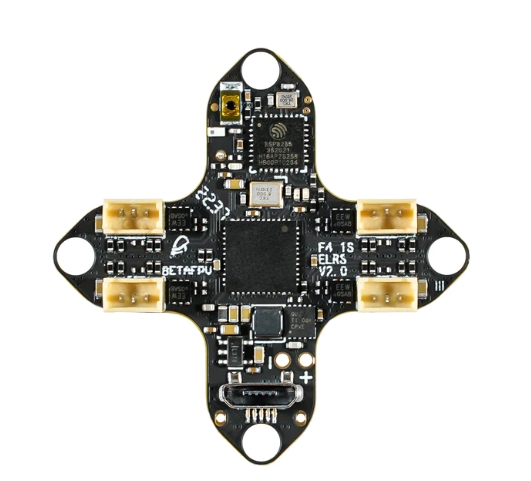

• Come with a Serial ExpressLRS 2.4G receiver, which can be updated via Wi-Fi or Betaflight serial passthrough. It is convenient for pilots to flash any version of ELRS RX firmware and especially can flash ExpressLRS V3.0 without updating flight controller firmware.

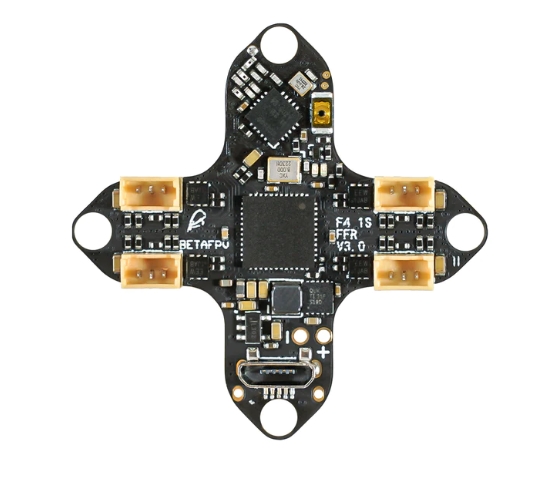

• The SPI Frsky version board reserves an SBUS port and a UART port, which is available for the SBUS protocol receiver or other external receivers.
• Built-in an 8MB flash memory chip dedicated to Blackbox logging. It’s an extremely powerful tool for tuning and troubleshooting an FPV drone.
• Particular design with a weight of 3.64g (Classical) and 2.96g (Light), reasonable layout, and easy to build. With a 26*26mm mounting hole size, it is fully compatible with the whoop frame in the current market.

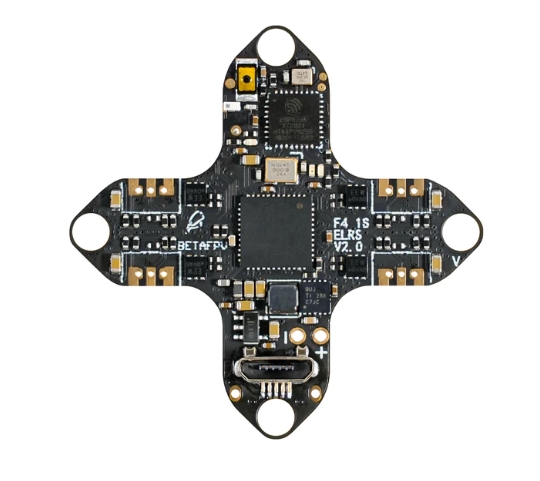

• The Light version requires soldering motor wires to the pad directly, which allows lower resistance for more current on motors. It also comes with motor pin connectors for convenience to use.

Specification of FC

• CPU: STM32F411CEU6 (100MHZ)
• Six-Axis: BMI270
• Built-in Receiver: Serial ExpressLRS 2.4G/SPI CC2500 (Frsky)
• Receiver antenna: Line antenna
• FC Size: 30*30mm
• Mounting Hole Size: 26*26mm
• Firmware version: betaflight_4.3.0_BETAFPVF411 (ELRS)/betaflight_4.2.11_BETAFPVF411RX (Frsky)
• OSD: Built-in BetaFlight OSD
• Blackbox: 8MB
• Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX
• Power Cable: 55mm, with BT2.0 connector

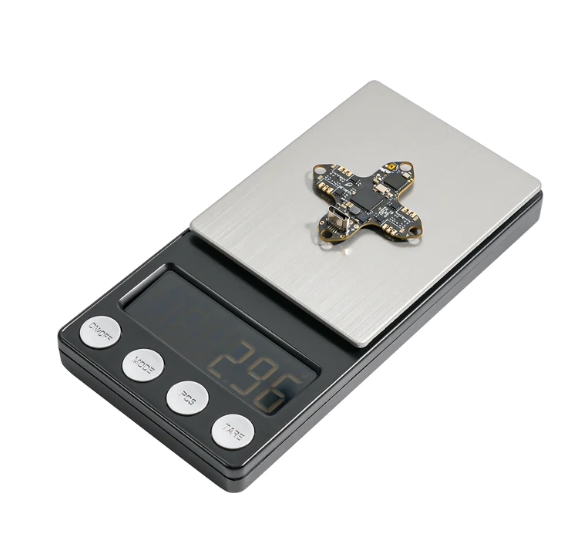

• Weight: 2.96g (without motor connectors) / 3.64g (with motor connectors), excluding power cable

Specification of ESC

• Power supply: 1S
• Current: 5A continuous and peak 6A (3 seconds)
• ESC firmware: A_X_5_.HEX for Bluejay BB51 hardware
• Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

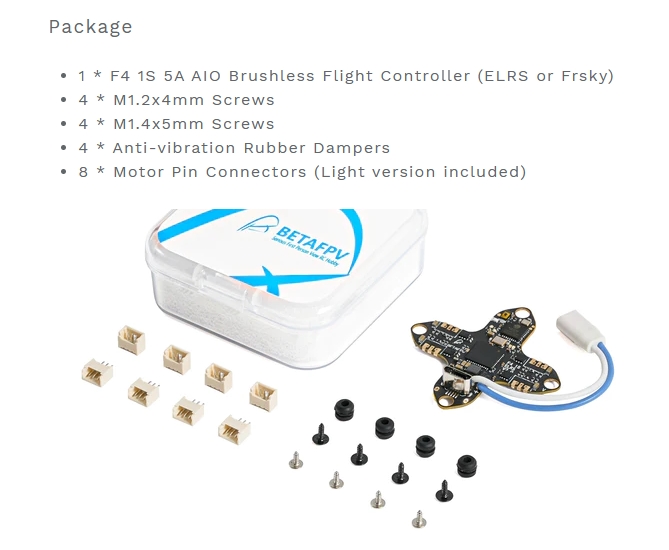

Package

• 1 * F4 1S 5A AIO Brushless Flight Controller (ELRS or Frsky)
• 4 * M1.2x4mm Screws
• 4 * M1.4x5mm Screws
• 4 * Anti-vibration Rubber Dampers
• 8 * Motor Pin Connectors (Light version included)
