AKK TS5828L 600mW FPV Mini AV Transmitter for FPV Multicopter

Digital readout makes changing channels super easy on more compact systems. Lower current consumption for battery saving, adjustable power consumption for all flyers. Long transmission distance and stable performance. You can get better signal since you can tune more channels to find the best one, which is perfect for FPV racing.

• 600MW Mini AV Transmitter 40CH with digital display
• Small size and light weight
• 40channels: Cover a, b, E, F,R bands
• Supply Current : 280mA ,Video Format: NTSC/PAL
• Audio Input Level : 0.5-2.0 Vp-p

Features:
This TS5828L 5.8G 40CH 600MW Mini AV Transmitter, small size and light weight
easy to changing CH, 40channels: Cover a, b, E, F, R bands.

Specification:
Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Output Power: 27-28dBm
Operating Voltage: 7.0V-24V
Supply Current : 280mA
Operating Temperature: -10-+85 C
Video Band Width : 0-8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5-2.0 Vp-p
Audio Input Impedance : 10K Ohm

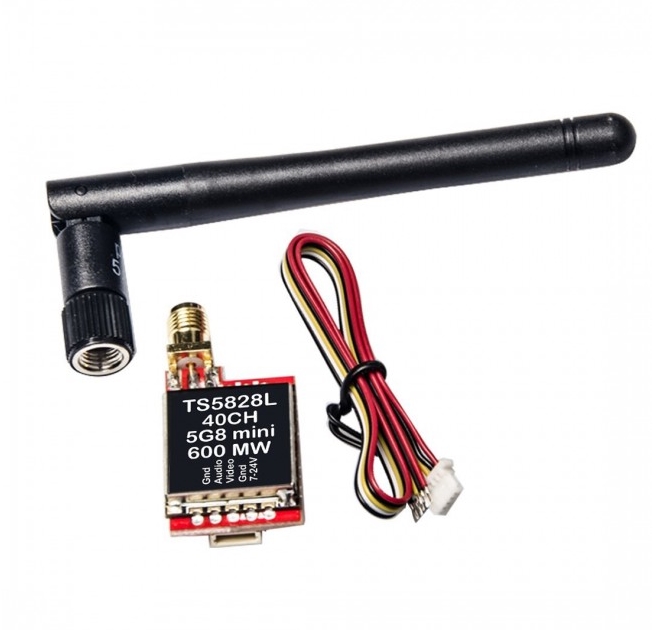

Package Included:
1 x TS5828L Transmitter
1 x Antenna
1 x Connect Cable
