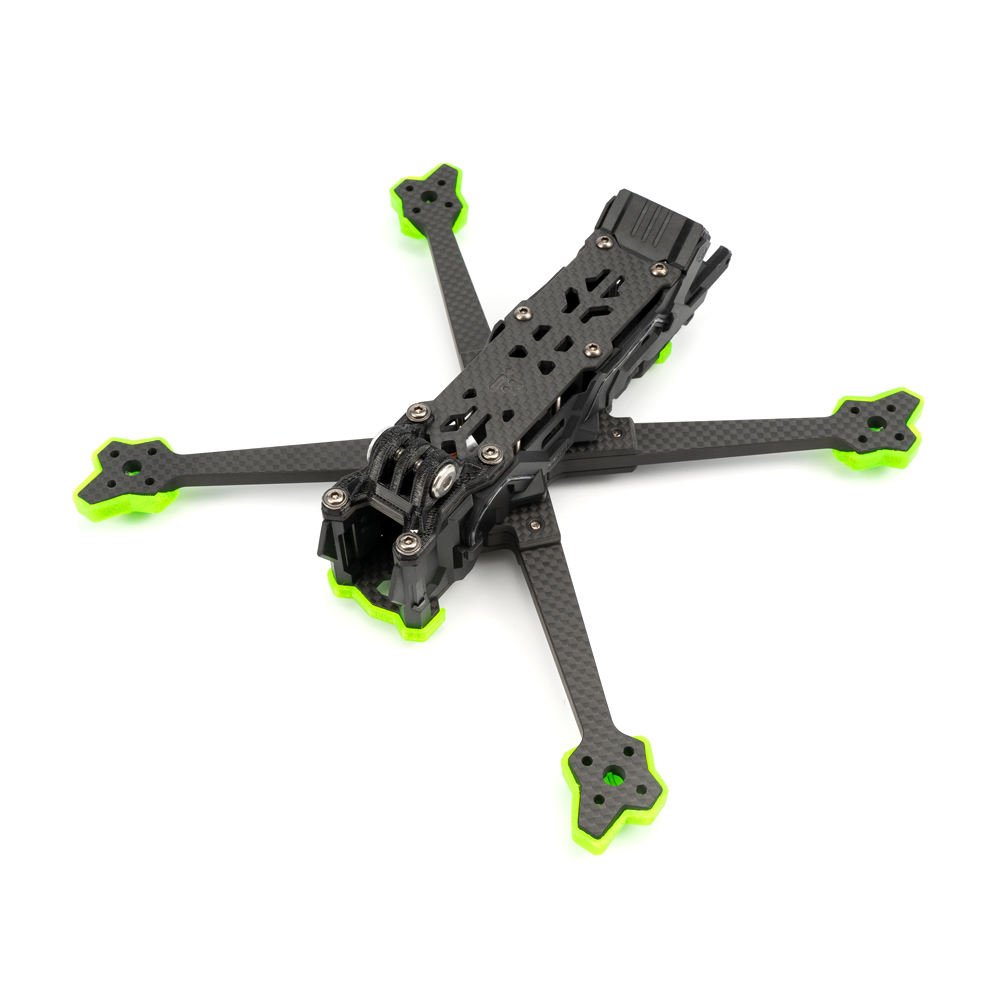

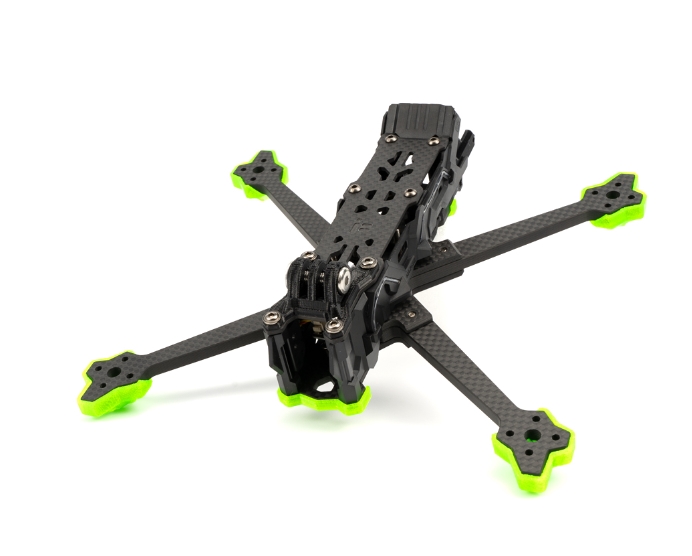

Iflight Nazgul Evoque F5 HD/Analog Frame Kit เฟรมโดรนใบพัด 5นิ้ว

The Secret Of Ultimate Performance Is Passion

That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

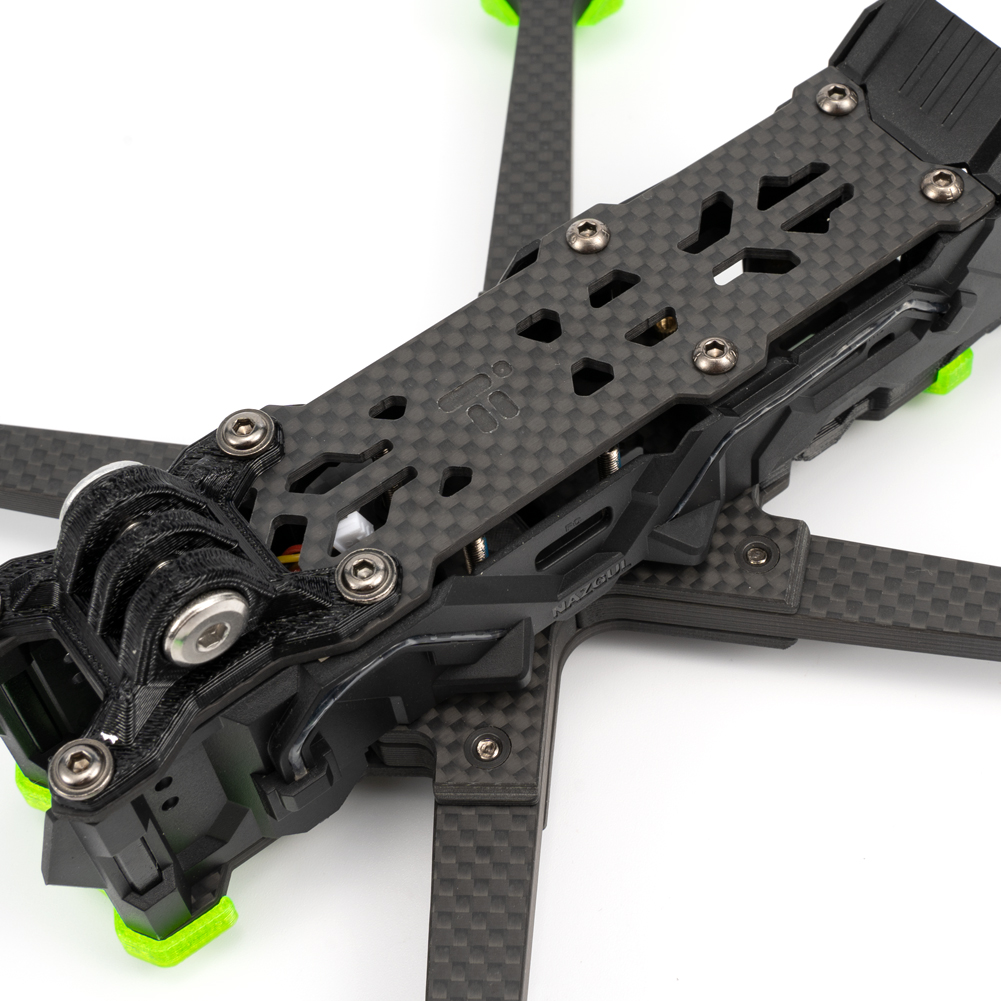

Lightweight Side Panels - Keep Your Rig Clean

Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

Secured Integrated XT60 Battery Plug - As Safe, It Can Be

Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

Specifications:

- Total Dimensions: 145mm*172mm (Squashed-X), 136mm*190mm (DeadCat)

- Wheelbase: 225mm(Squashed-X), 223mm (DeadCat)

- Upper(middle) plate thickness: 3mm

- FPV cam spacing: 19mm/20mm

- Bottom to top distance: 28mm

- Bottom plate thickness: 3mm

- Stack options: 20mm*20mm

- Top plate thickness: 3mm

- Arm Thickness: 6mm

- Weight: 187.9

Recommended Parts (not included):

• Nazgul F5 Tri-blades CW CCW Propellers (LINK)
• BLITZ Mini F7 Flight Controller (LINK)
• BLITZ Mini 55A ESC (LINK)
• XING2 2207 Motor (LINK)

Package included:

- 1 set x Nazgul Evoque F5 Frame (Squashed-X or DC (DeadCat) frame as optional)

- 1 pc x 20*200mm Battery Strap (Color May Vary)

- 1 pc x 20*250mm Battery Strap (Color May Vary)

- 2 pcs x Battery Anti-slip Pads

- 1 set x TPU Parts
