Futaba R2006GS 6-Channel 2.4GHz S-FHSS

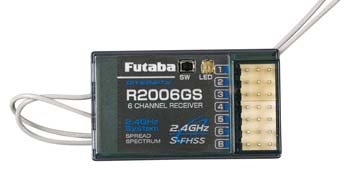

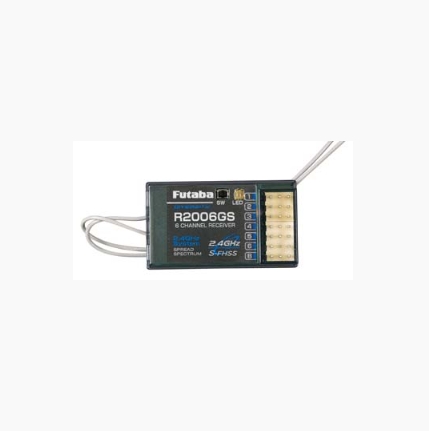

This is the R2006GS 2.4GHz SFHSS 6-Channel Receiver





FEATURES



High-voltage (4.8 - 7.4V) capability eliminates the need for aregulator when using a 2S 7.4V LiPo pack as a power sourceNormal and High-Speed Modes:Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts anytype of servos or peripherals.High-Speed mode (in 4PL tx only), with an output of 6.8ms acceptsdigital servos including the BLS series and most peripheralequipment such as brushless ESCsCapable of 4 channels only in FHSS modeEasy-Link circuitry, frequency hopping, spread spectrum designDual Antenna Diversity




INCLUDES



Futaba R2006GS 2.4GHz SFHSS 6-Channel Receiver




REQUIREMENTS



Binding to transmitter, installing in aircraft and connecting servos




SPECIFICATIONS



Modes: FHSS or S-FHSSVoltage Input: 4.8V-7.4VCompatible Batteries: NiCd, NiMH, LiPo, LiIon & LiFeDimensions: 1.70 x 0.98 x 0.35" (43.1 x 25 x 8.8mm)Weight: 0.29 oz (8.3 g)Current Drain: 80mA (@ no signal)
