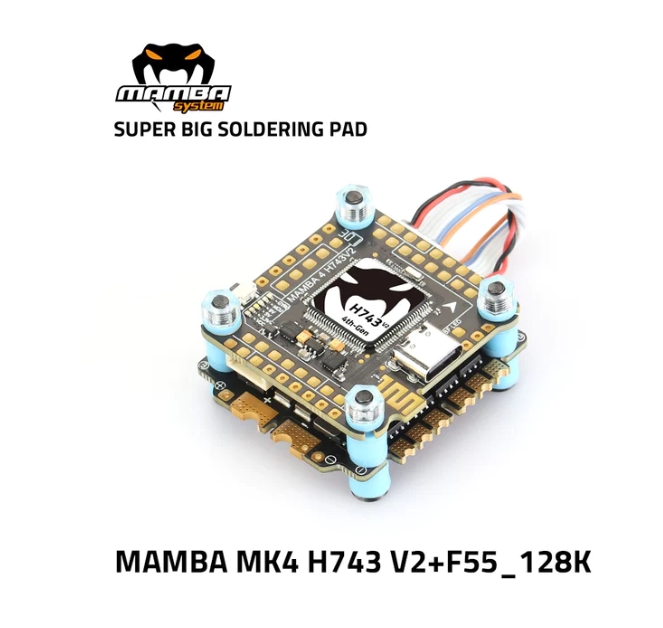

[STACK 30x30] MAMBA MK4 H743 V2 55A 128K Flight Control Stack

If you try INAV's firmware, you need to add the control of USER2 in the AUX list (INAV needs to set the remote switch to control the opening and closing of WIFI due to official restrictions)

MAMBA MK4 H743 V2 Flight Control 30mm/M3

MCU: 480MHz STM32H743
GYRO: DUAL ICM-42688-P
Target：MAMBA H743_2022B
OSD: Yes
Blackbox: 128M Flash Memory
Barometer: SPL06
Uarts: 8Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED/MB LED
AIR UNIT Port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A& 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 30.5mm/M3

MAMBA F55_128K
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current:55A×4
Burst current:65A (10S)
BEC: No
Target：BLHeli_32 MAMBA F55_128K
SOFT: Dshot300/600/1200
PWM:24~128K
TVS Protection: Yes
Mounting size: 30.5mm/M3

MAMBA F65_128K

Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current:65A×4
Burst current:75A (10S)
BEC: No
Target：BLHeli_32 MAMBA F65_128K
SOFT: Dshot300/600/1200
PWM:24~128K
TVS Protection: Yes
Mounting size: 30.5mm/M3

FC ONLY Supply :
8pin sh1.0 ×1
AIR UNIT sh1.0 ×1

STACK Supply：
High Frequency 1000uF/35V ×1
8pin sh1.0 ×2
AIR UNIT sh1.0 ×1
12AWG 100mm ×2
AMASS Original XT60×1
