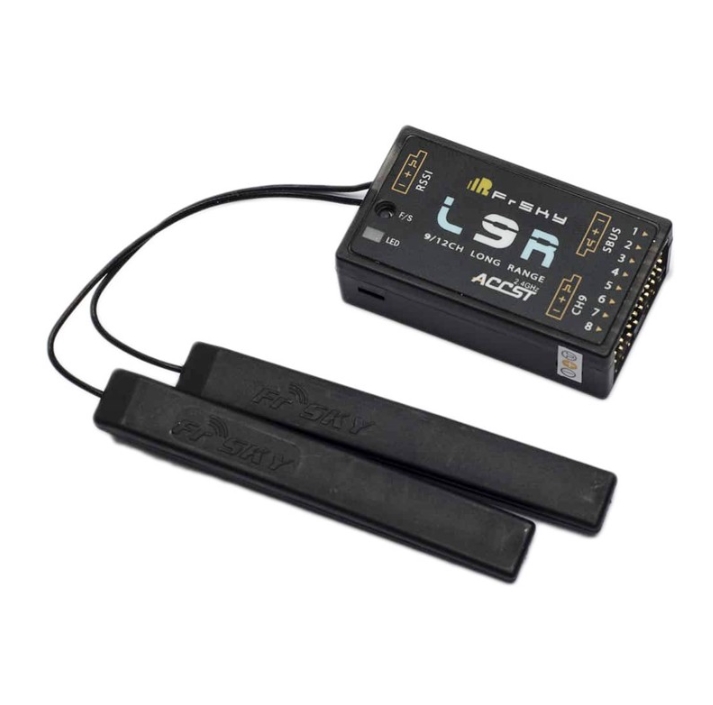

FrSky L9R S.Bus Long Range Receiver 12Ch S.bus

Features:

• Longer operating range: 2 times of the operating range for X-series receiver
• More channels: 1~9ch from conventional channel outputs, 1~12ch from SBUS port
• Wide voltage range for HV setups (4~10v)
• RSSI output

Specifications:

• Dimension: 46.25 x 26.6 x 14.2mm (L x W x H)
• Weight: 19g Antenna: PCB Antenna
• Number of Channels: 1~9ch from conventional channel outputs, 1~12ch from SBUS port
• RSSI output: Analog RSSI output (0~3.3V)
• Operating Voltage Range: 4.0~10V
• Operating Current: 100mA at 5V
• Operating Range: Double the operating range or X-series receiver
• Compatibility: FrSky X-series Module (XJT) etc. in LR12 mode (Switch 1 is OFF, Switch 2 is ON) FrSky Taranis X9D etc. in LR12 mode

Note: The L9R receiver is not compatible with FrSky V8, D8, and D16 Mode. The LR9 is a non-telemetry receiver and does not support data hub or smart port functions. The Bind and fail safe setting procedures vary from previous X series receivers. There is an instruction manual included with this product for guidance.
