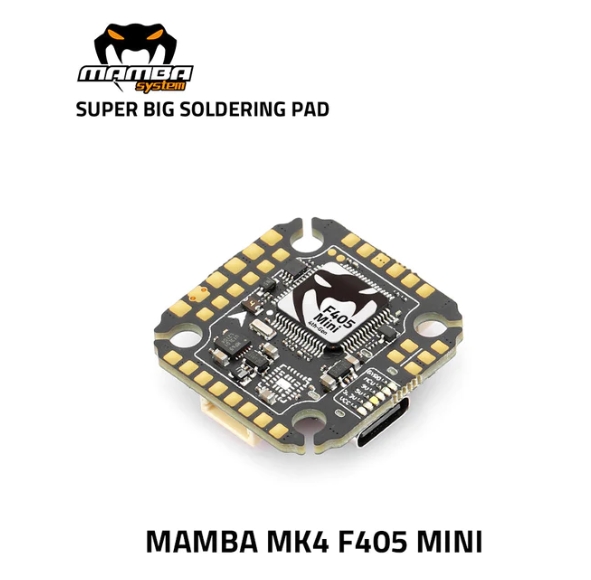

[FC 20x20] Diatone MAMBA F405 Mini MK4 มีพอตรองรับกล้อง Digital

Specifications¶

• Processor

  • STM32F405 32-bit processor running at 168 MHz

  • OSD - AT7456E

  • 128Kb (16MB) Data Log Flash (LOG_BACKEND_TYPE = 2)

• Sensors

  • Accelerometer/Gryo: MPU6000 (Version A) or IMC42688 (Version B)

  • SPL06 Barometer

• Power

  • 6.8V ~ 26V DC input power

  • 5V 2.5A BEC for peripherals

  • 9V 2A BEC for video

• Interfaces

  • 4 UARTS

  • 7x PWM outputs (one is used for serial LED)

  • I2C port for external compass, airspeed sensor, etc.

  • USB port

• Size and Dimensions

  • 29mm x 29.5mm x 6.5mm, 20mm x 20mmx mounting

  • 6g

Pinout¶

UART Mapping¶

The UARTs are marked RXn and TXn in the above pinouts. The RXn pin is the receive pin for UARTn. The TXn pin is the transmit pin for UARTn. Default protocols for each port are shown and may be changed by the user.

• SERIAL0 -> USB

• SERIAL1 -> USART1 (RX/SBUS)

• SERIAL2 -> USART2 (GPS, DMA-enabled)

• SERIAL3 -> USART3 (User, TX has DMA capability, on DJI AIR connector)

• SERIAL4 -> UART4 (User, TX has DMA capability)

• SERIAL5 -> UART5 (Unavailable, not pinned out)

• SERIAL6 -> USART6 (RX only, ESC Telem, DMA capable)

RC Input¶

RC input is configured on the RX1 (UART1_RX) pin. It supports all serial RC protocols.

SERIAL1_PROTOCOL is set to “23” by default, and:

• PPM is not supported.

• SBUS/DSM/SRXL connects to the RX1 pin, but SBUS requires that the SERIAL1_OPTIONS be set to “3”.

• FPort requires connection to TX1 and SERIAL7_OPTIONS be set to “7”.

• CRSF also requires a TX1 connection, in addition to RX1, and automatically provides telemetry. Set SERIAL1_OPTIONS to “0”.

• SRXL2 requires a connection to TX1 and automatically provides telemetry. Set SERIAL1_OPTIONS to “4”.

Any UART can be used for RC system connections in ArduPilot also, and is compatible with all protocols except PPM. See Radio Control Systems for details.

FrSky Telemetry¶

FrSky Telemetry is supported using any UART TX pin. You need to set the following parameters to enable support for FrSky S.PORT (example given for UART4)

• SERIAL4_PROTOCOL = 10

• SERIAL4_OPTIONS = 7

OSD Support¶

The Mamba MK4 F405Mini supports internal OSD using OSD_TYPE = 1 (MAX7456 driver).

DJI Video¶

A standard DJI video connector is provided. Set OSD_TYPE to “3” (MSP) or “5” (DisplayPort) depending on use, and set SERIAL3_PROTOCOL to “32” (MSP) or “42” (DisplayPort) also.

PWM Output¶

The Mamba MK4 F405Mini supports up to 7 PWM outputs, all are DShot capable. The pads for motor output M1 to M4 are provided on the motor connector and are BDShot capable, plus there is M7 on a separate pad for LED strip or another PWM output.

The PWM is in 4 groups:

• PWM 1,2 in group1 (if used for GPIOs their reference pin numbers are 50 and 51, respectively)

• PWM 3,4 in group2 (if used for GPIOs their reference pin numbers are 52 and 53, respectively)

• PWM 5,6 in group3 (if used for GPIOs their reference pin numbers are 54 and 55, respectively)

• PWM 7 (LED) in group4 (if used for GPIOs its reference pin number is 56)

Channels within the same group need to use the same output rate. If any channel in a group uses DShot then all channels in the group need to use DShot. Channels 1-4 support bi-directional DShot.
