BULLET POINTS

• BT2.0 connector decreased internal resistance of connector effectively by upgrading the crimped pins to 1.0mm banana connector and increasing the cross-sectional area of 1.0mm banana connector.
• BT2.0 connector supports 9A continuous current and 15A burst, while the PH2.0 connector supports 4.5A continuous current. Brings more perfect flight experience when you fly the 1S brushless whoop drone.
• By using the BT2.0 connector, it can solve the problem of voltage sag, the discharge of the 1S lipo battery becomes more efficient. Pilots can enjoy more flight time without disturbance of low voltage warning.
• Compared with the PH2.0 crimped pins, BT2.0 1.0mm banana connector is more durable which can discharge more currents in the same capacity and provide far more power. You can get 2mins flight time in full throttle if you use our BT2.0 300mah 1S battery on Meteor65.
• Conversion from PH2.0 connector to BT2.0 connector can be achieved with just one Adapter Cable, which convenient for charge the BT 2.0 battery with the PH 2.0 charger.

Here is Betafpv Lab video to show you the best way of replacing BT2.0 connectors.

SPECIFICATIONS

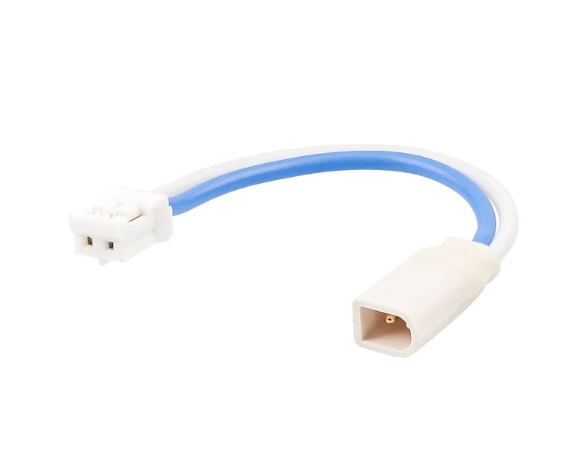

• Item: BT2.0-PH2.0 Adapter Cable
• Length: 55mm (Not included the plug)
• Weight: 1.07g(1 pcs)
• Wire Type: 22AWG
• Input Port: PH2.0 male connector（connect PH2.0 charger）
• Output Port: BT2.0 female connector（connect BT2.0 battery）
• Note: Blue represents the positive pole (+); White represents the negative pole(-)

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector decreased internal resistance of connector effectively to allow more current that is transferred, which means it supports 9A continuous current(15A burst) offers stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A You can enjoy more flight time without disturb of low voltage warning through solving the problem of voltage sag. For more instruction, click here to reach.
