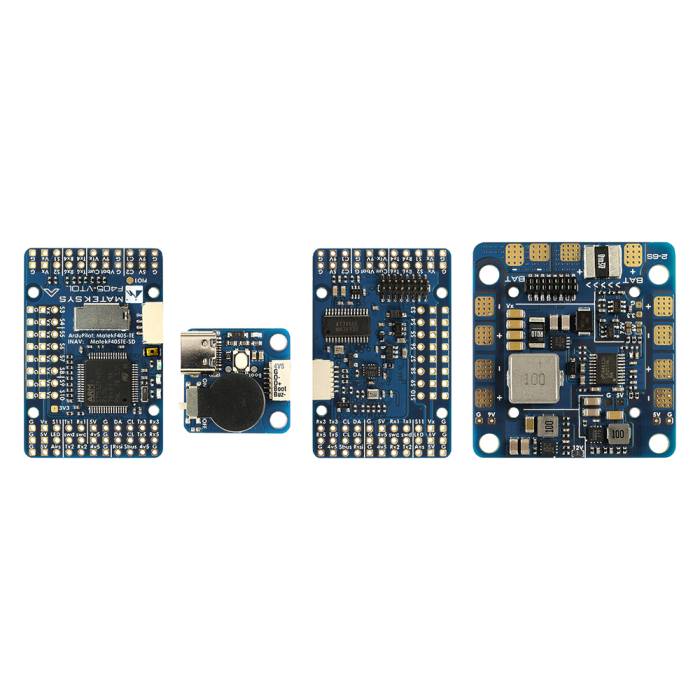

MATEKSYS F405-VTOL Flight Controller บอดสำหรับเครื่องบิน ขึ้นลงแนวดิ่ง

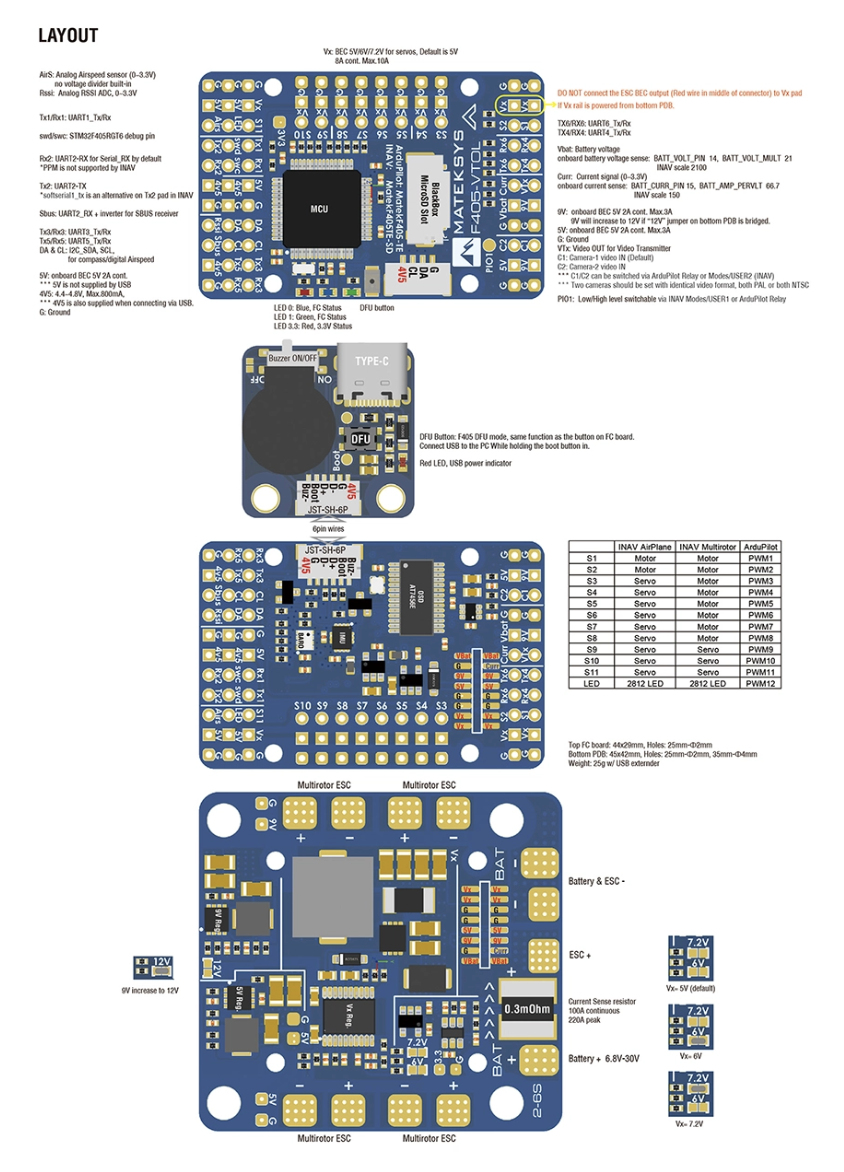

• Mounting: 25 x 25mm-Φ2mm, 35 x 35mm- Φ4mm
• Built in inverter on UART2-RX for SBUS input
• MCU: STM32F405RGT6, 168MHz , 1MB Flash
• USB/Beep Extender with Type-C(USB2.0)
• 6x UARTs, 1x Softserial_Tx option(INAV)
• 4x ADC (VBAT, Current, RSSI, Airspeed)
• Weight: 25g w/ USB/buzzer adapter
• Switchable Dual Camera Input
• 1x spare PINIOOSD: AT7456E

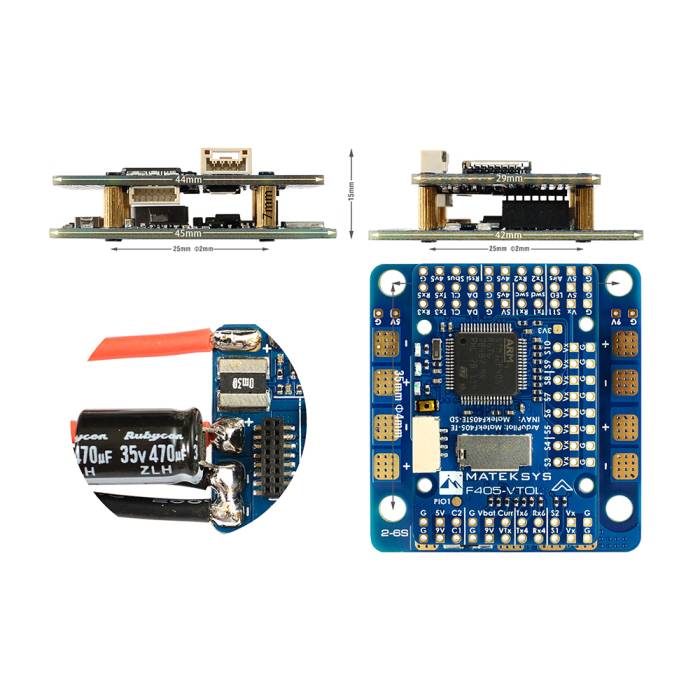

• Dimensions: 45 x 42 x 15mm
• Blackbox: MicroSD card slot
• 12x PWM outputs
• IMU: ICM42688-P
• Baro: SPL06-001
• 1x I2C

FC Firmware

• INAV: MATEKF405TE_SD (INAV 5.0 or newer)
• ArduPilot: MatekF405-TE

PDB

• Battery Voltage divider 1K:20K (Scale 2100 in INAV, BATT_VOLT_MULT 21.0 in ArduPilot)
• Support continuous load of up to 30A & peak of 50A on each ESC pad of Quadcopter
• Support continuous load of up to 100A on ESC pad near the current sensor resistor
• Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
• Sense resistor: 100A continuous, 220A peak
• 5x ESC power pads, total 100A continuous
• Input voltage range: 6.8~30V (2~6S LiPo)

BEC 5V output

• Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
• Continuous current: 2 Amps

BEC 9V /12V output

• For stable 9V/12V output, input voltage should > output voltage +1V
• Designed for Video Transmitter, Camera, Gimbal ect
• Continuous current: 2 Amps
• 12V option with Jumper pad

BEC Vx output

• for stable Vx output, input voltage should > Vx voltage +1V
• Voltage adjustable, 5V Default, 6V or 7.2V via jumper
• Continuous current: 8 Amps, 10A Peak
• Designed for Servos

BEC 3.3V output

• Designed for Baro / Compass module and external 3.3V peripherals
• Continuous current: 200mA
• Linear Regulator



IMPORTANT NOTES

• Board is shipped unsoldered.

• Firmware

• 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
• 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
• 1x MATEKSYS F405-VTOL Flight Controller
• 1x Rubycon ZLH 35V 470uF capacitor
