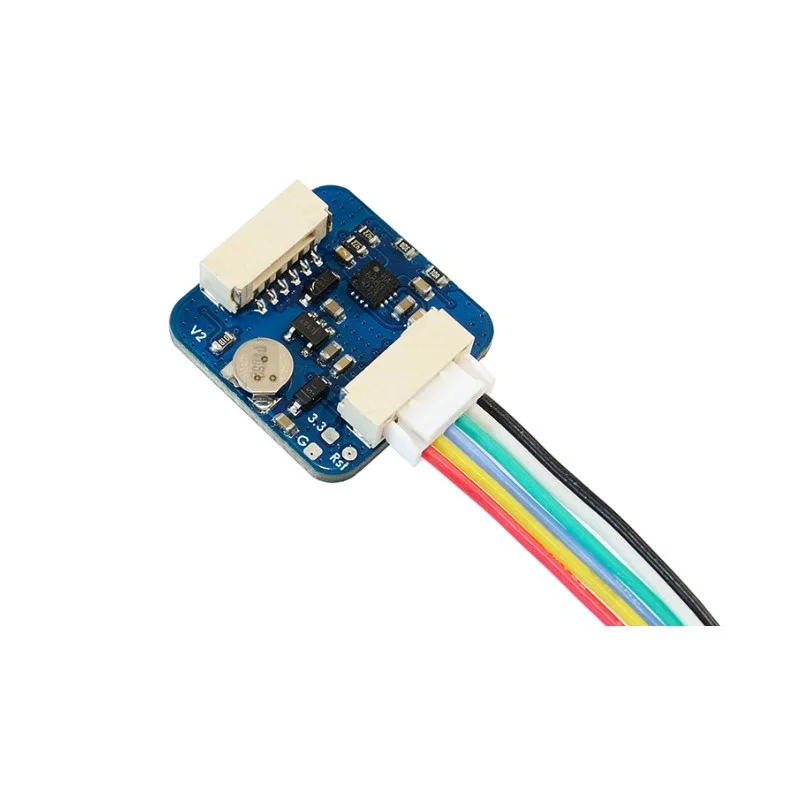

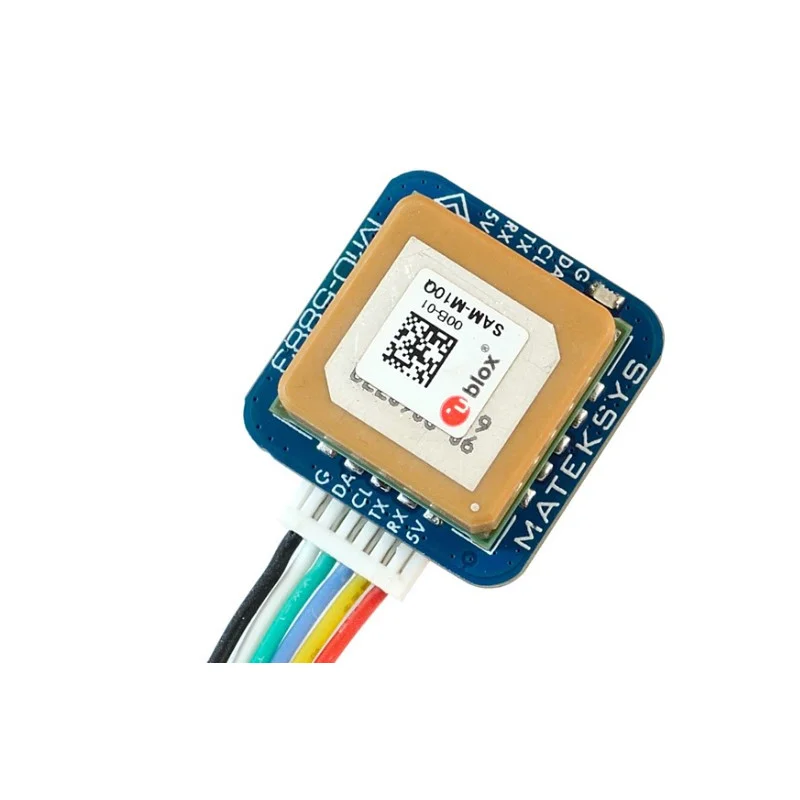

MATEKSYS M10-5883 GNSS & Compass GPS มีเข็มทิศ สำหรับติดโดรน เครื่องบิน ปีกบิน

ntroducing the Matek M10Q-5883: Your Navigator Extraordinaire 🌐🚀

Are you tired of wandering around aimlessly in the world of FPV? Lost in the wilderness of IoT? Fear no more, for the Matek M10Q-5883 is here to save the day with its u-blox SAM-M10Q-00B powered GNSS module! 🌟

Get ready to experience the finest in navigation technology! No more getting lost in space (or your backyard). 🌳🛸

Did we mention that the M10Q-5883 can simultaneously receive signals from GPS, GLONASS, Galileo, and Beidou? That’s like having four cosmic guiding hands to hold on your journeys! 🌌👐

Imagine the possibilities when you have access to the best signals, thanks to the M10Q-5883’s large number of visible satellites. It maximizes the availability of your position, even when you’re in the gnarliest of conditions. 🌩️📍

Don’t let this opportunity pass you by! Grab your very own Matek M10Q-5883 now and say goodbye to those pesky navigational mishaps forever. 🛒💨

Key Product Highlights

1️⃣ Simultaneous reception of four GNSS systems (GPS, GLONASS, Galileo, Beidou)

2️⃣ Exceptional sensitivity and acquisition time for all GNSS L1 signals

3️⃣ High-gain patch antenna for the perfect balance of performance and size

Specifications

For all the techies out there, check out these jaw-dropping specs:

🔧 GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo, and BeiDou)

🔧 Magnetic Compass QMC5883L

🔧 Patch antenna 15154mm

🔧 Input voltage range: 49V (5V pad/pin)

🔧 Power consumption: 13mA

🔧 UART baud rate: 9600 default

🔧 Operating Temperatures: -2080 °C

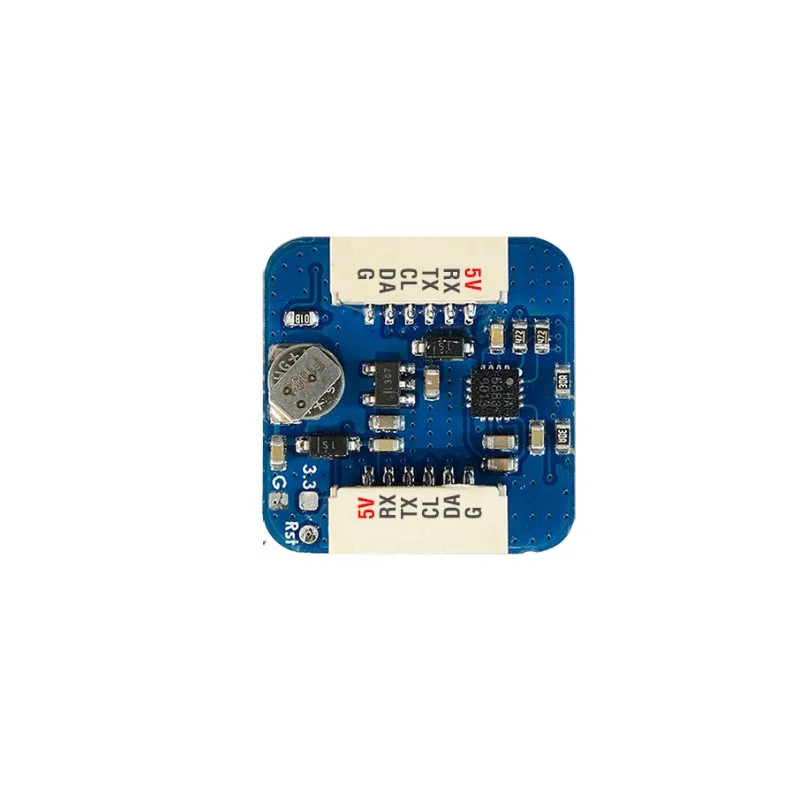

🔧 UART(TX, RX) interface for GNSS SAM-M10Q-00B

🔧 I2C(DA, CL) interface for Compass QMC5883L

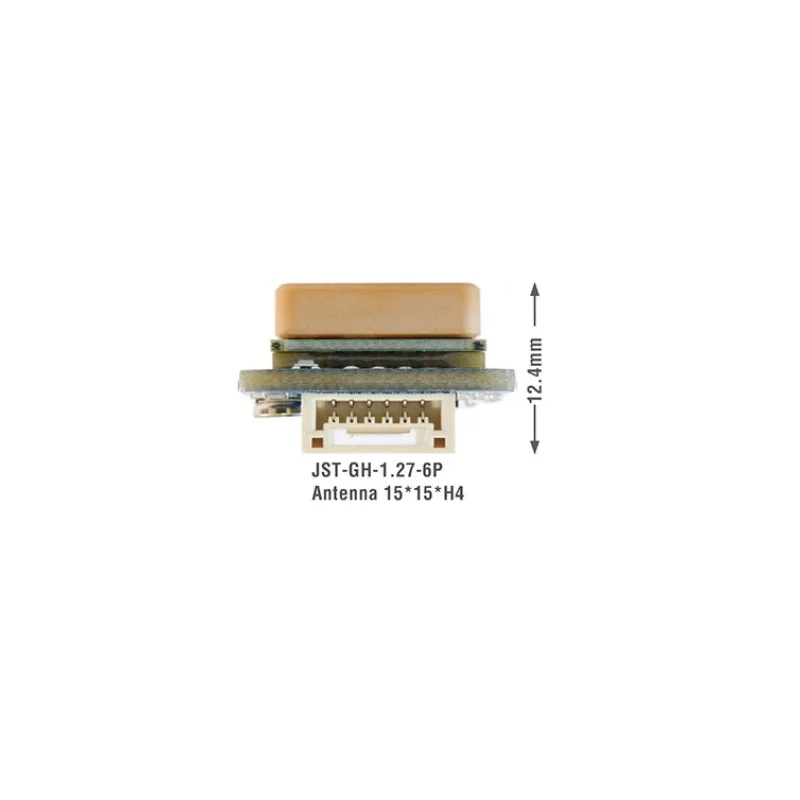

🔧 JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch

🔧 GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS gets 3D fix)

🔧 Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz

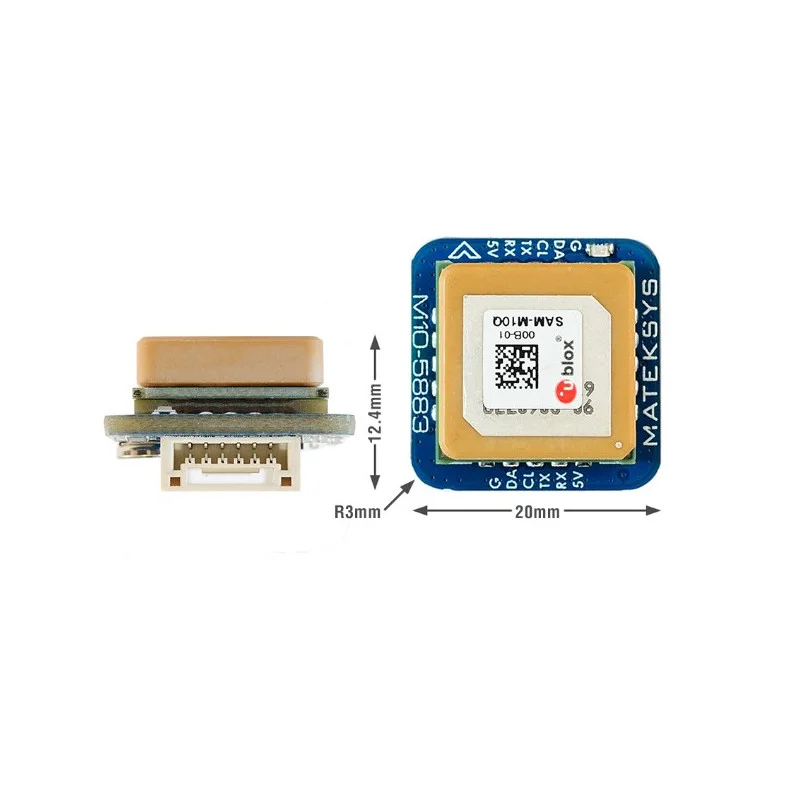

🔧 Dimensions: 20mm20mm12.4mm

🔧 Weight: 8g

Here’s what you’ll get in the package:

✅ 1x M10Q-5883

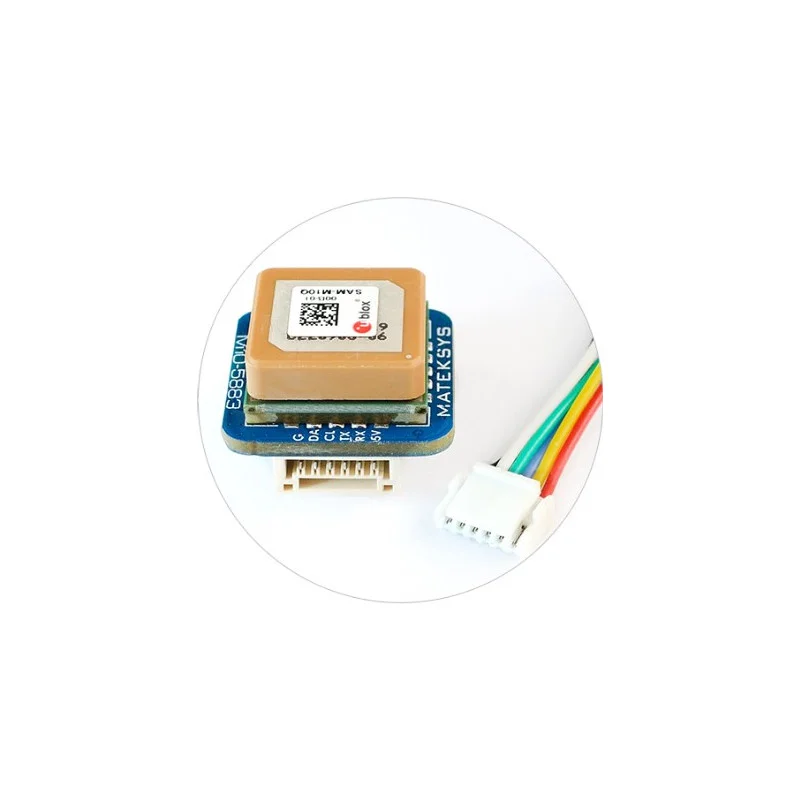

✅ 1x JST-GH-6P to JST-GH-6P 20cm silicon wire

So, what are you waiting for? Unleash your inner explorer and let the Matek M10Q-5883 be your guiding star! 🌟🗺️
