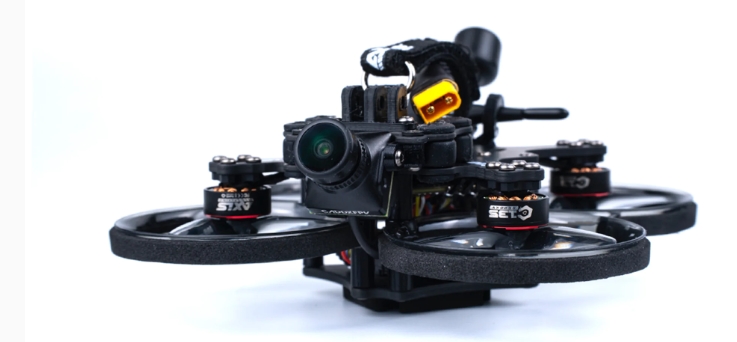

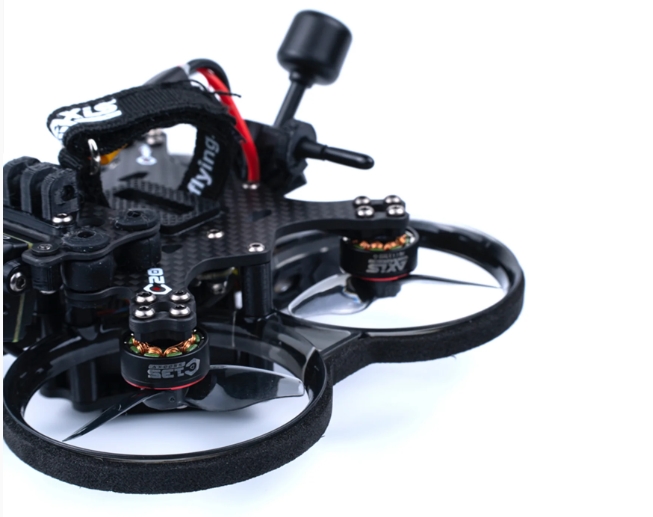

Walksnail Avatar System X Axisflying Cineon C20 V2 - ELRS

C20 have special structure design that motor installation adopts two positive and two reverse.

- C20 drone has very good performance, stable flying feel, low noise, and get about 5mins flying time

- C20 is light weight ,it is sub250g fpv level.

*Feature

- Lens and video transmission module support night sensitization enhancement function, improve the visibility of night flight.

- Motor installation adopts two positive and two reverse design - Guaranteed efficiency and higher explosive strength

- Better wind resistance for smoother footage - C135 Motor, more torque and power

- Provide adequate security for the whoop - High performance 20A/F411 AIO

- Newly designed ducted aerodynamic layout to effectively reduce flight noise

- Independent receiver storage, convenient for binding

*Specs

- Wheelbase :94mm / Weight: 42.8g (with all TPU) / Carbon Fiber: T700 / Props: Max 2inch

*Recommended Configuration

- MOTORS: Axisflying C135-5500KV @4S

- Lipos: Tattu / GNB 450mah - 650mah

- AIO: Over 20A / F411

- Propellers: Gemfan D51-5 Props

- Flying time: 3'30" with Insta360 / 5' without takeoff

NOTE: HD drone outside flying with GNB 550mah

Specifications

• Wheelbase: 94mm
• Arm thickness: 2.5mm
• Weight: 140.8g
• Camera space: 14~20mm
• Bottom plate thickness: 2.5mm
• Stack mounting: 20&25.5mm(M2)
• Top plate thickness: 2.5mm
• VTX Mounting: 20&25.5mm(M2)
• Carbon Material: T700
• Prop: Max 2 inch
• Bottom to top distance: 25mm
• Motor mounting: 9*9mm(M2)
• HD version: Walksnail Avatar HD Pro Kit
