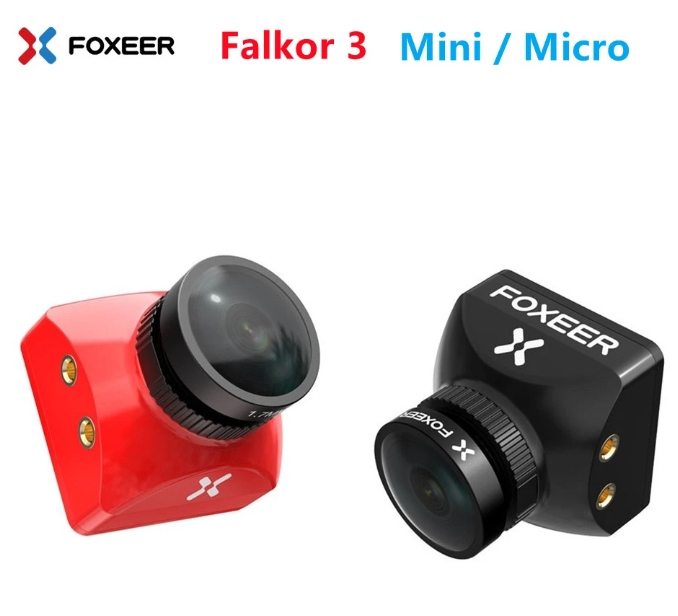

Foxeer Falkor 3 Mini Micro 1200TVL StarLight 0.0001Lux WDR Low Latency FPV Camera OSD กล้องติดโดรน

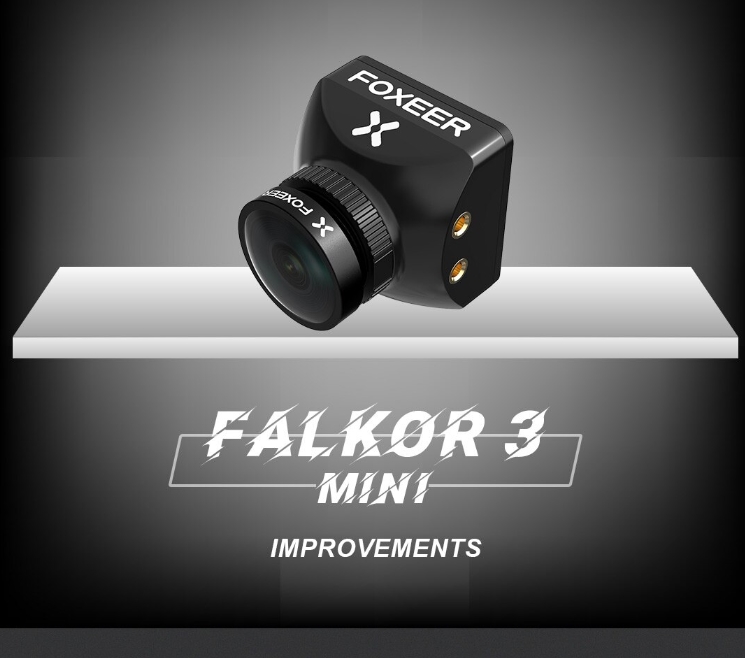

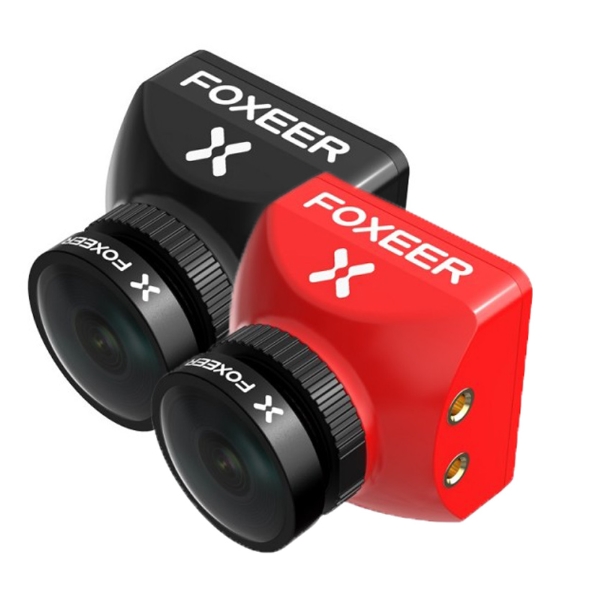

The Falkor 3 Mini 1200TVL M12 1.7mm checks all the boxes for a solid FPV camera! 1200TVL resolution boasts clear images through your goggles. The switchable 4:3/16:9 aspect ratio, as well as the wide voltage range of 4.6V-20V, provide a wide range of compatibility with almost any pair of goggles.

Specifications

• Lens Size: M12 1.7mm
• Sensor Type: Sony 1/3" CMOS Sensor
• Scale: 4:3 / 16:9 Switchable
• TV System: PAL(Default)/NTSC Switchable
• Resolution: 1200TVL
• Shutter Speed (CCD IRIS): PAL: 1/25 ~ 1/10000 sec; NTSC: 1/30 ~ 1/10000 sec
• Video Out: CVBS Analog Signal

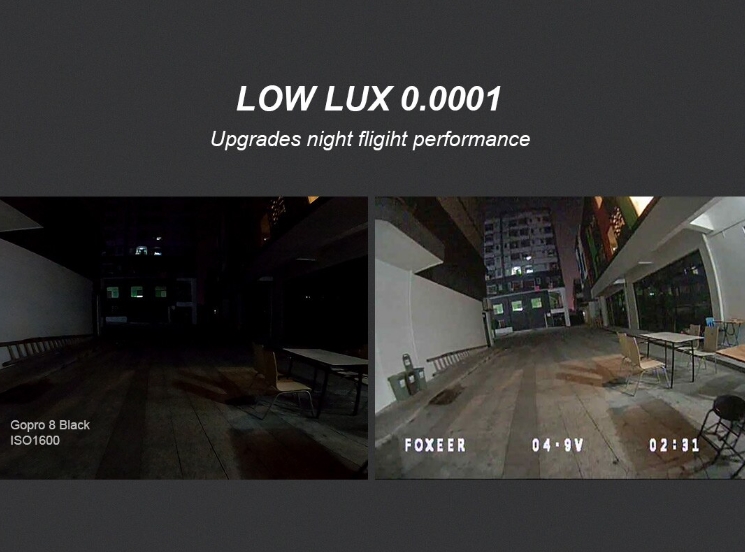

• Min. Illumination: 0.0001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100db
• Day/Night Shift: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time
• Input Voltage: 4.6V~20V
• Language: English/Pyccknn/Espanol/Italiano/Francais/Polskzm/Portugues/Japanese
• Working Temperature: -10℃ ~+50℃ RH90% Max
• Working Humidity: 20~80%
• Storage Temperature: -20℃ ~ +70℃
• Storage Humidity: 20~95%
• Consumption: 95mA±15% @ DC12V
• Dimension: 22x22mm (without bracket)
• Weight: 10.2g (Exclude cable)

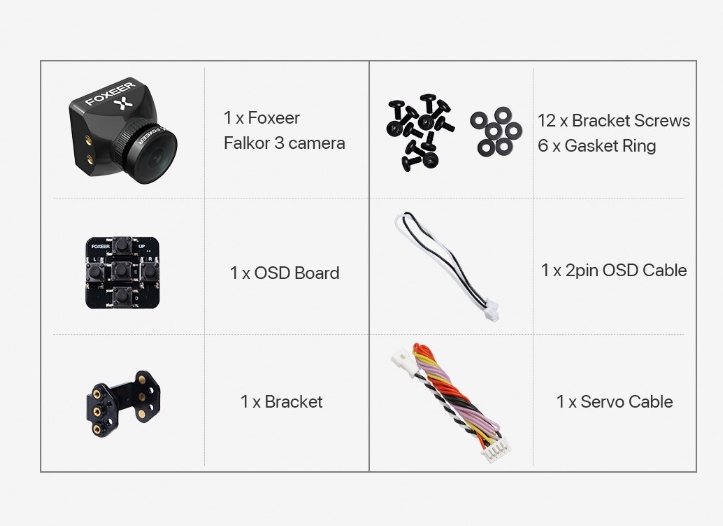

Includes

• 1 x Foxeer Falkor 3 Mini FPV Camera
• 1 x 2pin OSD cable
• 1 x OSD Board
• 1 x Bracket
• 6 x Gasket Ring
• 12 x Bracket Screws

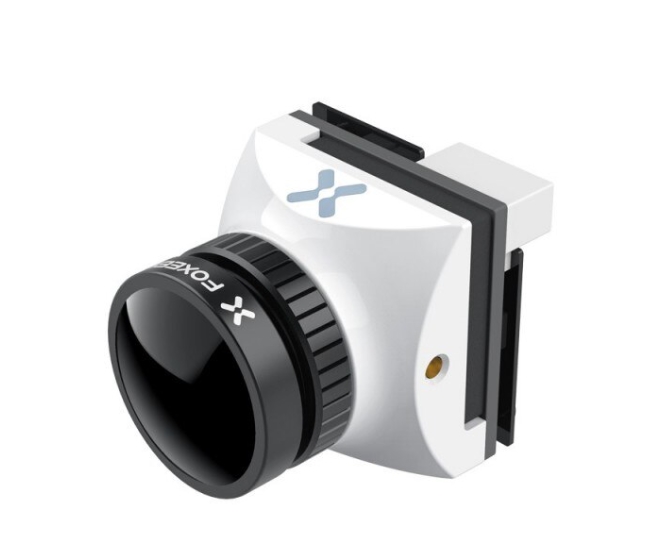

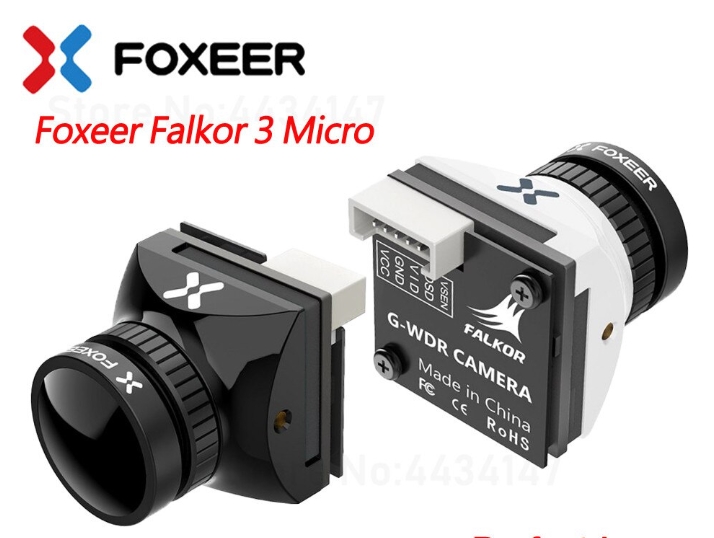

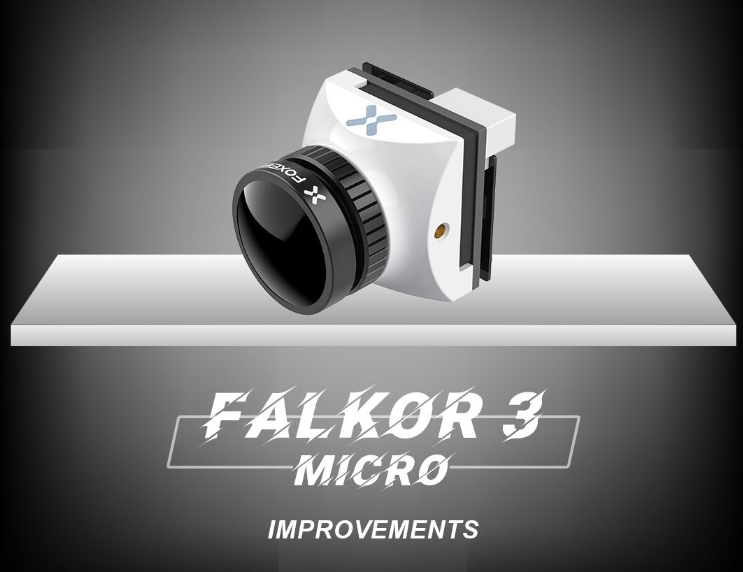

The Falkor 3 Micro 1200TVL M12 1.7mm checks all the boxes for a solid FPV camera! 1200TVL resolution boasts clear images through your goggles. The switchable 4:3/16:9 aspect ratio, as well as the wide voltage range of 4.6-20V, provide a wide range of compatibility with almost any pair of goggles.

Specifications

• Lens Size: M12 1.7mm
• Sensor Type: Sony 1/3" CMOS Sensor
• Scale: 4:3 / 16:9 Switchable
• TV System: PAL(Default)/NTSC Switchable
• Resolution: 1200TVL
• Shutter Speed (CCD IRIS): PAL: 1/25 ~ 1/10000 sec; NTSC: 1/30 ~ 1/10000 sec
• Video Out: CVBS Analog Signal
• Min. Illumination: 0.0001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100db
• Day/Night Shift: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time
• Input Voltage: 4.6V~20V
• Language: English/Pyccknn/Espanol/Italiano/Francais/Polskzm/Portugues/Japanese
• Working Temperature: -10℃ ~+50℃ RH90% Max
• Working Humidity: 20~80%
• Storage Temperature: -20℃ ~ +70℃
• Storage Humidity: 20~95%
• Consumption: 95mA±15% @ DC12V
• Dimension: 19x19
• Weight: 8.8g (Exclude cable)

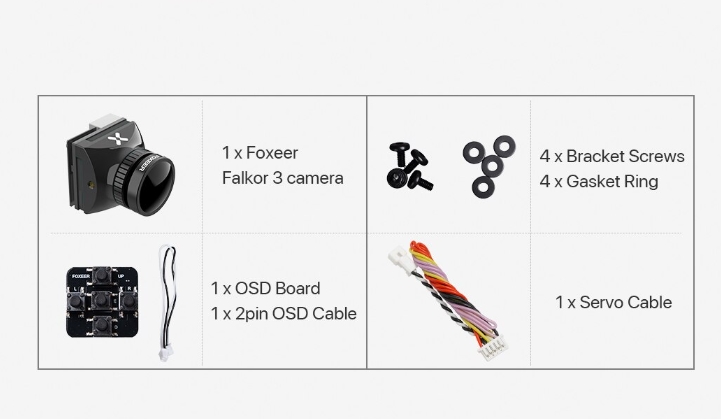

Includes

• 1 x Foxeer Falkor 3 Micro FPV Camera
• 1 x 2pin OSD cable
• 1 x OSD Board
• 1 x Bracket
• 4 x Gasket Ring
• 4 x Bracket Screws
• 1 x Servo Cable
•
