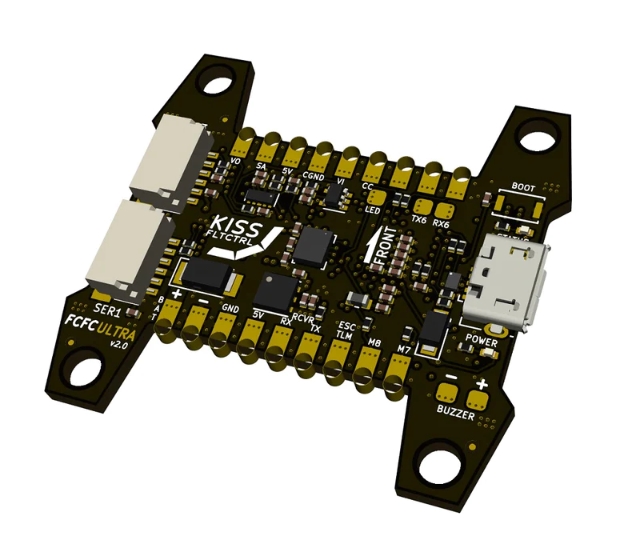

KISS FCFC H7 ULTRA V2 FPV DRONE FLIGHT CONTROLLER - 30x30

HARDWARE FEATURES:

• Iconic KISS “H” form factor 30.5x30.5mm mounting (With permission of Flyduino)
• STM32H743 processor 480 MHz, 2MB FLASH, 1.28MB RAM
• IIM-42652 gyro, SPI
• BMP388 barometer
• 8 pin ESC connector, backward compatible with KISS (!!!not with FETTEC!!!). Includes current sensor pin.
• Extra solder pads for motors 5-8
• 2 serial ports on 6 pin connectors (SER1 / SER3), KISS compatible
• Overcurrent protection on all data lines
• ESD protection on USB
• 5v bec (2A) with separate power on lipo and on usb. 8s capable.
• Integrated spike absorber
• Dedicated current sensor pad

SOFTWARE FEATURES:

• Firmware is based on LATEST version from PATREON
• New STM32 H7 bootloader, VCP driver
• One HEX to rule them all… ??
• Smart config storage… NEVER loose your configuration…
• Optimized hardware interface layer code
• Optimized adaptive filter code (CPU load is about 8% fully loaded!!!)
• Added BLHELI Passthrough
• IRC Ghost support
• TBS CSRFv3 support (ultra code)
• Improved RTH with BARO support
• KISS Weather Station (its fun)
• NO soft serial ports anymore!
• 7 serial ports exposed (dedicated serials for SA and RC telemetry)
• Camera control (analogue, real DAC)
• UBX protocol GPS support
• Battery capacity/alerts
• DSHOT router (free routing between software and hardware channels)
• Up to 8 motors support with DSHOT2400/1wire
• Full support of all HD systems (DJI MSP, DJI WTF, DJI O3, Walksnail, HD0)

OSD FEATURES:

• Integrated Graphical OSD

• No OSD firmware update required

• Configurable Black and White levels, transparency

• FULL KISS configuration from OSD

• ESC configuration

• No serial port required, 50fps refresh rate

• Battery cell voltage sensor

• Crossfire tools

• Hardware test tools (rc test, gps test, video test, motor test etc)

GUI IMPROVEMENTS:

• Forked GUI code (With permission of Flyduino)

• Design facelift, code cleanup.

• Removed odd things like pentacopters, cars and other noise.

• Web GUI without installation available at https://kiss-ultra.com/

• OSD Mirror https://youtu.be/aUqtCTAt8ik

• Native support of Apple Silicon

INCLUDES:

• 1 x Anuta Software KISS FCFC Ultra V2 FPV Drone Flight Controller - 30.5x30.5mm
• 1 x 8 pin cable
