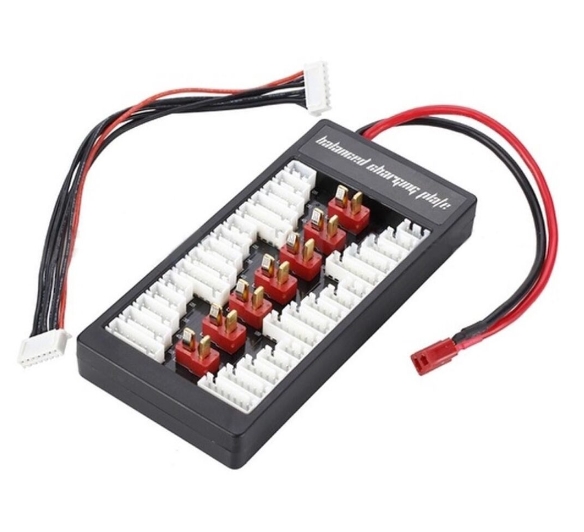

Parallel T Plug Adaptor Board Charging Balance Board Up to 6 packs 2S-6S

Features/Specs:

• Charge Cell: 2S-6S
• Connector Type: T-Connector/JST-XH
• Operating Voltage: 0 ~ 22.2VDC
• Max Current: 30A
• Battery: 6 packs (same capacity & cell count)
• Balance Output Cable: 20AWG silicon cable
• Main Output Cable: 12AWG high-quality silicon cable
• Compatible for IMAX B6, Maxpro x612s,x6 plus UN-A6 charger.
• Support 6 pairs 2S,6 pairs 3S,6 pairs 4S,6 pairs 5S,6 pairs 6S balance charge.
• It can protect the charging batteries when a short circuit happens.
• Thicken PCB copper foil, allow security using 40A charging current.
• Amass 7U gold plating plug plating.
• Use a safety fuse (50A) to protect the circuit.
• Balance charging avoids overcharging of each Battery.
• Using LED lights to display working states.
• 20Z of thick copper foil sustainable resistance to flow 80A.
• Accelerates battery charging, at the same time more battery charges.
• Add cascade port, which can be the infinite cascading expansion of the charging port.
• Dimensions in mm (LxWxH): 140x68x17
• Weight: 130gm
