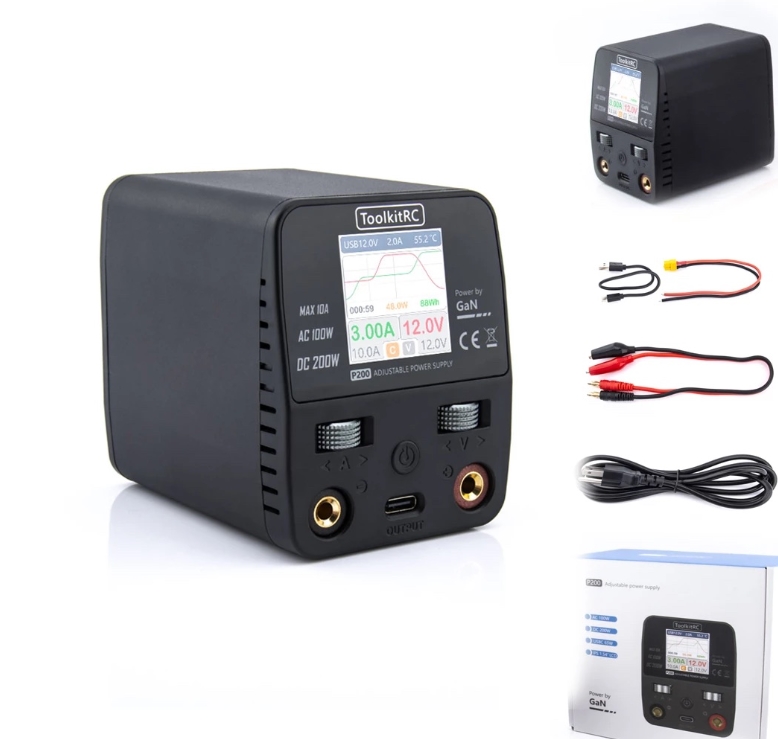

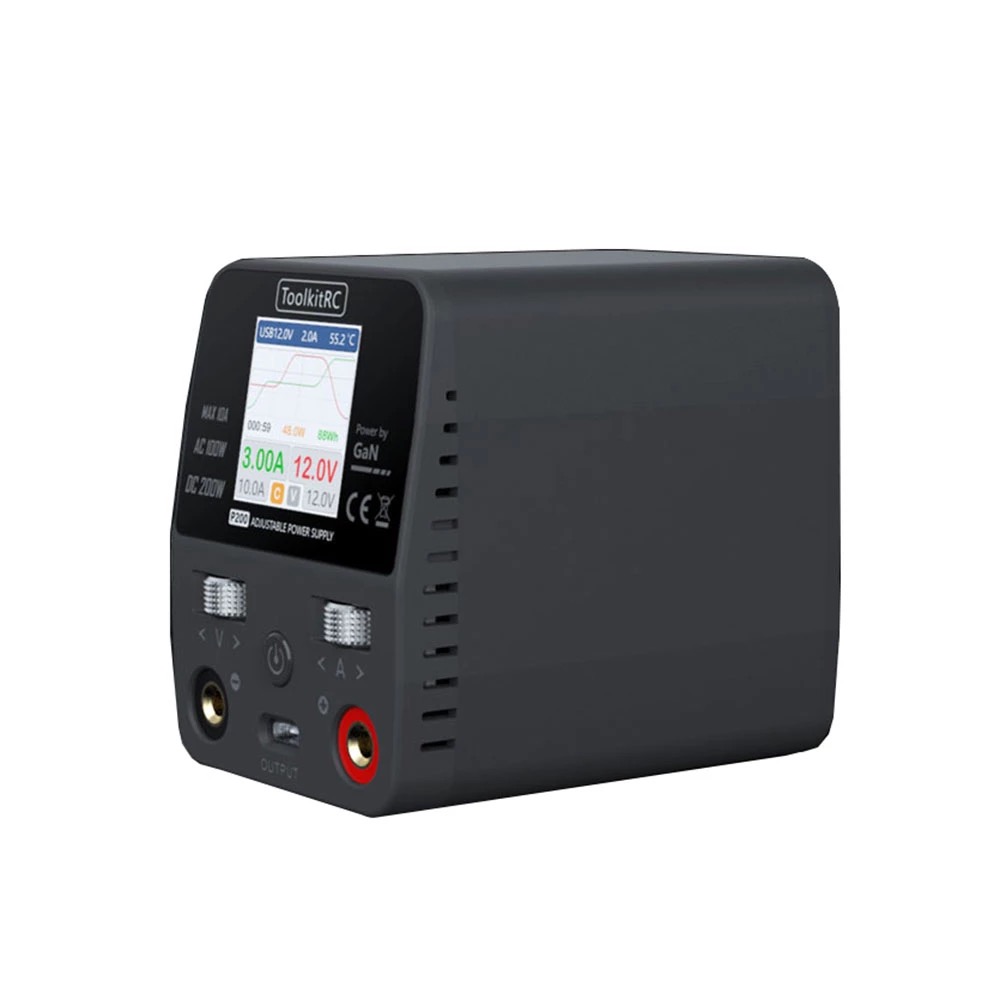

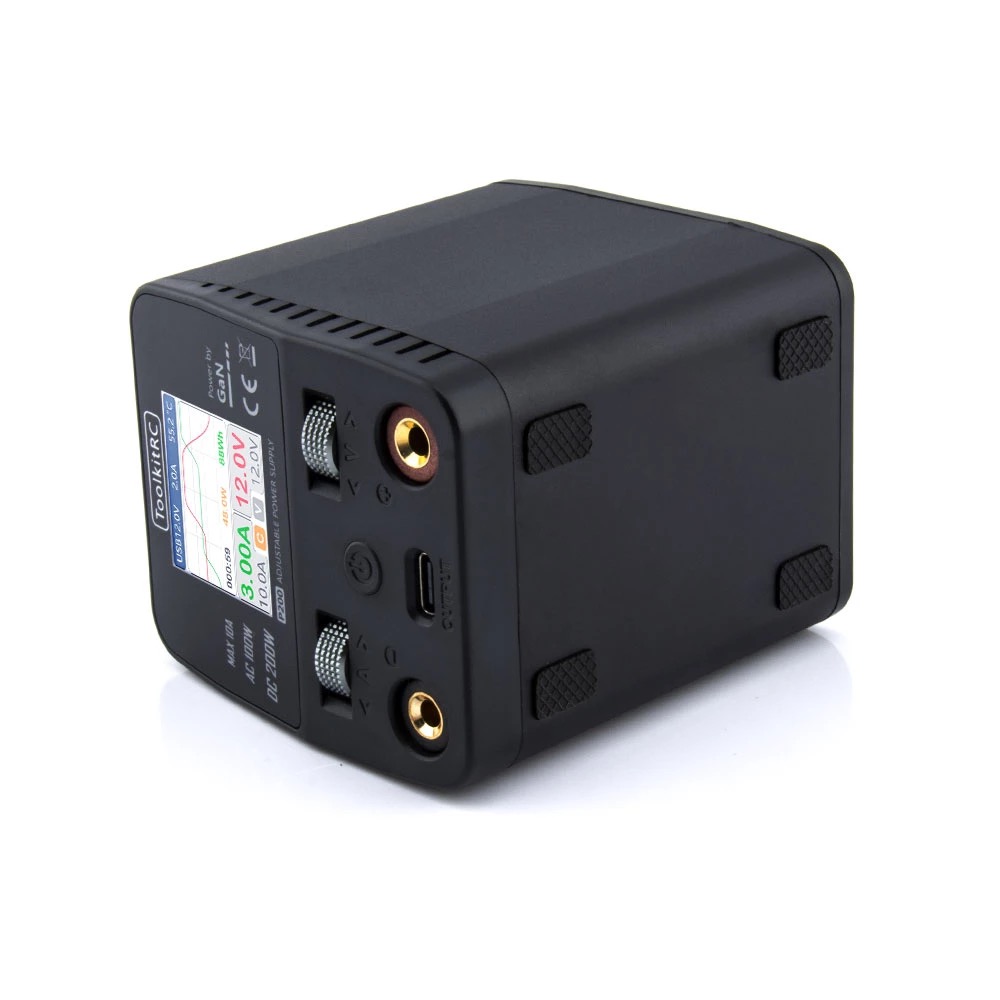

ToolkitRC P200 200W 10A High Power Charger Adapter AC100W Mini Desktop Power Supply

Product description

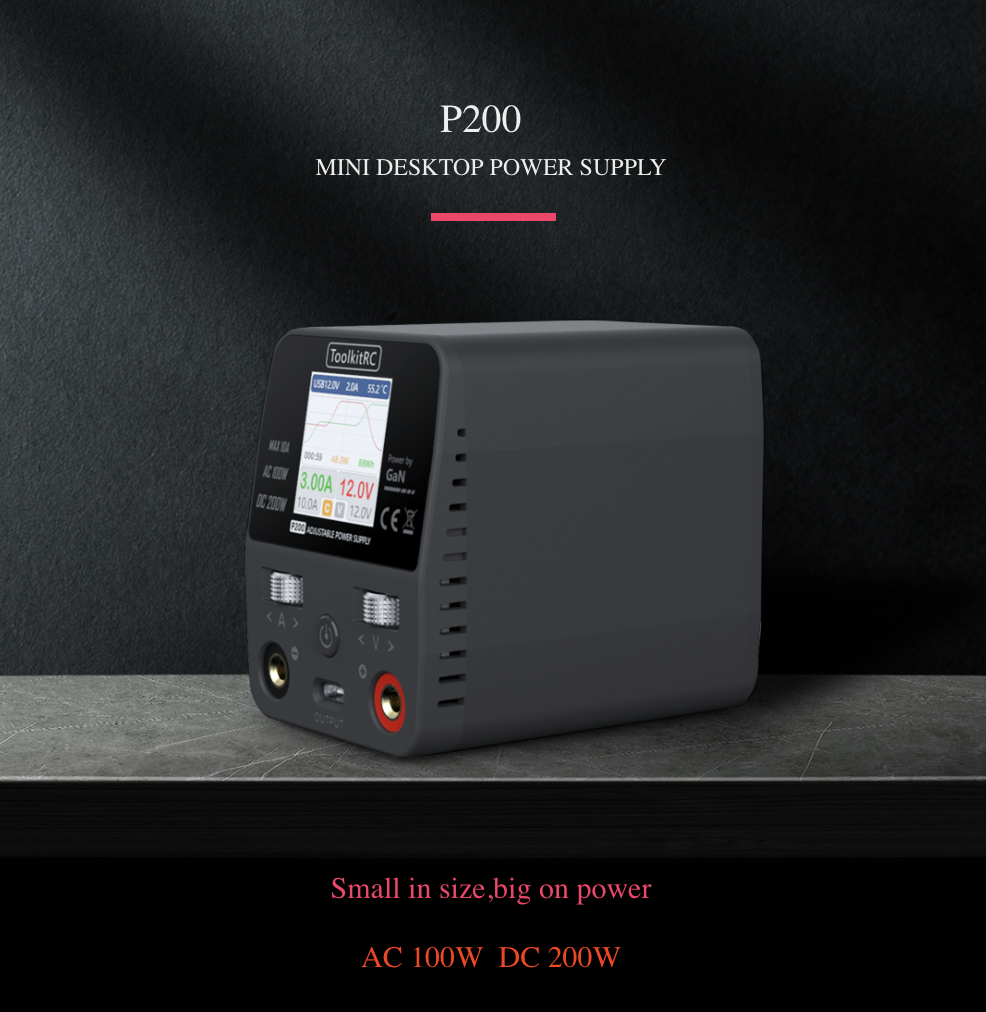

P200 is a mini desktop adjustable power supply,

with AC or DC two input modes, built-in 100W GaN AC

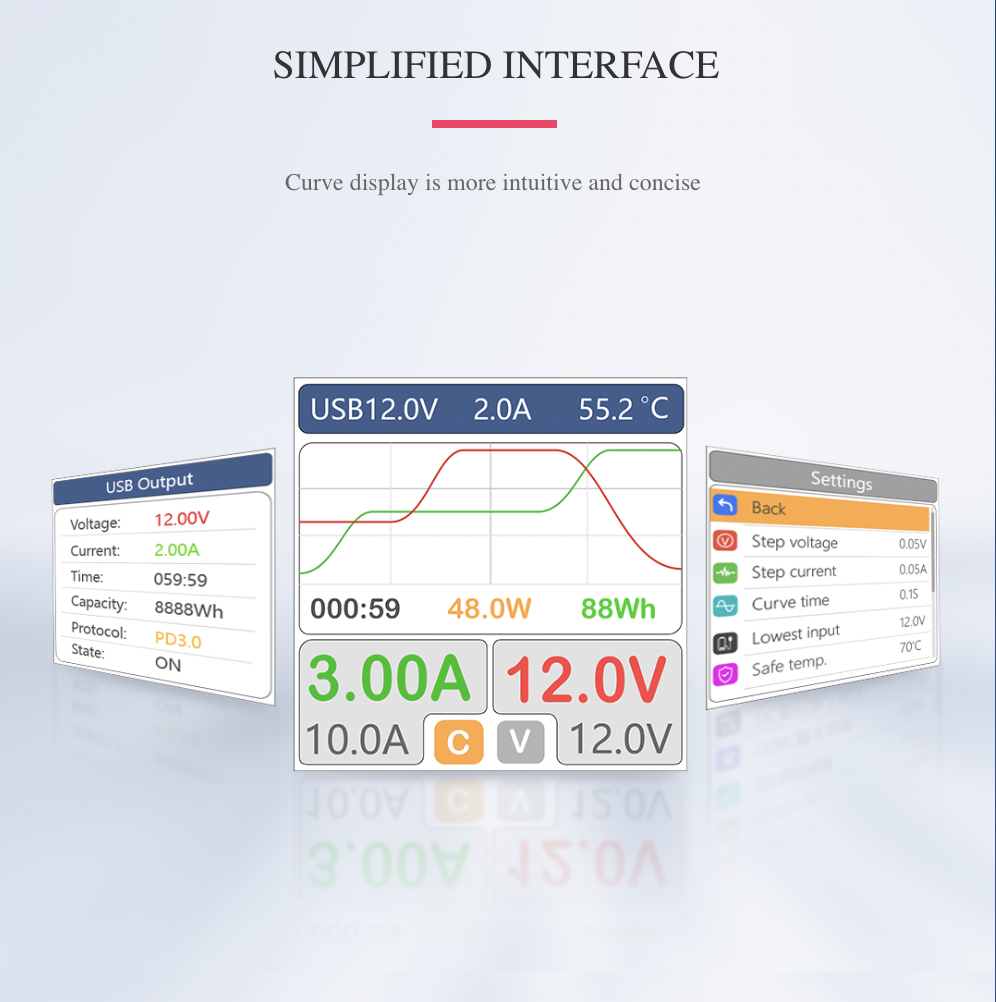

power supply, IPS wide-angle display screen records and

curve display voltage and current, and other features.

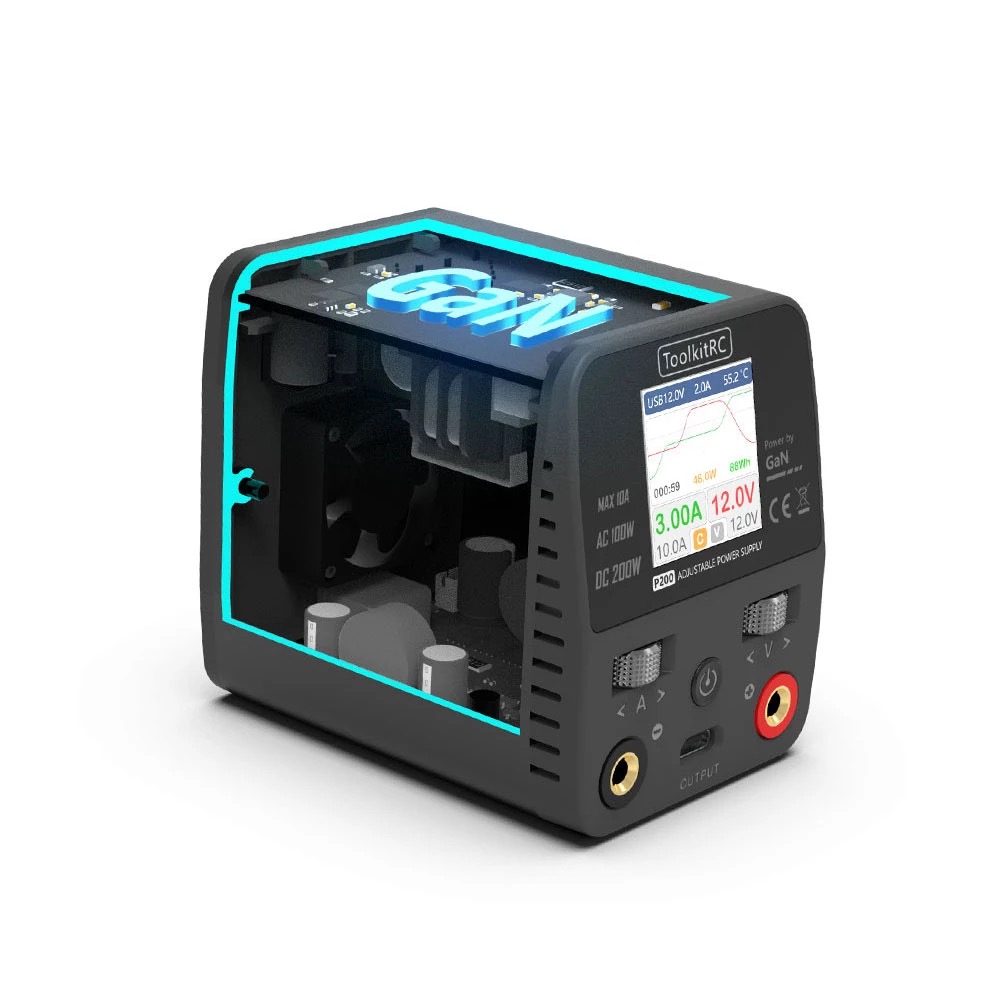

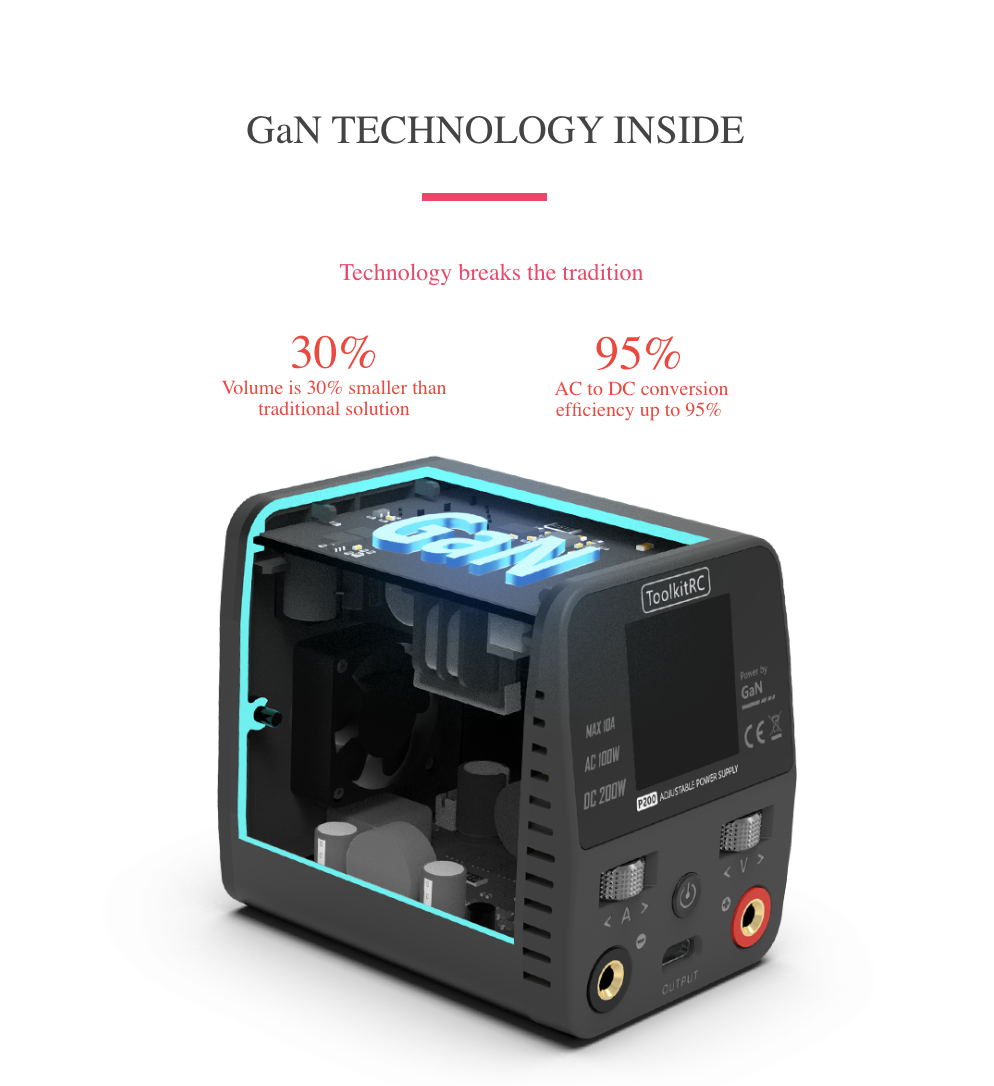

• Built-in gallium nitride (GaN) small AC power

• supply.

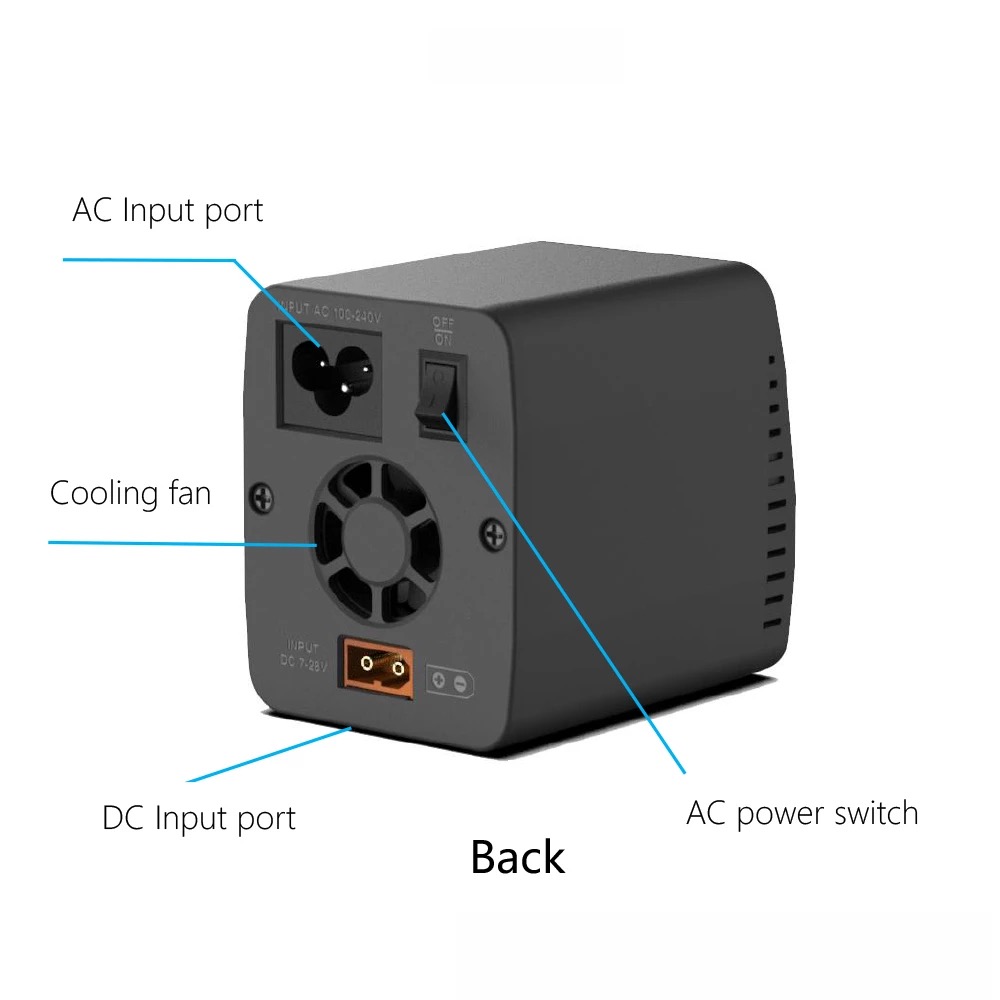

• AC/DC two input modes.

• The conversion efficiency is as high as 95%.

• AC input: the full output power is up to 100W.

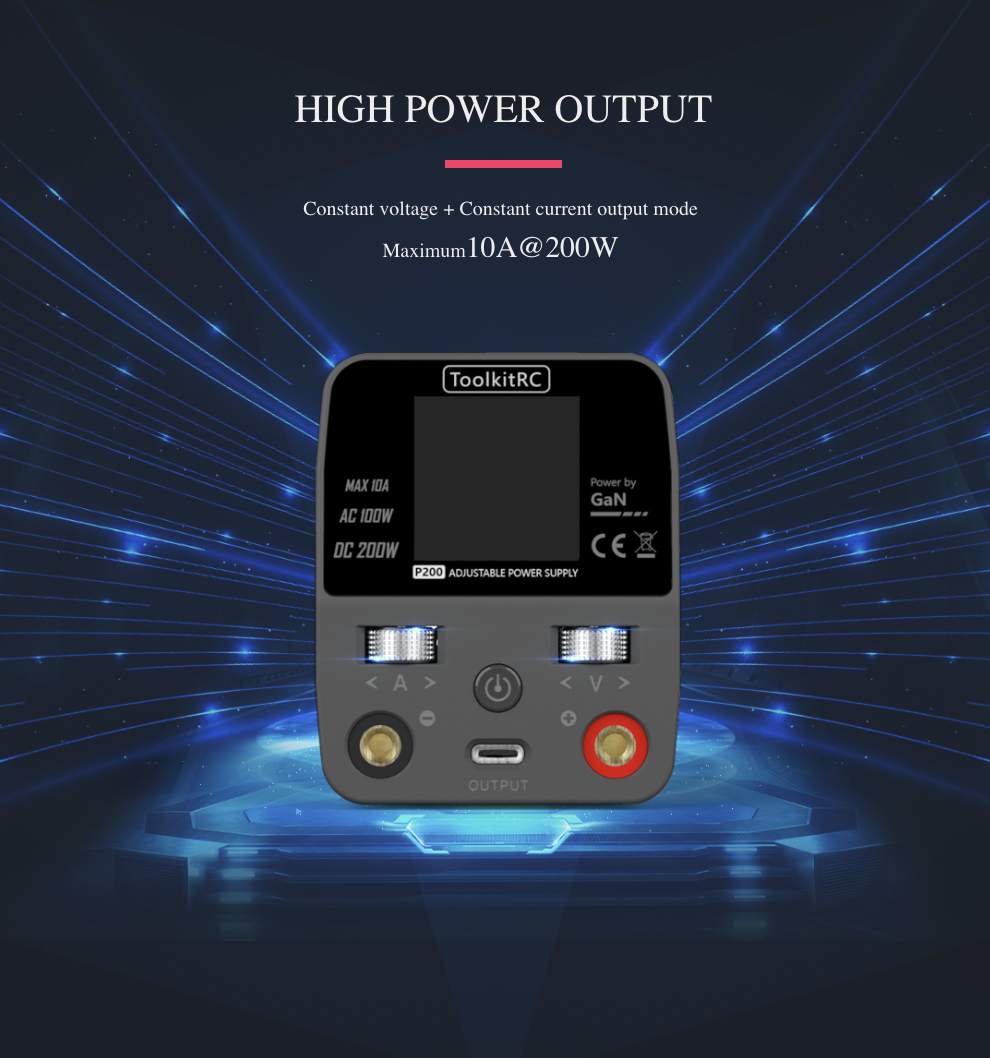

• DC input: the full output power is up to 200W.

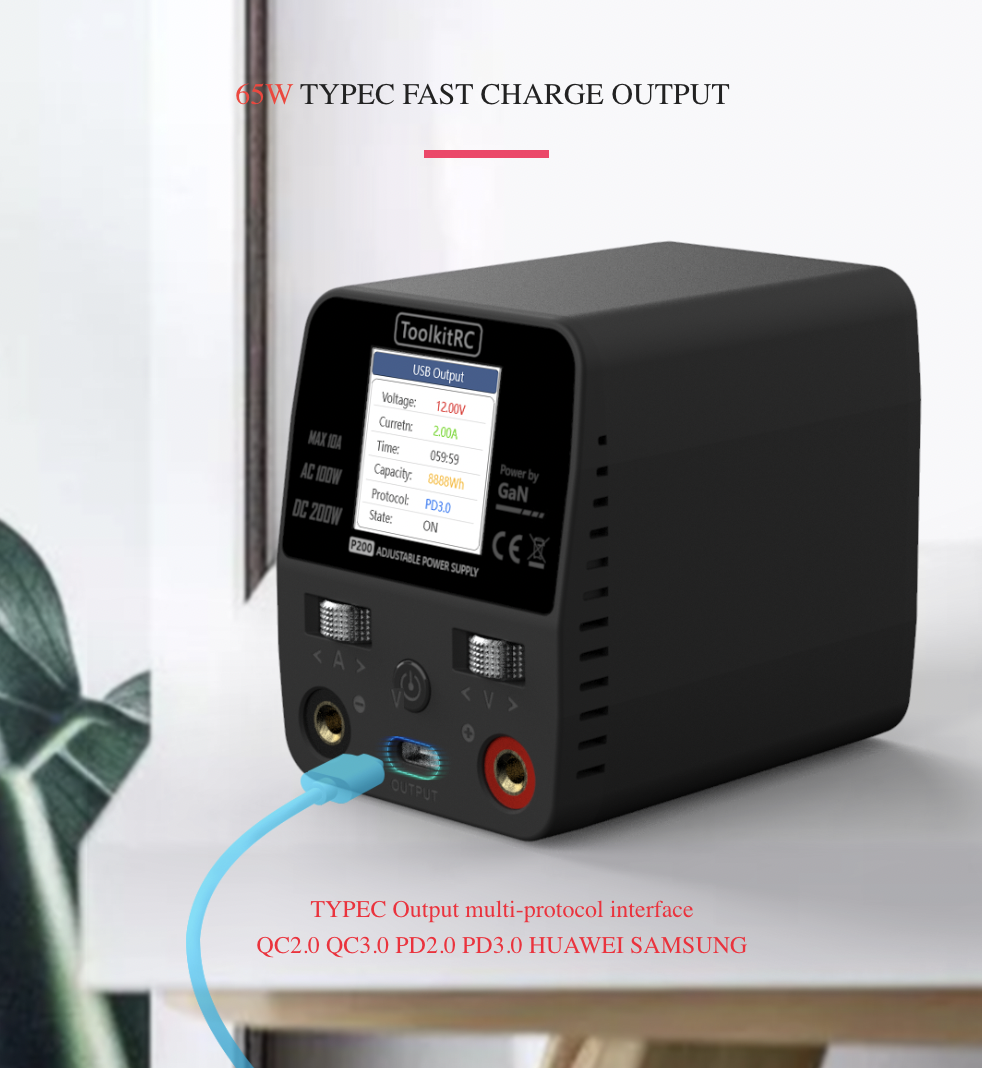

• TYPE-C MAX output 65W.

• Fast charge full protocol:

• PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0

• /AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC.

• 1.0-30.0V adjustable output voltage.

• 1.0-10.0A adjustable constant current。

• Over voltage, over current, over temperature, short

• circuit, multiple protections.

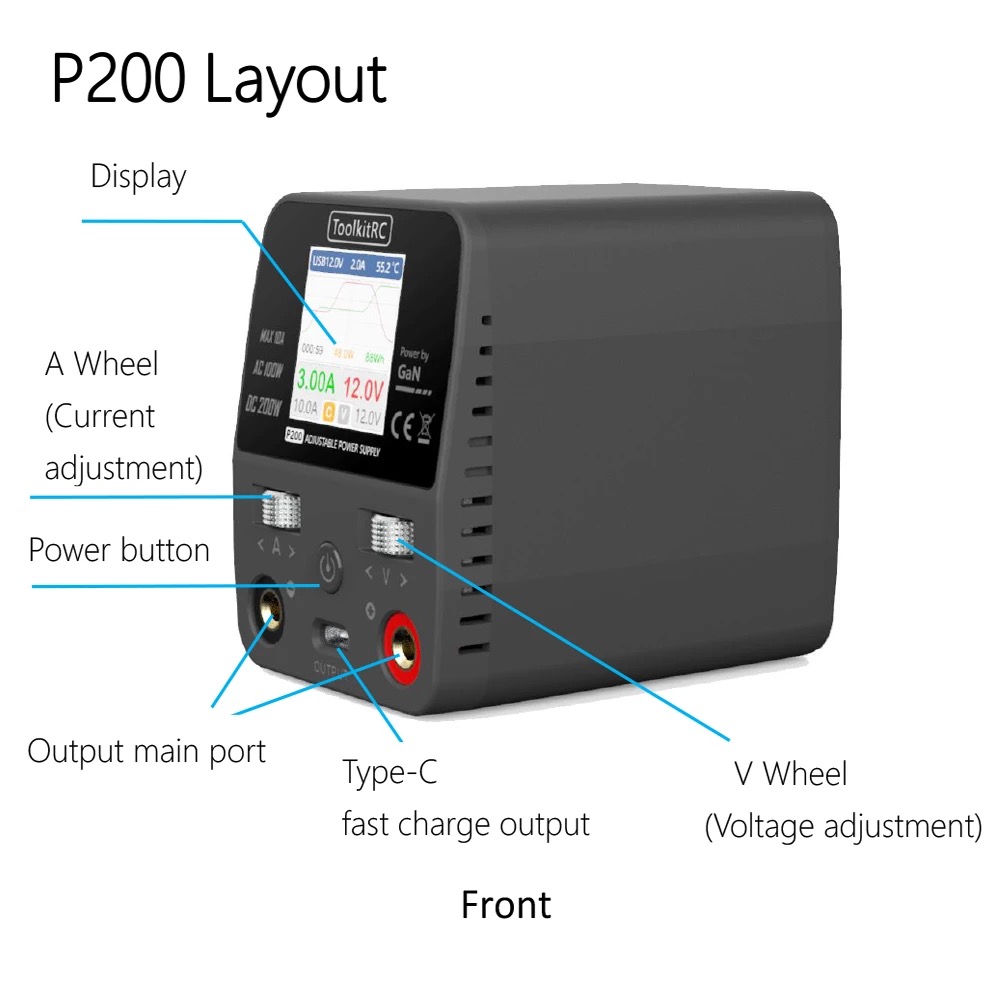

• Metal dial wheel, feels hard and good.

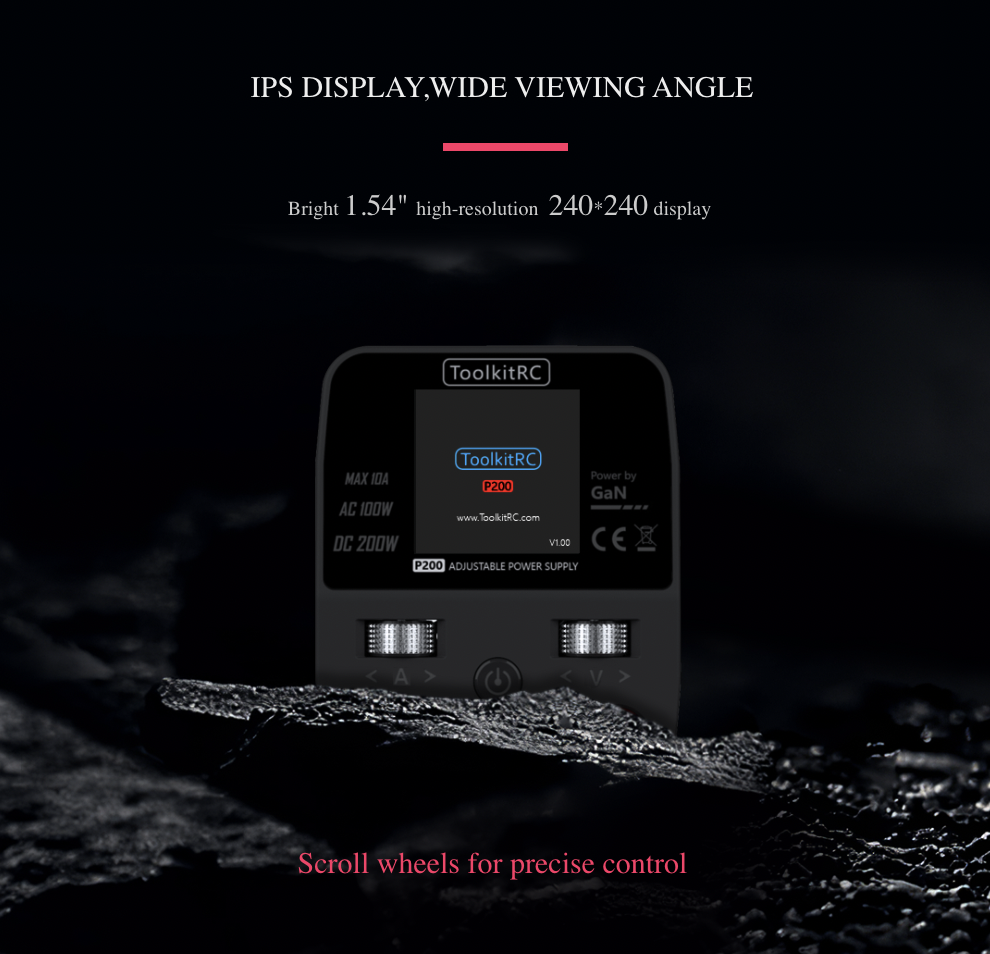

• IPS 1.54" high-brightness high-definition display.

• The device is simulated as a U disk, and the

• upgrade file is copied to realize the product

• firmware upgrade.

Safety

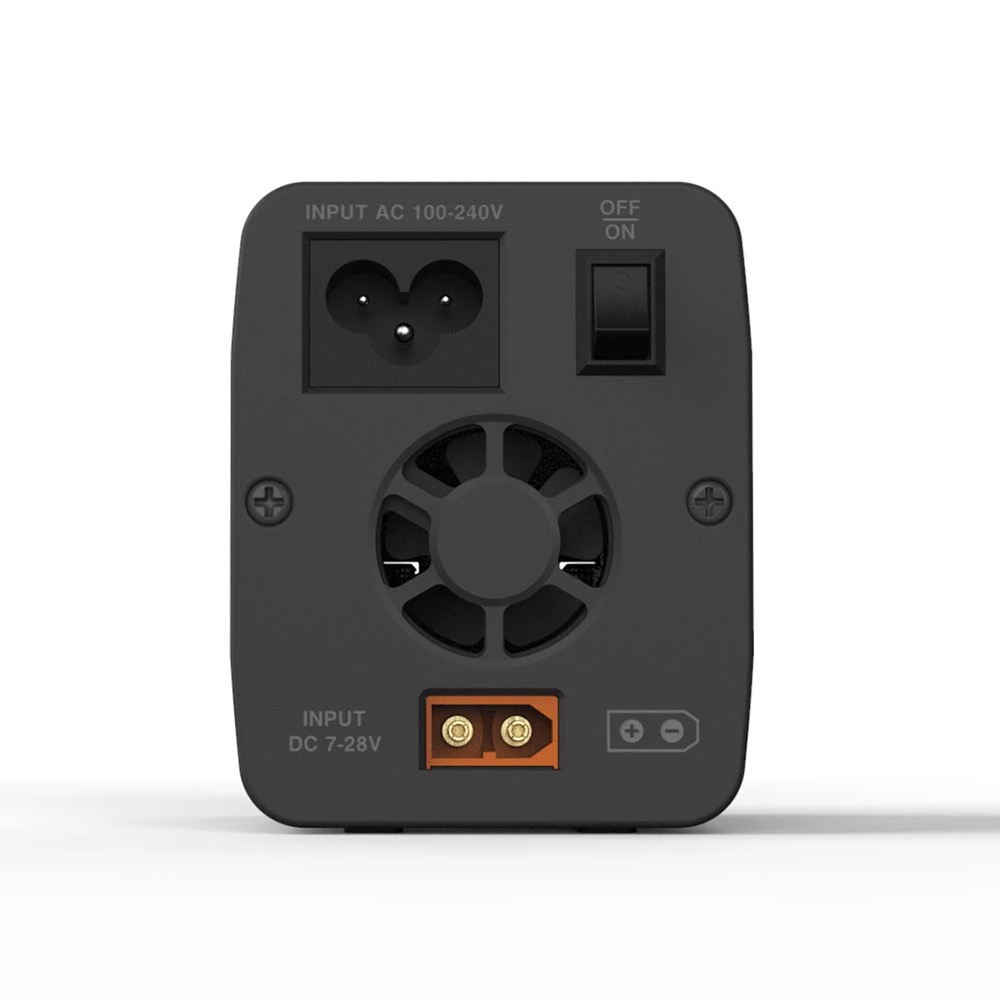

1. P200 allows the input voltage of DC 7-28V or AC

100-240V to ensure that the power supply voltage

conforms to the power supply. Pay attention to the

positive and negative polarity of the power supply

when connecting.

2. Do not use this product in the environment of heat

source, humidity, flammable and explosive gas.

3. Please use this product when someone is guarded to

prevent accidents.

4. When not using this product, please unplug the input

power in time.

5. When using the charging function, please set a

current that matches the battery. Do not set an

excessive current for charging, so as not to damage

the battery.
