Happymodel 1S Balance Charging Board 4 in 1 บอดชาทแบต ทีละ 4ก้อน

Overview:

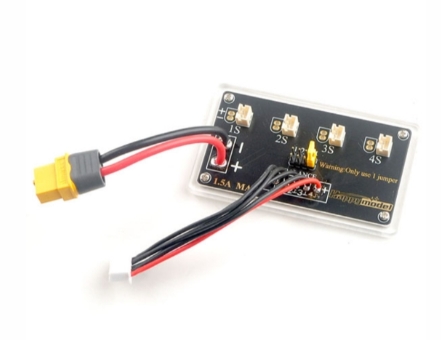

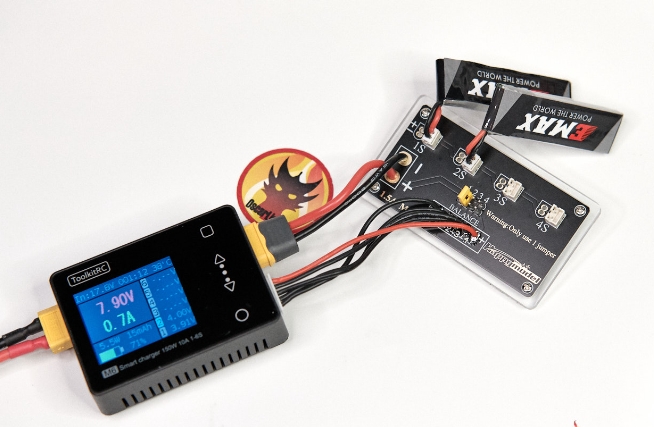

The Happymodel 1S Balance Charging Board allows you to charge upto four 1S LiPo batteries with PH2 connector at the same time. A jumper allows selection between 1S, 2S, 3S, 4S (or 1-4 cells). The board supports a maximum 1.5A charging current but charge at 1C to be safe. This method of charging is a little safer then parallel charging as it allows the charger to individually monitor and balance each cell.

Usage guidelines:
- Always load identical model/chemistry/mAh count 1S cells into the charger. Don't mix models, capacities or LiHV/LiPo cells.
- Change the jumper selection to match the number of connected cells. E.g if 4 batteries, jumper to position 4. If 3 batteries jumper to position 3 etc.

Specifications:
- Model: Happymodel 1S balance charging board
- Input Connector: XT60 + JST-XH 4S Balance lead
- Output Connector: 4x PH2.0
- Max: 1.5A Current
- Weight: 35g
- Dimensions: 81mm x 46mm x 20mm

Included:

- Happymodel 1S Balance Charging Board
