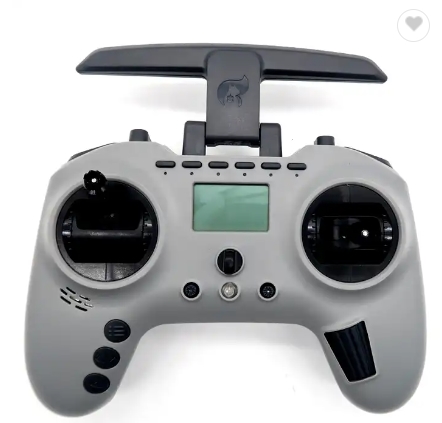

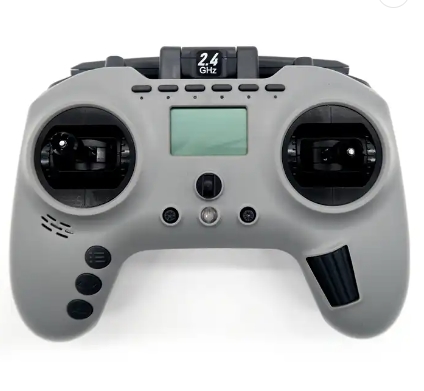

Jumper T-Pro JP4-in-1 Multi-protocol & ELRS Remote Controller Hall Sensor Gimbals

Feature:
JP4-in-1 Multi-protocol module included. DSM2/X, FrSKY, SFHSS, FlySky, FlySky AFHDS2A, Hubsan etc.
OpenTX firmware
Hall sensor gimbals
ELRS Nano / TBS CRSF Nano compatible module bay on rear side.
USB-C internal charging
Up to 16 channels of output (depending on the receiver)
Wide voltage input (2pcs 18650 recommended)
Vibration reminder function
Support telemetry (depending on the receiver)
LUA Script support: Yes

Specification:
Size:160*128*68
Weight: 488g (without battery)
Working voltage: DC6V-DC8.4V
Firmware: OpenTX
Display: 1.3 inch LCD display, 128* 64 resolution
Gimbal Type: HALL Sensor
Upgrade method: USB online upgrade
Simulator mode: 3.5mm standard ppm output or USB

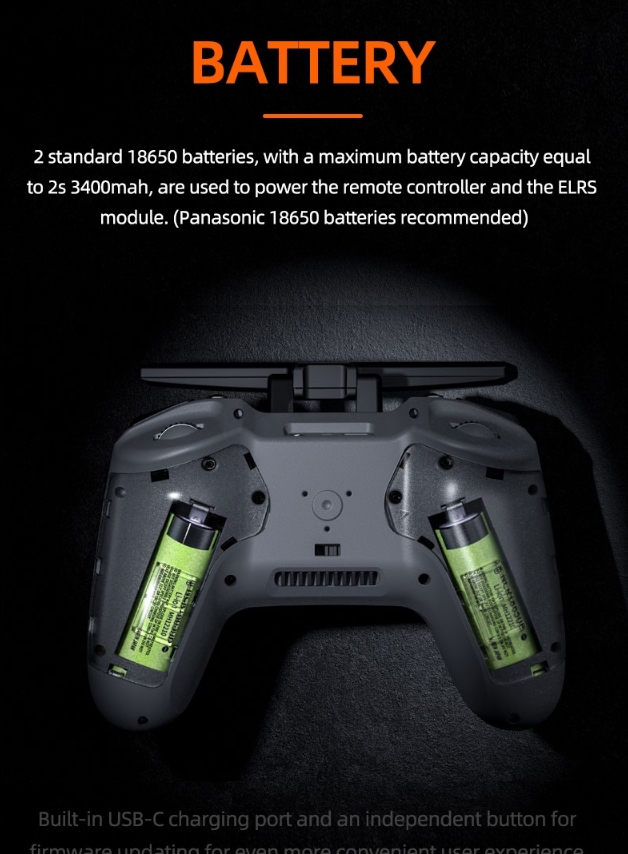

Battery: 2x18650 (Battery not included)
External Micro SD Card: reserved SD card slot

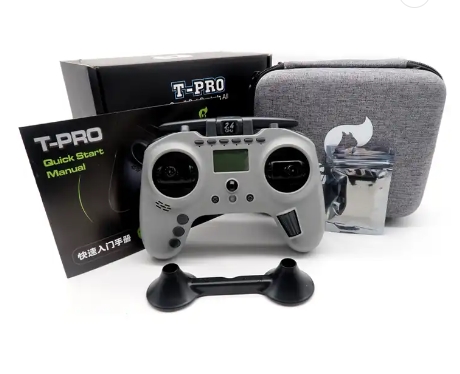

Package Included:
1*T-Pro Remote Controller
1*Zipper Case

T-pro with Internal 2.4G ExpressLRS

Specification:
Size:160*128*68
Weight: 488g (without battery)
Working voltage: DC6V-DC8.4V
Firmware: OpenTX
Display: 1.3 inch LCD display, 128* 64 resolution
Gimbal Type: HALL Sensor
Upgrade method: USB online upgrade
Simulator mode: 3.5mm standard ppm output or USB
Battery: 2x18650 (Battery not included)
External Micro SD Card: reserved SD card slot

Package Included:
1*T-Pro Remote Controller
1*Zipper Case

Jumper has released new gamepad style radio controller called T-Pro. Looking at the radio you can see that its design is clearly similar (“inspired by”) TBS Tango 2 and/or DJI Remote Controller V2 radios. Jumper “borrowed” the best design aspects from the both radios. The top part of the radio is more similar to the DJI Remote and the bottom part resembles TBS Tango 2.

It will have internal 4-in-1 multiprotocol at first and then version with internal 2.4GHz ExpressLRS modules will be released with foldable and non removable antennas that can’t be oriented vertically (be the way, the recommended position of the dipole antenna should be vertical)

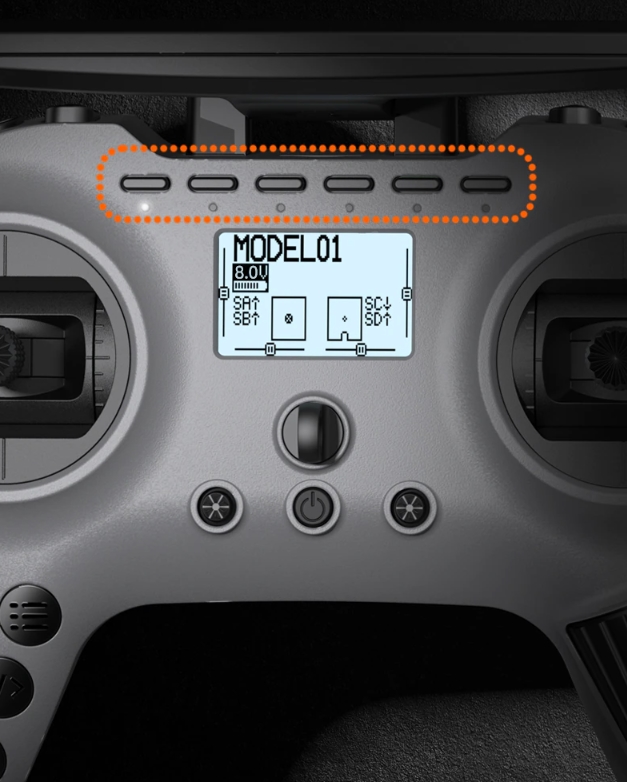

Jumper T-Pro will have the same gimbals as on the Jumper T-Lite radio, navigation scroll wheel as on TBS Tango 2 and three buttons for menu control. There are two trimmer joystick switches and the neck strap hook in the middle. 6-pos push buttons are located on the top side of the radio. T-Pro is equipped with 128×64 monochrome LCD screen.

There will be two 3-pos toggle switches (similar as on TBS Tango 2), two momentary switches and two scroll wheels.

Jumper T-Pro will have JR Lite (Nano) TX module slot for Multiprotocol, ExpressLRS or TBS Crossfire/Tracer modules.

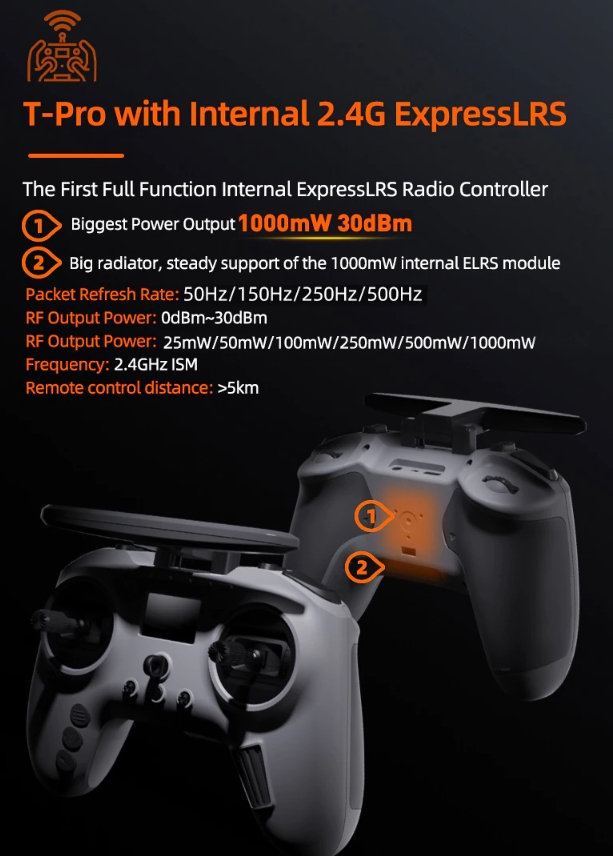

There is also Jumper T-Pro version with integrated ExpressLRS module. Up to 1000mW (30dBm) of RF power output.

Jumper T-Pro switches and buttons layout diagram. (Glossary: “Hall rocker” – hall effect gimbal, “Fine-Tuning” – trim button, “Unlock button” – momentary button
