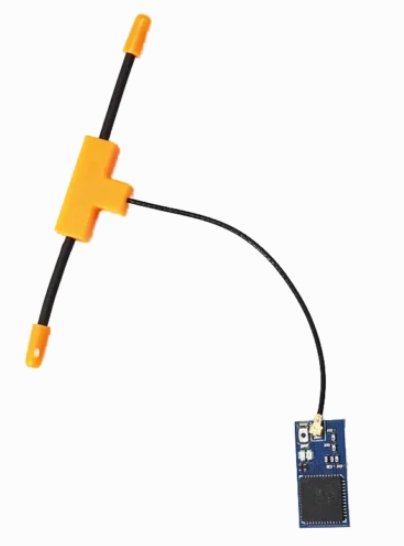

Jumper R1 V2 Mini D16 receiver with FrSky D16

Specifications

• Brand Name: Jumper
• Item Name: R1 V2 Mini RC Receiver
• Model: R1 V2 Mini
• Dimension: 17.2*8.8*4.5mm (L x W x H)
• Weight: 1.5g
• Number of Channels: 16Ch
• Operating Voltage Range: 3.5V—6V
• Operating Current: 60mA@5V
• Operating Range: Full range
• Distance: >2KM
• Compatibility: radios in D16 mode

Binding Procedure

Binding is the process of uniquely associating receiver to a transmitter/transmitter RF module . A transmitter internal or external RF module can be bound to multiple receivers (not to be used simultaneously).A receiver can only be bound to one RF module.Follow the steps below to finish the binding procedure.

– Put the transmitter/transmitter RF module into binding mode

– Connect battery to the receiver while holding the F/S button (hold for more than 6 seconds) on the receiver to enter the binding mode (red and green LEDs constant on). Press “bind” on the transmitter, the RED LED flashing indicates binding successfully. Reboot the receiver and go back to normal Mode of transmitter RF. Green LED constant on indicates linking normally.

Included

• 1 x R1 V2 Mini RC Receiver
• 1 x Manual
