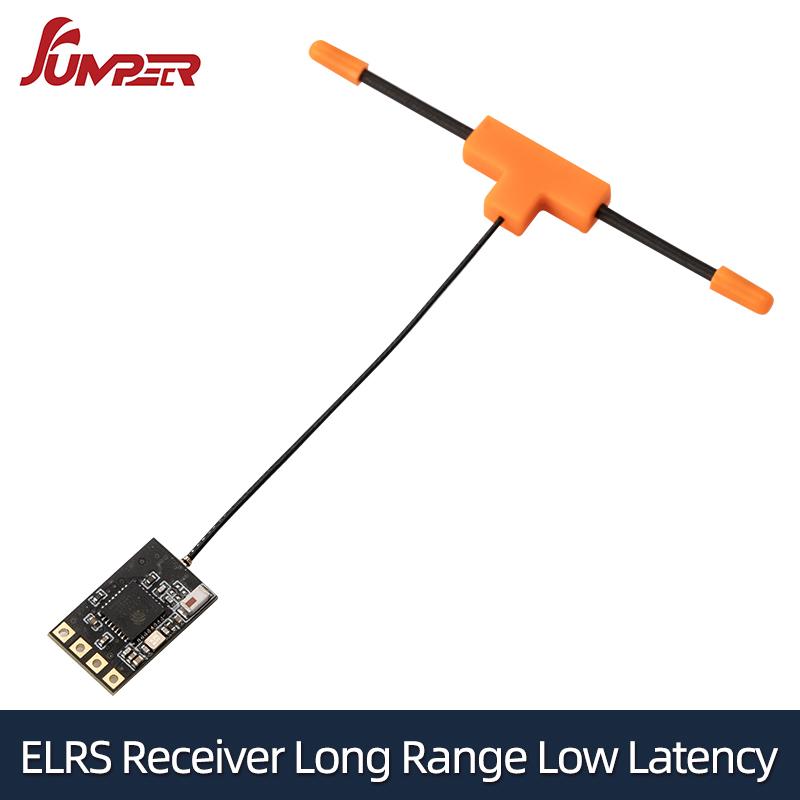

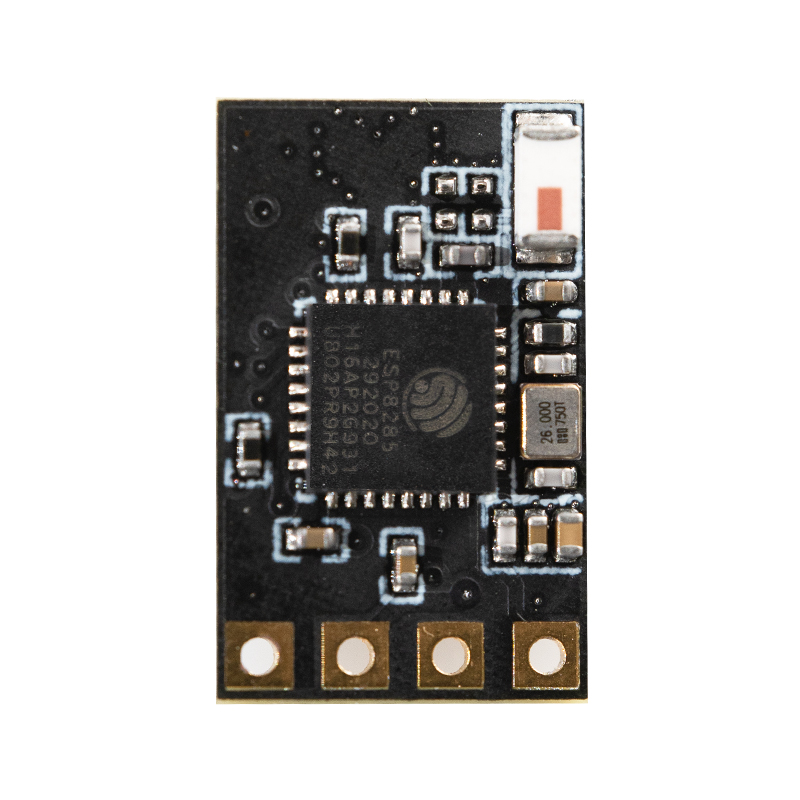

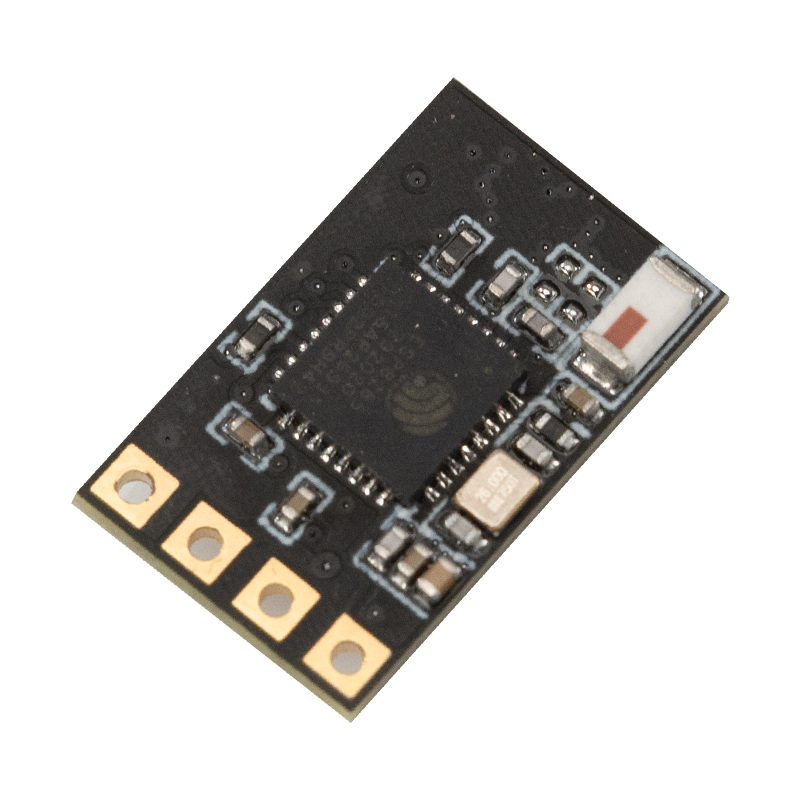

Jumper 2.4GHz ExpressLRS ELRS AION-RX-MINI receiver RX-MINI(ELRS)

Specifications

• Dimension: 17.2*8.8*4.3mm (L x W x H)
• Weight: 1.1g
• Number of Channels: 16Ch
• Operating Voltage Range: 3.5V~6V
• Operating Current: 60mA@5V
• Operating Range: Full range
• Distance: ＞5KM
• Compatibility: radios in ELRS 2.4 mode

Binding Procedure

Binding is the process of uniquely associating the receiver to a transmitter/transmitter RF module. A transmitter internal-external RF module can be bound to multiple receivers (not to be used simultaneously). A receiver can only be bound to one RF module. Follow the steps below to finish the binding procedure.

1. Put the transmitter/transmitter RF module into binding mode
2. Power on the receiver, the receiver’s green light will flash and the receiver is in binding mode. Bind in the radio, the receiver’s green light will be always on, then the binding is completed. If the receiver is not bound in 20 seconds after power-on, the receiver will get into Wifi firmware updating mode, the green light will flash at the same time.

Failsafe

Failsafe is a useful feature that is for a preset channel output position whenever the control signal is lost for a period. Follow the steps to set Failsafe for channels necessary: Failsafe for receiver supporting ELRS RF mode setting can be set via the radio interface, which supports no pulse, hold and custom three modes for each channel. radio go to MODEL SETUP/Internal RF/Failsafe.

Note: Failsafe setting via transmitter for channel output position just for ELRS RF mode, and Failsafe setting via transmitter has higher priority to setting via the receiver. A reasonable Failsafe setting can decrease falling risk and damage.

Includes

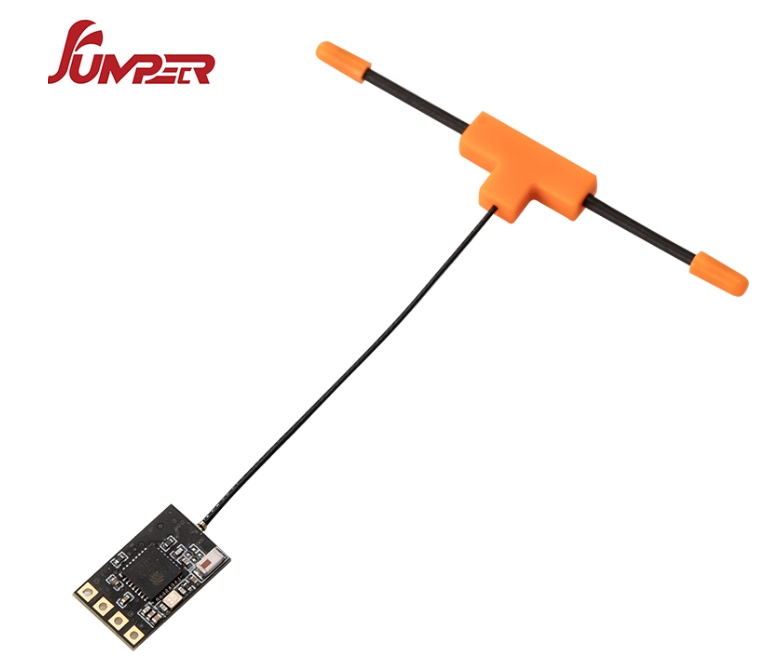

• 1x Jumper 2.4GHz ExpressLRS ELRS AION RX Mini Receiver
• 1x Antenna
