[AIO] Happymodel X12 V 2.1 AIO 5-in-1 Board - F4 + 12A FRSKY / ELRS บอด Mobula7 Mobula8

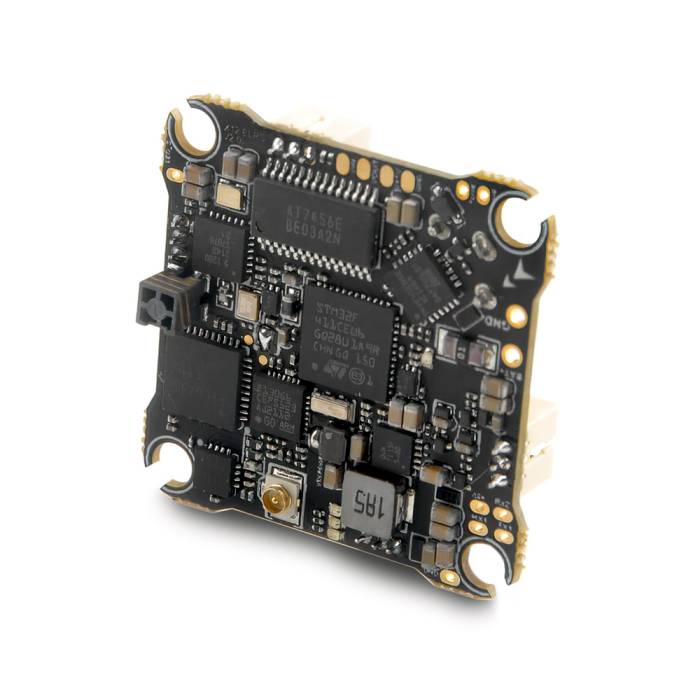

The Happymodel X12 is a 5-in-1 AIO board featuring an F4 Flight Controller, onbard 12A 4-in-1 ESC, 5.8GHz OpenVTX, and three different receiver options: PNP, FrSky, or ELRS. This AIO is great for brushless whoops with its great RX an VTX range!

Features

• PNP, FrSky, or ELRS Receiver Options
• Great for 1-2S Brushless Whoops
• Onbard 12A 4-in-1 ESC
• F4 Flight Controller
• 5.8GHz OpenVTX
• 5-in1 AIO Board

Specifications

• Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
• ELRS Version: CRAZYBEEF4SX1280
• LITE Version:CRAZYBEEF4SX1280
• FRSKY Version:CRAZYBEEF4FR
• PNP Version:CRAZYBEEF4DX
• Support 1-2S Lipo/LIHV battery
• Brand Name: Happymodel
• Betaflight firmware target:
• Size: 30x30x8mm
• VTX antenna: U.FL
• Weight: 5.1g

FLIGHT CONTROLLER

• Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470

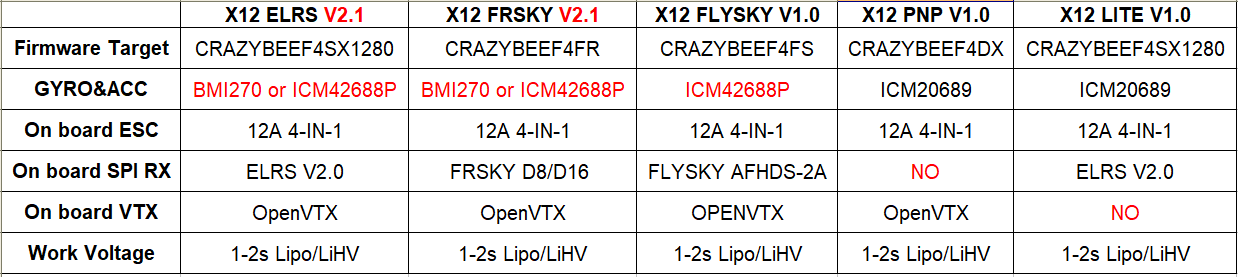

• Reciever Target:

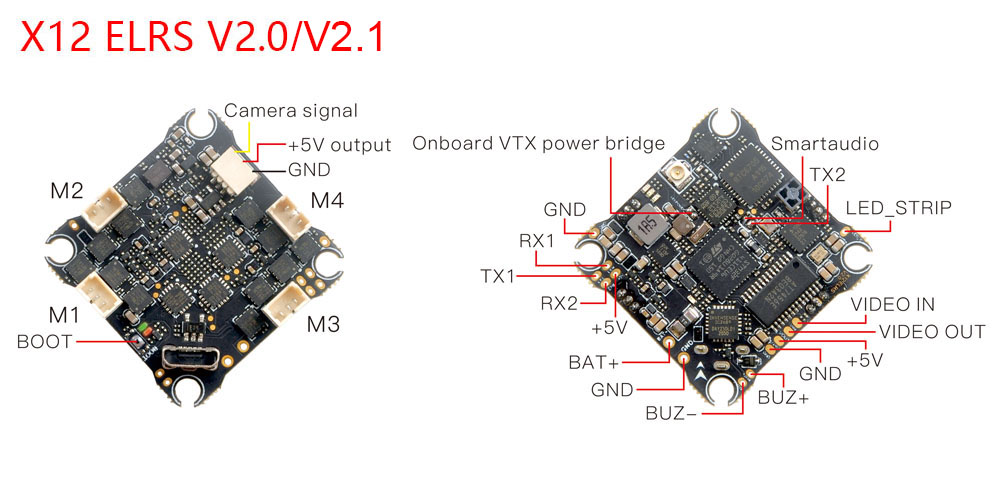

• X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
• X12 Frsky V1.0 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR

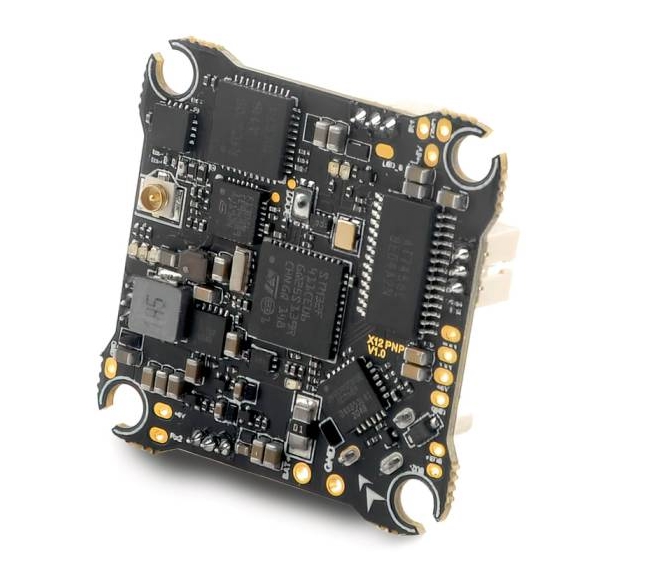

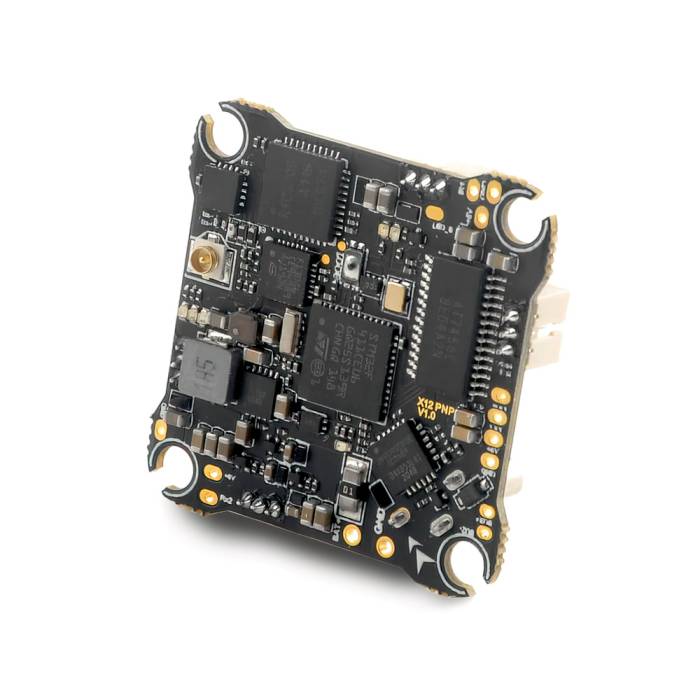

• X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX
• X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280
• Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Power supply: 1-2S battery input (DC 2.9V-8.7V)
• Built-in ExpressLRS 2.4G,Frsky D8/D16
• Built-in 5.8G OpenVTX 0mw~400mw
• Built-in 12A(each) Blheli_S 4in1 ESC
• Built-in Betaflight OSD(SPI Control)
• Mount hole size: 25.5mm*25.5mm

ONBOARD 4-IN-1 ESC

• When use Blujay firmware with 48khz, should set startup power to 1100/1200
• Current: 12A continuous peak 15A (3 seconds)
• Factory firmware: Z_H_30_REV16_7.HEX
• Support BLHeliSuite programmable
• Power supply: 1-2S LiPo/LiPo HV
• Default protocol: DSHOT300
• Support Bluejay firmware

ONBOARD 5.8GHZ VTX

• Transmitting Power: 0/RCE/25mw/100mw/400mw
• Current (5v): <650ma (400mw)
• Firmware version: OPENVTX
• Antenna connector: U.FL
• Power supply: DC 5V
• RCE Mode support
• PIT Mode support
• SmartAudio v2.1
• Channels:48ch

RECEIVER OPTIONS - PNP, ELRS, FRSKY

ONBOARD SPI ELRS 2.4GHz

• Packet Rate option: 50Hz/150Hz/250Hz/500Hz
• ExpressLRS Firmware version: V2.0
• RF Frequency: 2.4GHz
• Antenna : SMD antenna
• Telemetry output Power: <12dBm
• Receiver protocol: SPI ExpressLRS
• Compatible with ExpressLRS V2.0 TX Module
• Couldn’t flash separately ExpressLRS firmware

ONBOARD FRSKY SPI D8/D16

• SPI BUS receiver
• CC2500 RF
• Compatible Non EU transmitter D8 model Channels: 8ch
• No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
• Support Frsky D8/ D16 , Redpine , SFHSS

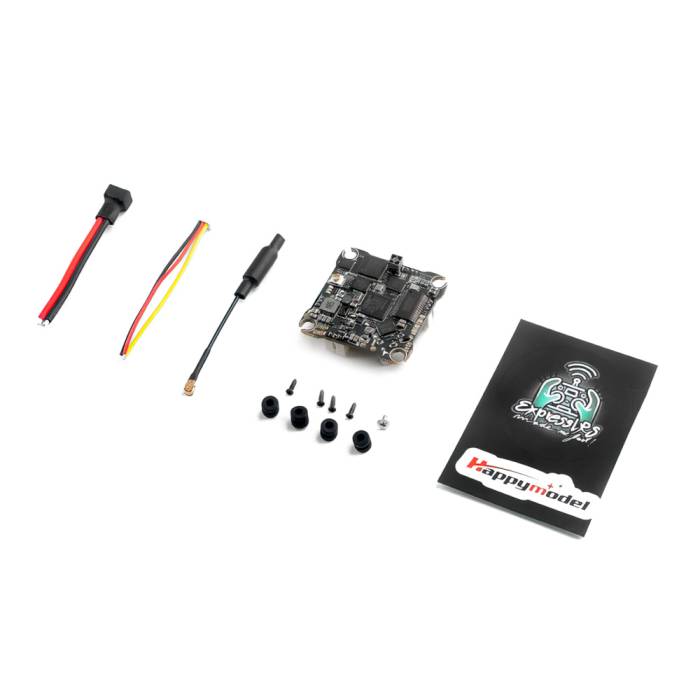

Includes

• 1x Happymodel X12 AIO 5-in-1 Board - F4 FC + 12A ESC (Choose Receiver)
• 1x Connecting Wires Set
• 1x Hardware Set
• 1x Antenna
